Product Overview

Description




VHF/UHF Narrowband

High Speed Data Radio

FC-206 / FC-208GT

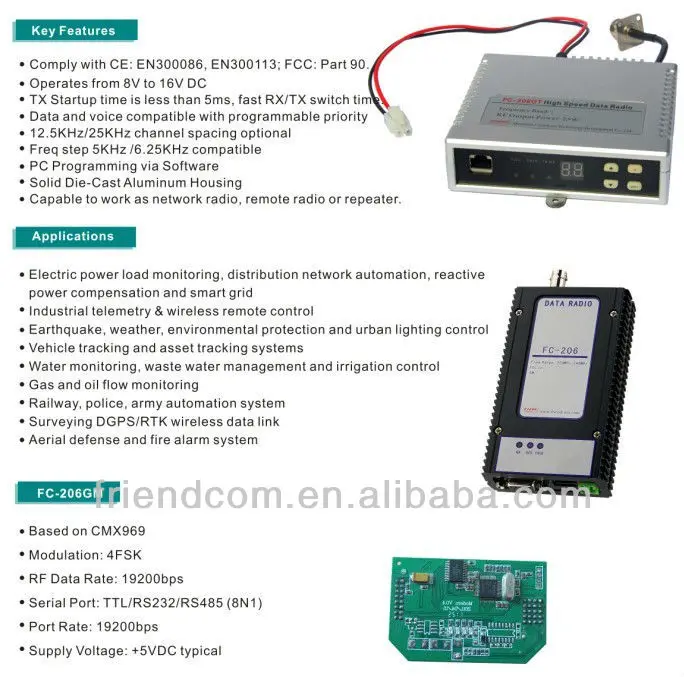

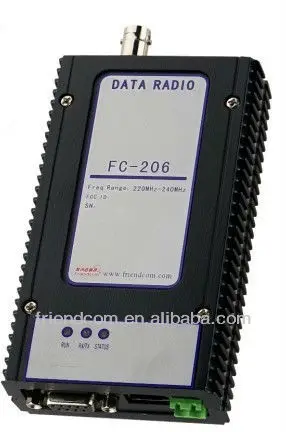

FC-206(10W) or FC-208GT(25W) is PLL synthesized FM data radio. It is   characteristic of its fast TX startup time. Two-point modulation is applied in the radio. Embedded data modem based on CMX969 is optional, which can easily implement point to point or point to multi-point data or/and voice communication. FC-208GT can be used as base radio and FC-206 as slave radio to work together to form a radio network. They have similar RF features. So only FC-206 is described in details as below:

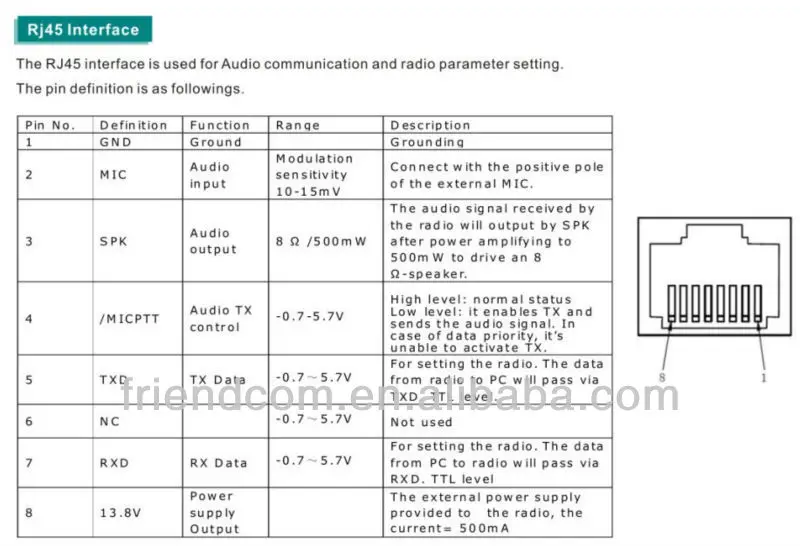

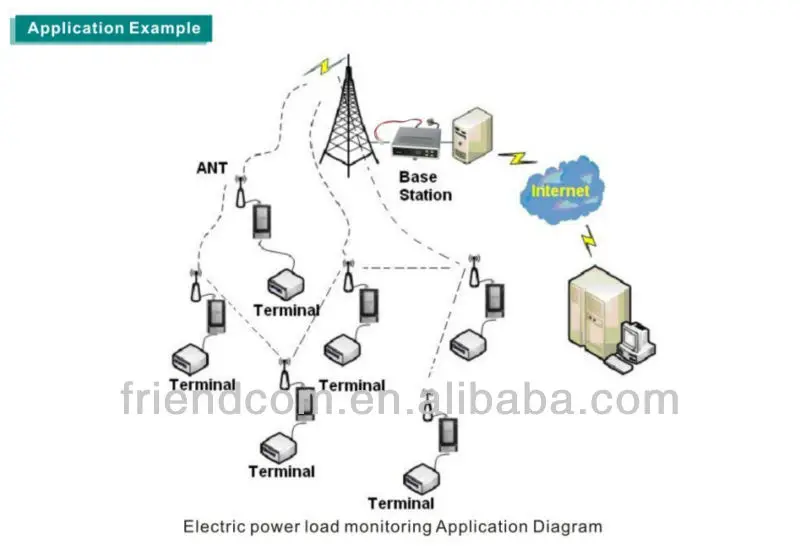

206208.jpgRJ45 INTERFACE.jpgAPPLICATION EXAMPLE.jpg
