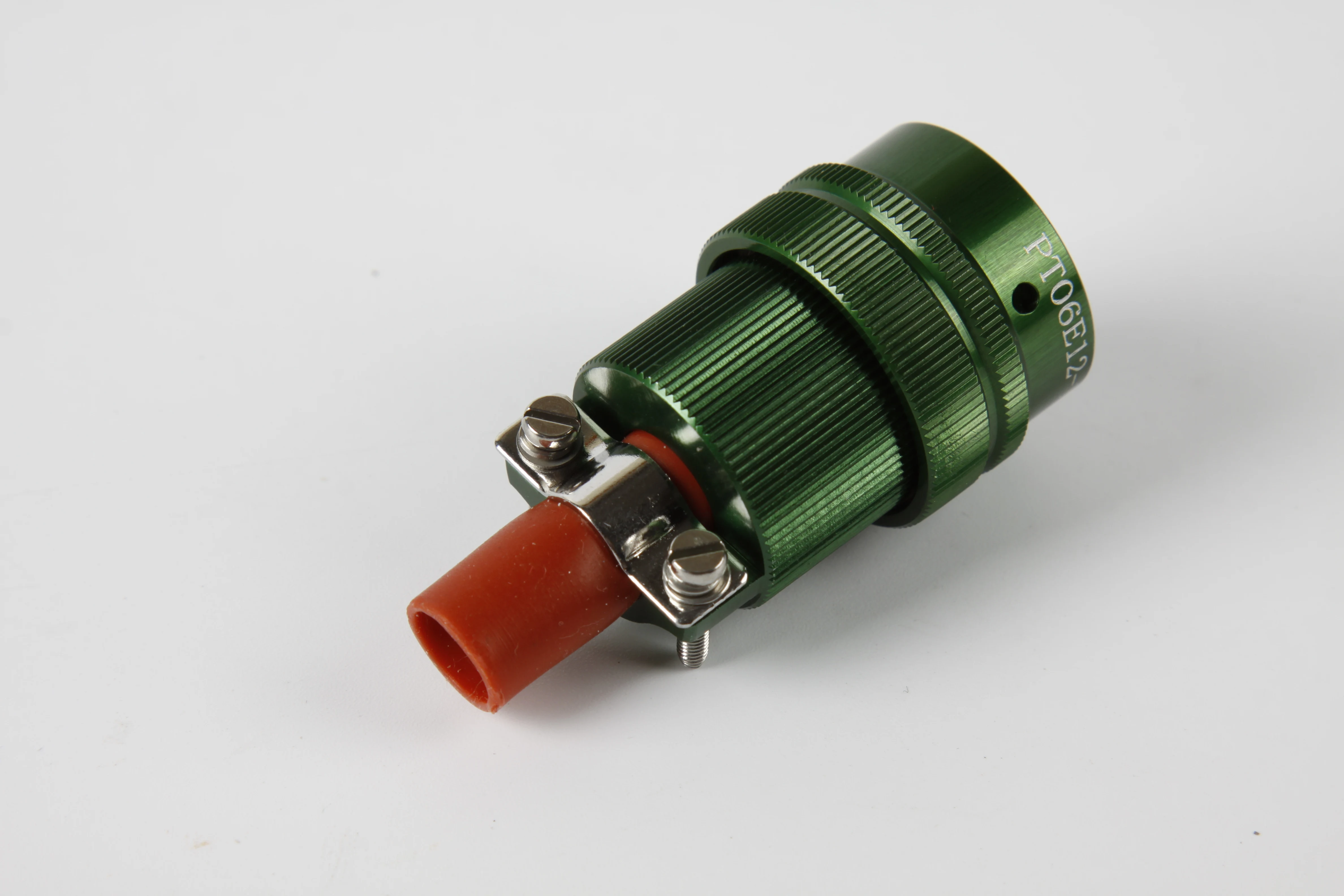

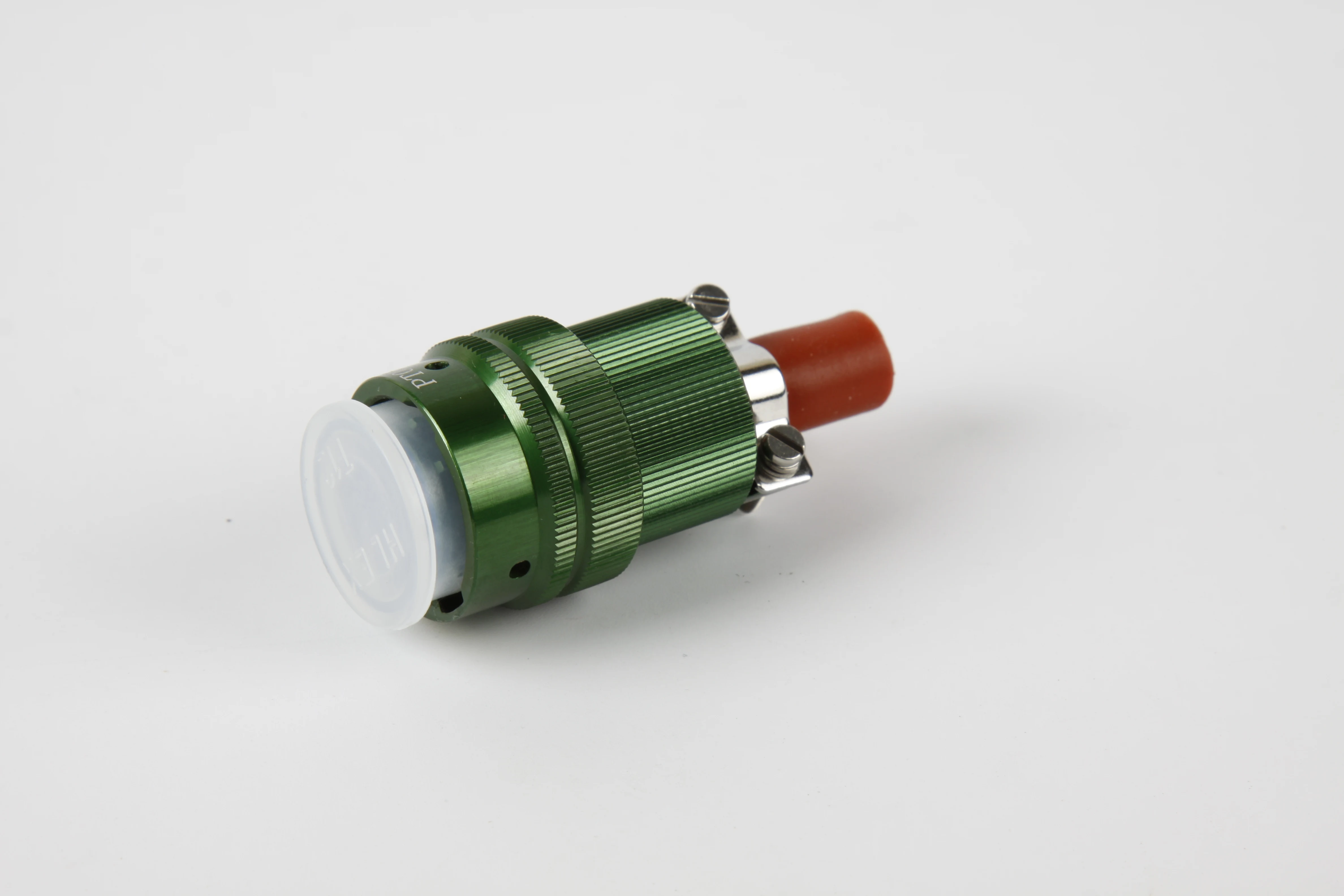

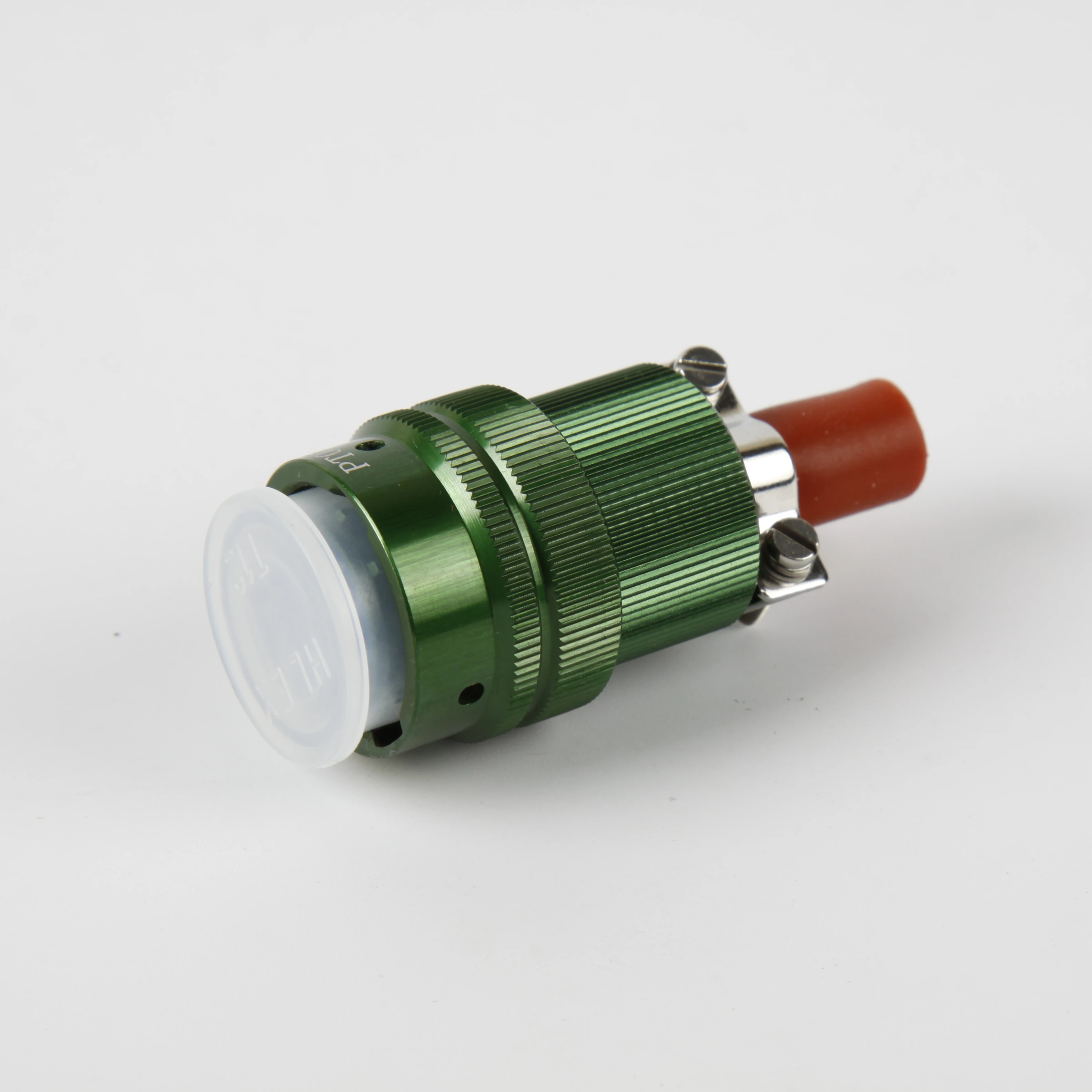

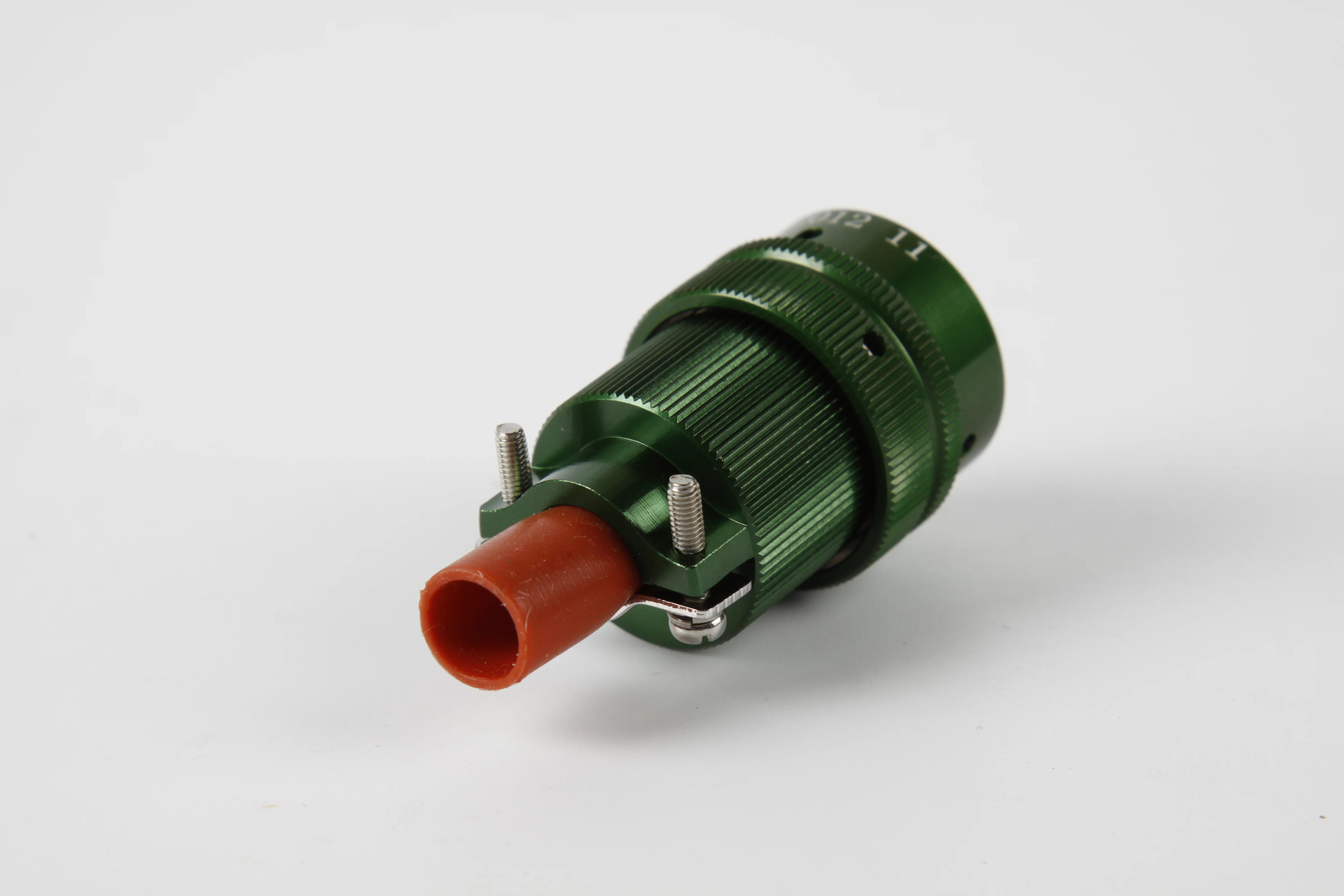

Y2M series circular connectors with bayonet coupling mechanism have the features of convenient application, quick connection and so on. Receptacle are waterproofing. They are widely used for the electric circuit connection between electrical equipment and various electronic equipments.
HOW TO ORDER
Type Designation Introduction
NO.
Tpye Designation
Type
Design
1
Identification Code
Circular Connector
Y2M
2
Mounting Style
Cable
L
Flange
B
4
Arrangement NO.of Contacts
To"Arrangement of Contacts"
Number
5
Plug or Receptacle
Plug
T
Receptacle
Z
6
Contacts Style
Pin
J
Sockets
K
Conditions of use environment
Environment temperature
-55 ° C ~ +125° C
Relative Humidity
at+40° C,92% ~ 98%
Atomspheric Pressure
101.33KPa ~ 6.67kpa
Sinusoidal Vibration
10 ~ 2000HZ, acceleration 196m/s2
Vibration
245m/s2
Shock
980m/s2
Dielectric withstand Voltage
1500V
Insulation Resistance
5000MΩ
Life expectancy
Plug 500
Waterproofing
≥ 0.3MPa
