Inkjet blue printing medical x ray film

Product Overview

Description

 Inkjet blue printing medical x-ray film (used for B ultrasound, color ultrasound, endoscope imaging, etc.)

Description:
X-ray film specially designed for medical imaging.
Suitable for X-ray imaging.
Used to record medical radiographic images during medical X-ray photography
[Product Description] It is made by coating one or both sides of the transparent film base with photosensitive material, which is used to record, display and store medical images.


Product name: Inkjet blue-based film (mainly used for CT, NMR, X-ray, etc.)
[Material] PET
Product specifications and performance parameters:
[Size] A4 21cm*29.7cm; A3 29.7cm*42cm
Other sizes: 8"X10", 10"X12", 11"X14", 14"X17"
According to customer requirements, the arc angle can be cut.
Packing quantity: 1 pack = 100 sheets
Thickness: >0.10mm
Transparency: Blue/Translucent/Waterproof



Inkjet Printing Medical Imaging Blue Film / Medical X-ray Blue film
Material	Polyester Film (PET Base)
Thichness/Base film	175 microns
Sheets size	A4, A3                     Customize size
	8"×10",10"×12",11"×14",14"×17"
Color	Blue
Application	Output of medical image such as X-ray, CT, CR, DR, MR
Suitable Printer	Inkjet printer:   HP, Epson 4910/801/301, Canon IX6780/1800, etc.
Inks Support	Pigment & Dye inks
Sample	Available in A4,8"*10" size etc





[Product Features]
1. The coating is uniform, using the world's advanced equivalent coating technology
2. Good color reproduction, high saturation, strong picture reproduction level, good printing quality, and can clearly express images and text
3. Blue semi-transparent appearance, smooth and smooth surface, anti-skid and anti-static treatment, effectively improve output efficiency
4. The surface of the film is specially treated, which can be observed and perspective at any angle, with good visual effect
5, three-dimensional, color, functional imaging at a glance! Reading is no longer limited by time and space!
6. Don't be picky about printers. Generally, ordinary inkjet printers print very good results and are easy to save.
7. Good color-fixing performance, can effectively prevent image ink spots from smearing and prolong the storage time of printed film
8. Non-toxic, no odor and no harmful gas

[Scope of application]:
This product is suitable for color printers to replace traditional black and white color films such as DR, CR, CT in the industry. Infrared breast, colposcopy, various types of optical speculum and electronic mirror, modeling prediction, color film photography, ophthalmic imaging and other types of diagnosis and treatment reports.

[Storage]:
1. Temperature and humidity: temperature 10℃~23℃, relative humidity 30%~65%, keep away from heat source.
2. Gas: There shall be no acid-base gas such as hydrogen sulfide, ammonia, sulfur dioxide and formaldehyde in the storage room.
3. Stacking type: It should be stored vertically to avoid adverse effects caused by pressure.

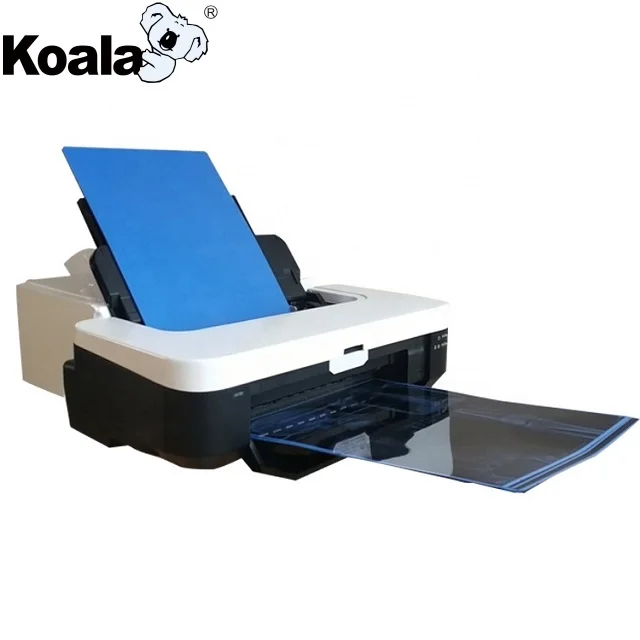

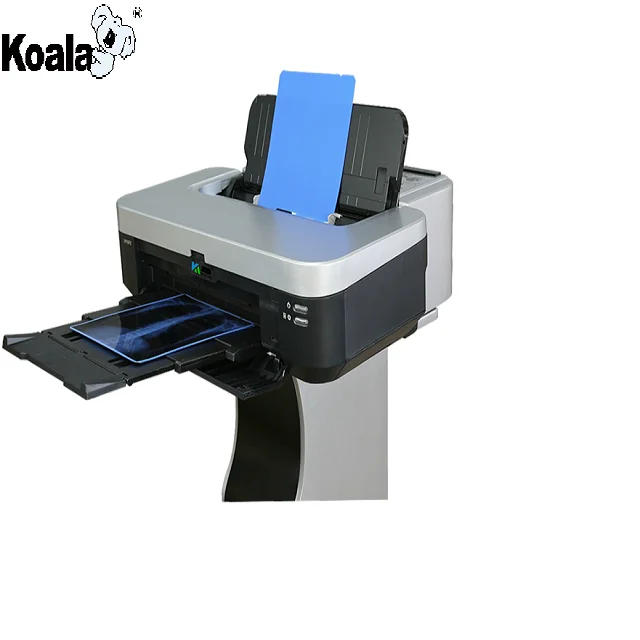

[Instructions for use]Tear off the inner packaging, take out the film and put it into the printer to print the film.
[Use environment]The use environment is a temperature of 18°C to 24°C and a relative humidity of 50% to 65%. Shelf life: <2 years
