ISO1161 контейнер угловой литье/контейнер угловой фитинг

Product Overview

Description

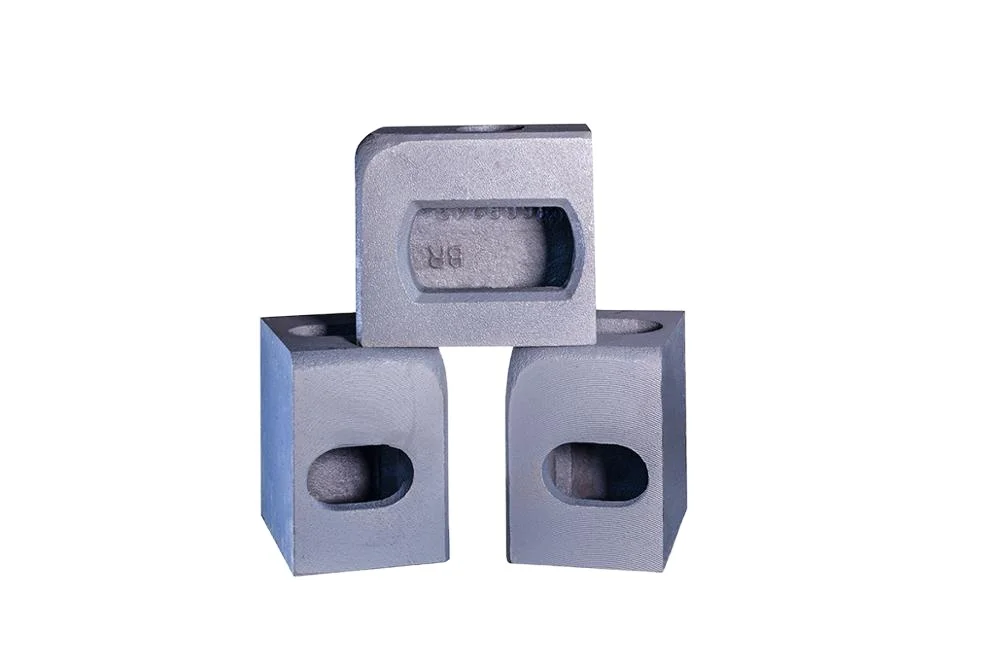

Our STEEL CORNER FITTINGS meet ISO 1161 and are ABS certified.

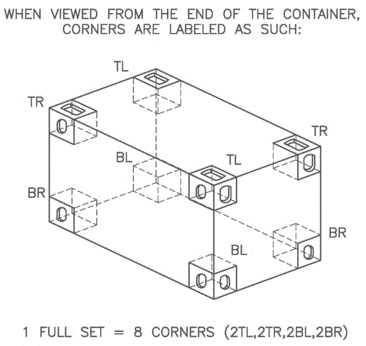

Corner Fittings are available as:

Top Right

Top Left

Bottom Right

Bottom Left

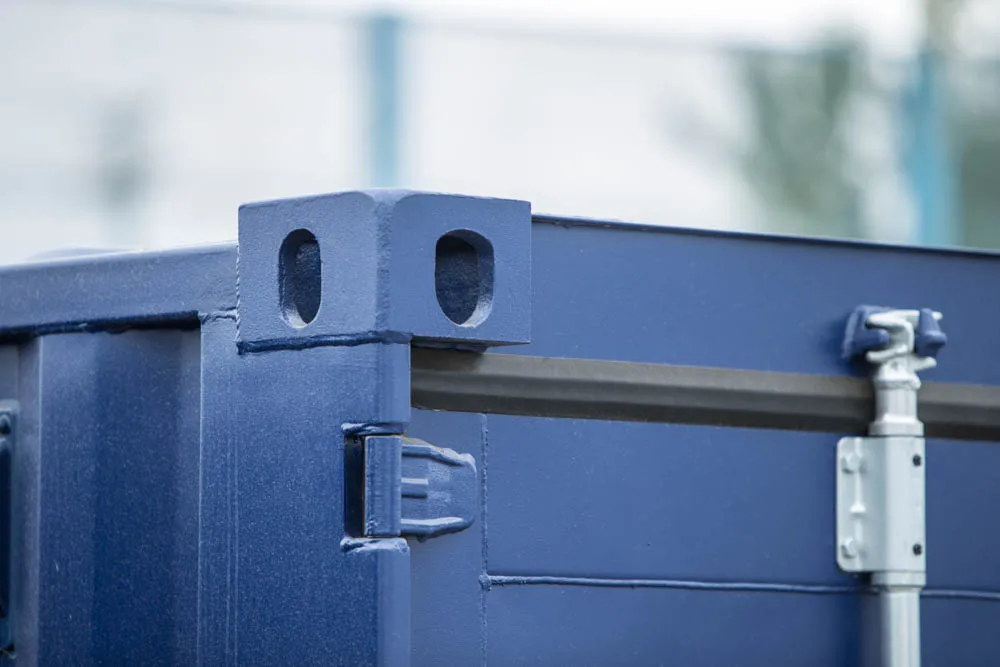

These are the fittings found on all ISO type Containers used for intermodal shipping. They are designed to accept a variety of HUAXING products. They are the fitting to lift from or tiedown from.





MATERIAL: Low carbon steel for welding, SCW480

Corner conforms to ISO 1161. Consult HUAXING-Adina for details.

American Bureau of Shipping Certification is optional.



Product Notes

HUAXING'S ENGINEERING DEPARTMENT’S STATEMENT REGARDING ISO 1161 CORNER FITTING WLL:



An ISO 1161 Corner Fitting’s WLL is dependent upon how it is held in place, how it is loaded, and the physical size (bearing area) of the components used to engage the corner fittings. Each of these will have possibly dramatic impacts on how the corner fitting will respond under a given load. According to the design requirements of the container corner fittings , end users can employ engineers of their choosing to determine the strength (WLL) of the corner fittings in their given custom applications (i.e. applications used outside of the ISO 1161 corner fittings’ original design intent).



The physical dimensions are per the sales drawings found on our website, and mirror ISO 1161 requirements.
