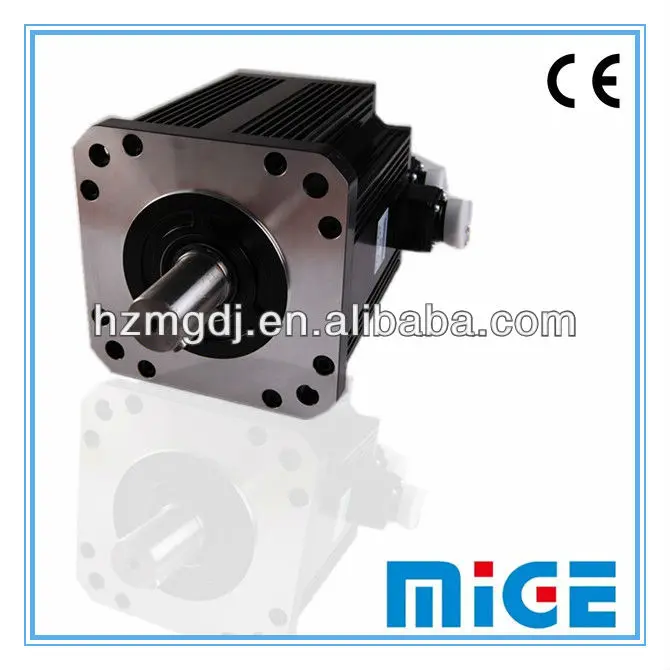

180mm 3kw high torque magnet servo motor
- Category: >>>
- Supplier: Hangzhou Mige Electric Co. Ltd.
Share on (857909199):
Product Overview
Description
We MiGE Electric is a professional manufacturer of high technology,every year we invests 8% of sales income for R&D expenditure.
180mm 3.0kw electric machine (Mige model is 180ST-M19015 )
The motor has some good features, such as low noise, strong over loading resistance and high reliability.
Specifications:
| Motor model | 180ST-M19015 | |
| Rated power(kw) | 3.0 | |
| Voltage(V) | 220 | 380 |
| Rated current(A) | 12 | 7.5 |
| rated speed(rpm) | 1500 | |
| Rated torque(N.m) | 19 | |
| Peak torque(N.m) | 47 | |
| Voltage constant (V/1000r/min) | 97 | 158 |
| Moment coefficient(N.m/A) | 1.58 | 2.5 |
| rotor inertia(Kg.) | 3.8*10-3 | |
| Resistance line-line (Ω) | 0.4 | 1.15 |
| Inductance line-line(mH) | 2.42 | 6.4 |
| Electrical time constant(ms) | 6 | 5.57 |
| Encoder line(PPR) | 2500 | |
| Weight(KG) | 20.5 | |
| Insulation class | Class F | |
| Grade of Protection | IP65 | |
| The operating of Evironmental conditions | Temperature: -20°C +40 °C HumidityBelow 90%RH No dewing | |
