Product Overview
Description

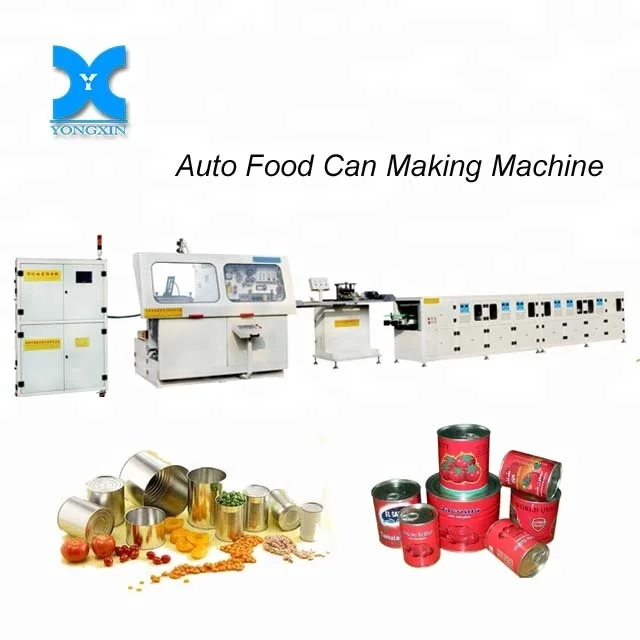

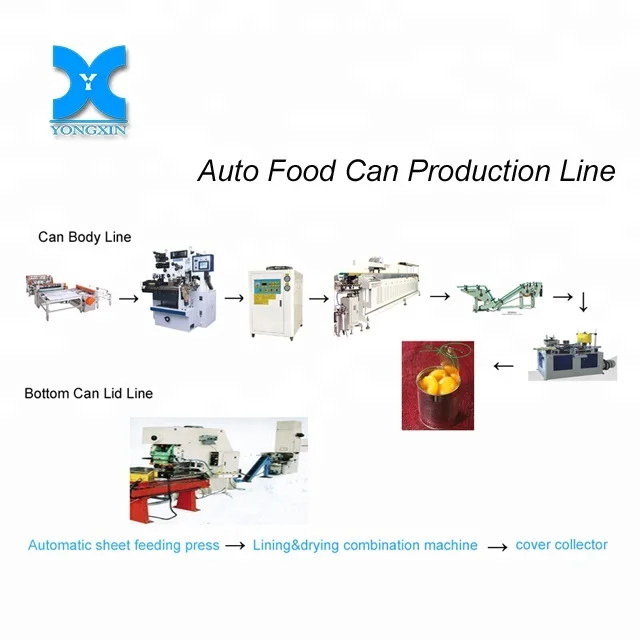

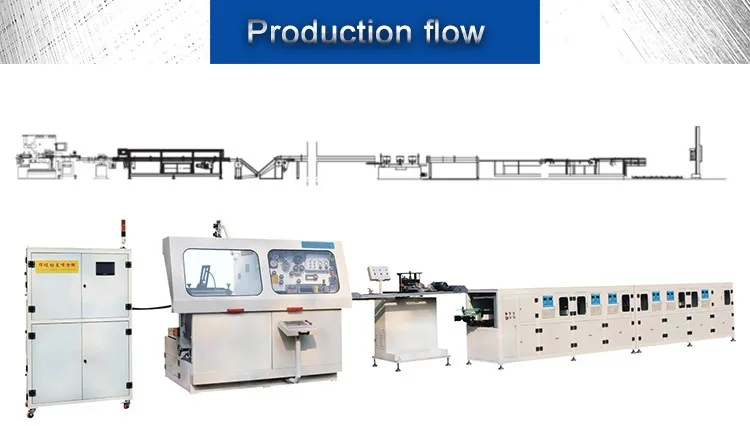

Automatic Meat Tuna Fish Small Food Can Making Equipment Machine Machinery Production Line
| Cutting machine | |
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

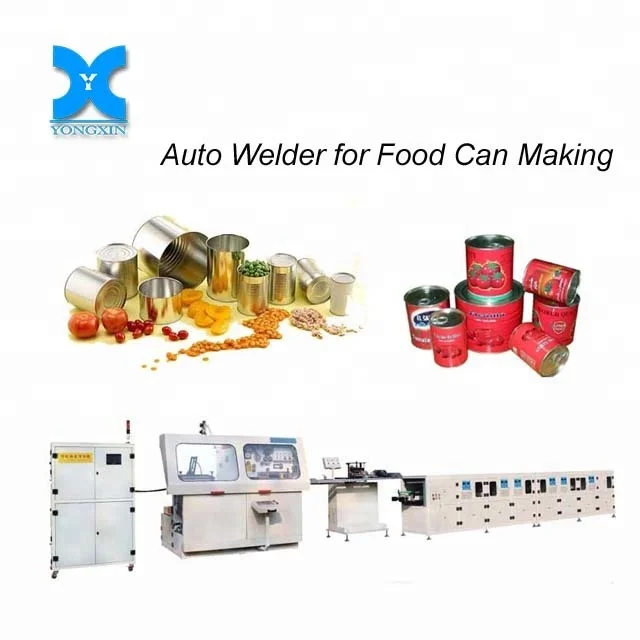

| Welding machine | |
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |
| Coating and drying machine | |
| Transmission Speed | 6-24m/min |
| Capacity | 80 cans/min |
| Applicable Can Diameter | Φ73-Φ176mm |
| Applicable Can Height | 100-250mm |
| Applicable Can Body Thickness | 0.15-0.35mm |
| Drying Room | 8pcs |
| Power | 16KW |
| Weight | 2000kgs |
| Dimensions | 1300*200*160mm |
| Flanging and sealing beading combination machine | |
| Productivity | 100-400 cans/ min |
| Model | GT3B2(3B5) Flanging machine |
| Applied can’s drive | diameter 40~180mm |
| Power consumption | 5.1kw |
| Size | 1200×670×1500mm |
| Weight | 3500kg |

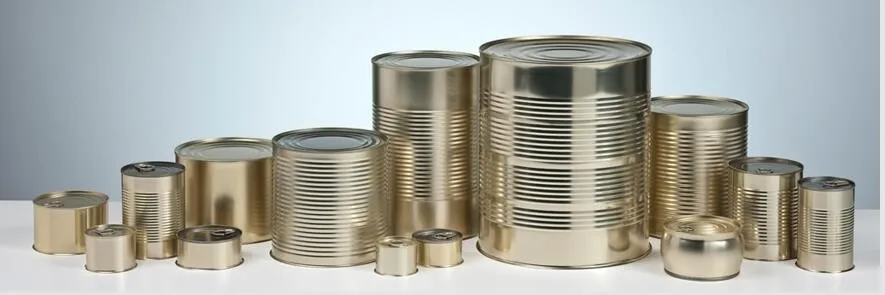

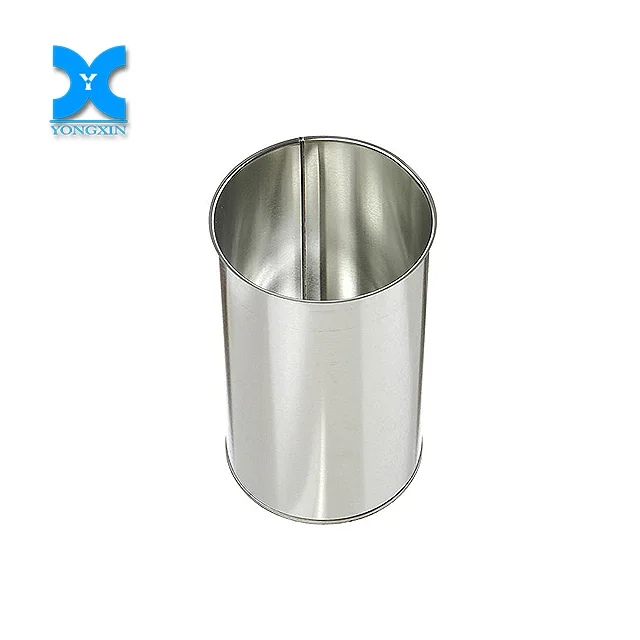

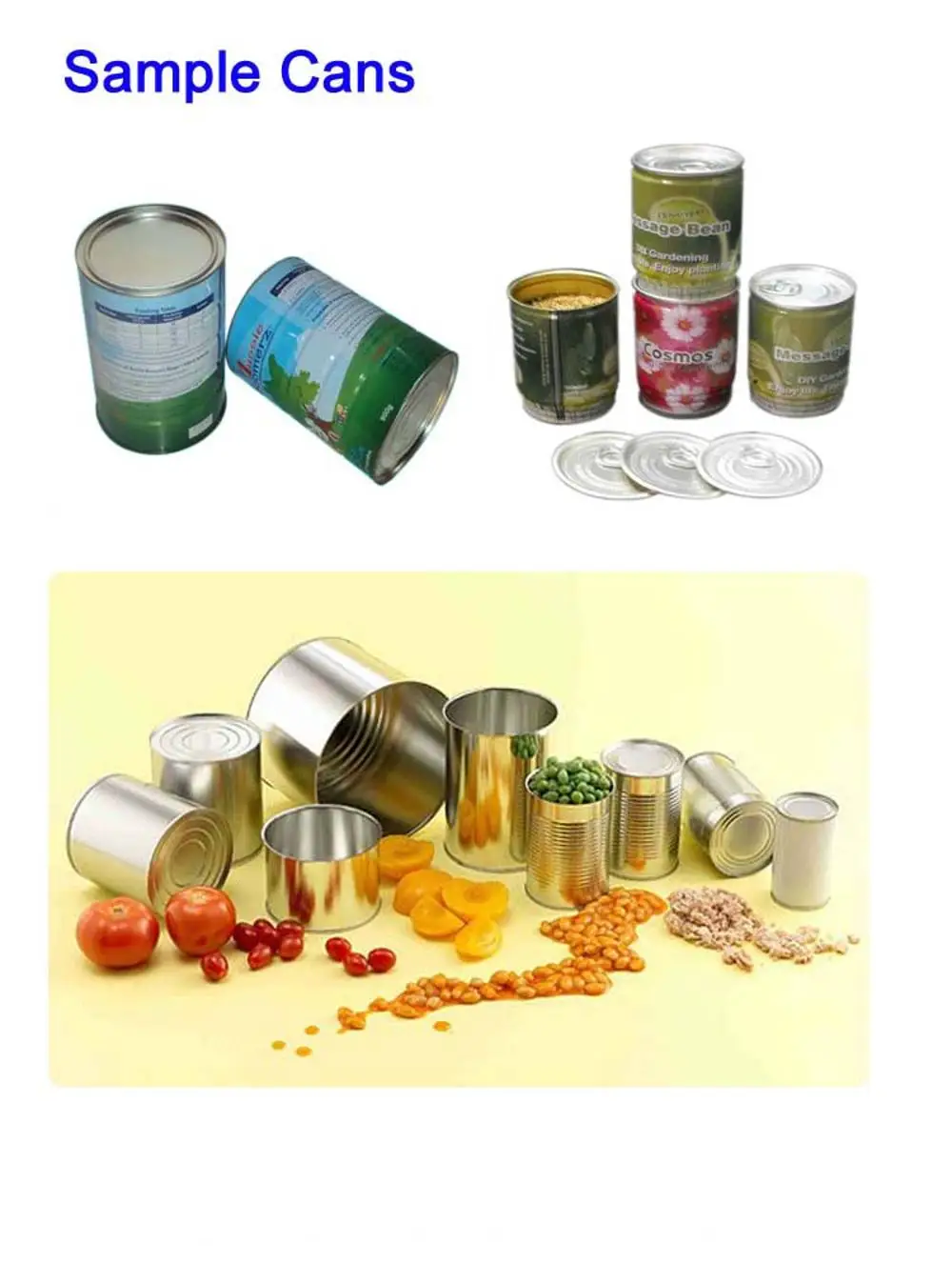

Sample can
Any more details welcome to contact Ms Sara kang by wechat/whatapp :+8615949549816
