Лидер продаж, шасси переднего двигателя, заднего двигателя, от 6 м до 12, шасси рамы автобуса

Share on (859495415):


Price:27 500,00 $ - 31 000,00 $

Quantity:


Product Overview

Description



Banner


.png





Product Description

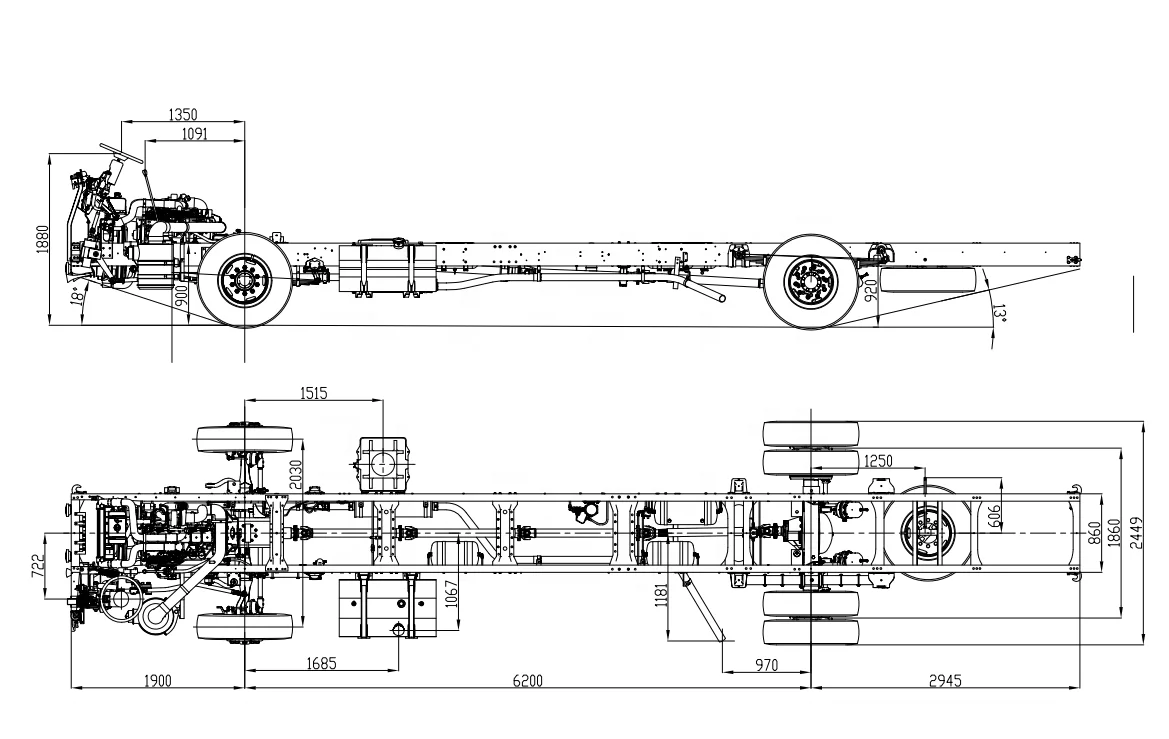

Chassis main specifications



Size



length*width(mm)



11045X2550






front/rear suspension(mm)



1900/2945



Wheelbase (mm)



6200



front/rear track



2040/1860



Approach/departure angle (°)






14°/9°



Minimum ground clearance



280



Weight







Curb weight (kg)



5800



G.V.W(kg)



19500



 Performance







top speed (Km/h)



105



Fuel tank



300L



Engine



engine position



Front



model



ISDe310-30(28V150A,)


CUMMINS ENGINE






type



Turbocharged, inter-cooling.






manufacturer






Dongfeng Cummins Engine Co.,Ltd



Exhaust standard



Euro



specified power (Kw/r/min)



213/2100



Max torque (N.m/r/min)



1050/1000-1900



minimum fuel consumption(g/ Kw.h)



195g/(Kw•h)



Transmission



model and control way



Fast gearbox 6DS130TA,


Flexible shaft manipulation,


Manual 6 gears



Manufacturer



Fast gearbox



Input torque(N.m)



1300



Clutch






Type



Diaphragm ,spring type



Diameter of friction plate(mm)



Φ430



Power-assist type



Hydraulic air power-assist



Diameter of branch pump for power-assist



Φ102



frame






Frame



straight girder



Air Pipe



exhaust pipe position



Come out from left  rear wheel






intake pipe position






Air filter arranged under the bridge



Front axle



type and manufaturer



6.5T level, End fist.   Shape beam straucture.


Dongfeng Dana Axle






loading capacity



6.5T



Toe-in



1 to 3mm



Rear axle



Type and manufacturer



13T rear axle, Dongfeng Dana Axle



Loading capacity



13T



Ratio



3.91










Work Flow




-2_07.jpg 2.jpg





Customer Visit







Company Profile




ShiYan RockRich

Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.





Packing & Delivey







FAQ


1. What is the warranty?


    You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient      and efficient spare parts support with competitive price.





2. What is the delivery time?


     The delivery time is usually within 15 workdays after we received your prepayment.





3. Do you provide customized service?
     Yes. We offer customized service as you needs for the performance , included special requirements .





4. What is the payment method?


     By TT ,L/C at sight and Trade Assurance , etc.





5. Why us ?


     We guarantee professional one-stop service, competitive price with high performance and prompt response.
