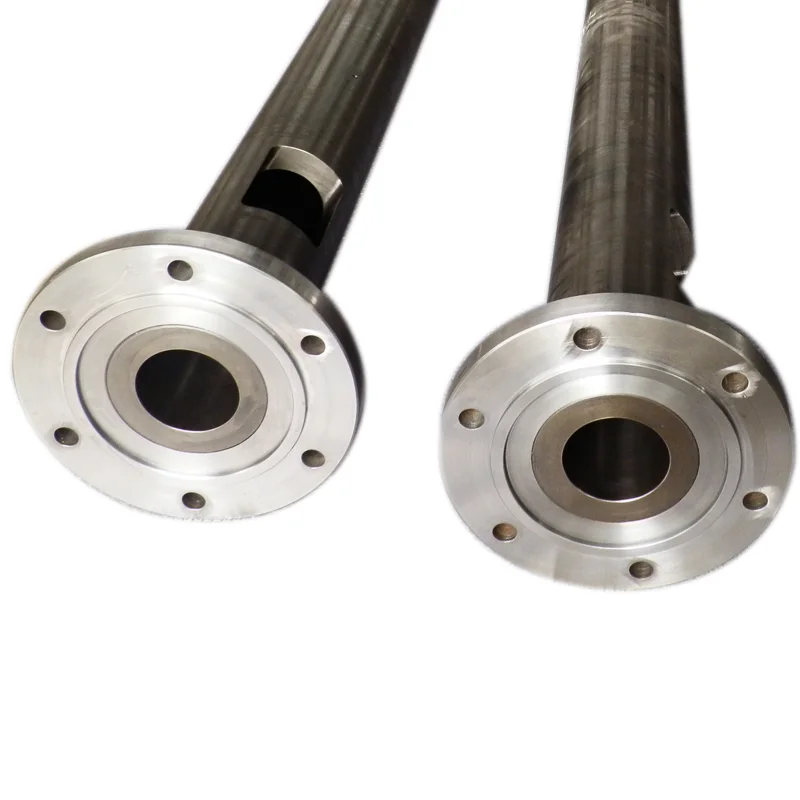

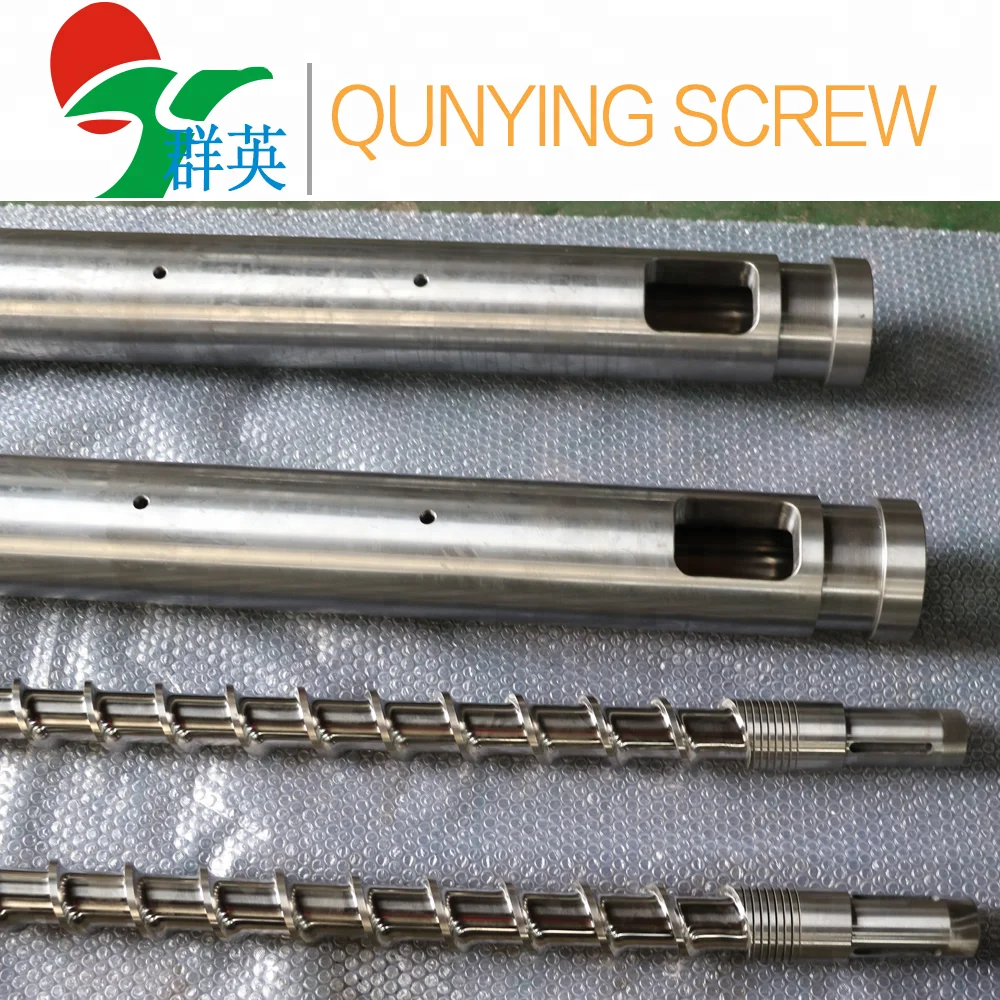

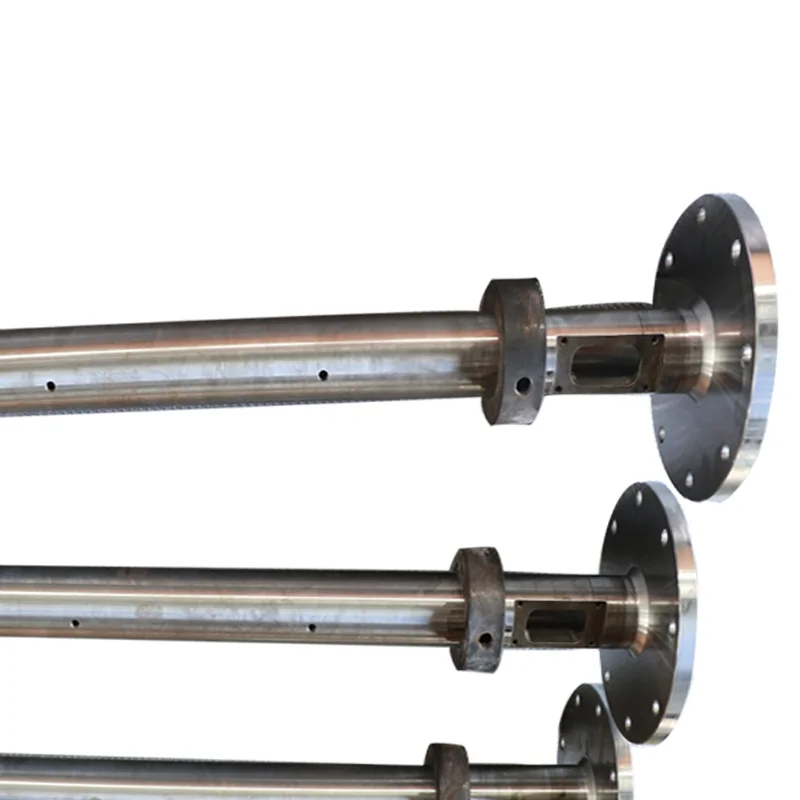

pp pe pelleting screw barrel for extrusion

Product Overview

Description

Advantage:

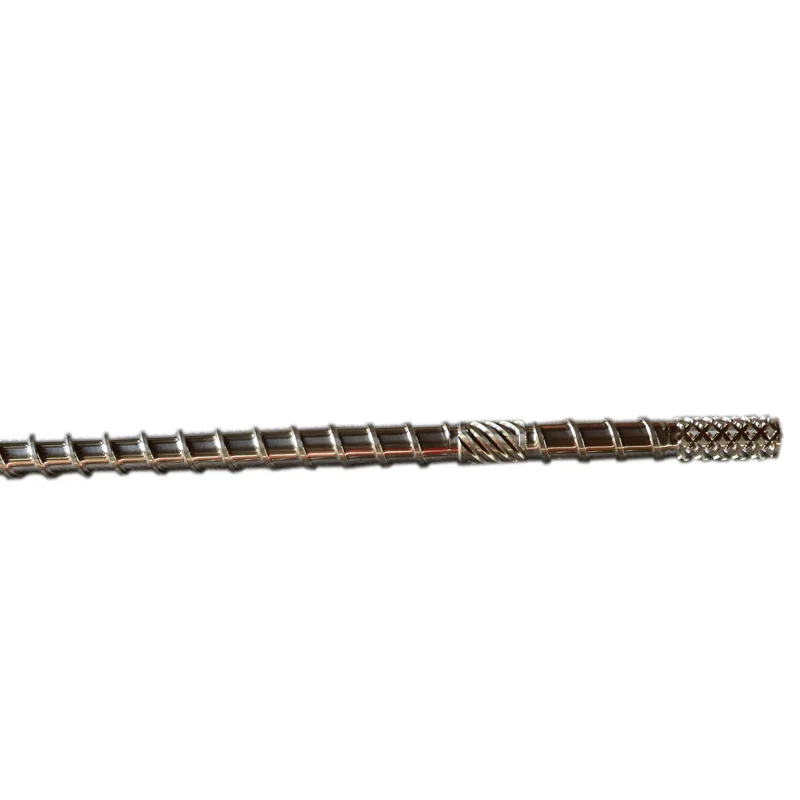

Specially designed screws, is used in pelletizing or repelletizing the PP, PE, PS, ABS, etc



Dimension Avaliable:







SCREW DIA: D15mm~D300mm
SCREW L/D: 1:15~1:32
SCREW MAXLENGH: 6000mm no connection,and 12 000mm if could weld screws.

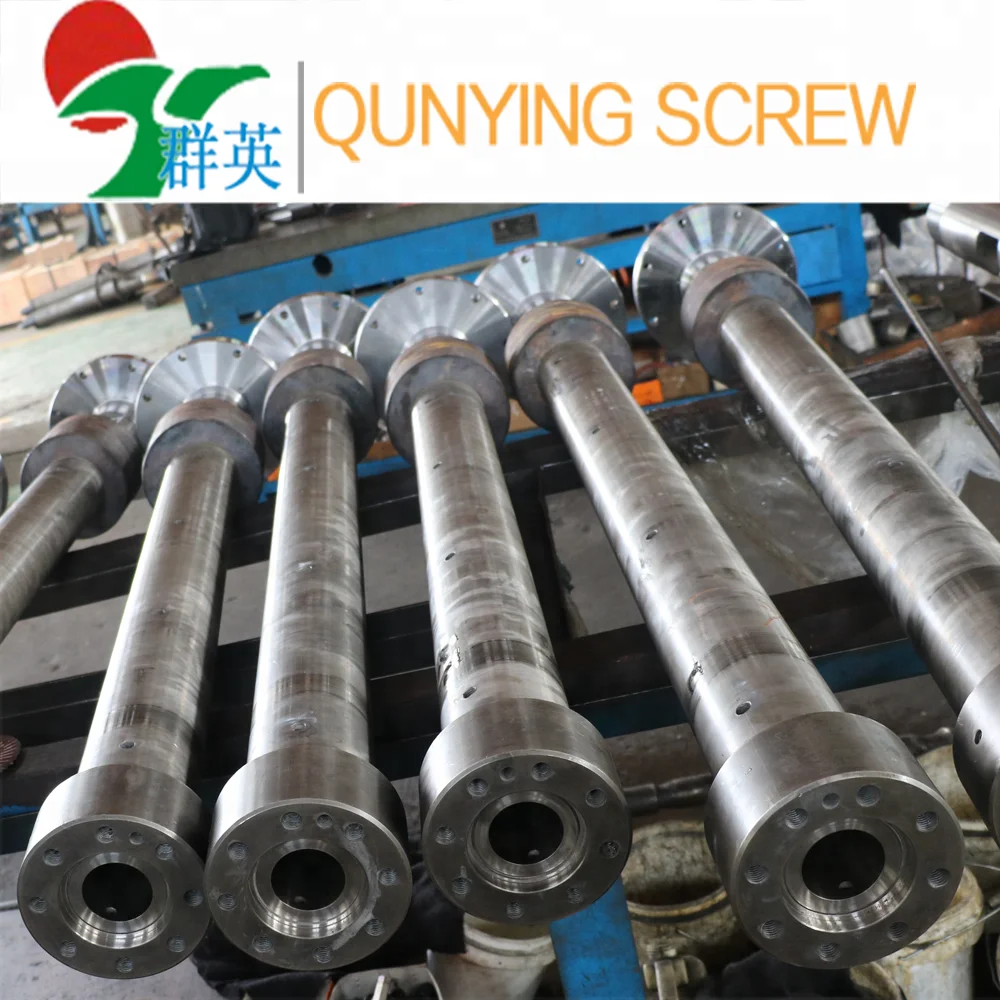

BARREL DAI: D45mm~D300mm
BARREL MAXLENGH: 6000mm no connection,and 12 000mm if could weld screws.

Material:





The most popular materials is 38 crmoala, 42crmo,SKD61(China),SKD61(Japan),DC53(Japan)
The most popular type of screw barrel customer choose: Bimetallic screw barrel

Besides the most popular materials, There are also many kinds of materials in our warehouse:



The foreign material we used as following:



1. Germanysteel, GH113 ,2250 ,2842 ,1.8509 ,1.442 ,1.6582 ,1.6523 ,1.2080,1.4542,



2. USA steel, P20,420,L6,H13,W110,D3,A2,D6,O1,S1,M35,8620,3115,K52440



3. Sweden steel, 718S,718H,S136,S136H,STAVAX,ASP-23,ASP-30



4. Australia Steel, M202,M300,W302,K460,W300,K900,K100,W321



5. Hardnesssteel, YG6X,YG 6A,YG 6,YG8N,YG8,YG8C,YG11C,YG 15,YT5,YT14,YT30



6. Japan Steel, SKT 4,YXM 4,YXM 42,SNC 815,SK -3,SKS 3,and etc.

And about the treatment of screw barrel, we also have many choices for you:



Nitrided



Nitrided+chromium-plating



Bimetallic
Bimetallic+chromium-plating



QY-Grade A - containing Tungsten of 40%



QY-Grade B - containing tungsten of 25%



QY-Grade C - containing tungsten of 9.5%



QY-Grade A/B/C + chromium-plating





 Technical Parameter

Nitride Case Depth	0.5mm-0.8mm
Nitride Hardness	950-1150HV
Nitride Brittleness	≤Grade One
Surface Roughness	Ra0.4um
Screw Straightness	0.015mm
Alloy Hardness	HRC58-75
Alloy Depth	0.8mm-3.5mm
Bimetallic Thickness	2-4mm
