Product Overview

Description


Product Description

Product Application

The Single Cylinder Diesel Engine 6HP can work as engine for Generators, Water Pumps, Air compressors and Go karts.

\t
Specifications of Diesel Engine 6HP
\t
Model No.
\t
BD178F (E)
\t
Engine Type
\t
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
\t
Bore x Stroke (mm)
\t
78x62
\t
Displacement (cc)
\t
296
\t
Compression Ratio
\t
20:1
\t
Peak Power (HP/RPM)
\t
6/3600
\t
Rotation (View from Flywheel)
\t
Clockwise
\t
Fuel Type
\t
0#, -10# diesel
\t
Fuel Tank Capacity (Liter)
\t
3.5
\t
Fuel Consumption (g/kW.H)
\t
320
\t
Lub. oil Type
\t
SAE10W30(Above CD grade)
\t
Lub Oil Capacity (Liter)
\t
1.1
\t
Starting System
\t
Recoil Start, Optional Electric Start
\t
Dimensions (LxWxH)mm
\t
383x 421 x 450
\t
Net weight (Kgs)
\t
Recoil start: 33Kg ; With electric starter: 38Kg
Diagram & Shaft

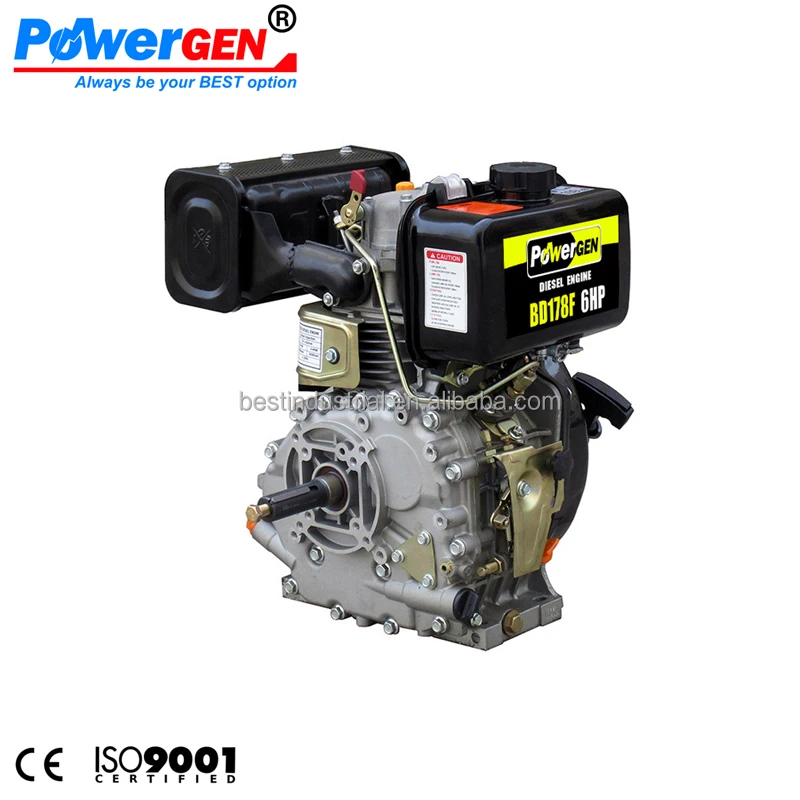

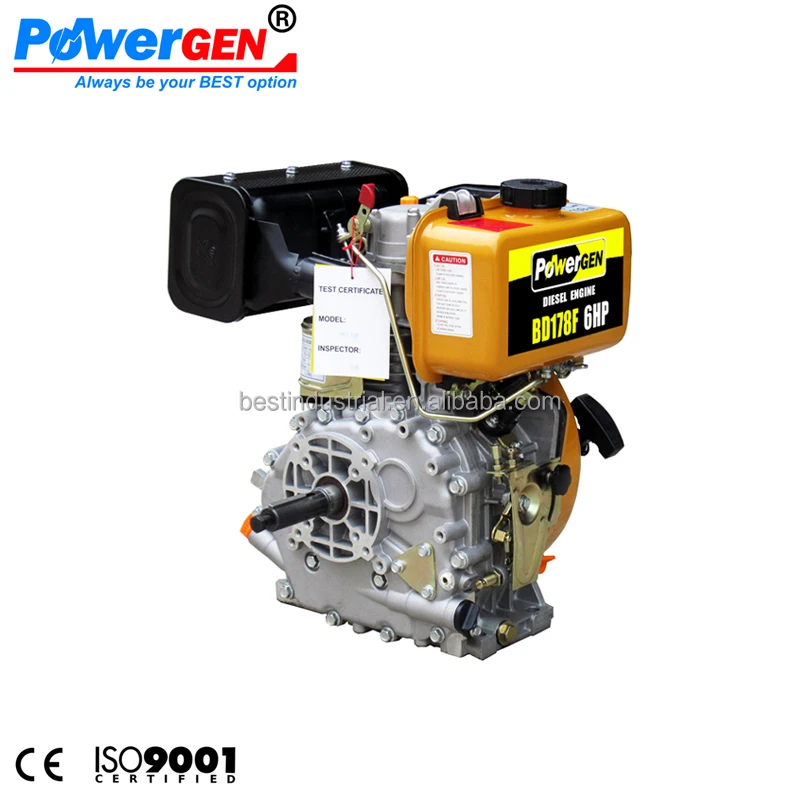

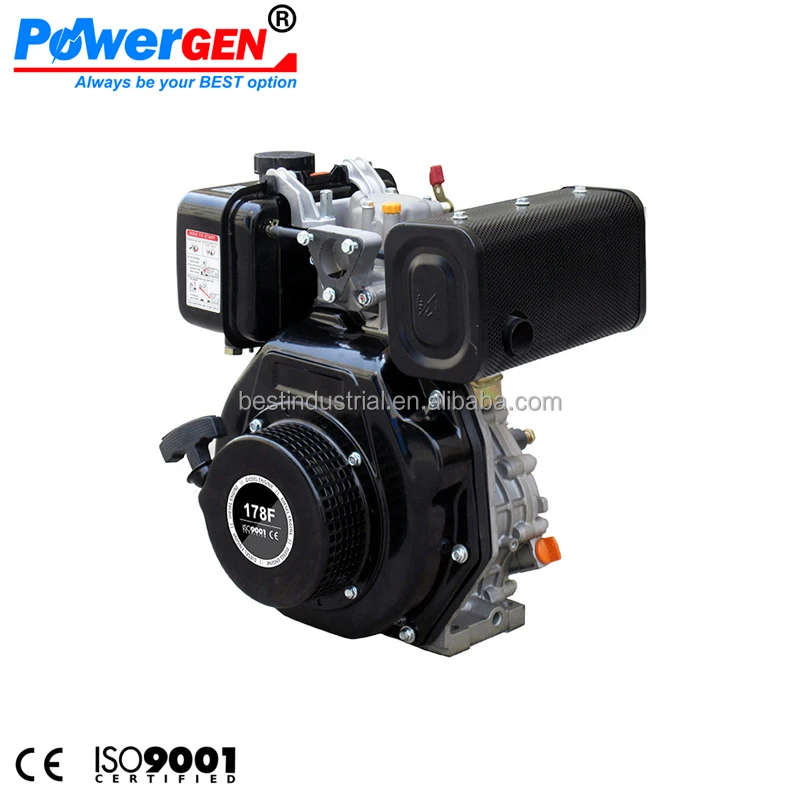

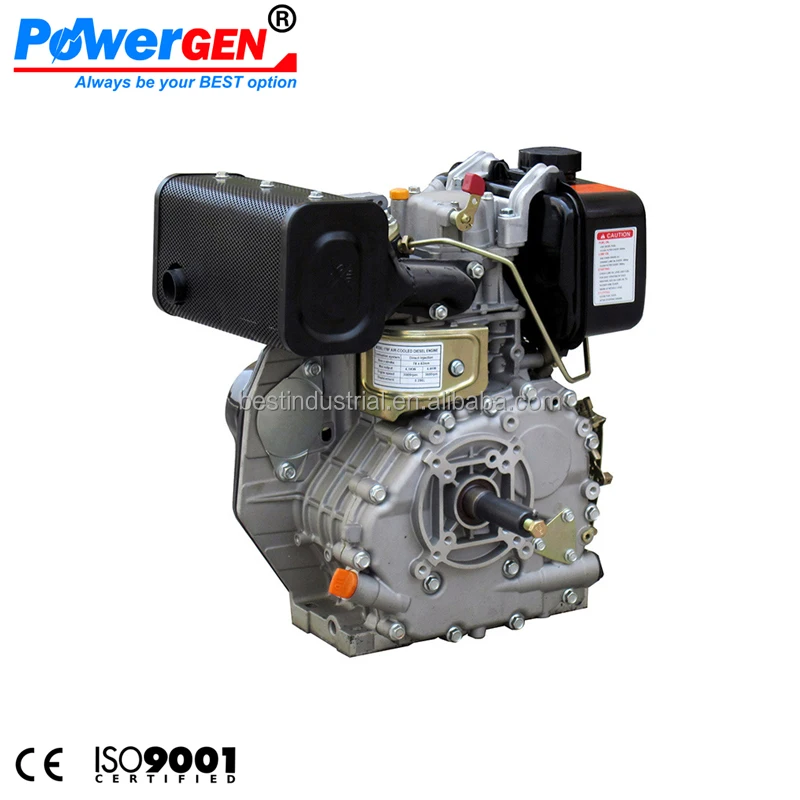

Complete Engine

* Internal 8 Amp alternator with regulator               * Internal counterbalance shaft

* Equipped with muffler and fuel tank                       * electric starter (optional, battery not included)

* Pull-recoil starter included                                        * Compression release lever
* Glow plug for cold weather starting                        * One year factory warranty on parts

Applications

Diesel Generator 3KW

The diesel engine 6HP is an ideal engine for diesel generator 5KW.

Water Pump 3 inch

The diesel engine 6HP is powerful

enough to power the water pump

3 inch.

Construction Equipments

The diesel engine 178FE is ideal for the construction equipments such as

plate compactors and concrete mixers.

Packing
\t
Packaging
\t
Size (mm)
\t
480 (L) * 460 (W) * 520 (H)
\t
Gross Weight
\t
35Kg (Recoil Start)
\t



Packaging
Details
\t


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
