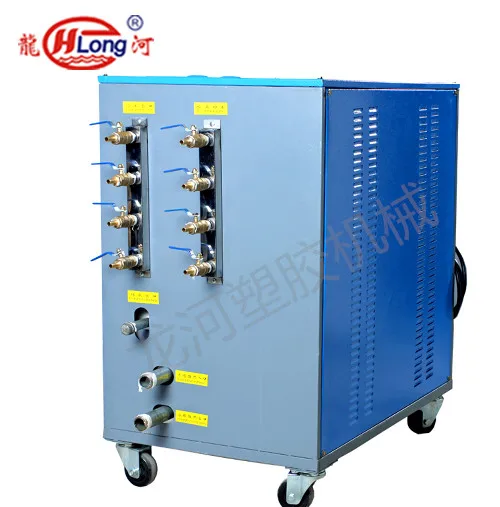

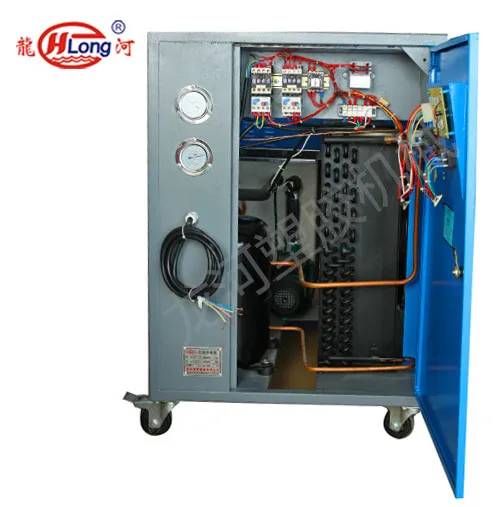

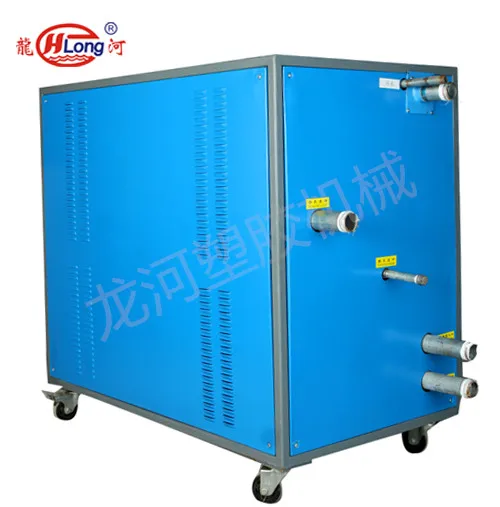

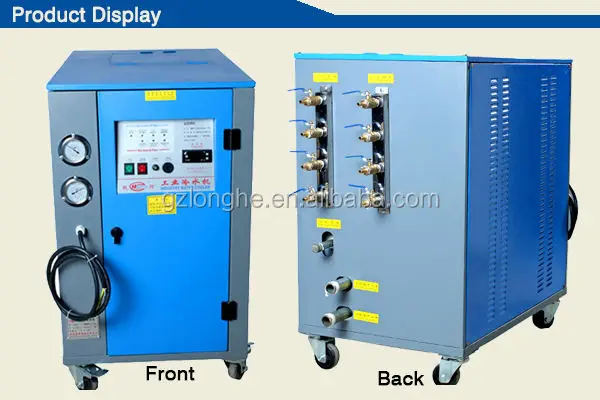

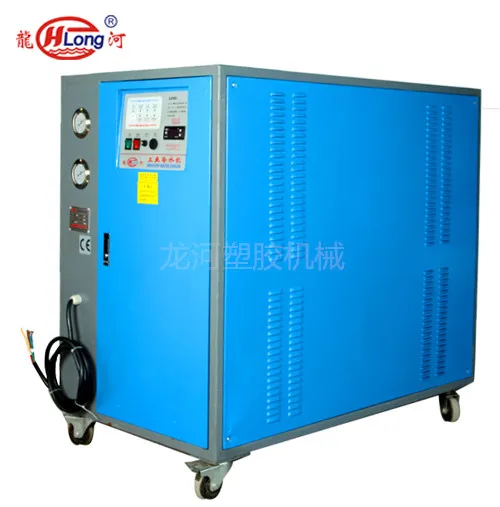

High efficiency industrial water chiller used for plastic machine cooling

Product Overview

Description

APPLICATION AND PROPERTIES:

1.Industrial Water Chiller is mainly applicable for working according to heat exchange principle.

2.Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.

3.It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.

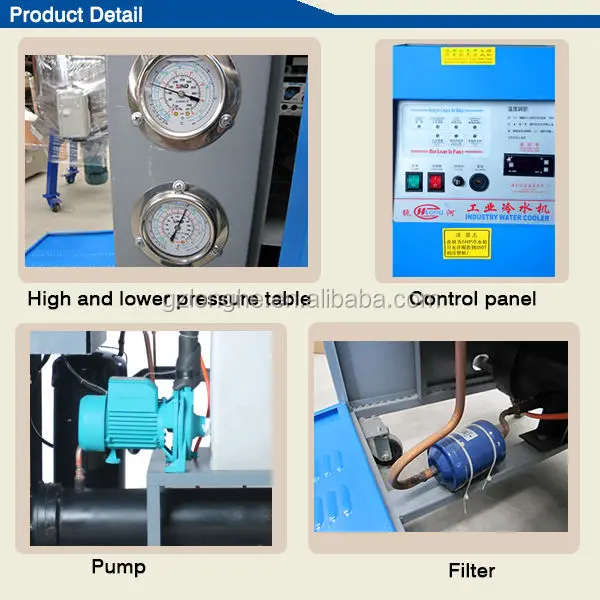

4.It is equipped with precise electric temperature controller and is capable of precisely controlling  the water temperature at +7°c-+35°c.

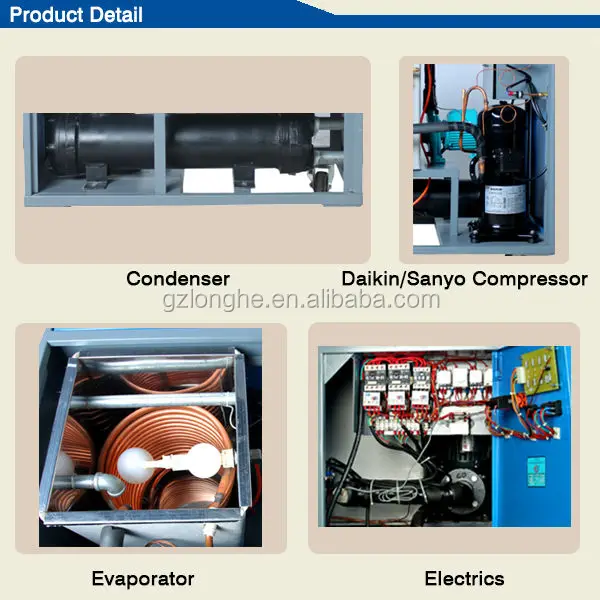

5.The condenser and heat radiator with unique design features best heat exchange efficiency.

6.The stainless steel open water tank is convenient for cleaning and maintaining .

7.The product is installed with over current protective device,high and low voltage switch and time delay  devices.

8.Automatically alarm and display the fault reason when there's fault.



Technical parameters:



Model	IC-5HP	IC-7.5HP	IC-10HP	IC-15HP	IC-20HP
Freezing Capacity kcal/hr	11300	16800	22600	33600	45200
Water Tank Capacity(L)	75	100	160	200	240
Flow Rate(L/min)	80	100	160	300	450
Water pump Power(kw)	0.37	0.75	0.75	1.5	2.2
Mechanical Dimension(mm)	970x580x920	1270x660x1170	1270x660x1170	1520x635x1680	1680x710x1680
Weight(kg)	120	210	315	600	750
