      PP Hollow Sheet Extrusion Machine/PP Line/PP Machine



Qingdao Zhongsu Machinery Manufactre Co.,Ltd ,specialized in Plastic Board Extruder Machine more than 20 years ,with the strength of PP Hollow Grid Sheet Prodution Line .



Finished-products specification

T: 2-16mm

W: 1220-2500mm



Confiuration

Number	Item	Amount
1	SJ120 single screw extruer	1 set
2	quick screen-changing device	1 set
3	quick screen-changing hydraulic-pressure station	1 set
4	middle hollow forming mould head die	1 set
5	vacuum calibration mould	1 set
6	vacuum calibration table	1 set
7	first puller(total 6 pairs drawing rollers)	1 set
8	constant temperature box	1 set
9	cooling support-bracket	1 set
10	the second puller(3 pairs drawing roller)	1 set
11	tracking style cutting	1 set
12	conveying table	1 set



Parameters

1, SJ120 single screw extruer

Center height:1000mm

Speed reducer:hard surface titlt-gear reducer appliance

Screw rotation speed:20-110rpm

Max.output:200-300kg/h



2, Quick screen-changing device

Screen-changing mode: push-and-pull by turns

Filter area:about 120m2



3, Quick screen-changing hydraulic-pressure station

Motor power:1.5kw

Max.air volume suitable for oil cylinder:1.2L

Power supply:3*380V-50Hz



4, Middle hollow forming mould head die

Heating power for each sectoin:3kw



5, Vacuum calibration mould

Vacuum calibrating grade kind: two grades

Water circulation control: controlled by five groups



6, Vacuum calibration table

Lift mode:pneumatic

Air pressure need: ≥0.7Mpa



7, First puller(total 6 pairs drawing rollers)

Pulling roller dia:250mm

Pulling roller group:total 6

Pulling motor power:7.5kw



8, Constant temperature box

Heating mode:electric heating

Heating total power:36kw



9, Cooling support-bracket

total cooling roller support-bracket length:3000mm



10, The second puller(3 pairs drawing roller)

Pulling roller group:total 3

Pulling motor power:4kw

Pulling roller clamped sightly mode:pnematic



11, Tracking style cutting

cutting mode:cutting by pulling knife

clamped sightly mode:multi-dot pnuematic press sightly



 12, Conveying table

converying mode:conveying by fixed speed

conveying speed:5m/min

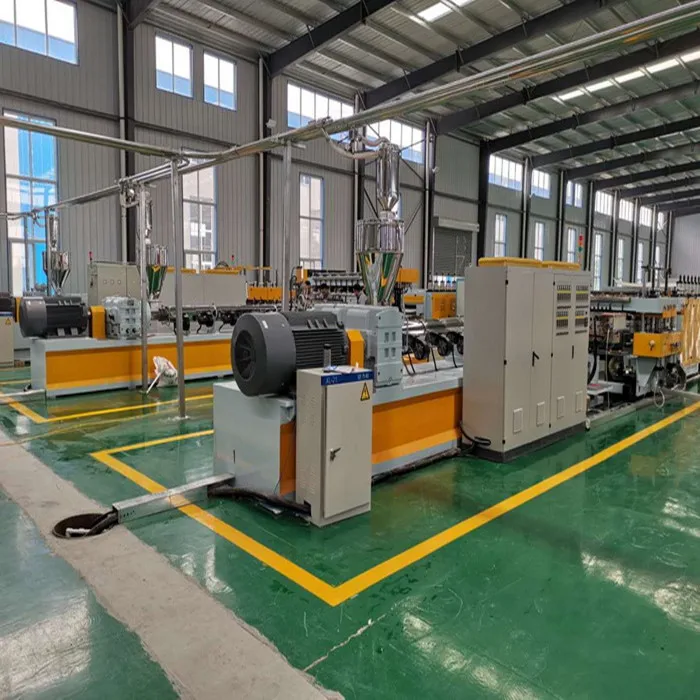

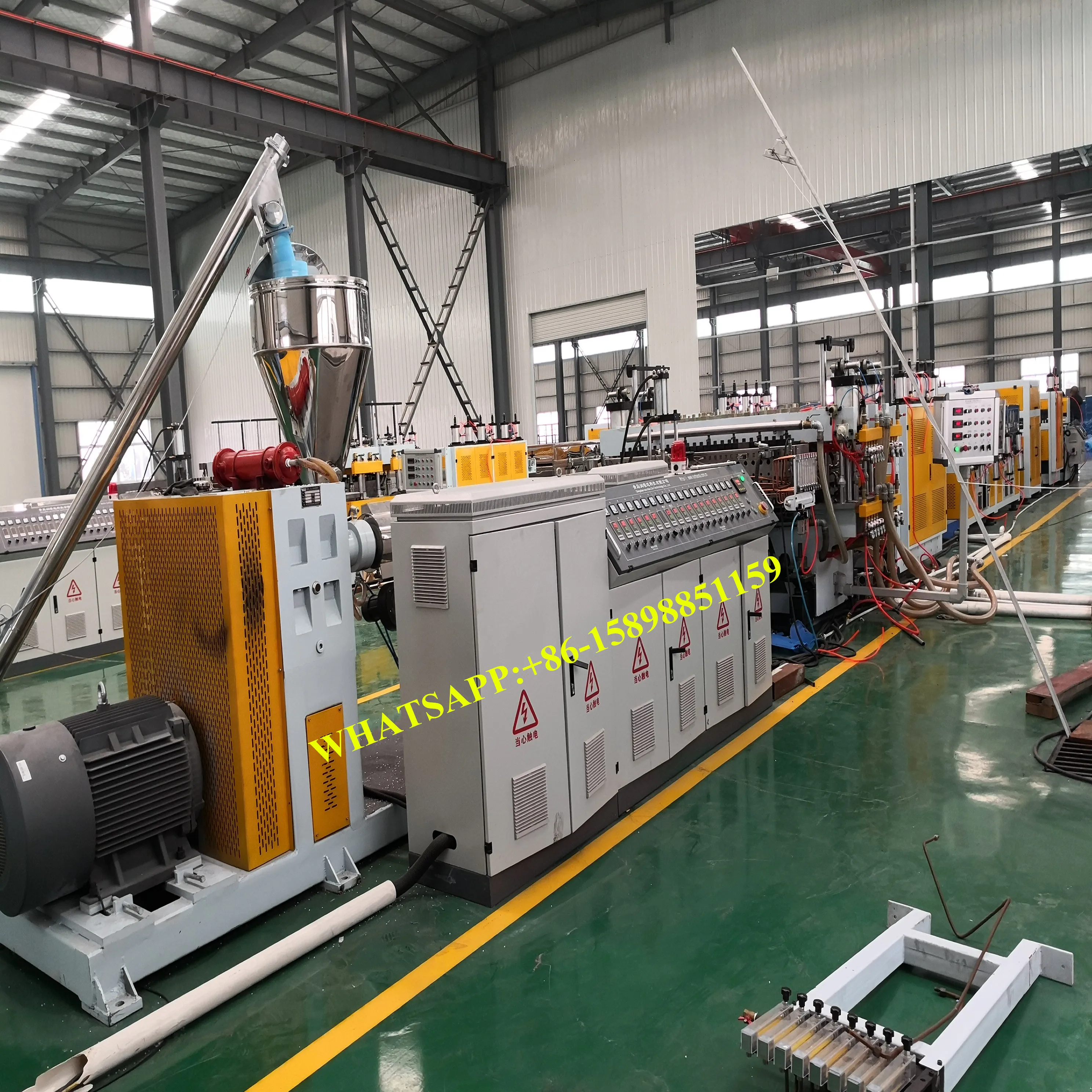

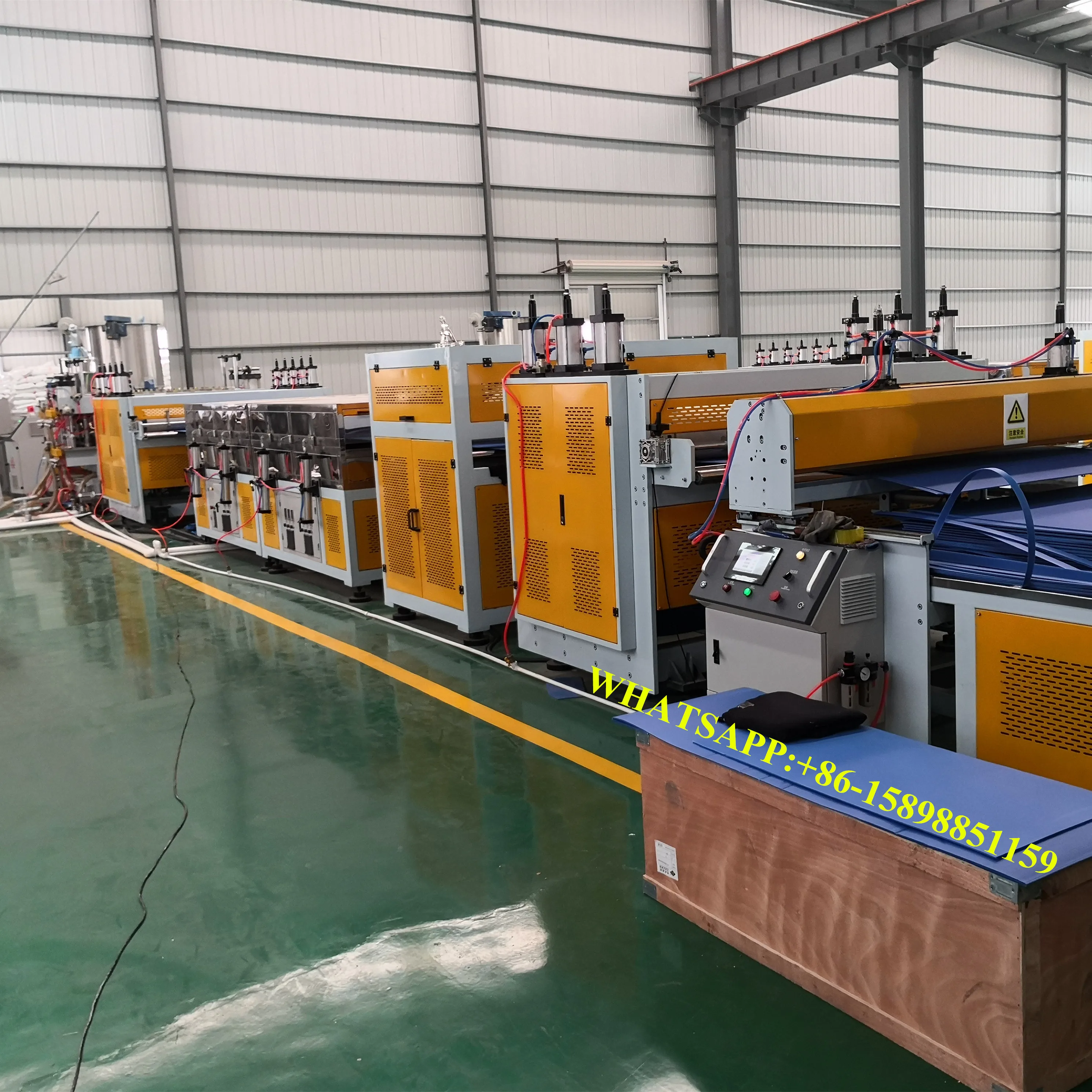

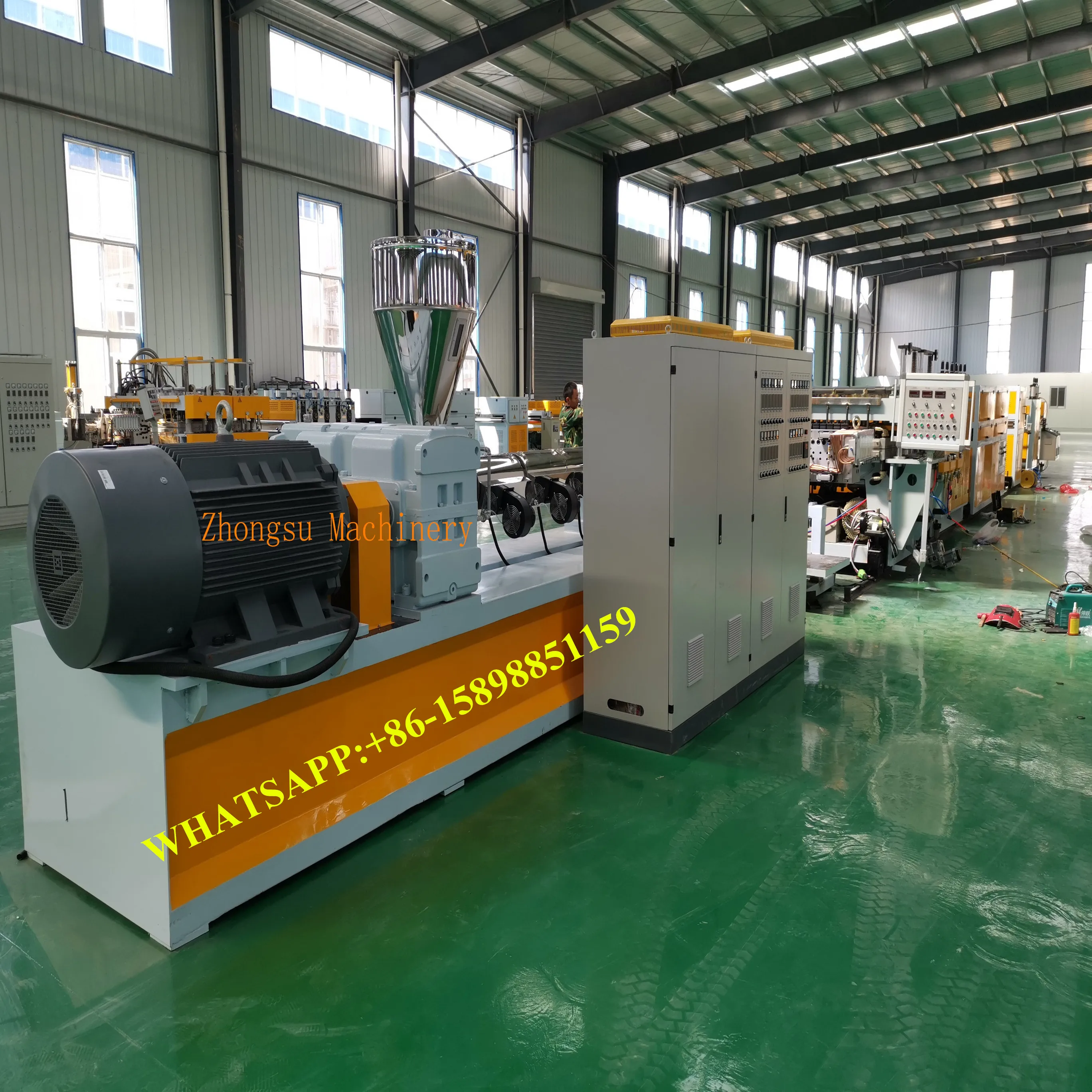

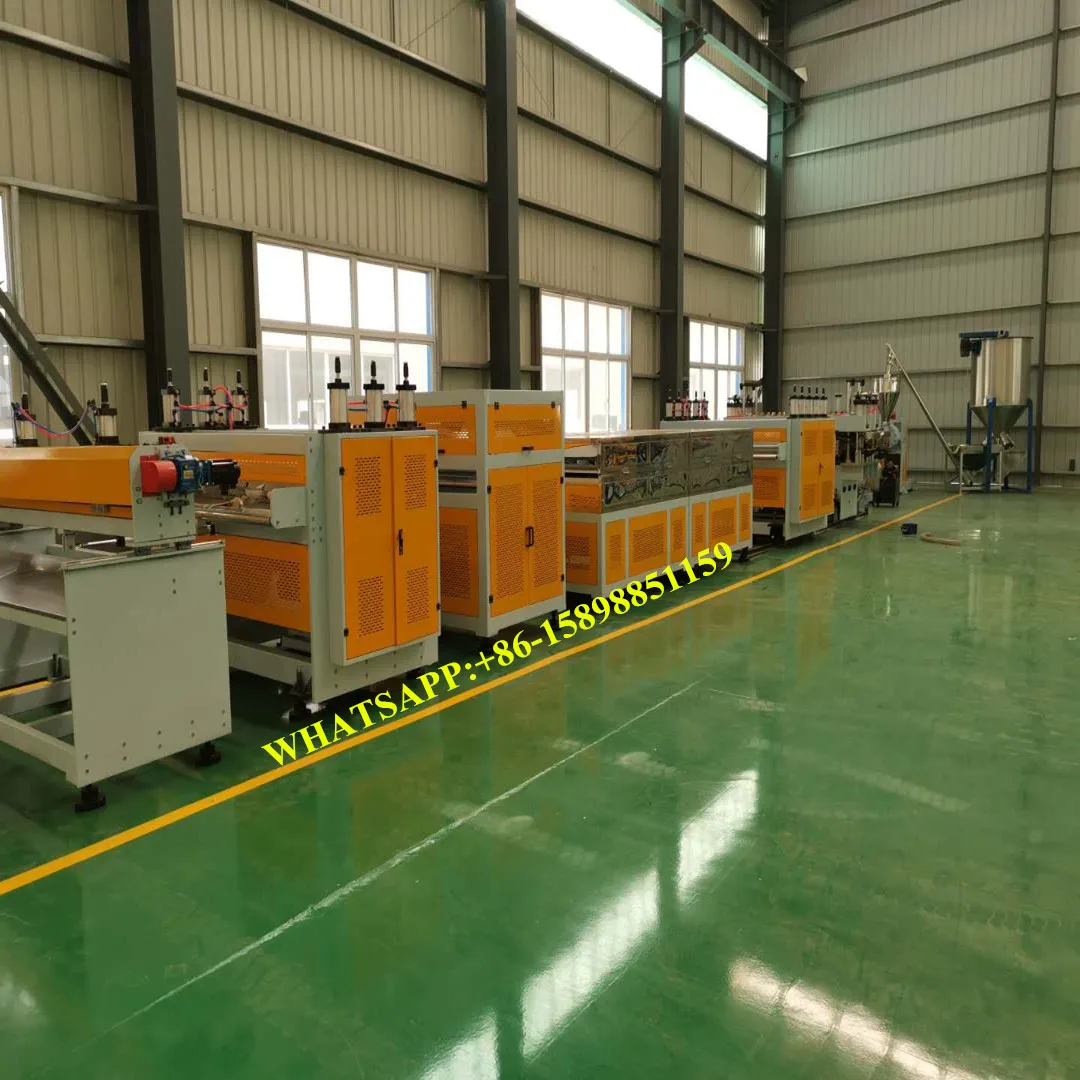

Photos
