 NDS3542 Encoder Modulator

HDMI/VGA to DVB-T/DVB-C/ATSC/ISDB-T





NDS3542 series products are one branch of DEXIN’s knock-out all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulation (DVB-C, DVB-T, ISDB-T, or ATSC) to convert V/A signals etc into RF output. This sheet is going to introduce amodel which converts  HDMI/VGA signals to DVB-T/DVB-C/ATSC/ISDB-T RF out in the frequency range of 30~960MHz.



It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed. To meet customers’ various requirements, NDS3542 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.



The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.

.



nMPEG2 HD/MPEG4 HD video encoding

n1* HDMI or VGA in (portable case); 2* HDMI or VGA in (19” rack case)

n1*ASI in; 1 RF in (for combiner use)

nDVB-T, DVB-C, ATSC, ISDB-T RF out optional

nLCN (Logical Channel Number) support(DVB-C/DVB-T/ISDB-T); VCT support(ATSC)

nExcellent modulation quality MER≥42dB

nLCD display, Remote control and firmware

nWeb NMS management; Updates via web

nLowest cost per channel - breakthrough price

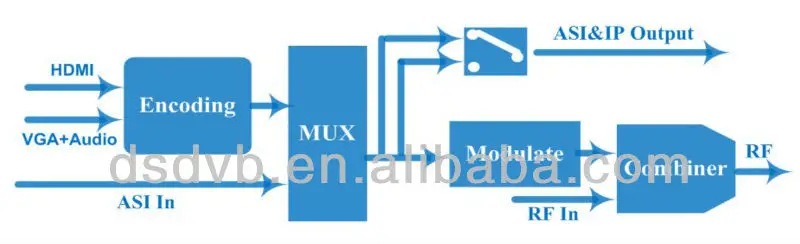

Principle chart

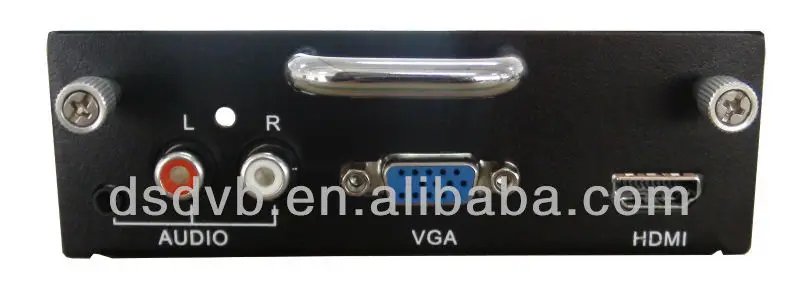

HDMI Encoding Section

Video

Encoding	MPEG2 HD/MPEG4 HD
Input	HDMI*1 /card
Resolution	1920*1080_60P, 1920*1080_50P, (-for MPEG4/H.264) 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P 720*480_60i, 720*576_50i

Audio

Encoding	MPEG1 Layer II,(MPEG2-AAC, MPEG4-AAC available )
Sample rate	48KHz
Bit rate	64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps



VGA Encoding Section

Video

Encoding	MPEG2 HD/MPEG4 HD
Input	VGA(VGA/SVGA/XGA/UXGA/SXGA)
Resolution	1920*1080_60P, 1280*720_60P

Audio

Encoding	MPEG1 Layer II,(MPEG2-AAC, MPEG4-AAC available )
Sample rate	48KHz
Bit rate	64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps



DVB-T Modulator Section

Standard	EN300744
FFT mode	2K, 8K
Bandwidth	6M,7M,8M
Constellation	QPSK, 16QAM, 64QAM
Guard Interval	1/4, 1/8, 1/16, 1/32
FEC	1/2, 2/3, 3/4, 5/6, 7/8
MER	≥42dB
RF frequency	30~960MHz, 1KHz step
RF output level	-30~ -10dbm(81~97 dbµV), 0.1db step



DVB-C Modulator Section (Optional)

Standard	J.83A , J.83B, J.83C
MER	≥42dB
RF frequency	30~960MHz, 1KHz step
RF output level	-30~ -10dbm(81~97 dbµV), 0.1db step
J.83A
Constellation	16/32/64/128/256QAM
Symbol rate	5.000~9.000Msps adjustable
bandwidth	8M
J.83B
Constellation	64QAM/ 256QAM
bandwidth	6M
J.83C
Constellation	64QAM/ 256QAM
bandwidth	6M



ISDB-T Modulator Section (Optional)

Standard	ARIB STD-B31
Bandwidth	6M
Constellation	DQPSK,QPSK, 16QAM, 64QAM
Guard Interval	1/32, 1/16, 1/8, 1/4.
Transmission Mode			2K, 4K, 8K
MER		≥42dB
RF frequency		30~960MHz, 1KHz step
RF output level		-30~ -10dbm, 0.1db step



ATSC Modulator Section (Optional)

Standard	ATSC A/53
Constellation	8 VSB
RF Output Level	26~-10dbm (81~97dbµV), 0.1db step
MER	≥42dB
RF frequency	30~960MHz, 1KHz step



System

Local interface	LCD + control buttons
Remote management	Web NMS
output	2 ASI out (BNC type); IP (MPTS) out (RJ45, 100M)
NMS interface	RJ45, 100M
Language	English





General

Power supply	AC 100V~240V
Dimensions	482*300*44mm (19” rack) 267*250*44mm (portable)
Weight	4.5 kg (19” rack) 2.5 kg (portable)
Operation temperature	0~45°C





Ordering Guide



Our encoder & modulator series are individual-module design, and the encoding modules include:



ü  MPEG2 SD encoding with 1 or 2 CVBS in



ü  H.264 SD encoding with 1CVBS in



ü  MPEG4 AVC /H.264 encoding with 1 or dual SDI in



ü  DVB-S2/-C/ISDB/ATSC tuner input



ü  YPbPr +HDMI +CVBS input



ü  MPEG2 SD YPbPr +S-Video +CVBS input



ü  MPEG4 AVC/H.264 encoding with 1 or 2 HDMI input



ü  MPEG2 HD encoding with 1 or 2 HDMI input



ü  MPEG2 HD encoding with 1 SDI input



ü  HDMI + VGA input







Modulation modules include:



ü  ISDB-T RF (single/dual carriers) out module



ü  DVB-C RF (single/dual/quad carriers) out module



ü  ATSC RF (single/dual/quad carriers) out module



ü  DVB-T RF (single/dual carriers) out module
