High Speed Blister Packing Machine(DPH 260)

Product Overview

Description

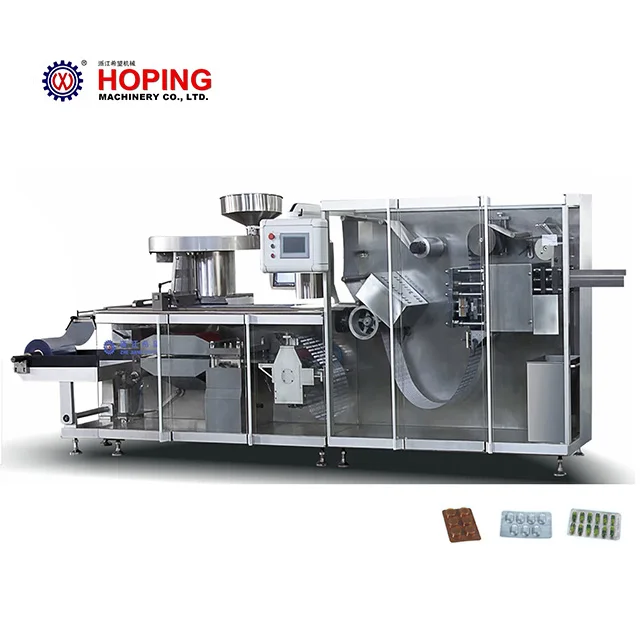

 High Speed automatic pill tablet Blister Packing Machine DPH-260

DPH260High Speed Roller Type Blister Packing Machine is a special equipment which as blister type alu/pvc composite sealing packing for drugs( tablets, capsules), food, medical instrument and similar products. Due to adopt positive pressure forming, flat heat sealing, it has crisp blister, flat and level strip, etc.

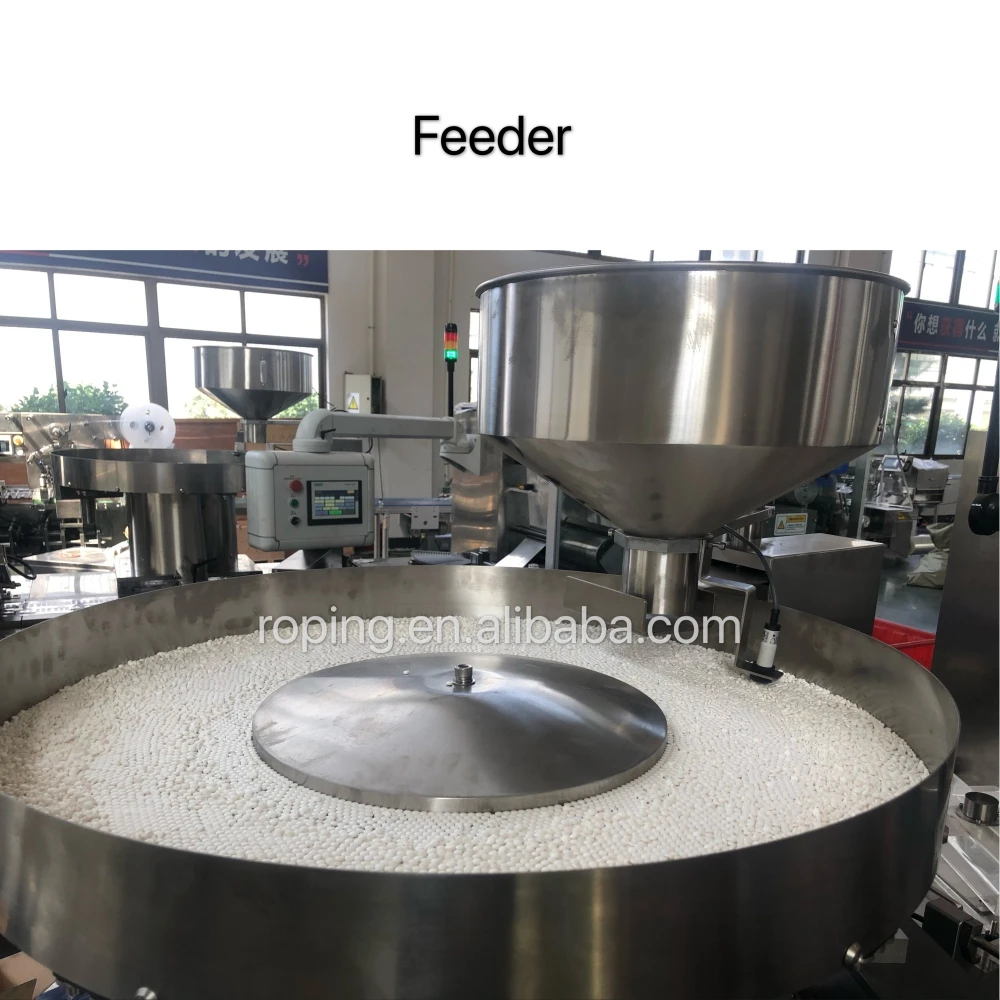

DPH260High Speed Roller Type Blister Packing Machine is the new generation product elaborately researched and developed by our company. Its maximum cutting frequency can be 130 times per minute,  It combines the advantages of flat type and roller type blister packaging machine, and adopts special feeder for irregular tablet, with high cutting frequency, low energy consumption, accurate action, stable and easy to change mold, high yield, and the stagger blister no horizontal waste edge cutting, highly improves the production efficiency. The machine design is more reasonable, it adopts automatic control technology which integrate frequency control and machine, electricity, light, air, and creative design strictly according to pharmaceutical industry GMP standard. Machine has the functions of fission station structure, modularization of working stations. The technique fills up the local blank, it's comprehensiveness stands for the leader and more active than the imports.













Main Technical Parameter:



Capicity(punch/min)	60-130
Range of stroke(mm)	20-120
Packing material --Pharmacy PVC(mm)                            --PTP alu foil(mm)	(0.2-0.4)*260
	(0.02-0.05)*260
Clean compressed ai(pressure)	0.5-0.7Mpa
Air consumption(m³/min)	≥0.5
Power	AC380V 50HZ 15.5KW
Water chiller for moulds	1.5P with 60L/h consumption
Dimension (L*W*H)(mm)	4580*1065*1750
Net Weight(kg)	2800

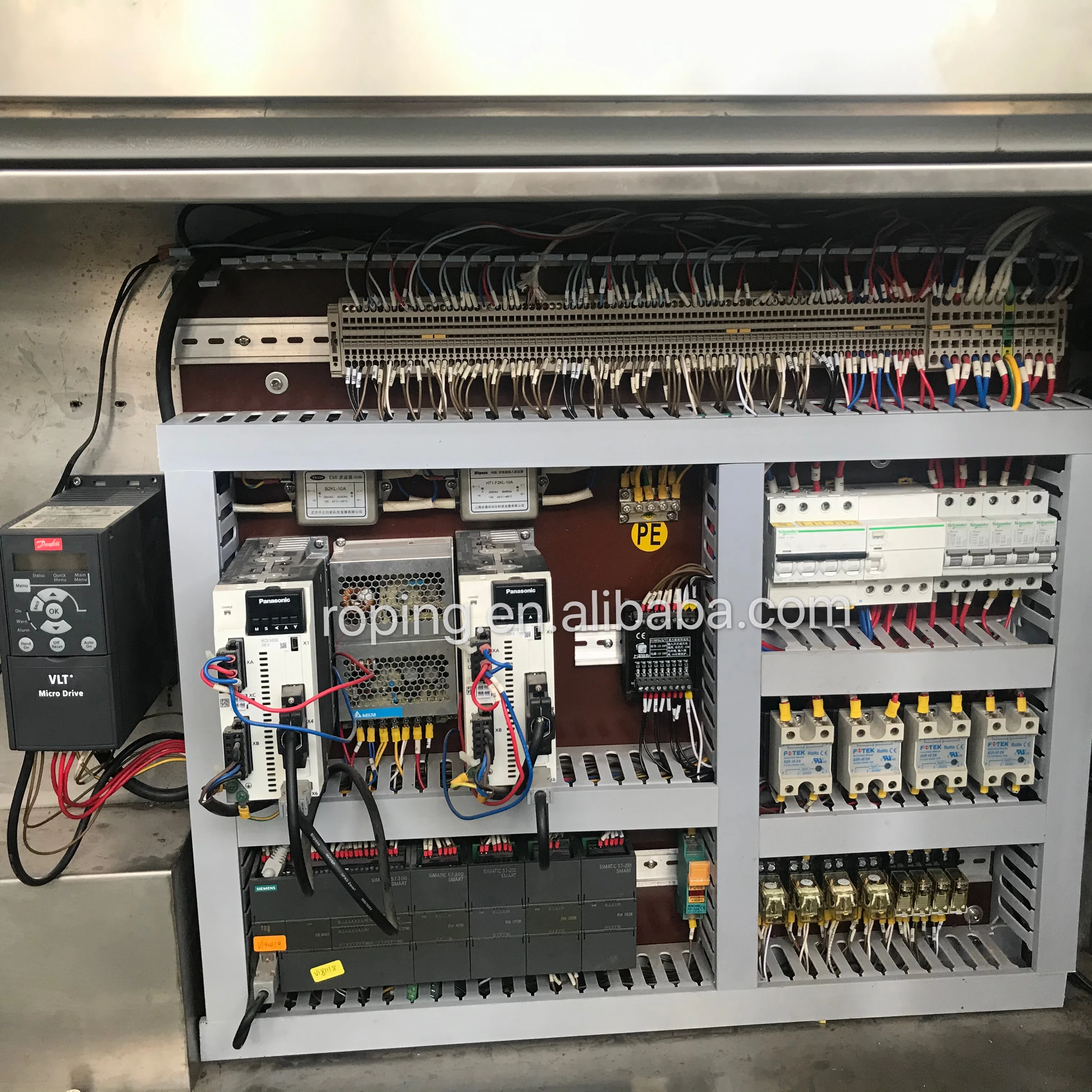

 Main Electric Parts:

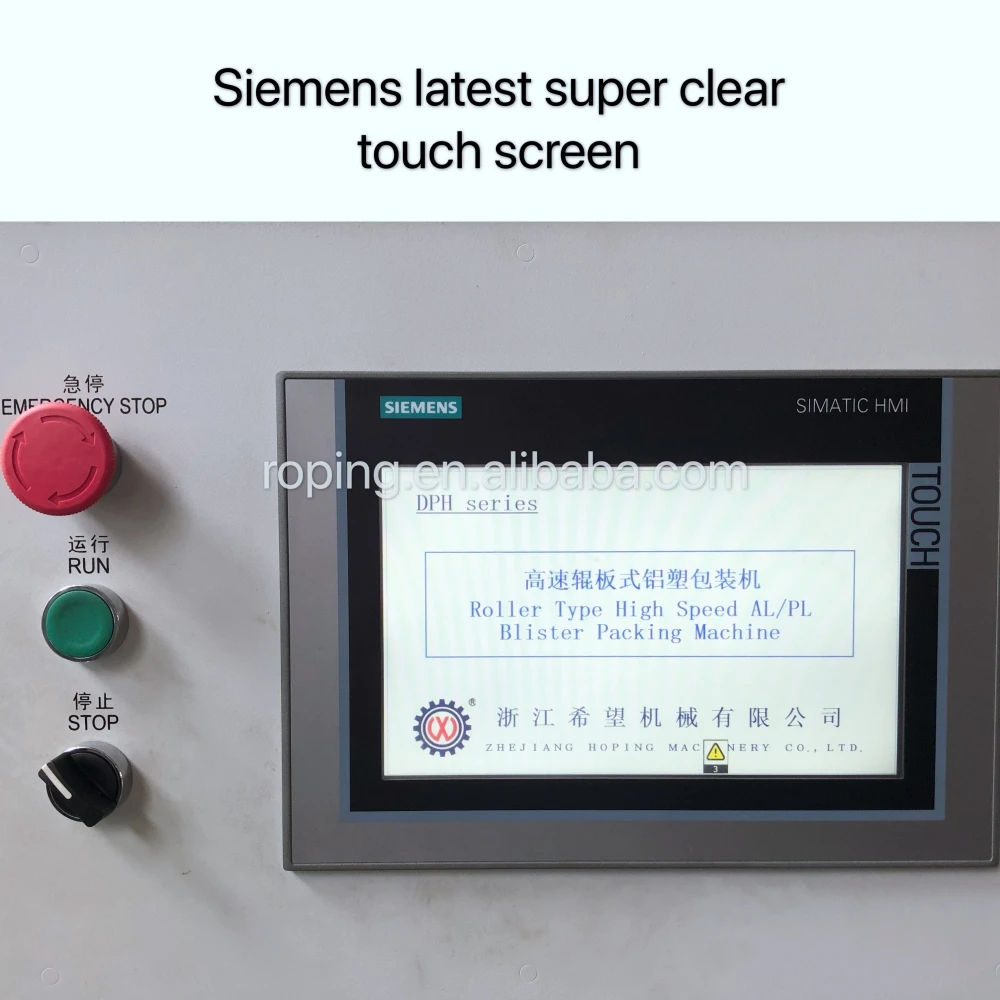

• Touch Screen-SIEMENS

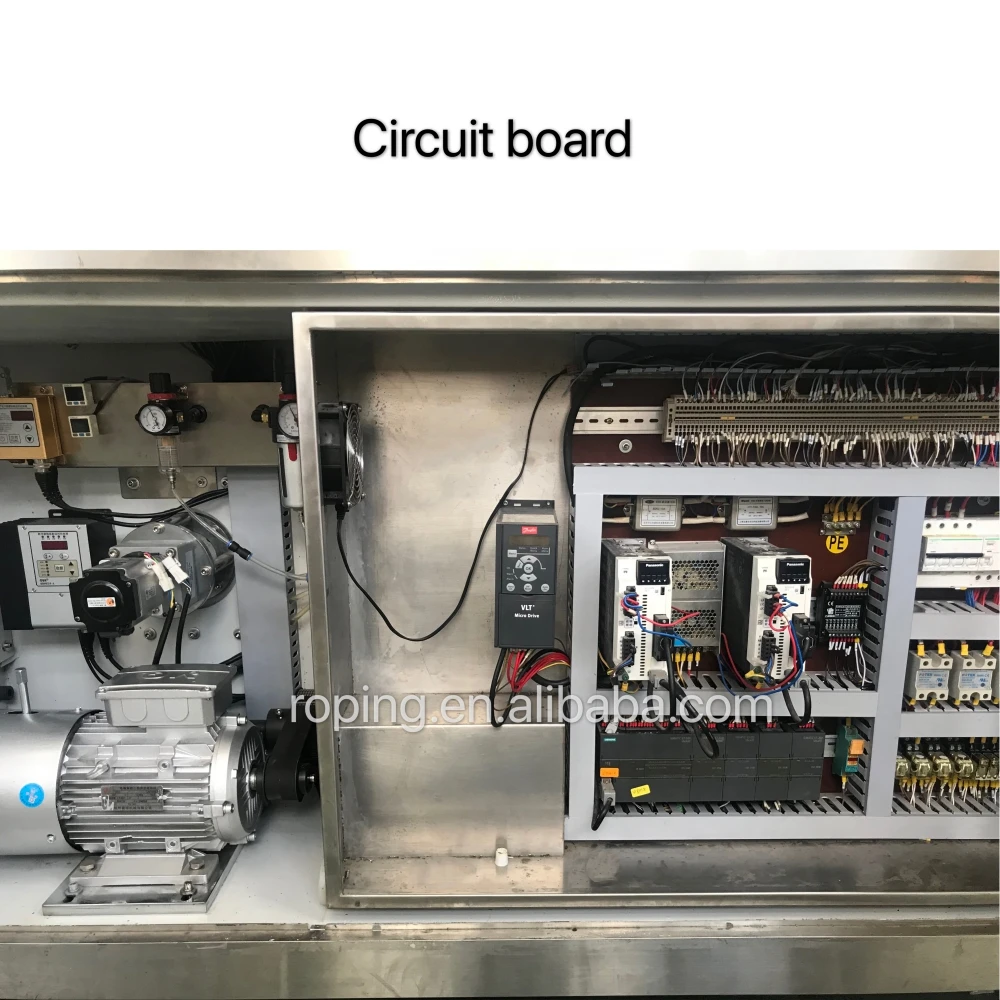

• Circuit board

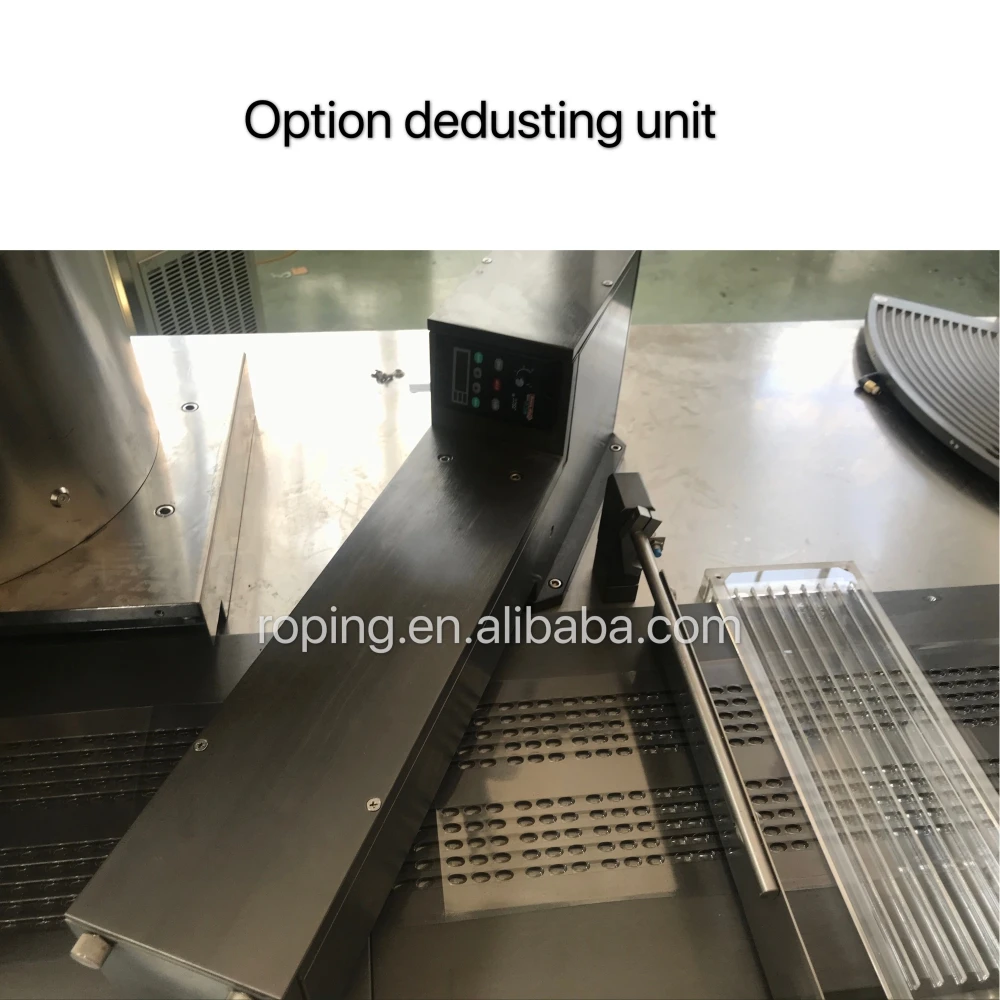

• Dedusting unit

• Others

Our services

• The company equipped with professional technical support and after-sales service, also send technician to the customer’s enterprise to adjusting machines, supervise technique and training the stuff etc.

Packaging & Delivery

•  Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
•  Within 45 days after receipt of 30% payment by T/T.

Company Information

•  Hoping Company takes Zhejiang Hoping Machinery Co, Ltd as the leader, dominates Ruian City Wonder International Trading Co., Ltd and is a high-tech enterprise integrating R&D, production, sales and relevant service of pharmaceutical machinery, packaging machinery, food machinery and cosmetics machinery.
•  Main products include flat type aluminum-plastic, aluminum-aluminum and aluminum-plastic-aluminum packaging machines, roller type high speed blister packaging machines, automatic cartoning machine series, automatic blister-carton packaging production lines, mask and eye pad packaging machines, and labeling machines, etc.

Certification

Hoping Company, as a professional manufacturer of blister packaging machines, has rich technology and production experience, and is a member of China Association for Pharmaceutical Equipment. Our packaging products have filled up domestic blank, passed the appraisal of  authorities, and obtained national patents, and meet the requirements of GMP. Our company was first certified to ISO9001 Quality Management System and EU CE requirements, and our products were affirmed as "China Famous Brand". Besides,

Our company was evaluated as "National High-tech Enterprise" "National Torch Plan Project" "National Innovation Fund Project" "Province Key New Product "Zhejiang Province Quality Service Prestige AAA Grade Credit" "Wenzhou Patent Demonstration Enterprise" "Ruian City Second Prize of Science and Technology "etc. in 2009.
