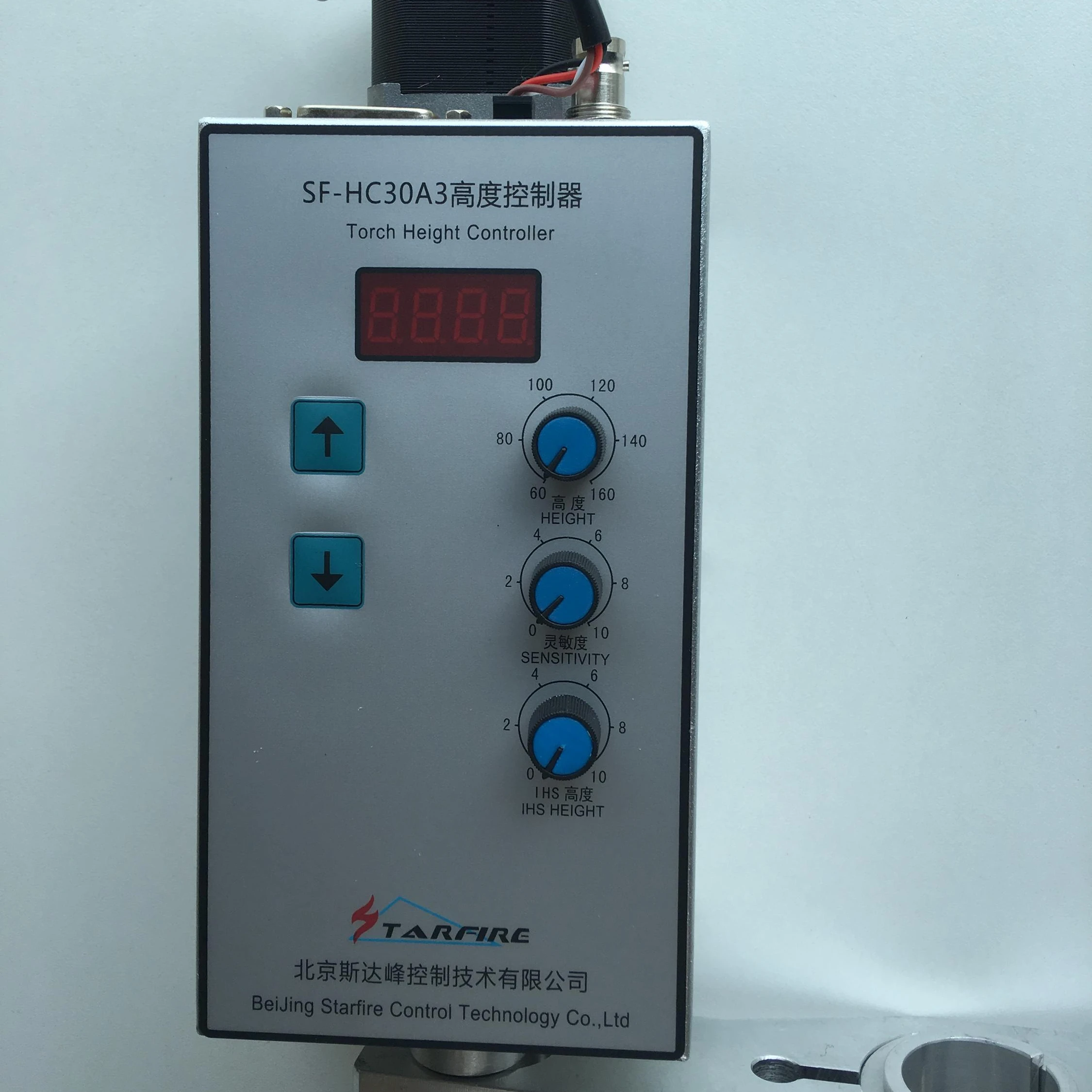

SF HC30 CNC cutting machine accessary auto torch height control

Product Overview

Description



SF-HC30  CNC cutting machine accessary auto torch height control







Technical characteristics



stepper motor is used to replace the traditional dc motor

SF - HC30A flame/plasma cutting height controller adopted stepping motor control technology, has subverted the traditional dc motor adjustable high mode, fast, stable, and greatly improve the service life of the product.

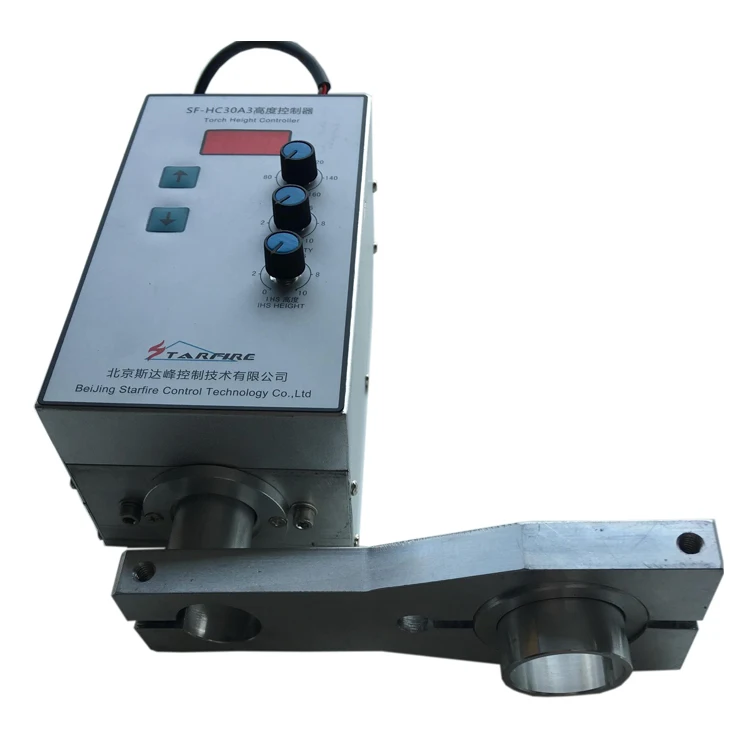

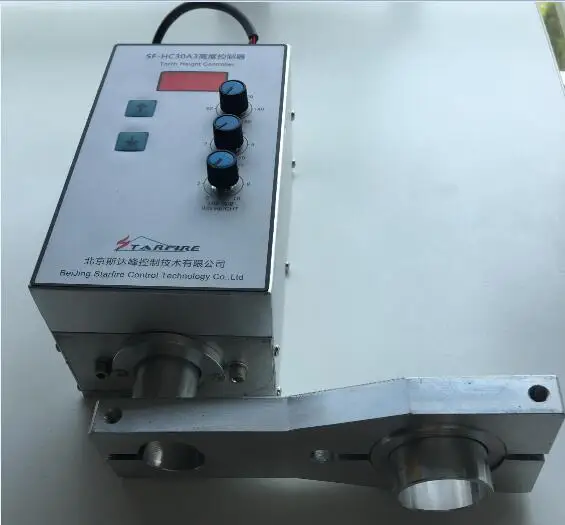

 mechanical lifting device and adjustable high controller integration

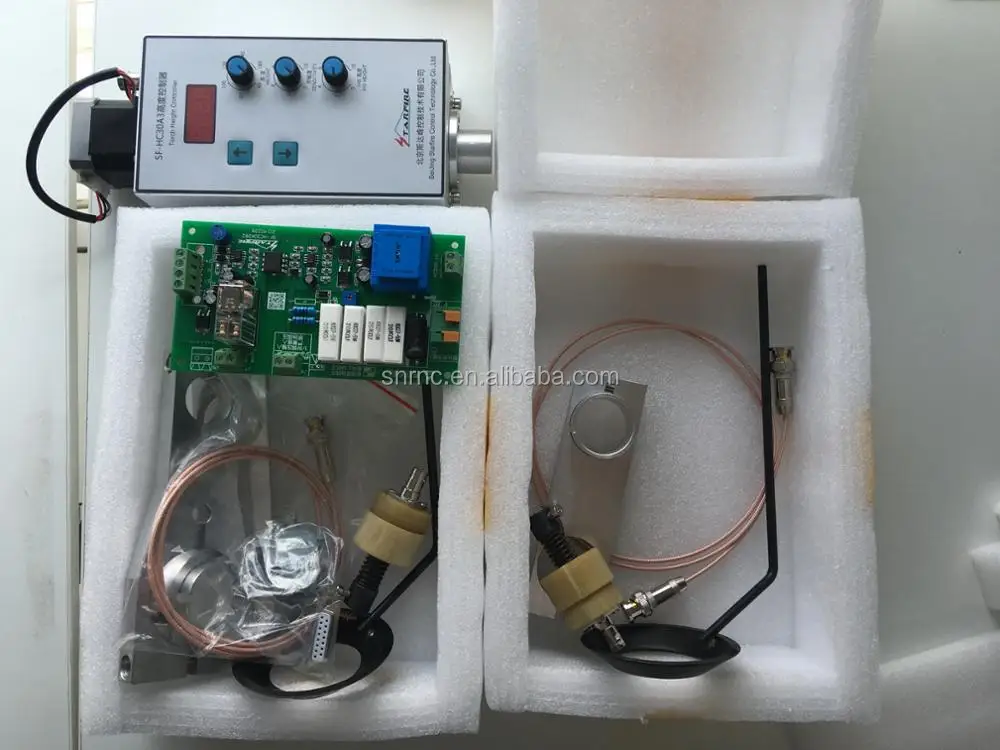

Detector, controller, drive integration design, make products to high integration, adjust stroke 10 cm.

full digital technology

Circuit adopts SMT technology, there were adjustable device, full digital control technology to ensure that the product has the high reliability.

In the bad environment can use

Shell choose seal anti-interference waterproof and moistureproof aluminum box design, especially suitable for flame cutting, plasma cutting of high temperature, high electromagnetic interference bad environment.

various interface easy to use

Interface simple control convenient, suitable for all flame cutting, plasma cutting numerical control system, also can be used alone.



The main technical data

power requirement	DC 24 v ± 2 V3 A
applicable motor	17 hs (42) series of stepping motor
manual adjusting range	0-100mm
automatically adjustable high control range	0-30mm
automatically adjustable high adjustment speed	3000 mm/points
control accuracy	+ / - 0.5 mm
box body size	155 x 87 x 71 mm
155 x 87 x 71 mm	155 x 87 x 71 mm

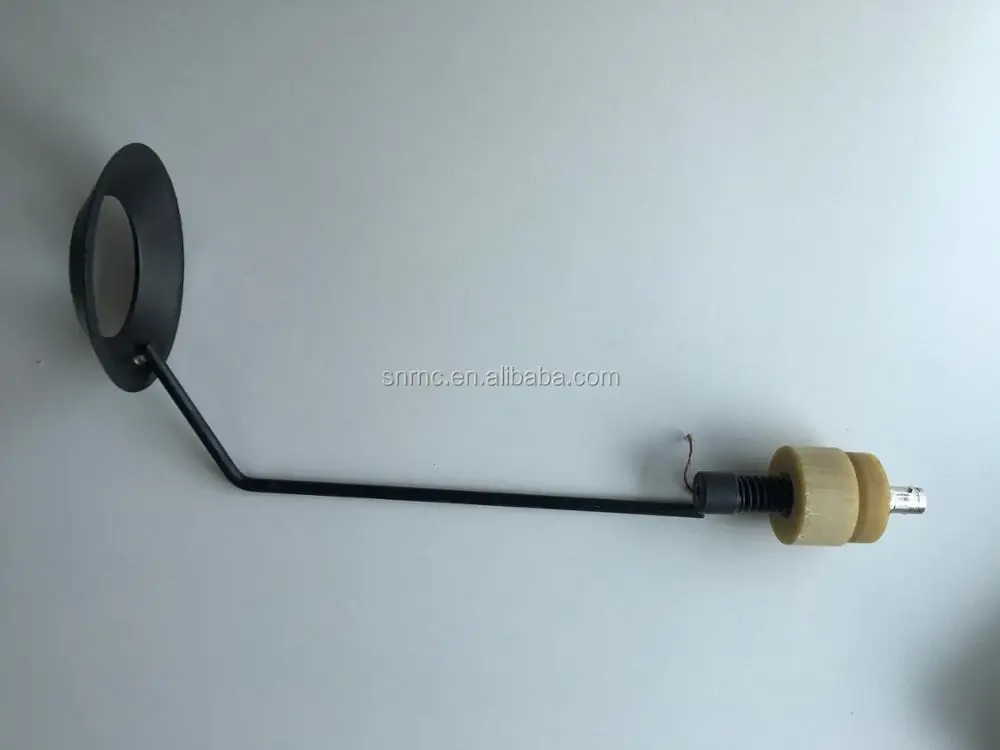

detection system	capacitive detector, arc pressure height detector
