Рама для автобуса Dongfeng EQ6100KT1

Share on (868965473):


Price:22 800,00 $ - 29 800,00 $

Quantity:


Product Overview

Description





Banner







Product Description

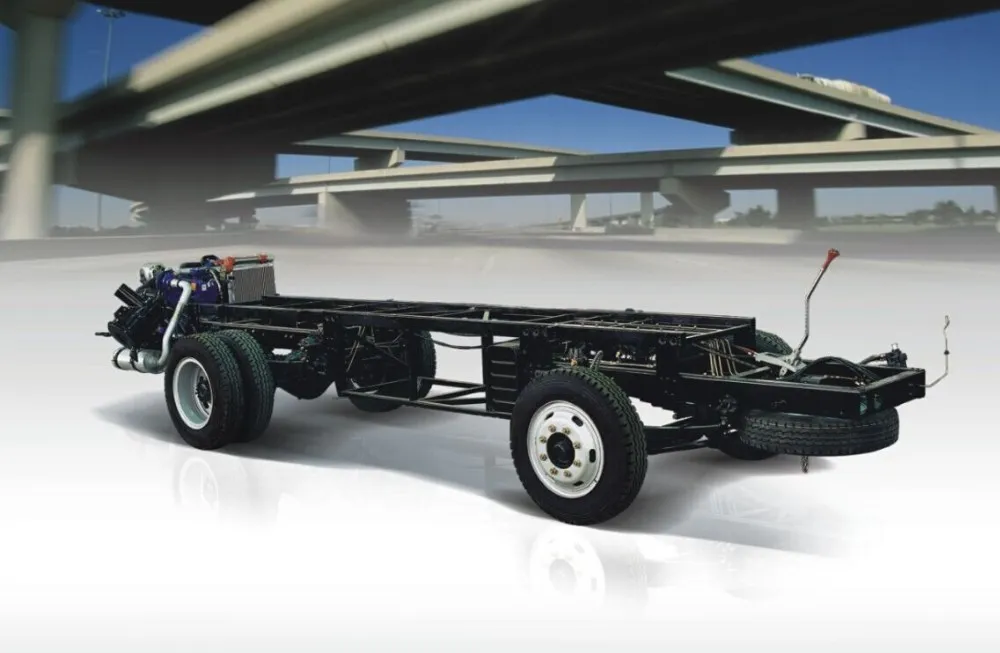

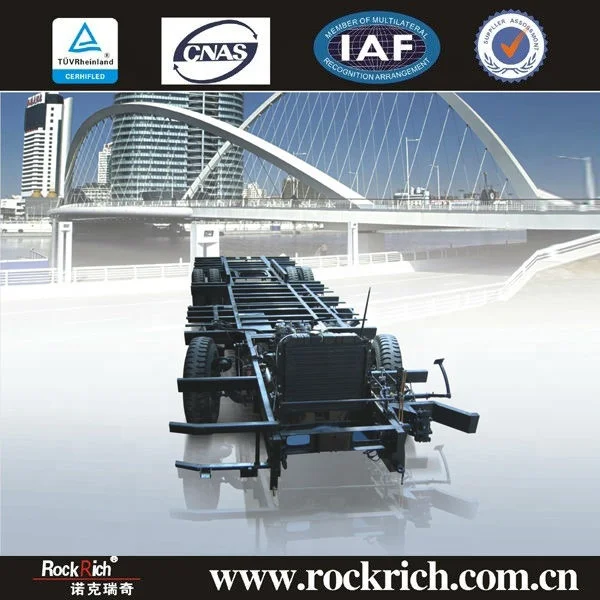

Dongfeng bus frame machine chassis -EQ6100KT1


























































































































































Specification
Dimensions(mm)9840, 10210*2370
Track(mm)Front                                                                   1997   2020
Rear                                                                               1800
Wheel base(mm)                                                                   5000 5370
Front/Rear Suspension                                                       1870/2970
Min Ground Clearance(mm)Rear Axle                                                                       260
Ground Clearane of upper frame(leaded) (mm)Front axle                                                                       810
Rear axle                                                                       840
Dry mass(Kg)                                                           3700 3810
Authorized total mass(Kg)12500
Front/rear axle load(Kg)4500/8000
Max.speed (Km/h)82
Min.turning diameter(m)20
Max. grade ability(%)30
Limited mode Fuel consumtion/100km(L)26
Ramp angle(°)Approach angle                                                               13
Departure angle                                                               10
Equipment
EngineModelEQ6100-1
Type6L,Gas injecting engine
Rated power(Kw/r/min)99/3000
(N.m/r/min)Max.torque(N.m/r/min)353/1000-1400
GearboxModel&Operation way     5 gears Gearbox,Rod controling
Files bit rate ratio7.31/4.31/2.45/1.54/1.000/7.66(R)
Front axle pattern Fist type & I axle
Rear axlePatternCasting rear axle case,one grade differential
Differential Ratio6.83
FrameSame cross section beam
Clutch330Diaphragm
Steering GearPower Steering Wheel
Suspension system9/11,12/13,(3/4)Non-independent,Multiple Spring
Braking systemDouble Route Brake, Drum Brake
Braking systemSpring Brake
Tire specification9.00-20,10.00-20
Alternator76A
NoteFront gas engine (long Front Suspension)



Customer Visit







Company Profile




ShiYan RockRich

Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.





Packing & Delivey







FAQ


1. What is the warranty?


    You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient      and efficient spare parts support with competitive price.





2. What is the delivery time?


     The delivery time is usually within 15 workdays after we received your prepayment.





3. Do you provide customized service?
     Yes. We offer customized service as you needs for the performance , included special requirements .





4. What is the payment method?


     By TT ,L/C at sight and Trade Assurance , etc.





5. Why us ?


     We guarantee professional one-stop service, competitive price with high performance and prompt response.
