SUNSHINE brand STC768 tire changer manufacture

Product Overview

Description

1, Larger and thicker turntable, dismounting 11’’-24’’ rim and max.tire diameter 1000mm

2, Taller vertical post, dismounting max. tire width 300mm

3, Universal switch,40A silver contact, much more durable

4, Hexangular axle is made of S41 steel which is strong enough when dismounting 11”-24” stiff tire.

5, The foot pedal assembly is punching from high quality steel to avoid distortion.

6, Clamps is cast by high quality alloy steel, hard enough and durable.

7, Dismounting head is made of special steel material, equipped with bead pressing blocks and bead pressing roller, dismounting low-profile tire without any aid arm.



Related parameters of SUNSHINE brand tire changer:

MOTOR	110V/220V/380V50/60Hz
POWER	1.1KW/0.75KW
MAX TIRE DIAMETER	1000mm
OUTSIDE CLAMPING	11"-22″
INSIDE CLAMPING	13"-24"
MAX. TIRE WIDTH	300mm
OPERATING PRESSURE	8-10bar

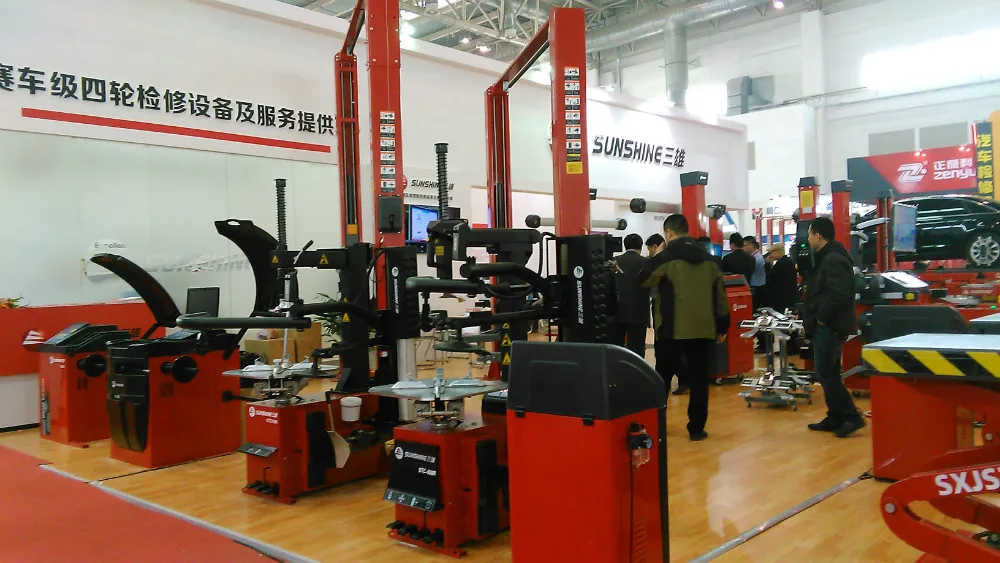

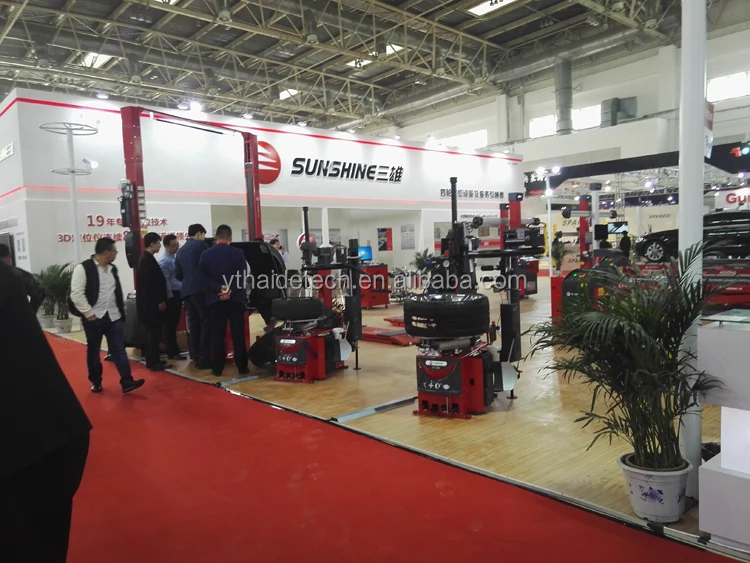

We are manufacture in alignment,lift,tire changer,wheel balancer since 1998.Sincerely welcome to our factory in Yantai city,China.

For any further inquiries,you could contact me.
