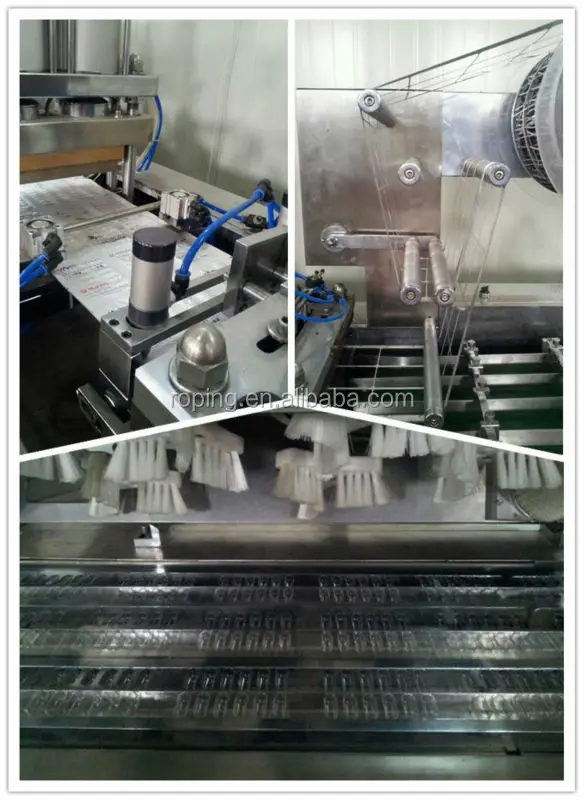

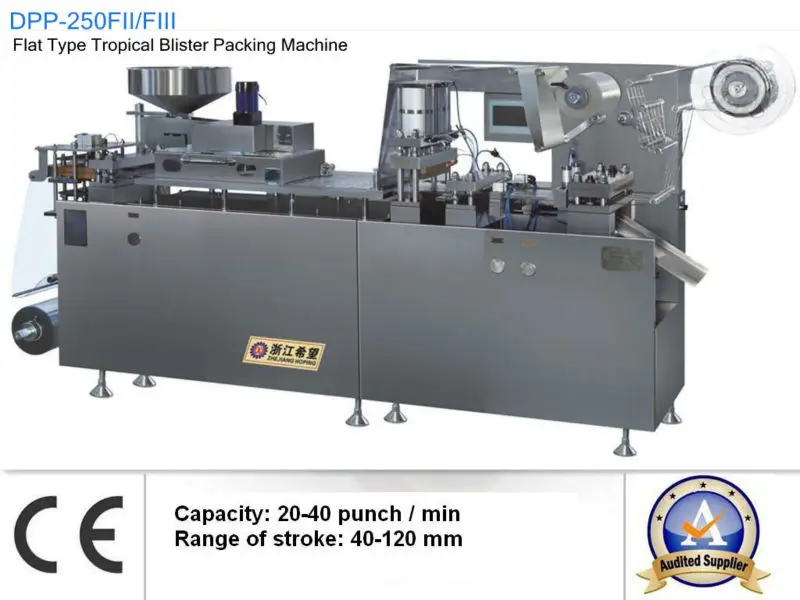

Aluminum Automatic mini tablet capsule Blister Packing Machine (DPP 250)

Product Overview

Description

















Main Technical Parameter:

Capacity(punch/time)	20-40
Range of strok(mm)	40-120
Packing material:Pharmacy PVC(mm                             PTP alu foil(mm)                             Tropical alu(mm)	(0.2-0.5)*250
	(0.02-0.05)*250
	(0.09-0.15)*250
Cleam compressed air	0.5-0.7Mpa
Air consumption(m³/min)	≥0.3
Power	AC380V 50HZ 12KW
Water chiller for moulds	Tap water or recycle water with 60L/h
Dimension(L-W*H)(mm)	4890*650*1700
Net weight (kg)	2600







 Operating position :



















• Worm wheel reductor :Main machine overloading protect with lower noise and stabile runnnning .
• Adjustable range of stroke:can change the stoke dimension freely to suitable more kinds of product.

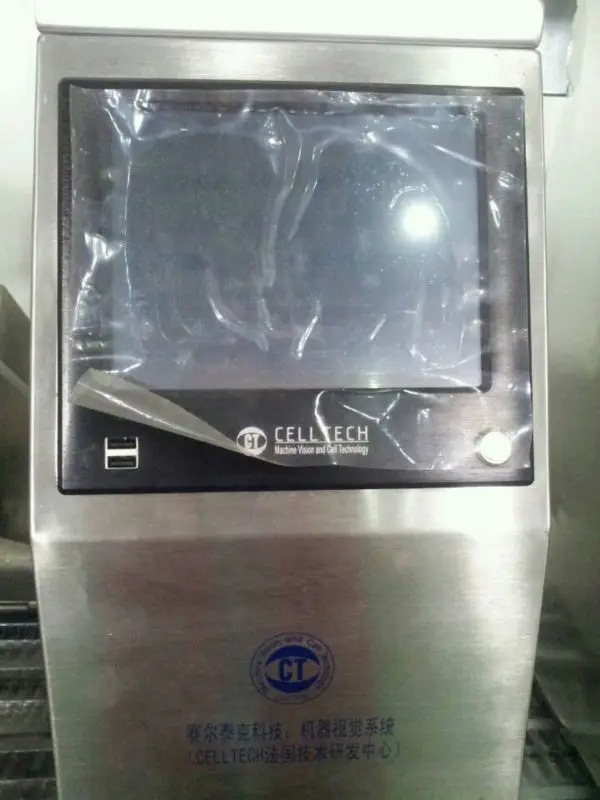

• Online machanical photography detection and rejection device with 100% rejected rate.
• Double orientation shafts with shafts with spline shaft transmission adopted to ensure synchronization stablie running

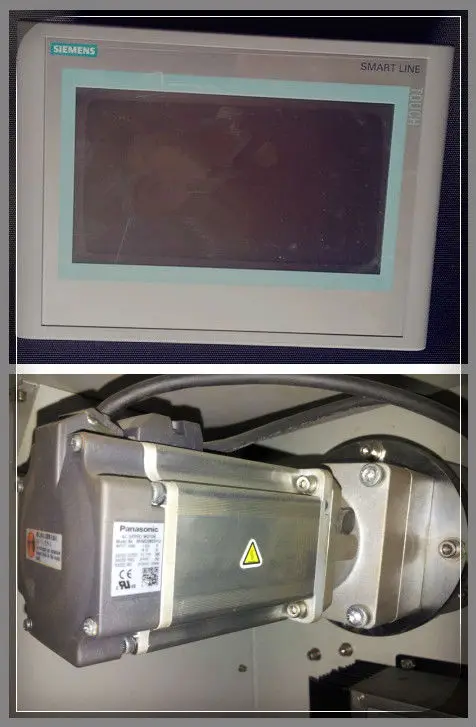

• Touch screen with PLC block adopted ,stabile operation and easy maintenance.
• Whole machine is assemblage of independent components which makes it can install infitment cleam workshop.

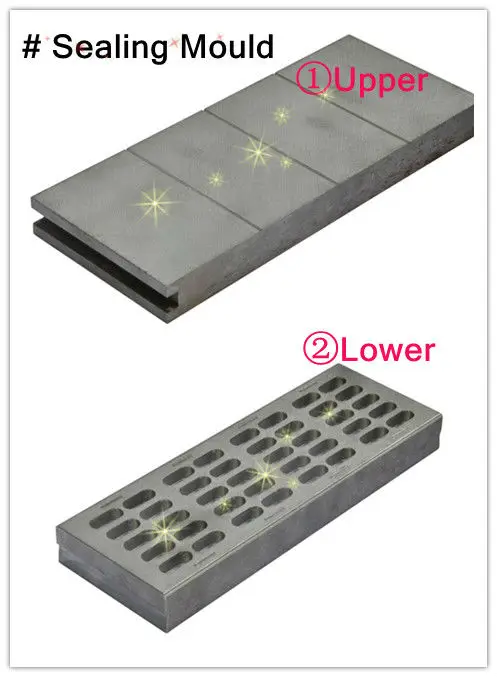

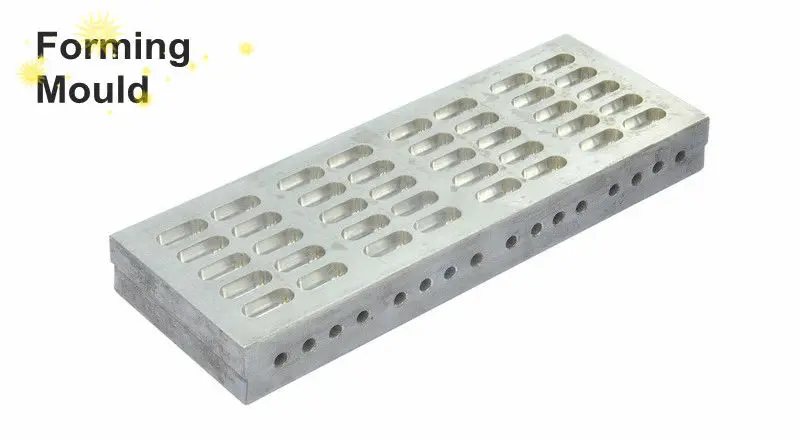

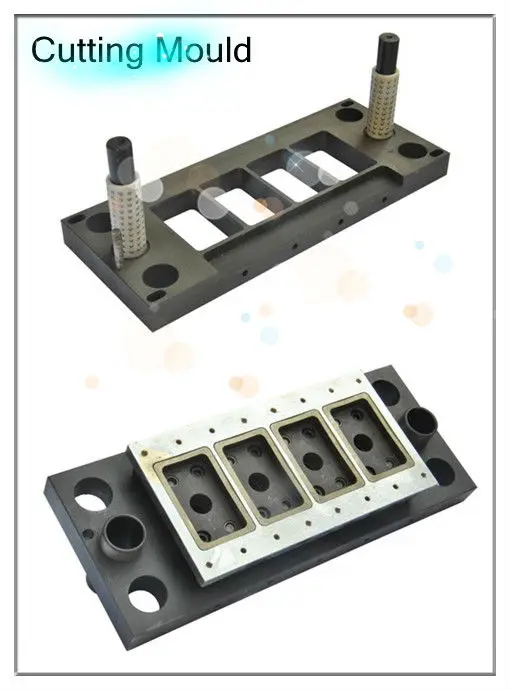

Moulds:

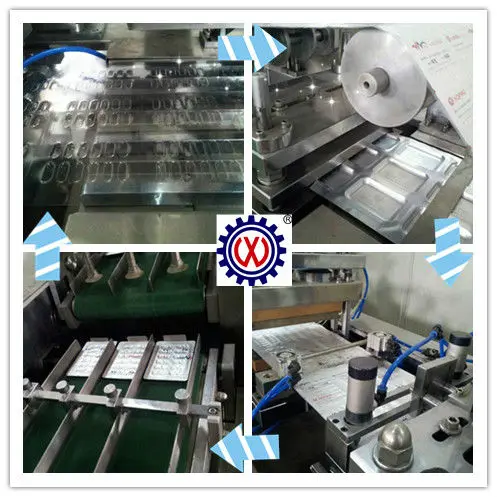

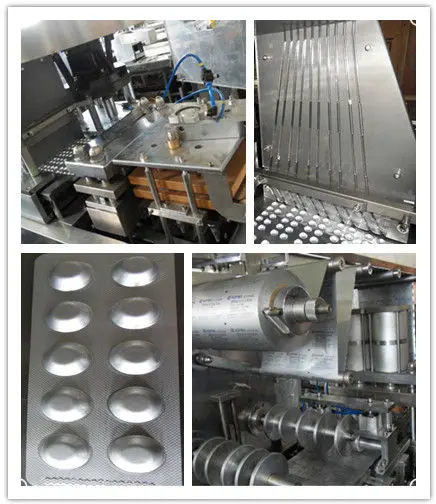

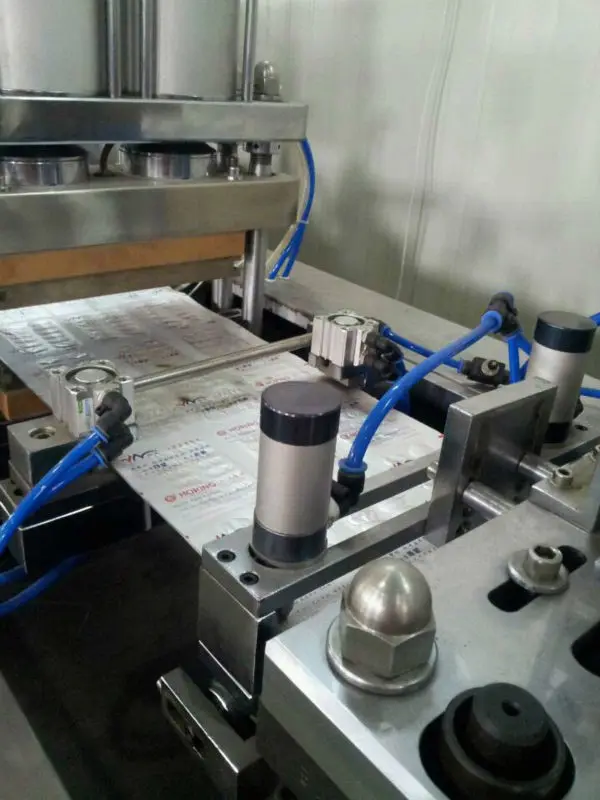

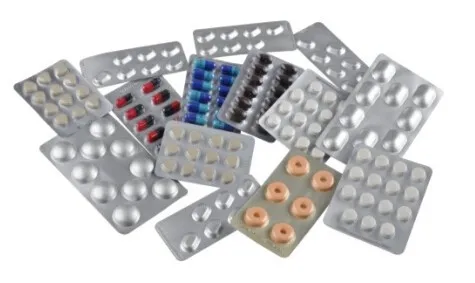

Product Show
