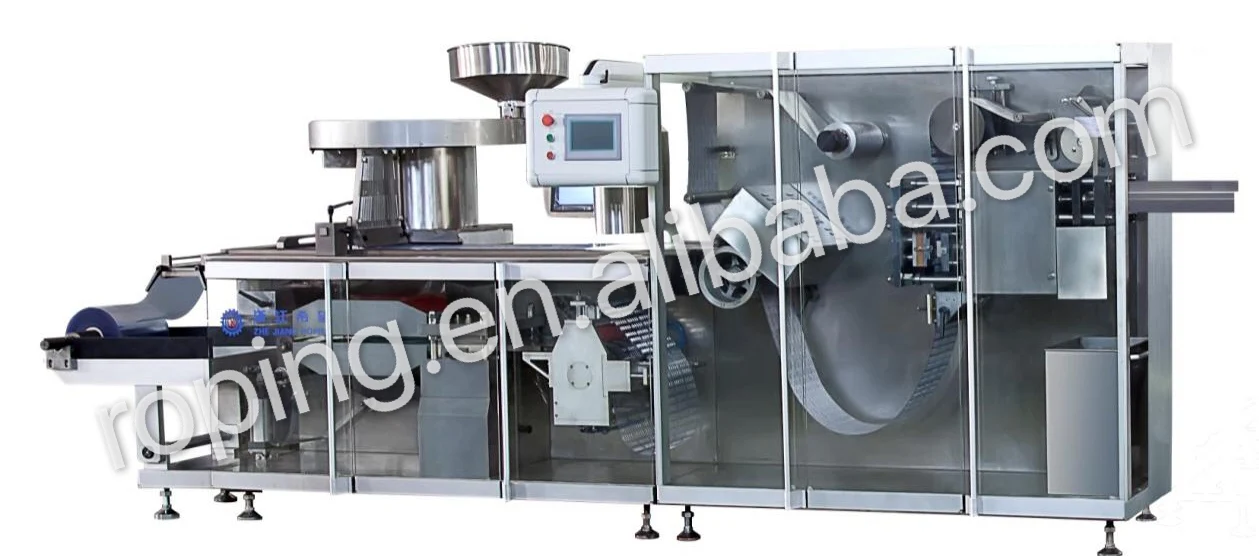

High Speed Blister Packing Machine(DPH 260H)

Introduction

DPH260H High Speed Roller Type Blister Packing Machine (National Invention Patent No.: ZL 201010213970.1) is a special equipment which as blister type alu/pvc composite sealing packing for drugs( tablets, capsules), food, medical instrument and similar products. Due to adopt positive pressure forming, flat heat sealing, it has crisp blister, flat and level strip, etc.

DPH260H High Speed Roller Type Blister Packing Machine is the new generation product elaborately researched and developed by our company. Its maximum cutting frequency can be 200 times per minute, 4 times faster than ordinary blister packing machine. It combines the advantages of flat type and roller type blister packaging machine, and adopts special feeder for irregular tablet, with high cutting frequency, low energy consumption, accurate action, stable and easy to change mold, high yield, and the stagger blister no horizontal waste edge cutting, highly improves the production efficiency. The machine design is more reasonable, it adopts automatic control technology which integrate frequency control and machine, electricity, light, air, and creative design strictly according to pharmaceutical industry GMP standard. Machine has the functions of fission station structure, modularization of working stations. The technique fills up the local blank, it's comprehensiveness stands for the leader and more active than the imports.

1) Suitable for packing tablet, capsule, etc.
2) Max Punching speed: 200times/min
3) High-end configuration
4) CE Certification

Main Technical Parameter

Main Electric Parts:

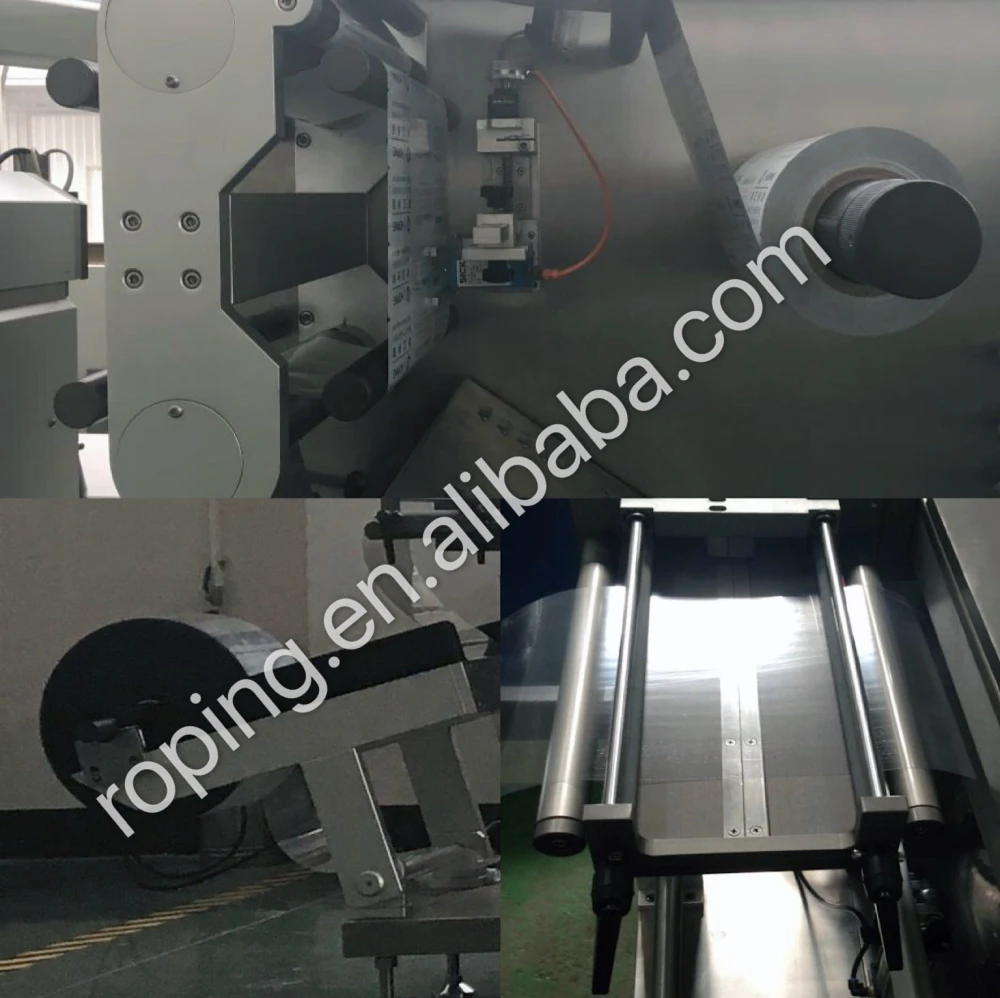

Connect device

1.Machine alarm and stop automatically while PVC is out and crack, and equip with e-stop safety device, improve the safety of workers when debugging and replacing moulds.

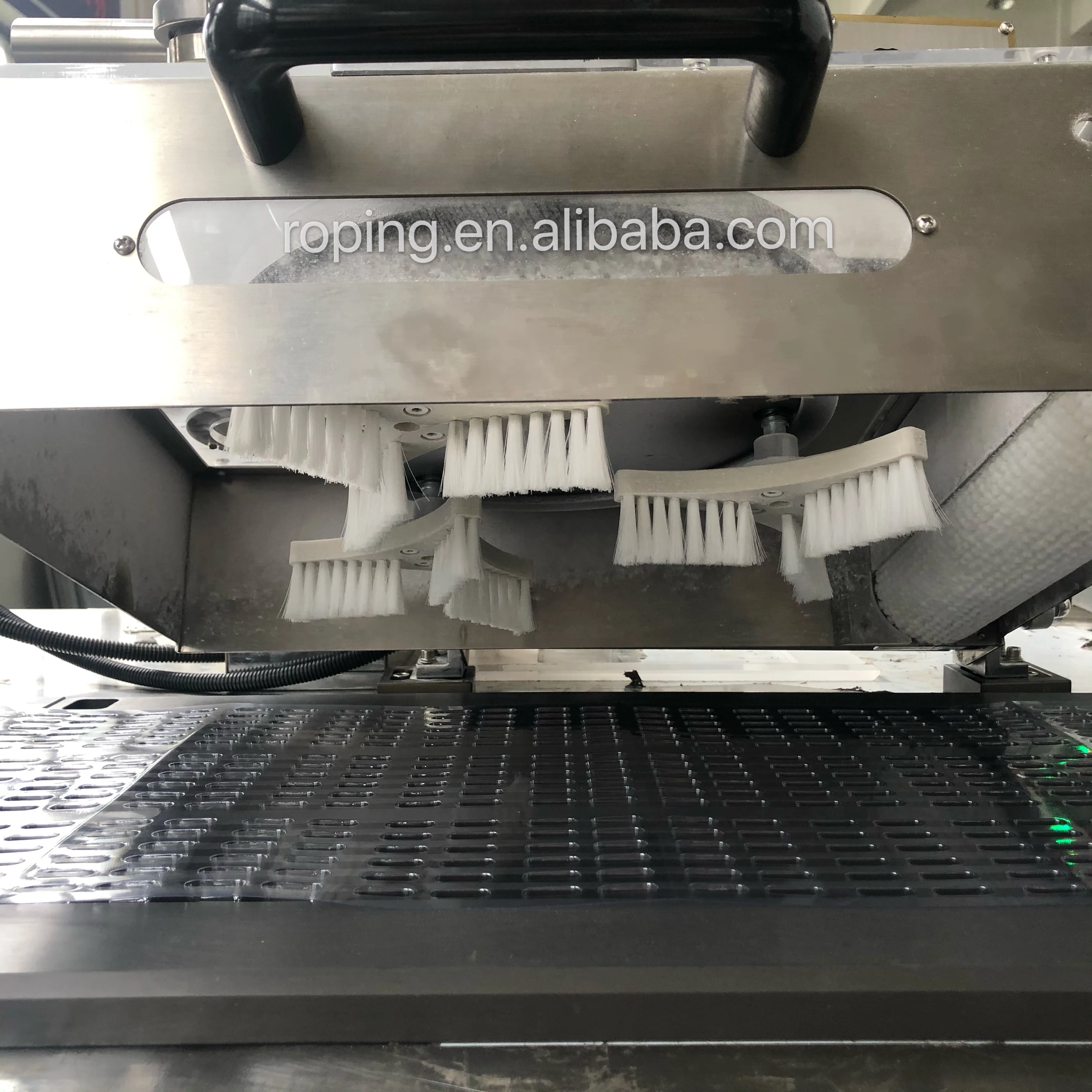

Feeder

1.The feeder has adjustable nuts and alignment blister to move left and right, which is easier and faster.

2.All components and hopper contacted with medicine adopt stainless steel and innocuity material accordance with “GMP” request.

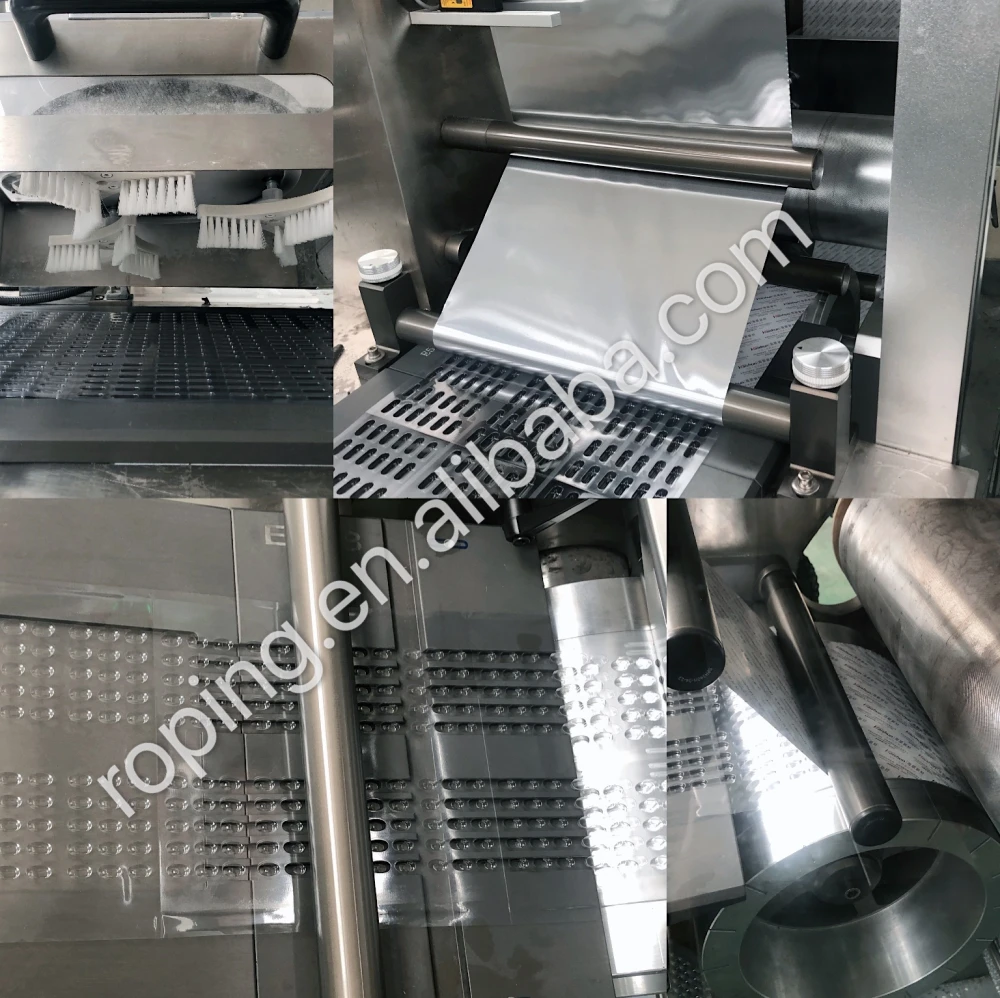

 Conveyor belt

1.Modular rail, mold replacement fast, ,easy to maintain and clean,no material left.

2.The mould adopts positioning pin with precision, and press-plate clamping, easy in assemble and unassemble.

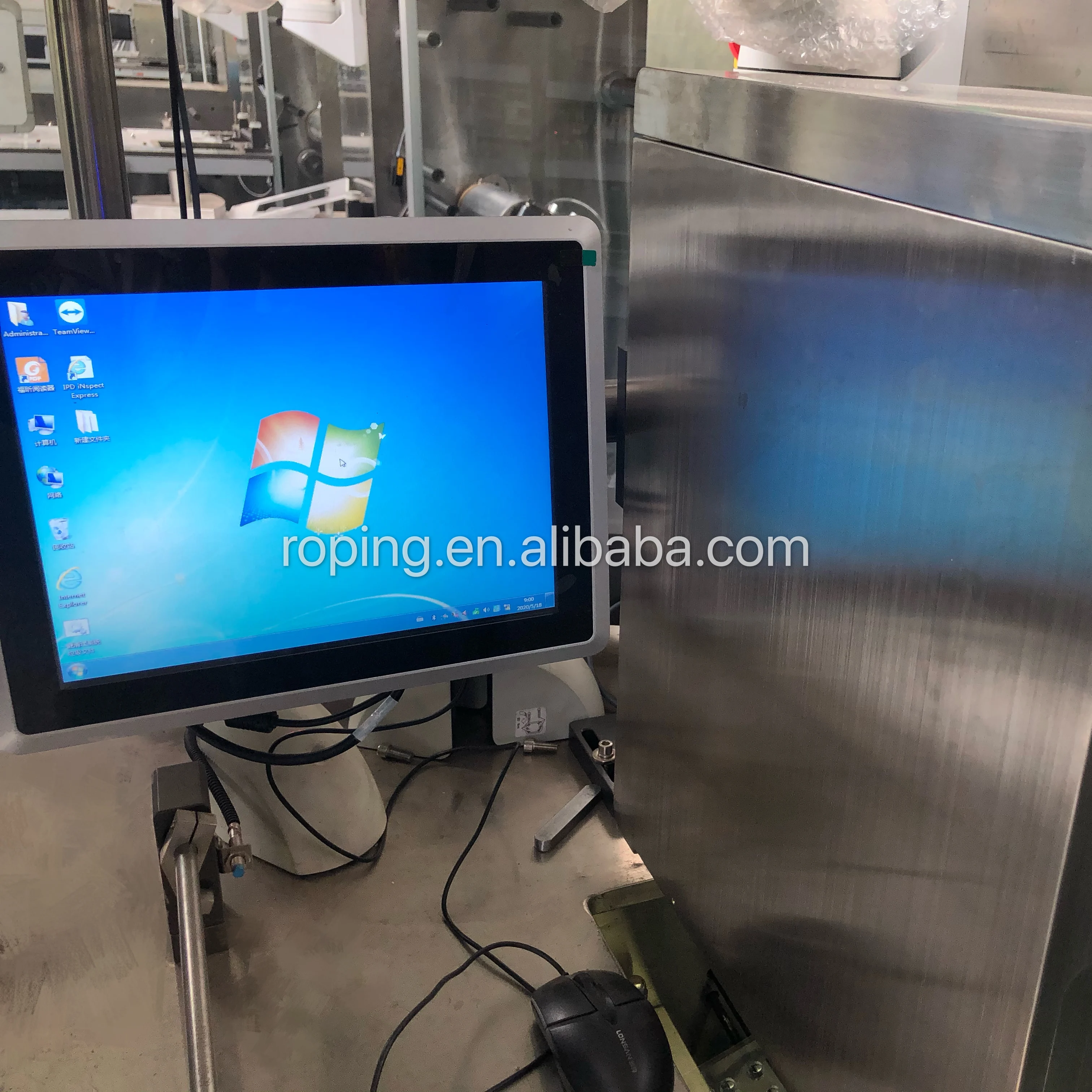

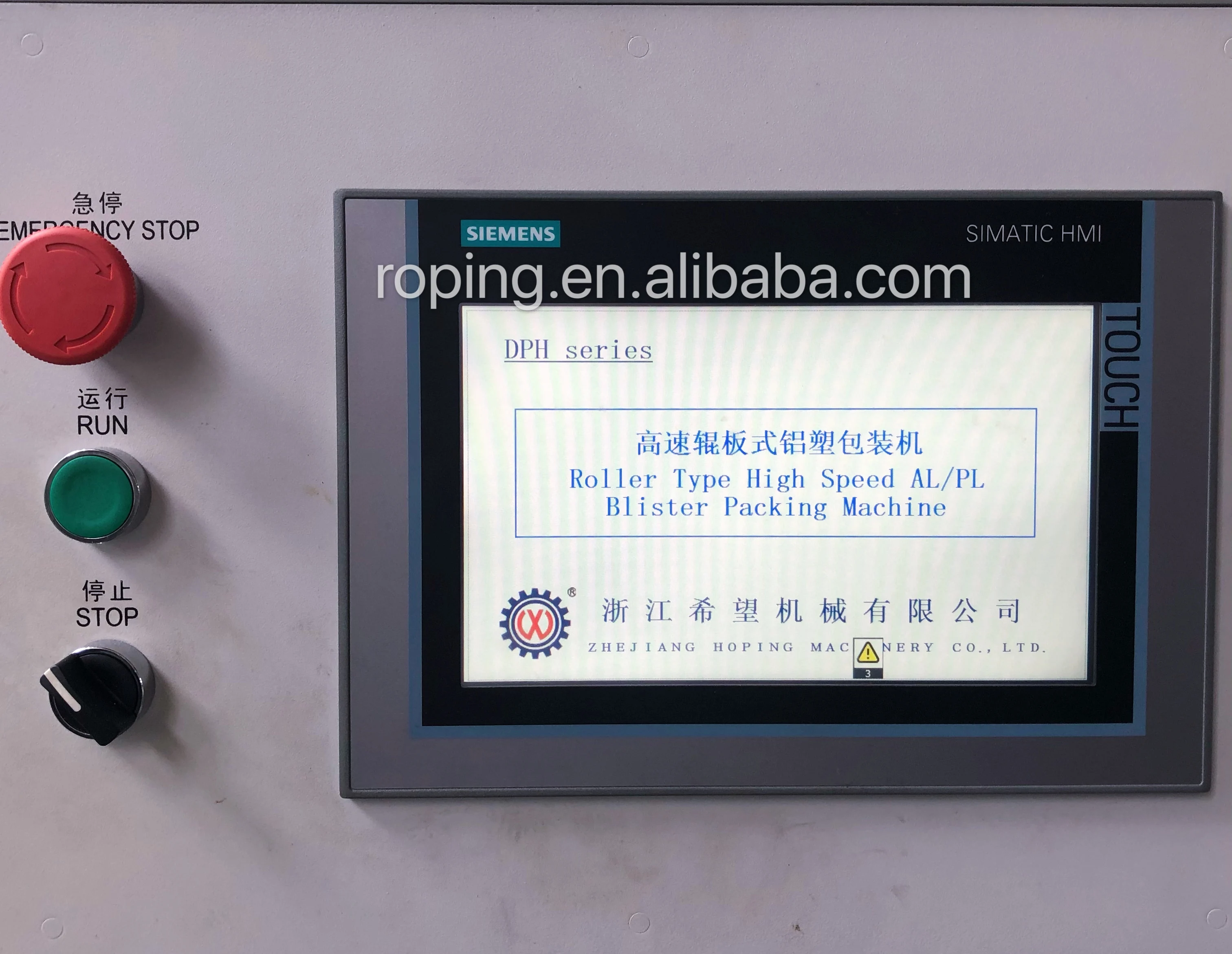

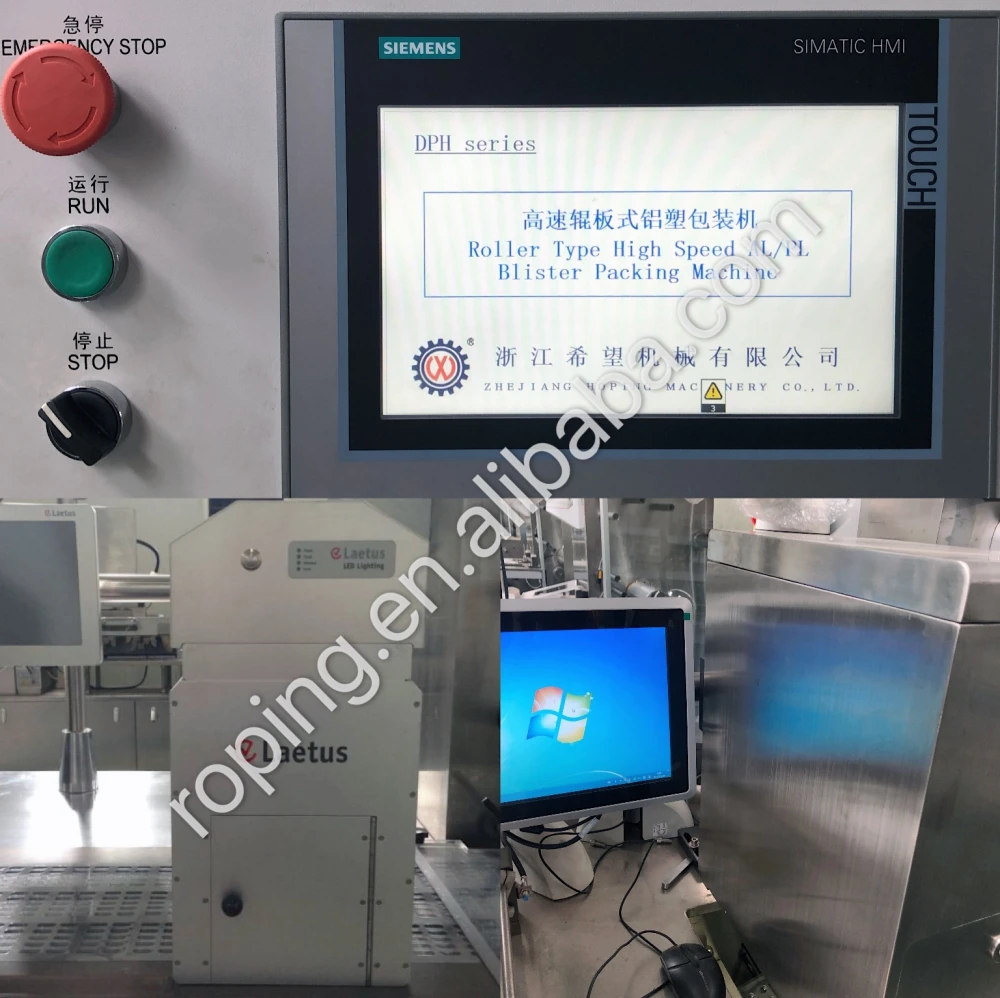

HMI and camera detection

1.The emergency stop safety device improves the safety of operators in debugging and mold changing.

2.The touch screen can prevent dust from entering, the appearance is beautiful, the swing arm can rotate 180 degrees, the touch screen cover can rotate 270 degrees, the position is more flexible.

3.The machine has the functions of detection & rejection, photo-cell registration (rimless cutting without this function)

4.Adopt German Laetus camera detection, industrial control display,Real-time monitoring the state of tablet(Optional)

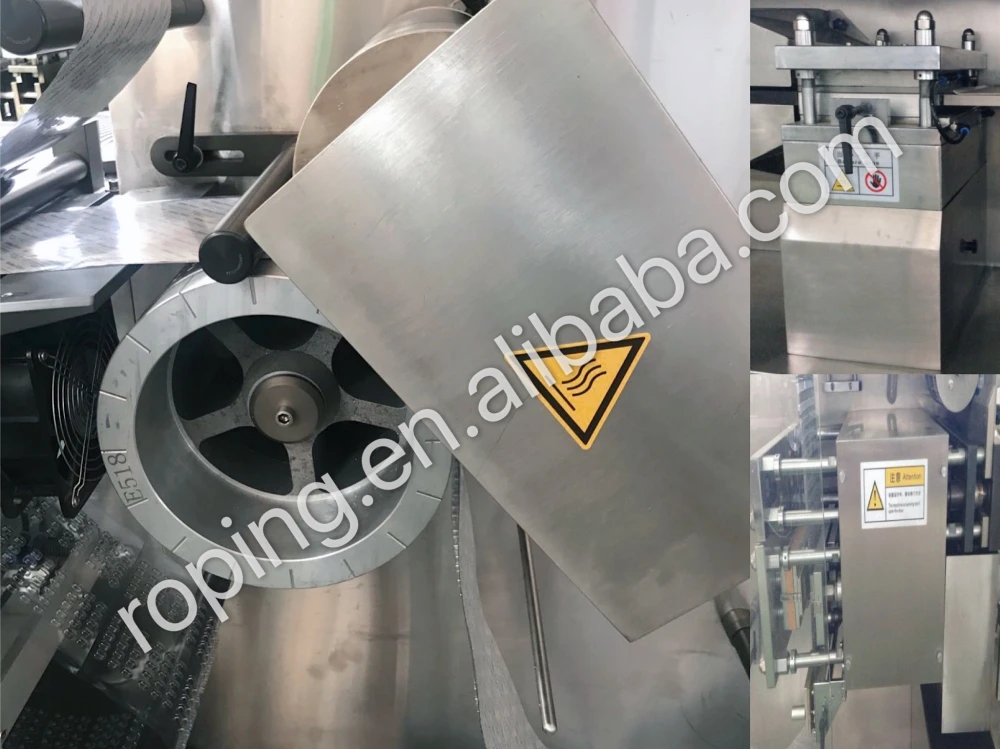

Sealing station

 1.The bearings at the forming station, the hot sealing station, the forming station and the punching station are all made of Japan seiko NSK bearings, which have a long service life and can withstand the axial and radial loads under high-speed operation and operate smoothly.

2.Batch number in the use of CAM drive, so that the print more clear.The punch is driven by eccentric shaft;Oil pump automatically lubricate eccentric shaft, CAM and copper sleeve, reduce noise and reduce mechanical wear.

solenoid valve

1. Imported solenoid valve is adopted, which has long service life and sensitive control of gas path, so that the formed blister is uniform and straight.

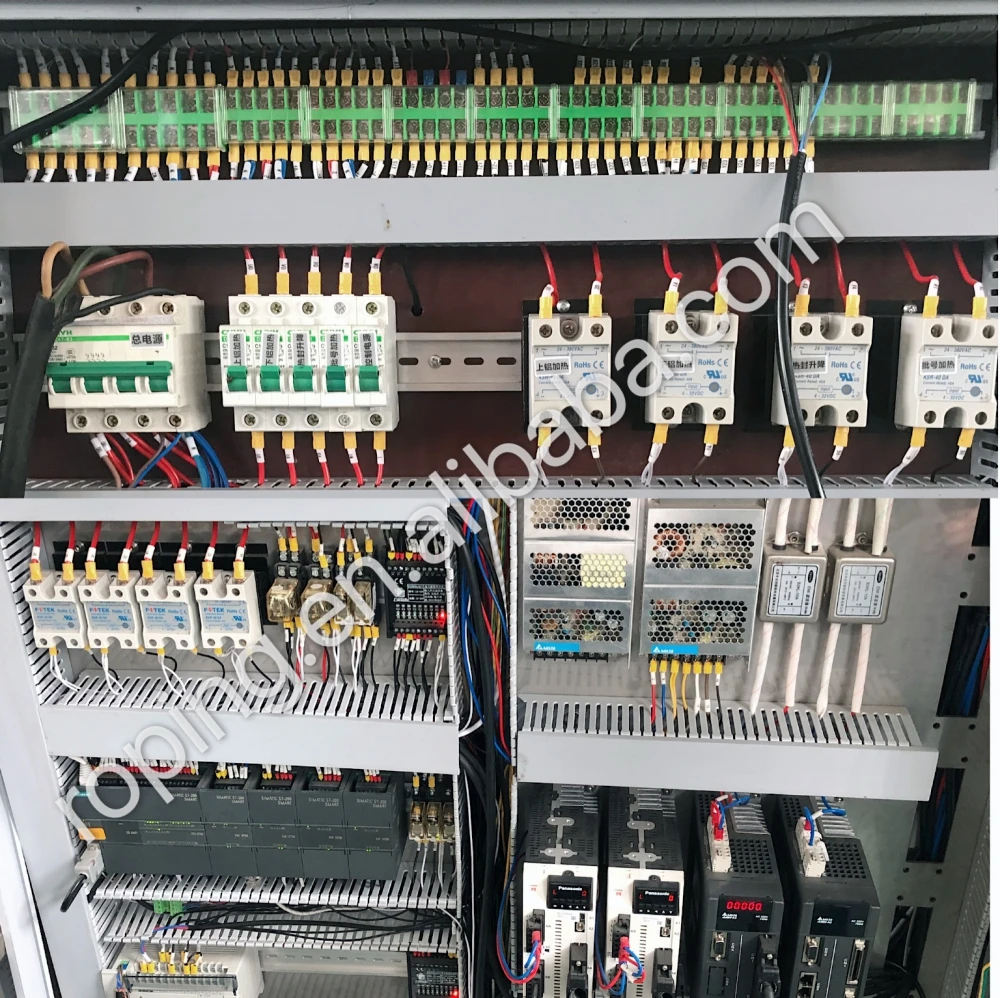

Electrical cabinets

1.Electrical cabinets rational layout, arranged in neat rows. The cabinet can be rotated independently, making maintenance more convenient.

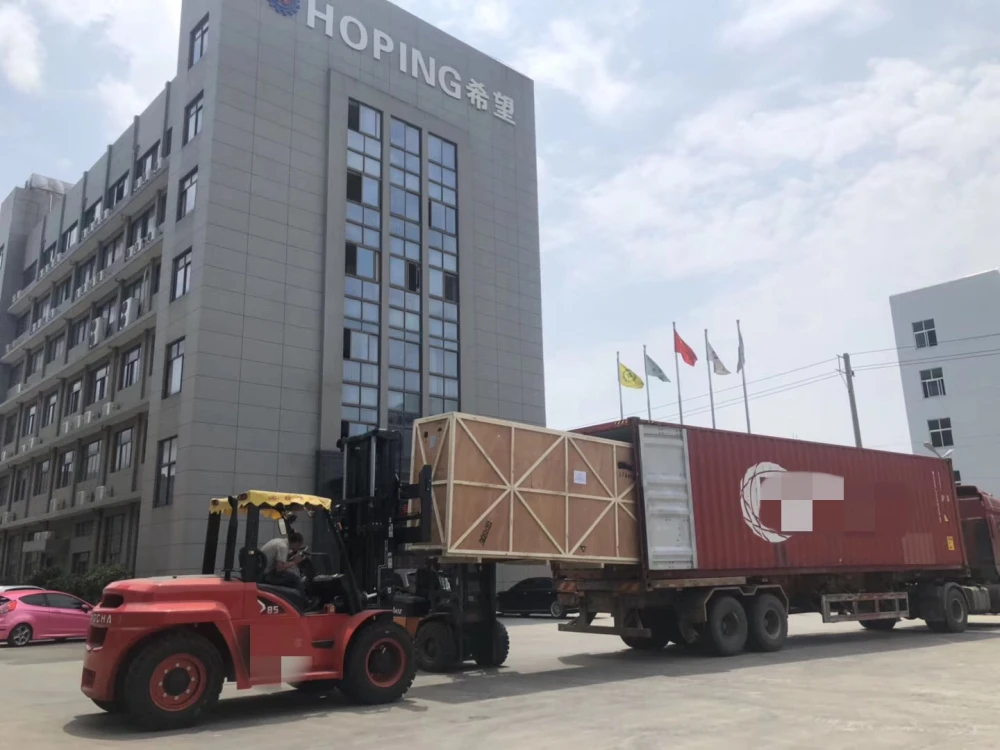

Packaging & Shipping:

Ningbo/ Shanghai Port      By sea, land and air

Our services:

The company is equipped with professional technical support and after-sales service, and assigns technical personnel to the customer enterprise for machine debugging, technical guidance and personnel training.

Company Information:

Hoping Company takes Zhejiang Hoping Machinery Co, Ltd as the leader, dominates Ruian City Wonder International Trading Co., Ltd and is a high-tech enterprise integrating R&D, production, sales and relevant service of pharmaceutical machinery, packaging machinery, food machinery and cosmetics machinery.

Main products include flat type aluminum-plastic, aluminum-aluminum and aluminum-plastic-aluminum packaging machines, roller type high speed blister packaging machines, automatic cartoning machine series, automatic blister-carton packaging production lines, mask and eye pad packaging machines, and labeling machines, etc.

administration building

workshop

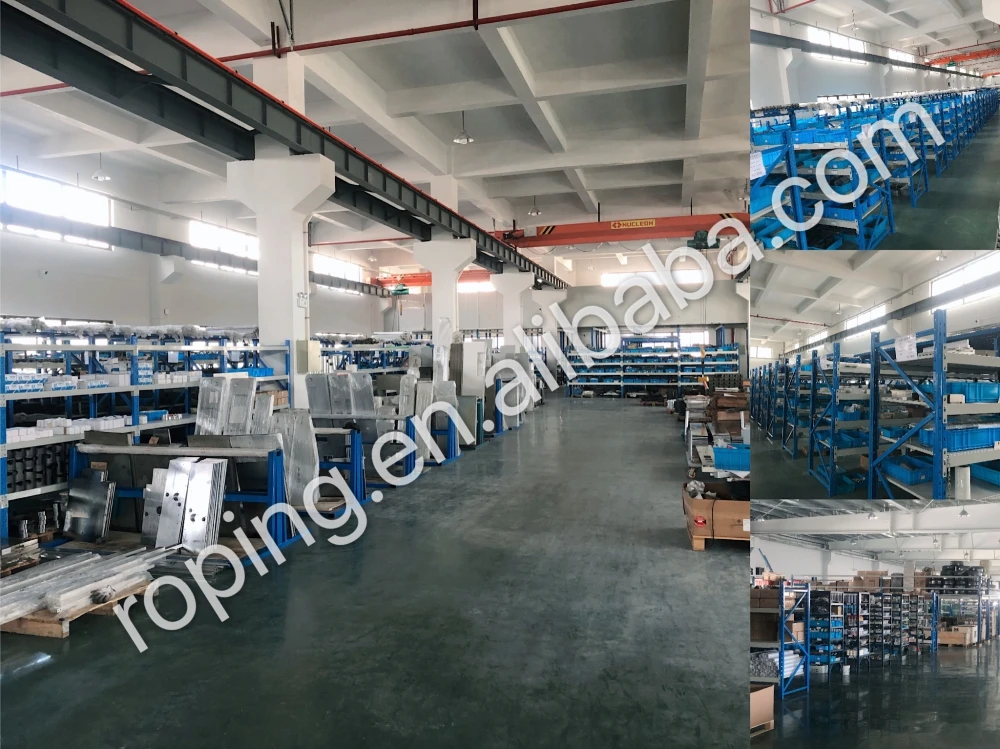

warehouse

Certification:

Hoping Company, as a professional manufacturer of blister packaging machines, has rich technology and production experience, and is a member of China Association for Pharmaceutical Equipment. Our packaging products have filled up domestic blank, passed the appraisal of  authorities, and obtained national patents, and meet the requirements of GMP. Our company was first certified to ISO9001 Quality Management System and EU CE requirements, and our products were affirmed as "China Famous Brand".

CE

ISO9001
