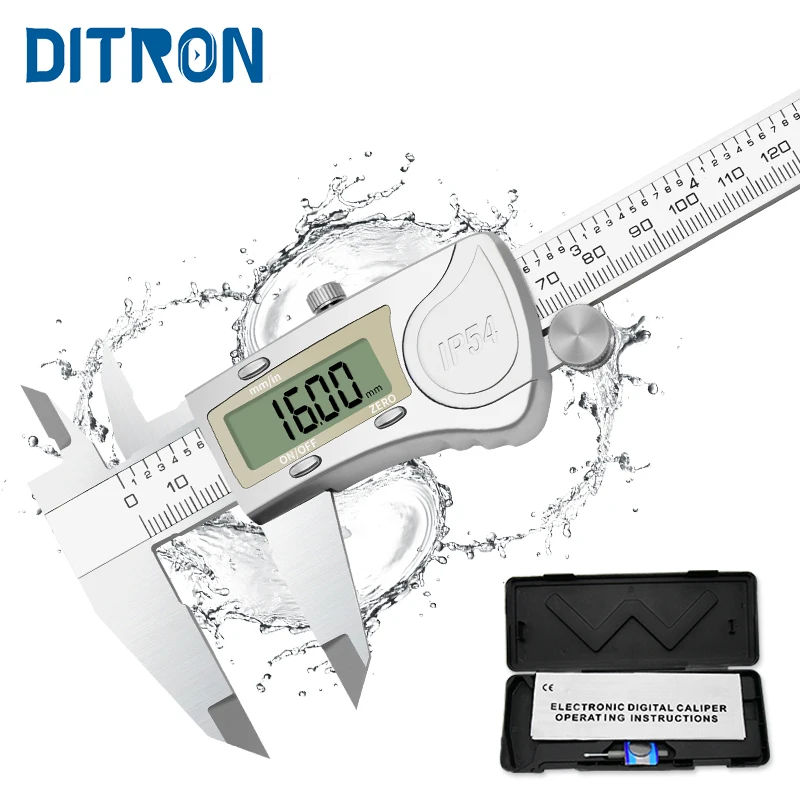

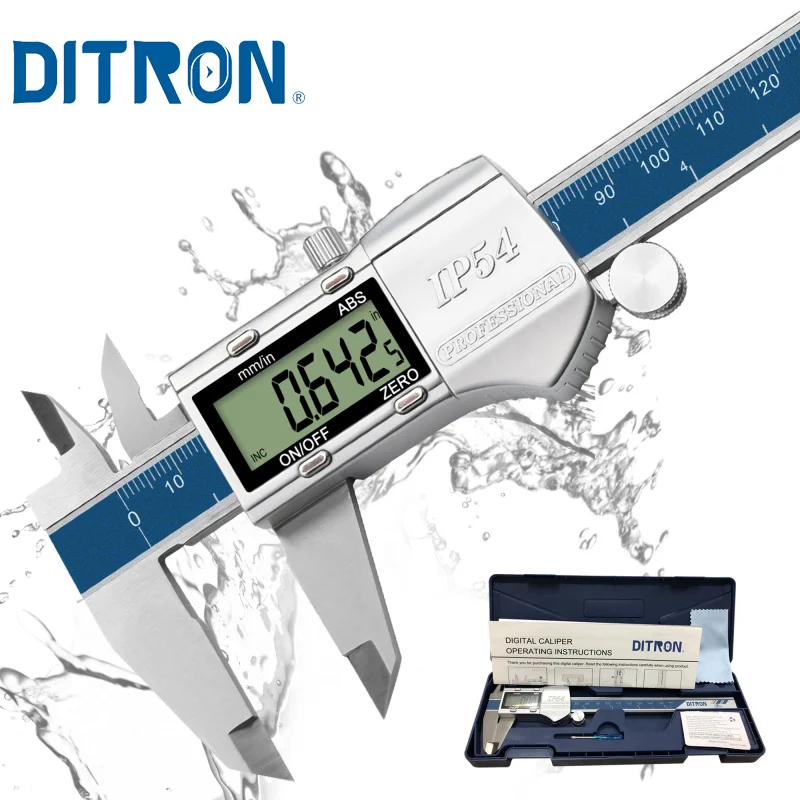

DITRON 150mm 6 Inch Backlight Digital Caliper Electronic Stainless Metal Vernier Caliper Measuring Tools Conversion mm and Inch
- Category: Vernier Calipers >>>
- Supplier: Chengdu Ditron Measuring Co. Ltd
Share on (869558266):
Product Overview
Description
Product Description
* Backlight Function
* Stainless Steel
* LCD screen Display
* Measurement Range: 0 - 6" and 0 - 150mm
* Resolution: 0.0005"/0.01mm
* Accuracy: 0.001"/0.02mm
* Two Measuring Modes: inch/metric
* Measure Mode: inside, outside, depth and step
Features

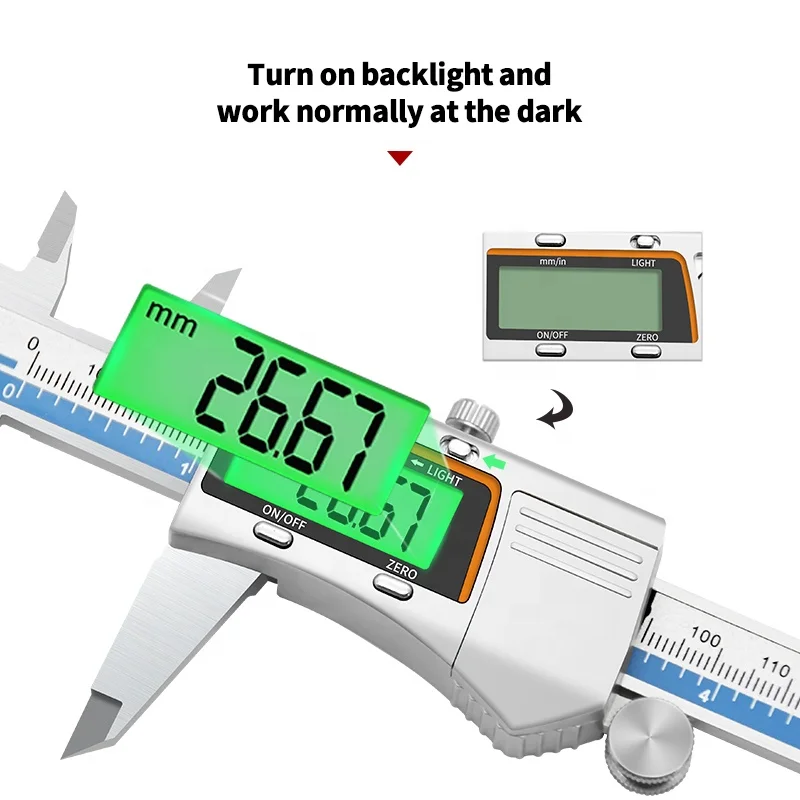

1.This caliper has backlight effect,when turn on backlight button,it can work normal in the dark.
2.High definition LCD display allow you to read each measurement data in seconds.

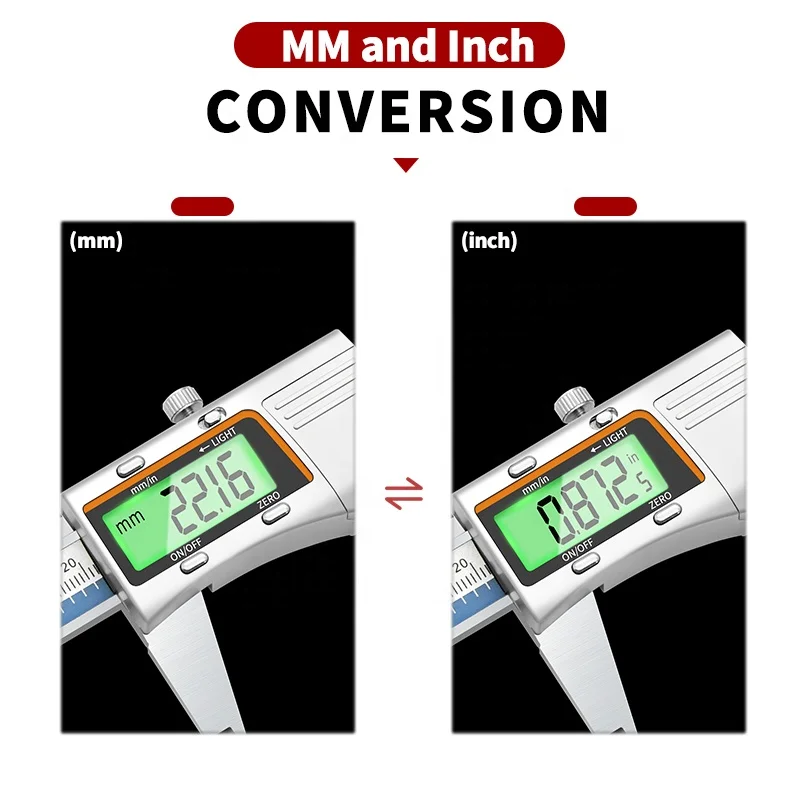

3.This product has 2 modes of measurement units(including mm, inch). Additionally, it comes with two sets of jaws and a probe to measure depth, stride, outer and inner diameter, making all your objects measurable.

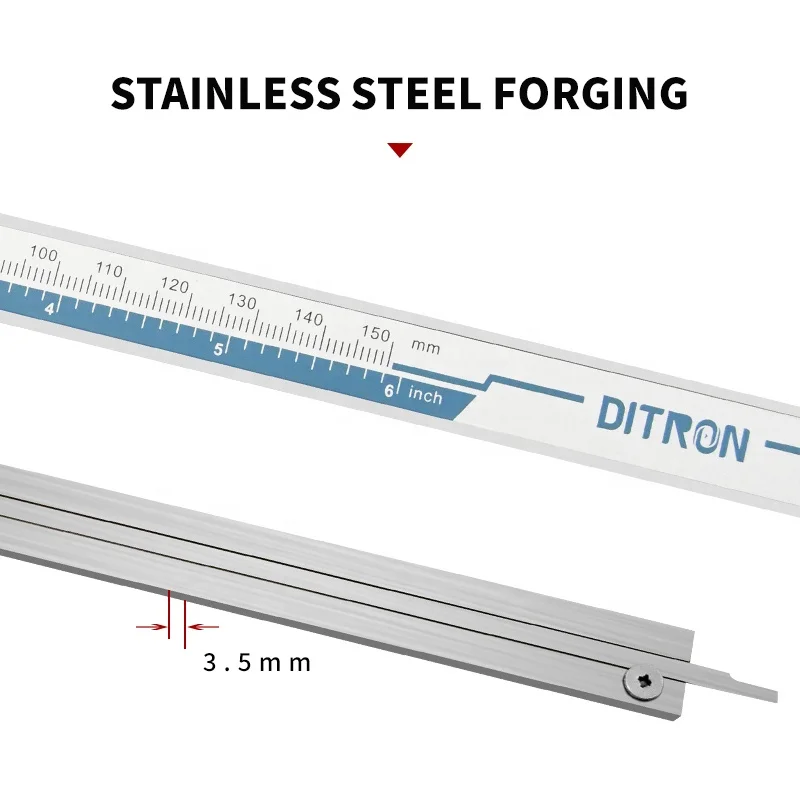

4.Its shell is made of metal with silver painted and the micrometer is made of stainless material. The specific materials can protect the product in waterproof, rust-proof situation. With a sturdy frame and a lockable head, it can provide competitive and excellent quality.

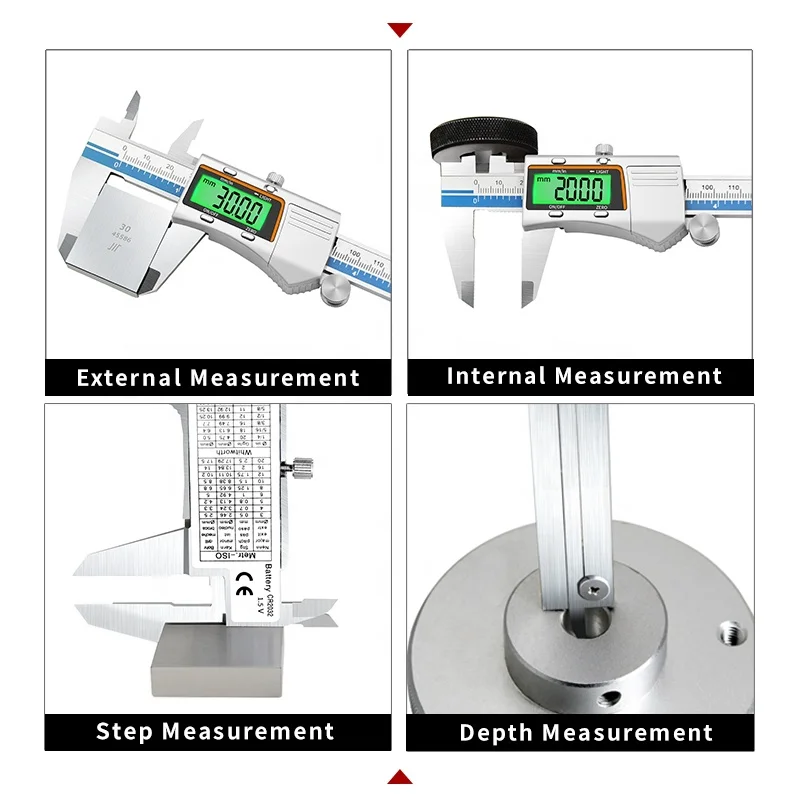

Measurement Mode
1.Measure the outer diameter or length of an object with the two long jaws. By clamping the object between the two parallel sides of the long jaws and fixing it in place.
2.Measure the inside diameter of objects with the two short jaws. Put the two short jaws inside the subject roll the thumb roller to against the subjects inner diameter.
3.Measure the depth of objects with the long probe on the end of the caliper. Put the probe into the objects inner part and roll the thumb roller to measure it’s depth.
4.Measure the step with the two short jaws. Set the caliper vertically on the surface roller the thumb roller until the upper short jaws’ lower section is parallel to the step.

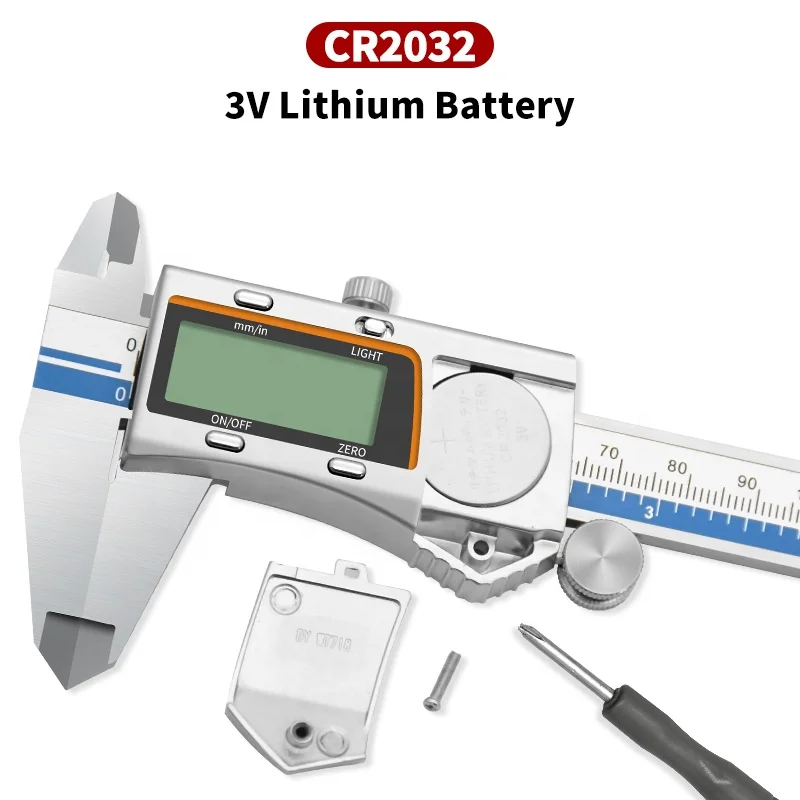

Battery Replacement
