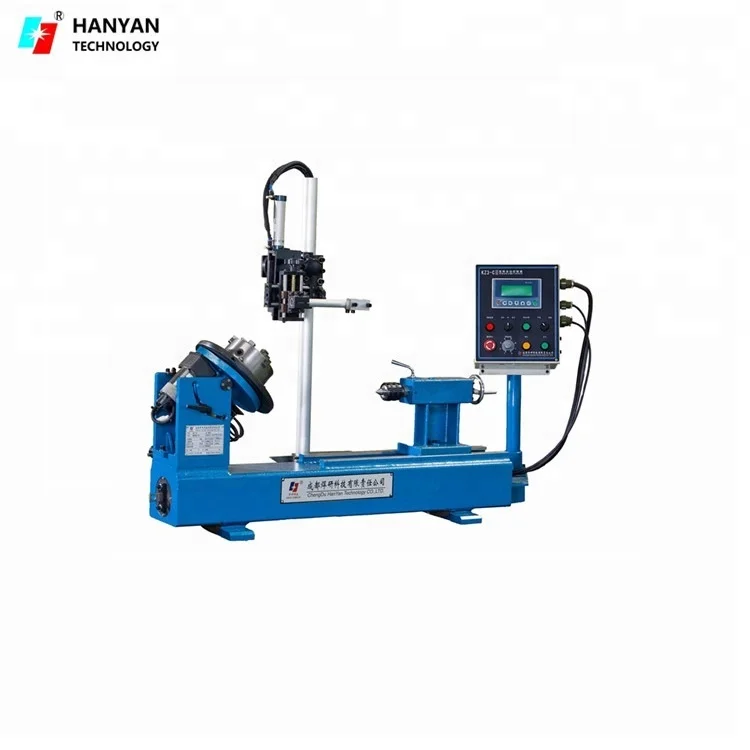

HGT 3C Small sized Weld Positioner with Control for circumferential seam welding
- Category: >>>
- Supplier: Chengdu Hanyan Technology Co. Ltd.
Share on (869799783):
Product Overview
Description
Introduction
it's an universal auxiliary equipment for circumferential seam welding process. It apply to various welding process such as TIG (filler or without filler)/MIG/MAG/PAW when various welding power supply is applied. The equipment consists of rotating headstock, vertical beam and controller. Integrated structure makes it easy to collocate with various components and to install and dismount. It is mainly used to weld pipe, flange and disc-shaped workpiece.
Technical Parameters
Control power supply | Single phase 50Hz AC 200V |
Welding power supply | Three phase 50Hz AC 380V |
Workpiece thickness | according to bevel forms |
Cycle seam outer diameter | 200mm≥φ≥10mm |
Headstock rotary speed | 1~10 RPM |
Workpiece rotation diameter | φ≤600mm |
Spindle bore | φ≤50mm |
Spindle output torque | ≤72Nm |
Load bearing | ≤50Kg |
Headstock positioning angle | 0°,30°,45°,60°,90° |
Max. welding current | 500A |
Product description

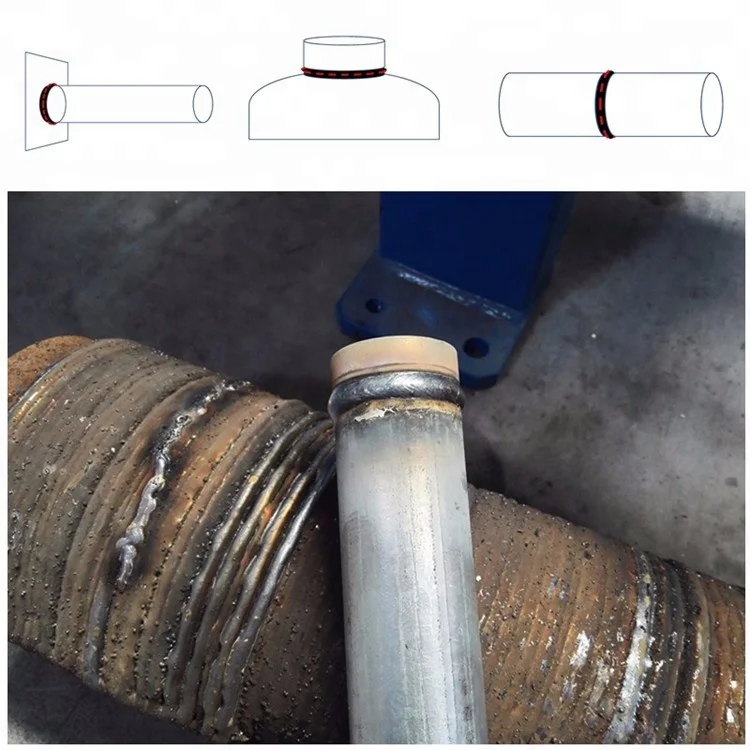

Application

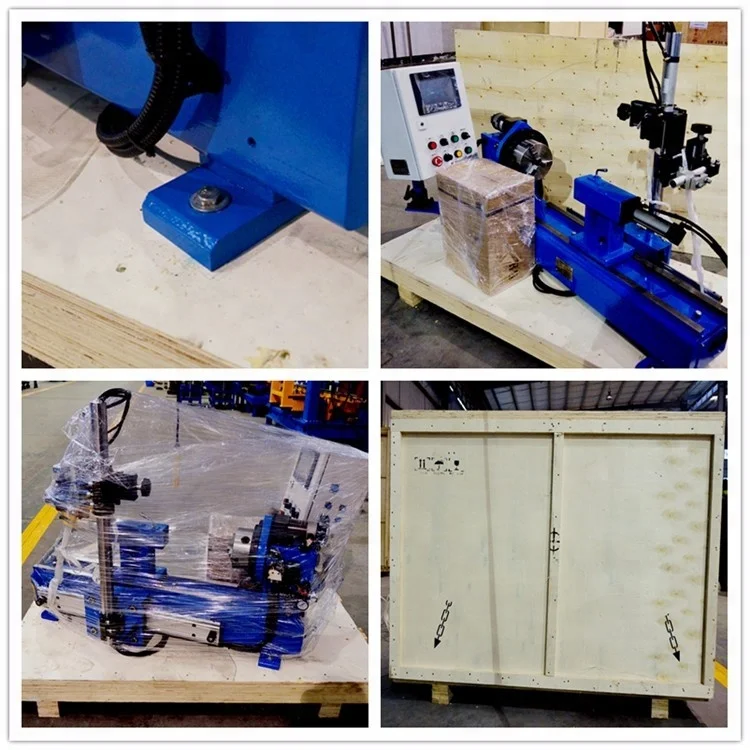

Package
Visit
In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
In our factory:
Company Information
Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
