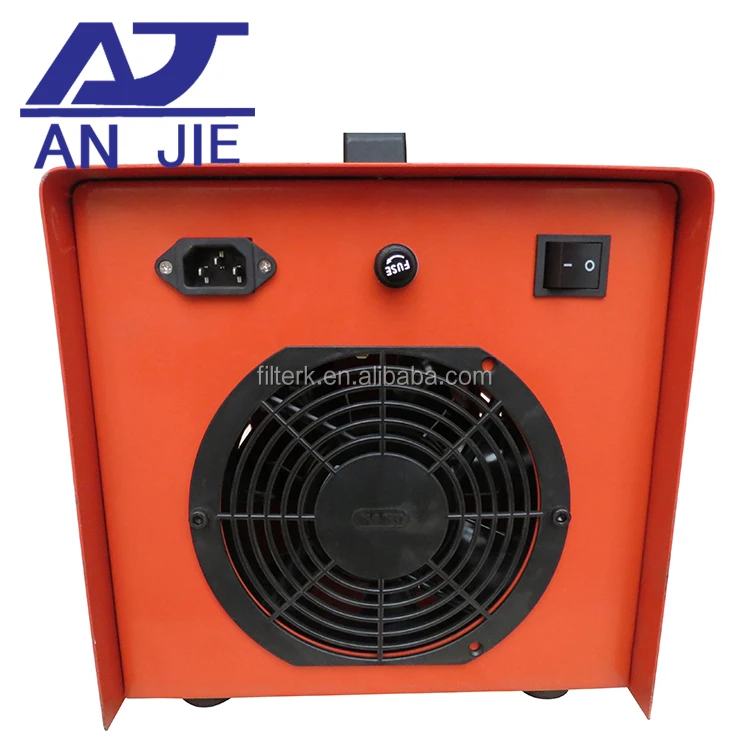

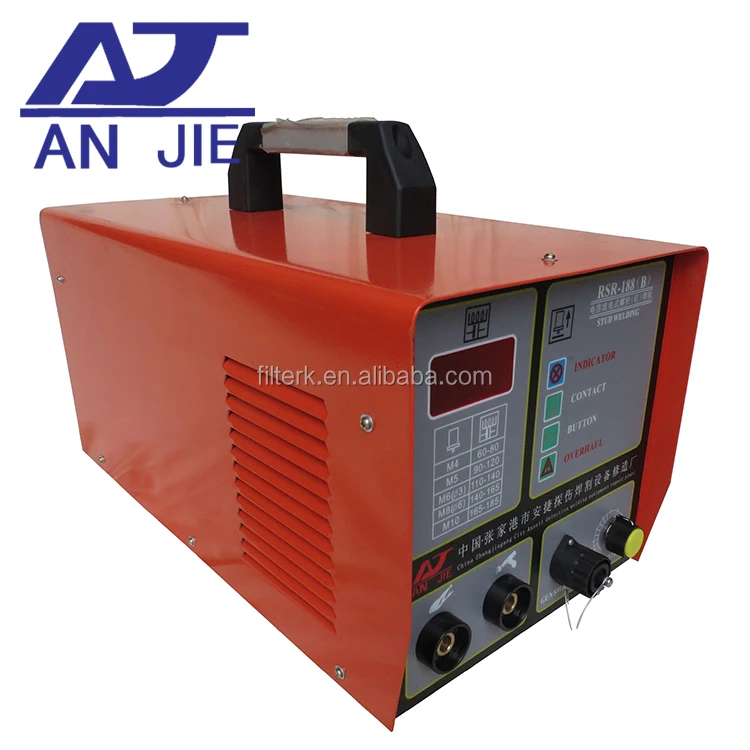

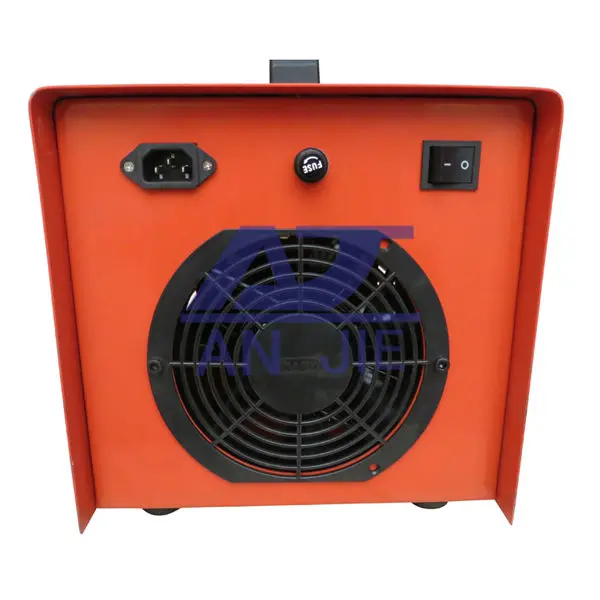

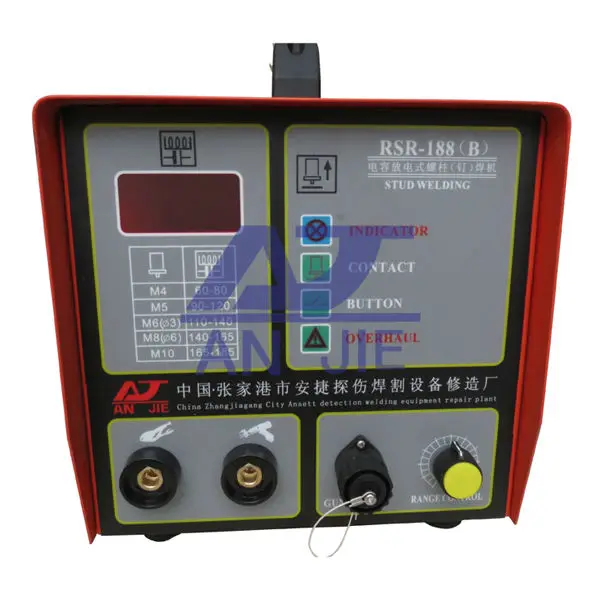

AN JIE RSR 188 (B) Multi function Capacitor Discharge Type Stud Welder Machine

Combination of Welding Material

Stud Workpiece

Carbon Steel

Stainless Steel

Copper Alloy

Aluminum Alloy

Carbon Steel

Excellent

Good

Can be welded

Stainless Steel

Good

Excellent

Can be welded

Copper Alloy

Can be welded

Can be welded

Excellent

Aluminum Alloy

Excellent

Power Specs

Power supply Model No.

RSR—188B

Input voltage

22V/Single-phase±10%

Frequency

50-60HZ

Output voltage

40V-185V

Welding speed

10-30 Pcs/min

Capacitance

188000uf

Range of insulation nails welding

Power supply

Electrolytic capacitor

Power

800W

Range of stud welding

3-10

Fuse

20A

Shell

Car paint

Degree of protection

IP22

Weight

26KG

Dimensions(mm)

510×253×260

Charging Voltage Reference Value

Stud diameter

Charging voltage(V)

Remark

3

55-65

Adjust the voltage according to the actual weld strength

4

65-75

5

70-85

6

85-110

8

130-160

10

160-185

The diameter of the insulation nails

Charging voltage(V)

Remark

φ3

120-160

Adjust the voltage according to the actual weld strength

φ5

160-180
