New malt technology equipment malting equipment for malt producers and distilleries

Product Overview

Description

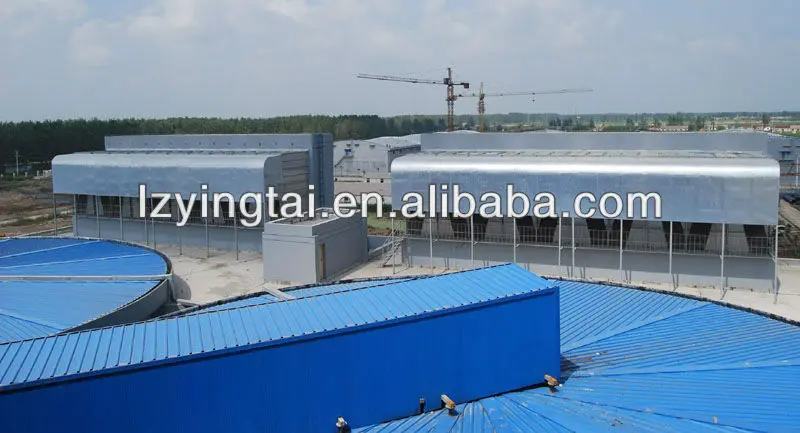

Tower type New Barley Malt Technology for malt producers and beer brewery

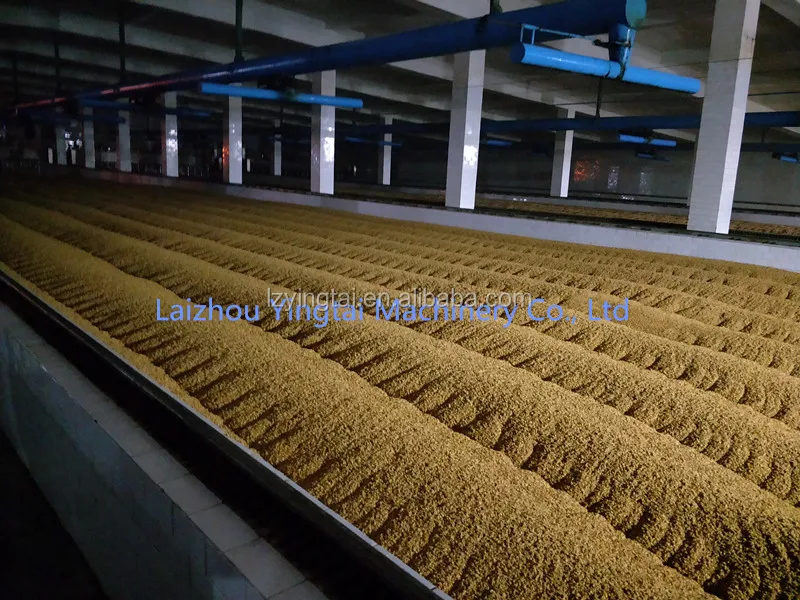

Malt production line is consist of row material(barley or grain) reception, storage(straight silo or flat silo), screening, temporary storage, steep, germination,drying, unloading temporary

storage, grubbing, screening package and storage etc.

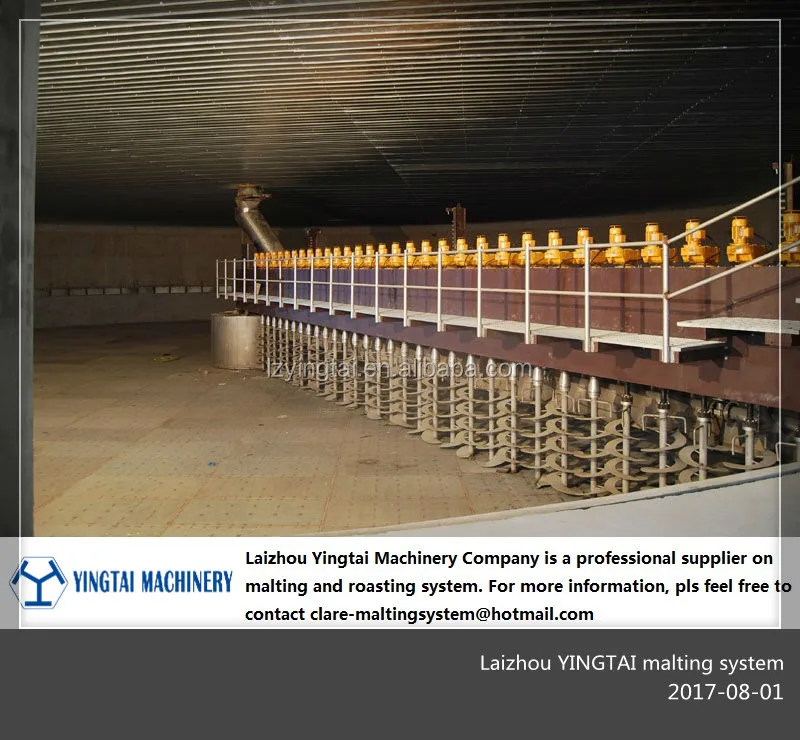

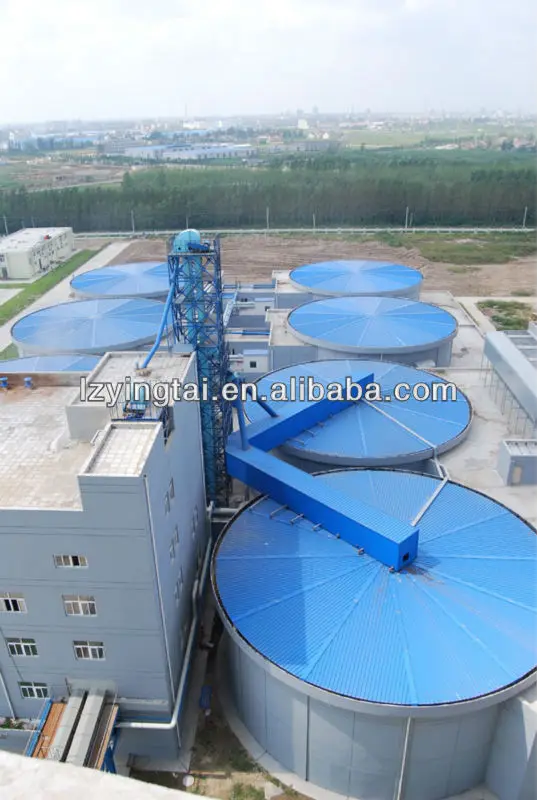

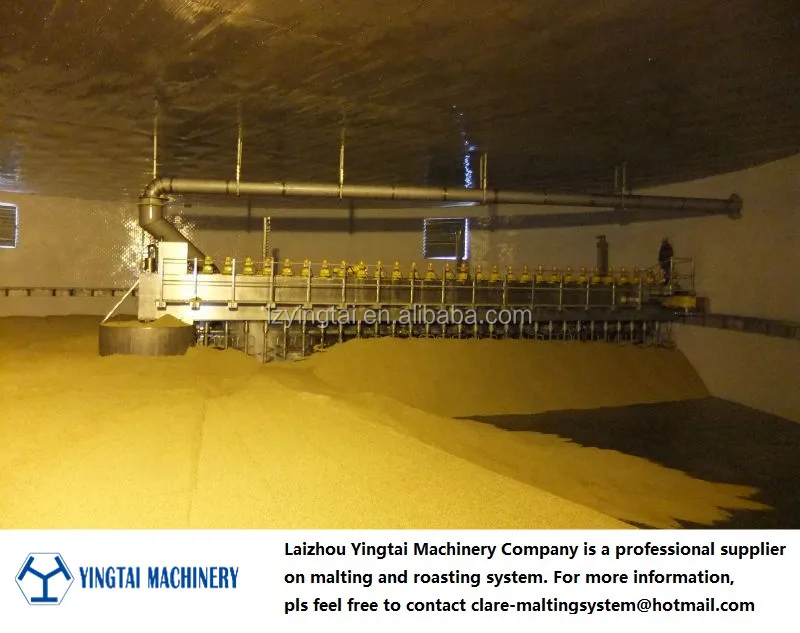

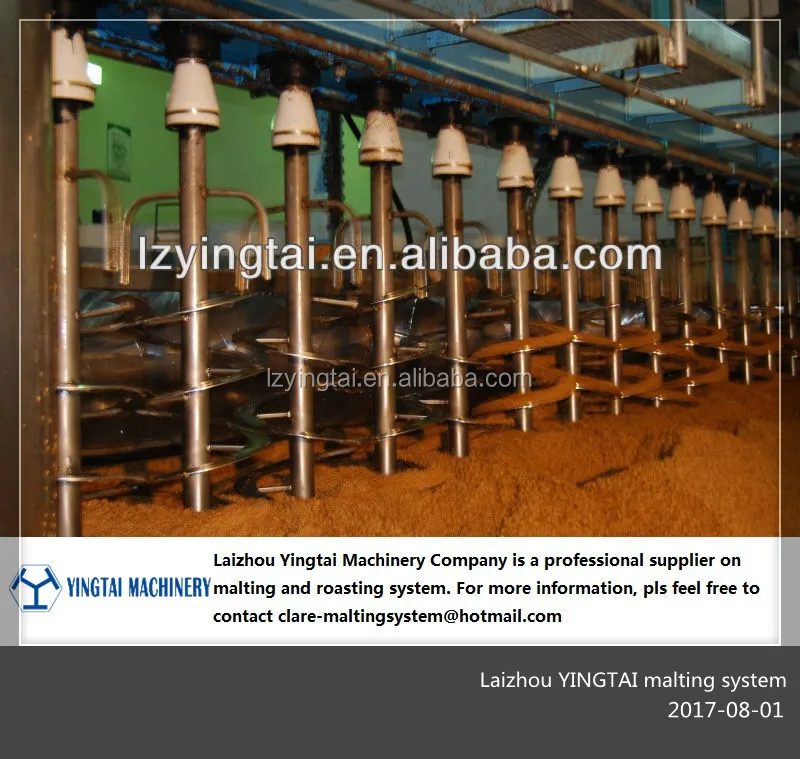

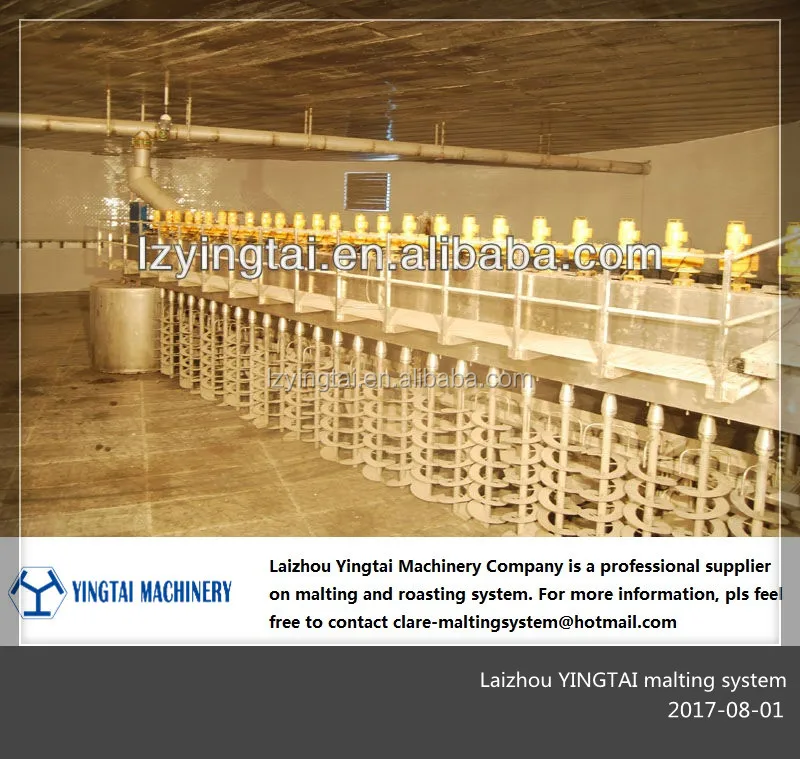

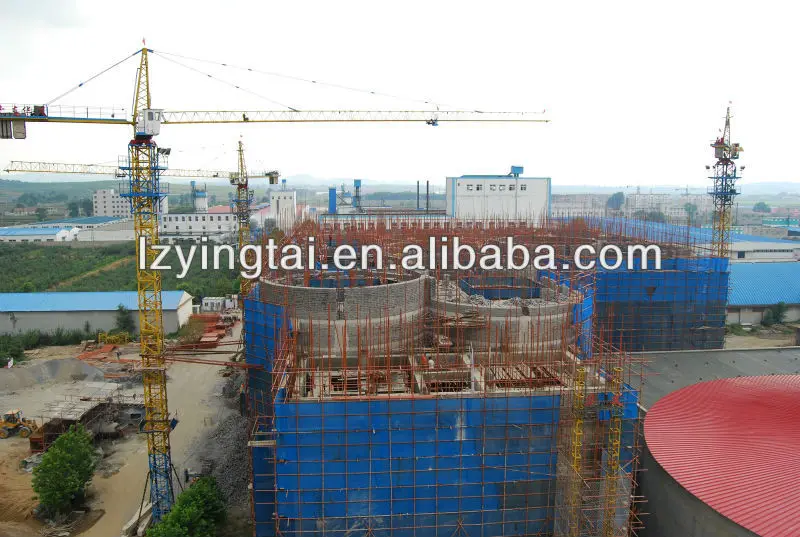

Moderm malt production line can be divided into LAUSMANN malt making, saladin box type malt making,tower type malt making , each has relative merits. LAUSMANN technology has been eliminated in China;saladin box type germination technology, the equipment is simple, but more transmission equipment, logistics complex, it is not suitable for large scale production. Tower type malt making is advanced, suitable for various production, high degree of automation, nice environment of technology control, when it is a whole tower, small covered area, material transmission simple, but the building cost is very high. Half to-wer type will save certain building cost. Nowmany production line made in our company are adopted tower type round box plane arrangement, workshop layout compact, material transfer simple, germiation box and drying box are always on first floor or second floor, building cost is lower. And it features high degree of automation, nice environment of technology control.













Barley Malting Machines Barley Malting Systems with PLC Control

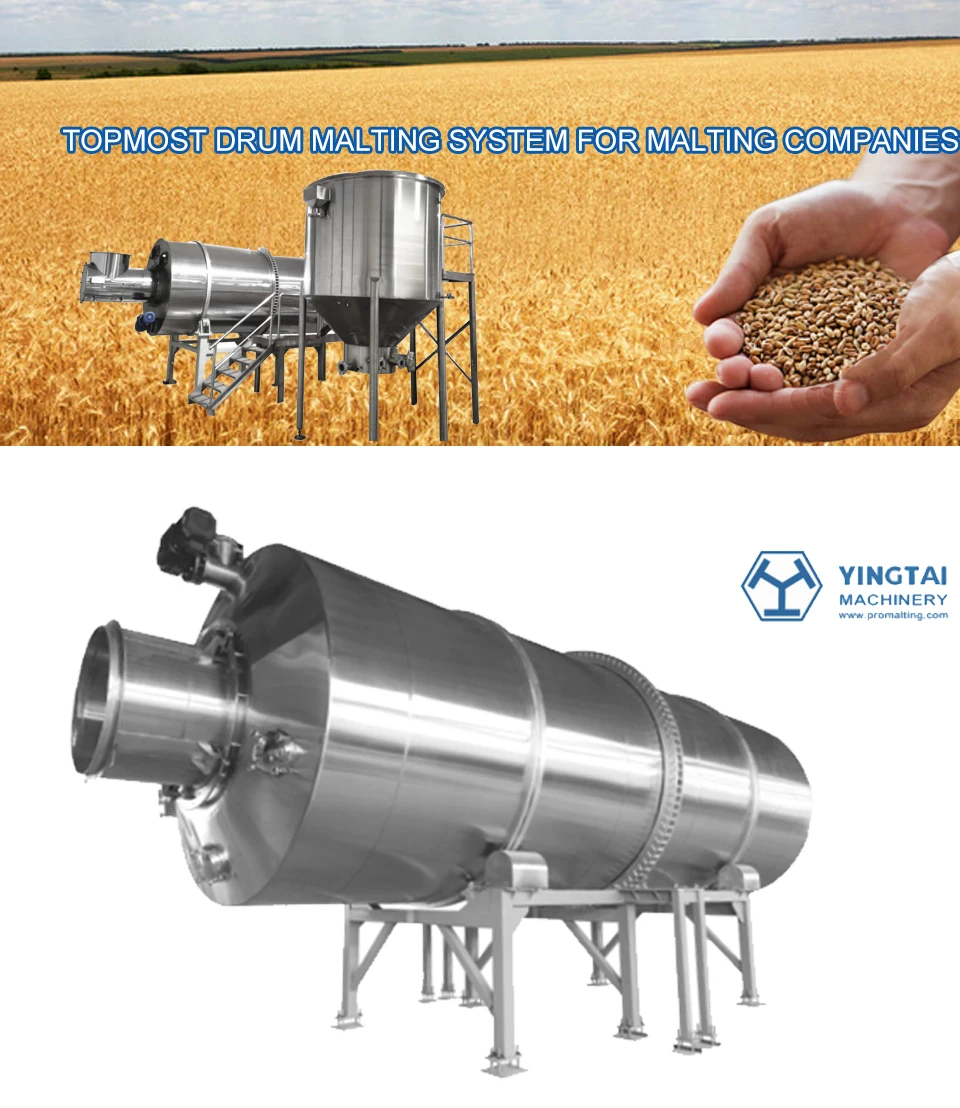

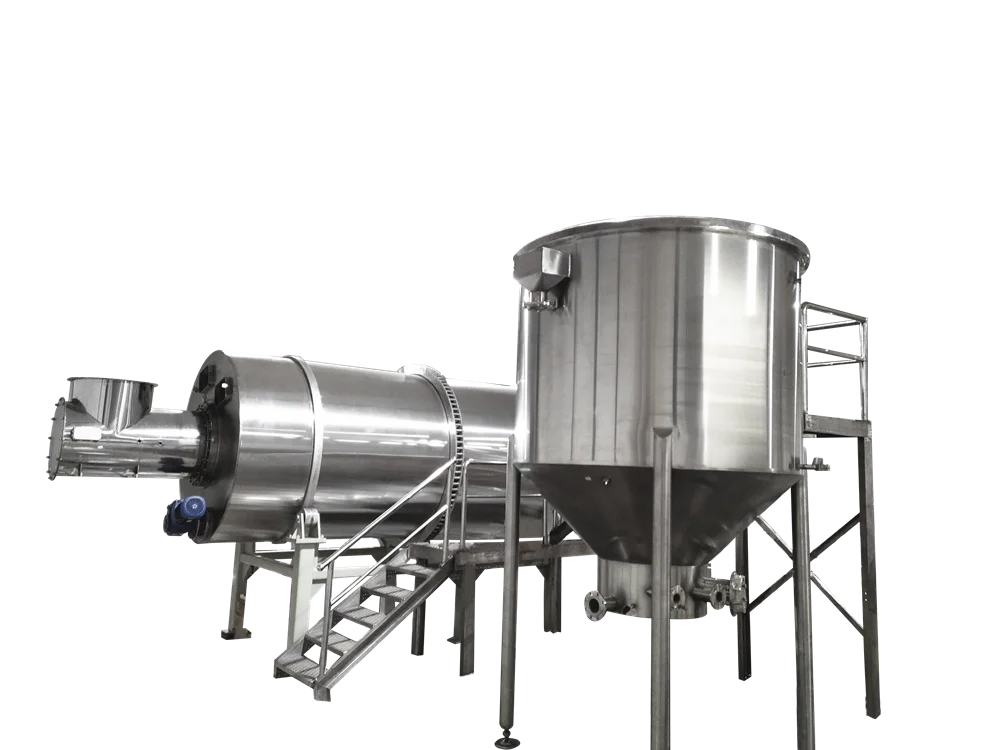

Drum Type Craft Malting Barley Processing Machine, is economical craft malting equipment, specifically designed for the craft malting/brewing/distilling companies, who are looking for top of the line. Combined the external steeping tank,  the  Germination –kilning Combo Drum with automatic  electric control system, it enables the modern mass production easily for you. Drum craft malting systems are sized to produce 2ton,5ton, 10ton of based and specialty malts each batch. In addition, the system is modular and scalable.  You can expand production by adding part of the module.





Deisgn and Fabrication

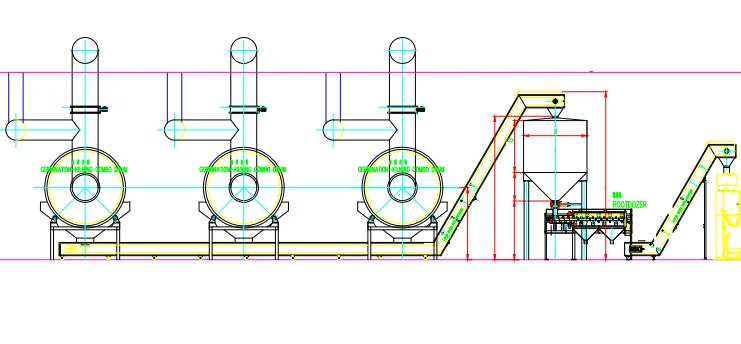

Complete Drum malting system includes below the following systems, some is optional accroding to your production enviroment.

1. Barley Receiving and Screening System
2. Barley Steeping System
3. Germination-Kilning COMBO Drum
4. Drying and Ventilating System
5. Dry Malt Discharging and Storage System
6. Water Chilling Unit/ chillers
7. Electrical Control System

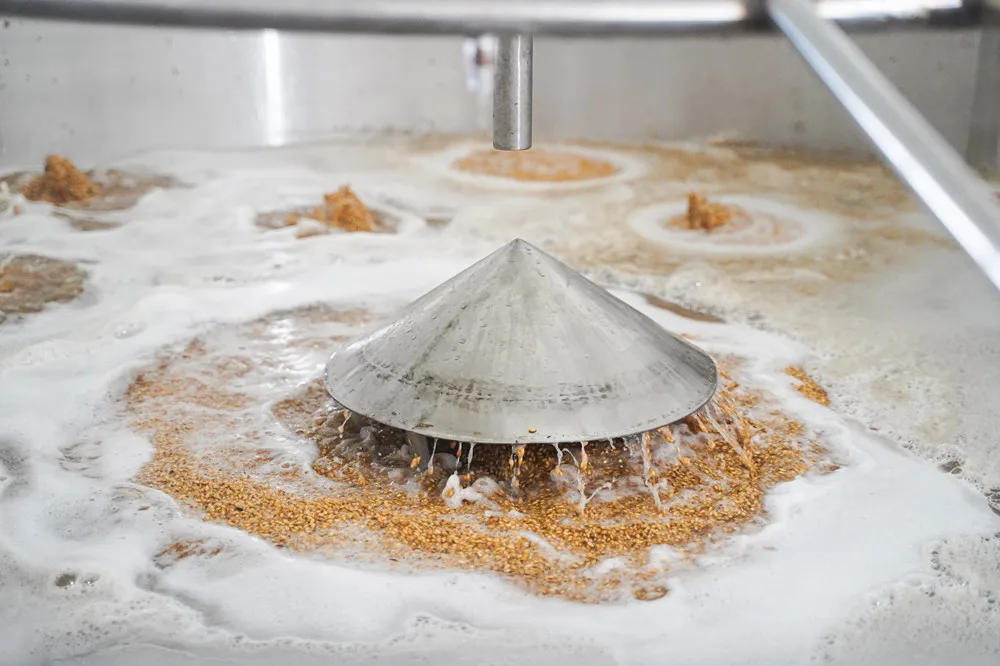

	Barley Steeping System   Main fabrication: Steeping Tanks/ Steep Vessel/ Steep Bowl Material: SUS 304

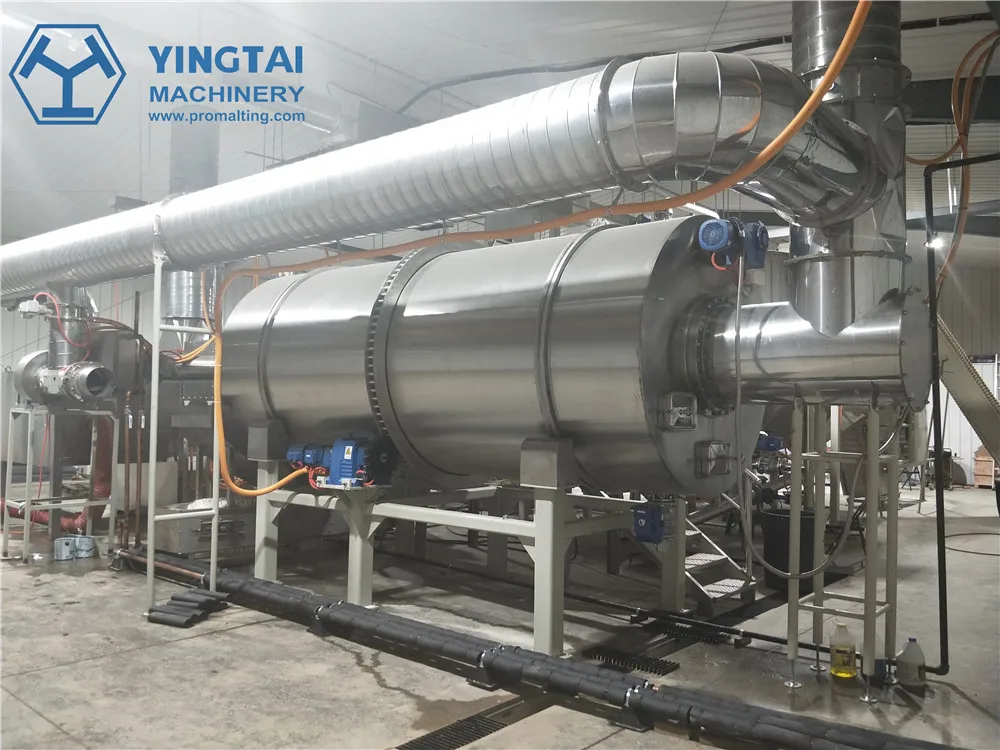

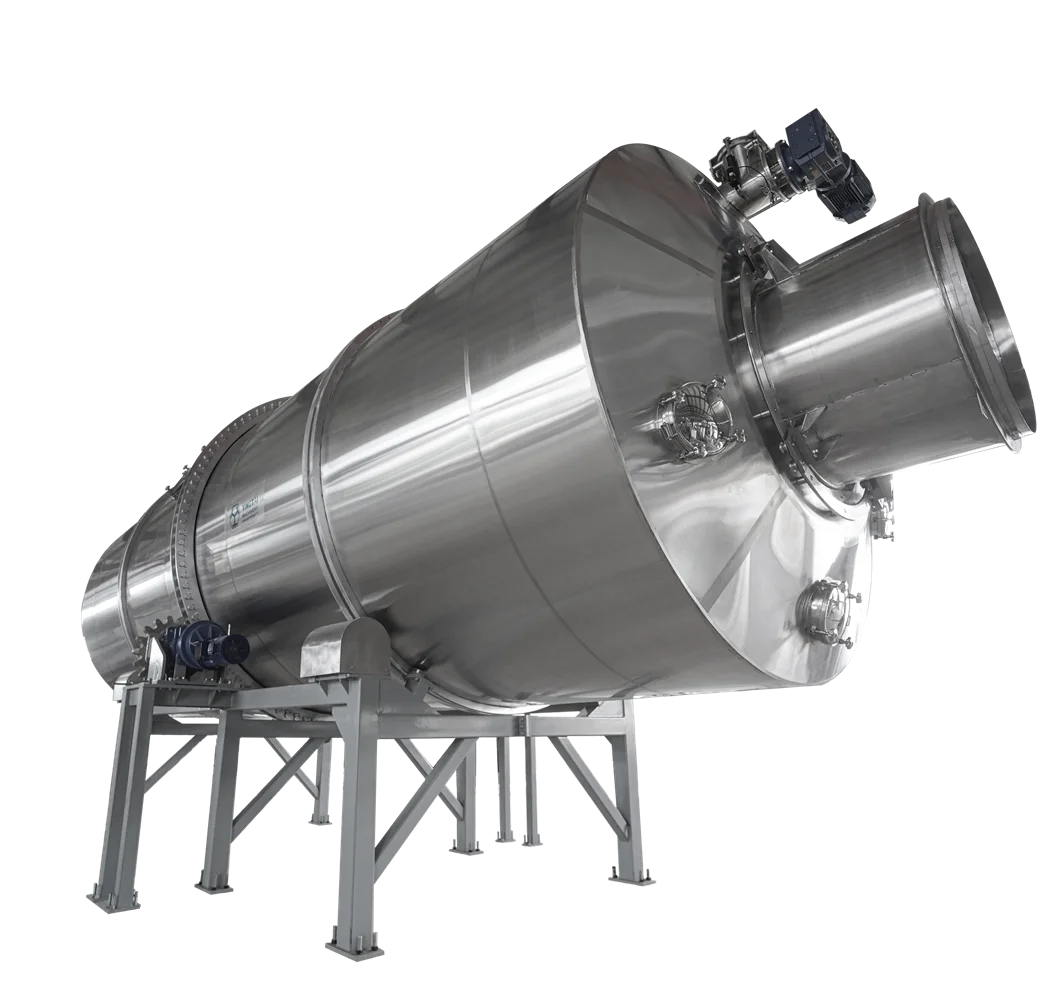

Germination-Kilning COMBO Drum   Green malt Germination and kinling can be completed in the same drum at differernt time period. The whole process is fully automatic control. Material: SUS304
	Manufacturers To Custom Made   P and ID Drawing  Malting Machine Installation and Commissioning Malting system Operation Instruction





Features





1. Production structure is compact: The user only needs to provide the standard factory in accordance with the requirements of the process, without other construction sites.
2. Short On-site installation time: The production line will be tested very well before shipping; equipment arrived at the scene just need to be partly assembled and welded.
3. High automation: The entire production line is completely controlled by computer, So only need to patrol on it. Key components are using Siemens brand.
4. Low power consumption, uniform ventilation
5. Equipped with return air device, can effectively save energy. In the late drying can be used to return air.
6. Parts contacting with malt is made of stainless steel.

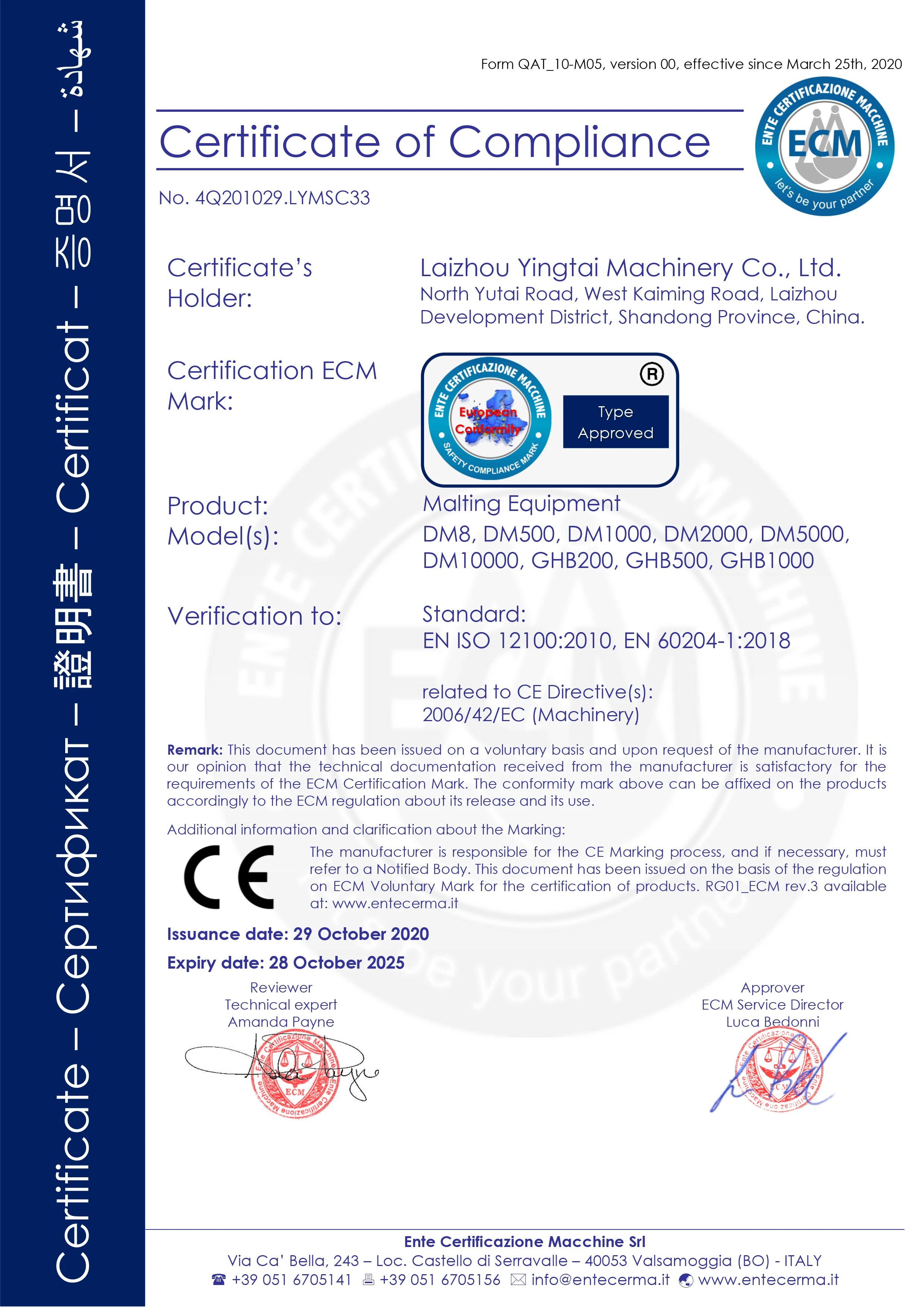

Qualification Certificate

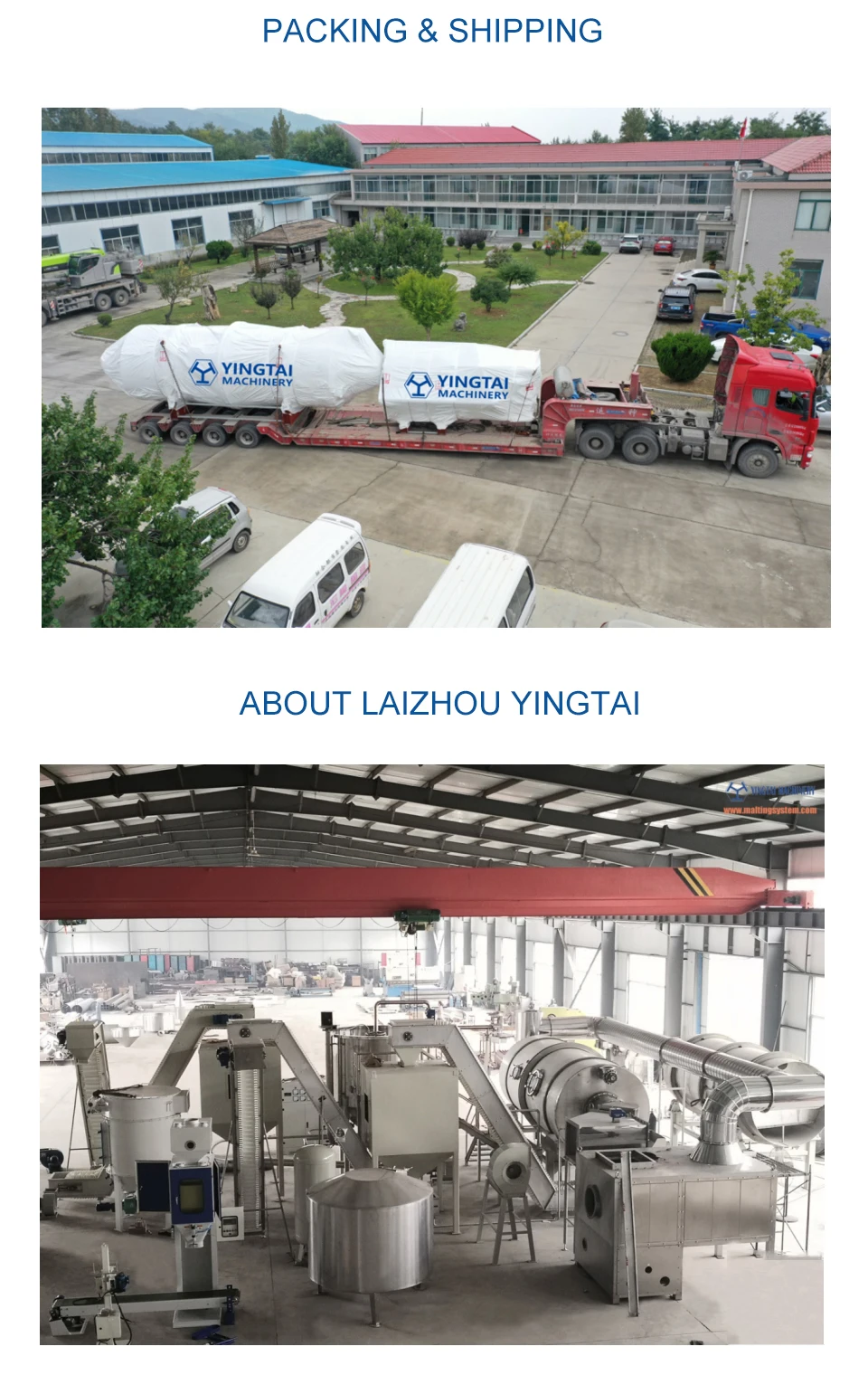

Laizhou Yingtai is a Chinese company leader supplier in the Malting industry. We offer turnkey-solutions for malting industry. We provide a wide array of malting equipments from Barley Screening, Barley steeping, Green malt germination and kilning, Ventilation, Storage and Packing. Our people started in the Malting industry in 2004, serving some of the largest malting companies in domestic and overseas. With long working relationship and rich experience, Laizhou Yingtai was established in 2011. We offer comprehensive support to malting companies, craft brewers and distillers, breweries, craft malt house, etc. Combining tried and tested techniques used by the large malt distributors with rich malting and engineering experience, we designs, manufactures and constructs complete malting plants and install malting systems and roasting systems at home and abroad.



Related Malting Facilities Recommendation

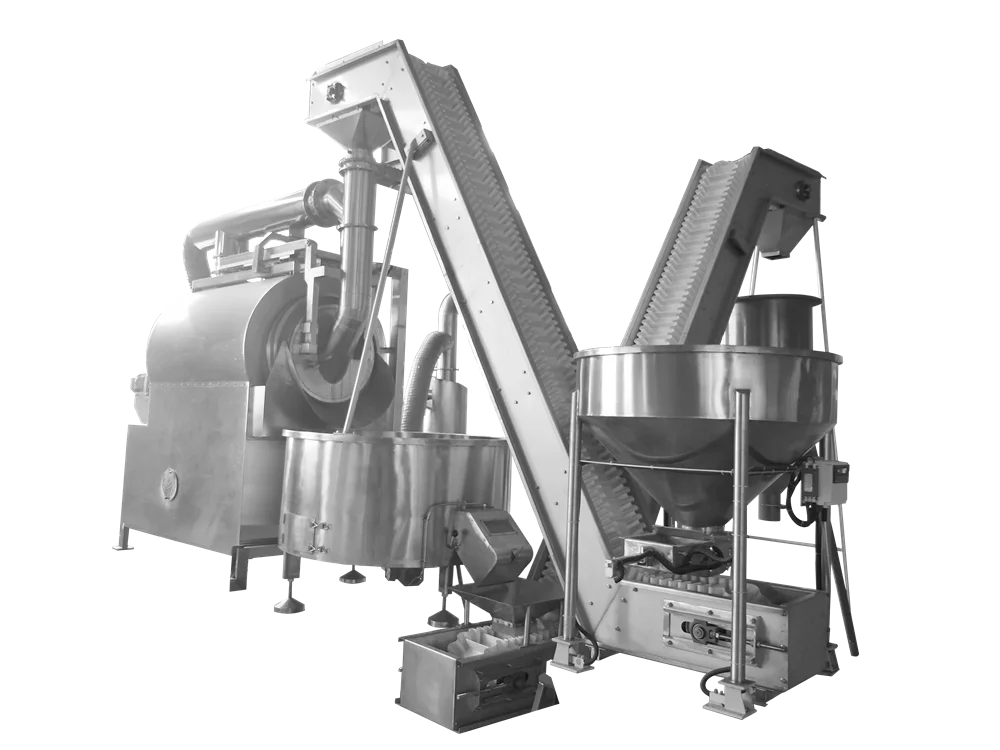

Malt Roasting system

The craft roasting system was designed for special malt production. The batch size is 200kg/batch.This roasting system can produce Biscuit, Crystal, Caramel, and Chocolate across the spectrum of SRM - from 10  to  600+. If you want to produce more different colored malt, our malt roasting system is your best choice.
