stainless steel wire braided flexible hose

Product Overview

Description

Components:

sainless stell wires braided;

high quality EPDM inner tube;

brass nuts with nickel plated ( Cu>57,Pb<3 );

brass Inserts( Cu>57,Pb<3 );

s.s Ferrules;NBR/EPDM washers

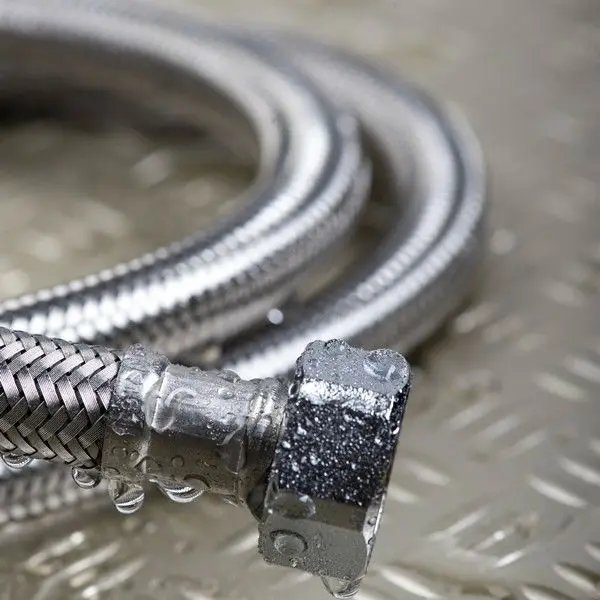

Product picture:

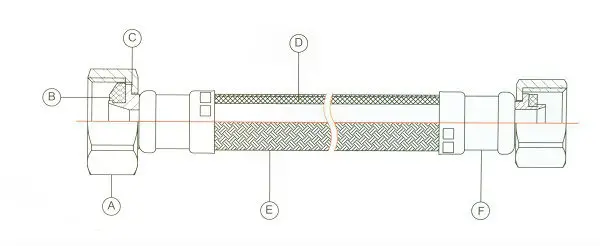

Other options





code	name	available maetrial	available size
A	nut	brass/stainless steel/zinc/iron	F1/2;F3/8;F9/16; F5/8;F3/4;F7/8;F1; F1 1/4;F1 1/2;F2
B	washer	silicon/EPDM/NBR/rubber	plain/cone
C	insert	brass/stainless steel	coordinate with nut
D	inner hose	PEX/EPDM/RUBBER/PVC	DN7~DN50
E	wire	AISI304/301/202/201	thickness: 0.16MM~0.27MM
F	ferrule	brass/AISI304/301/202/201	thickness: 0.23MM~1.2MM

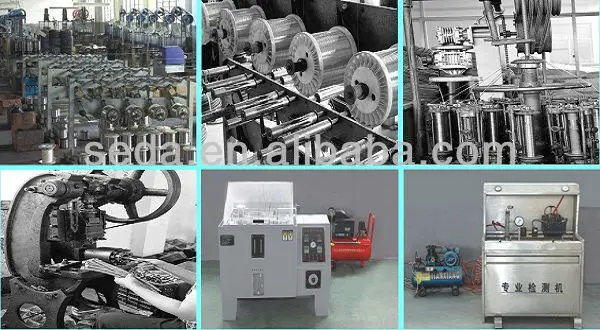

Production line:





Quality:
