LCD Controller Board MNT68676 with 10.1inch LCD Panel B101UAN01 with Touch Screen

Share on:

Price in USD:Details


Product Overview


M.NT68676.2A LCD Controller Board with B101UAN01.1 Resolution 1920x1200 10.1inch EDP interface LCD Panel Capacitive Touch Screen VS-101TC01-B1


M.NT68676.2A + B101UAN01.A+VS-101TC01-B1

Product Description


LCD Controller Board M.NT68676.2A:


M.NT68676.2A is a monitor control board, It can support LED/LCD panels which resolution is up to 2048×1152


Size: 139mm(L)*58mm(W)*17mm(H)


Input Power Adapter: 12Vdc More than 2A


OSD LANGUAGE: English, French, German, Italian, Spanish, Japanese, Korean (optional) And So On




Operation temperature: 0~40°C.


Standby Power Consumption < 0.5W(Board Only)



Don’t wire in the board to power supply before panel is correctly connected



10.1" B101UAN01.A 1920x1200 LCD Screen:


Display Mode  AHVA, Normally Black, Transmissive


Resolution 1920(RGB)×1200 (WUXGA)


Outline Size 228.6 × 148.15×4.7 (H×V×D)


Display Area 216.81 × 135.5 (H×V)


Brightness 400 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)


Aspect Ratio(W:H) 16:10

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Edp
(2 Lanes), Connector , 40 pins


Backlight  WLED


Input Voltage  3.3V (Typ.)

Packaging & Shipping


LCD Controller board M.NT68676.2A


1× 10.1inch 1920x1200 LCD panel B101UAN01.A

1× 10.1inch Capacitive Touch Panel VS-101TC01-B1

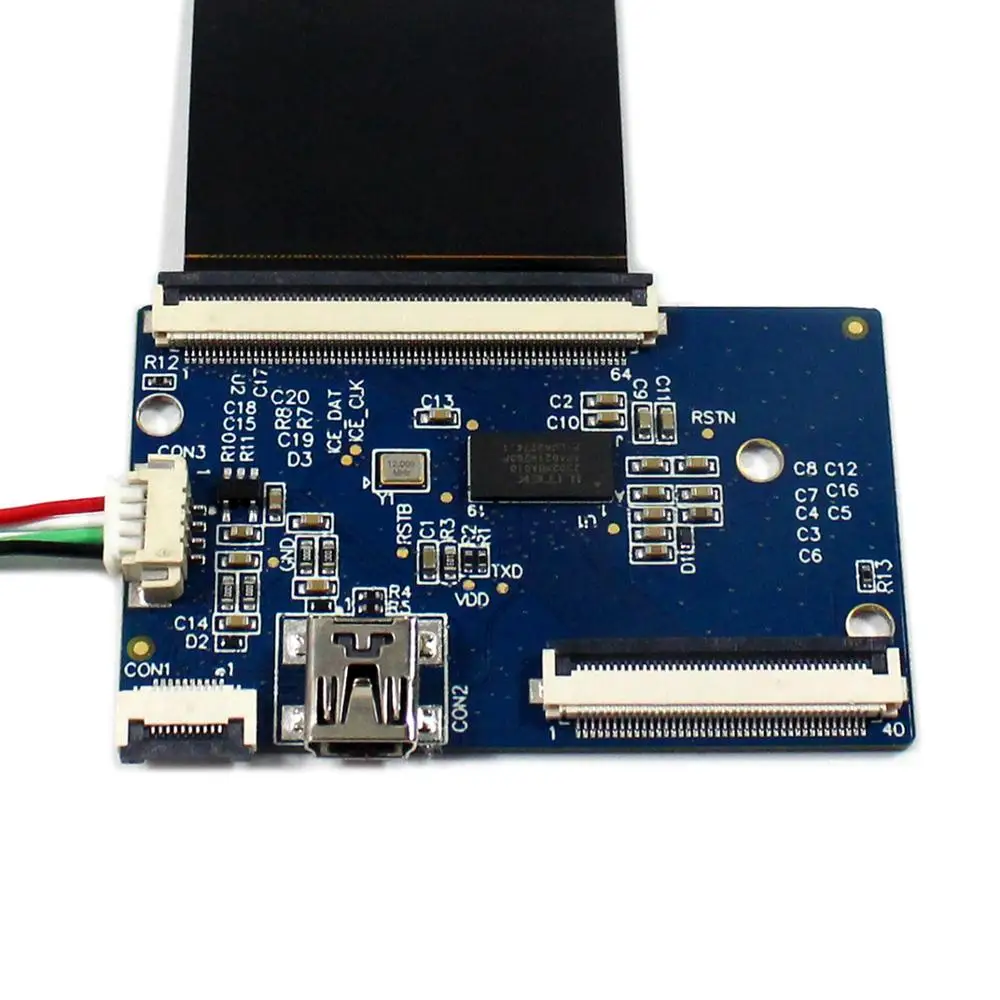

1× USB Controller Card with wire


1× Inverter Board


1× LVDS cable


1× Keyboard with Wire
