Такелаж США

Product Overview

Description

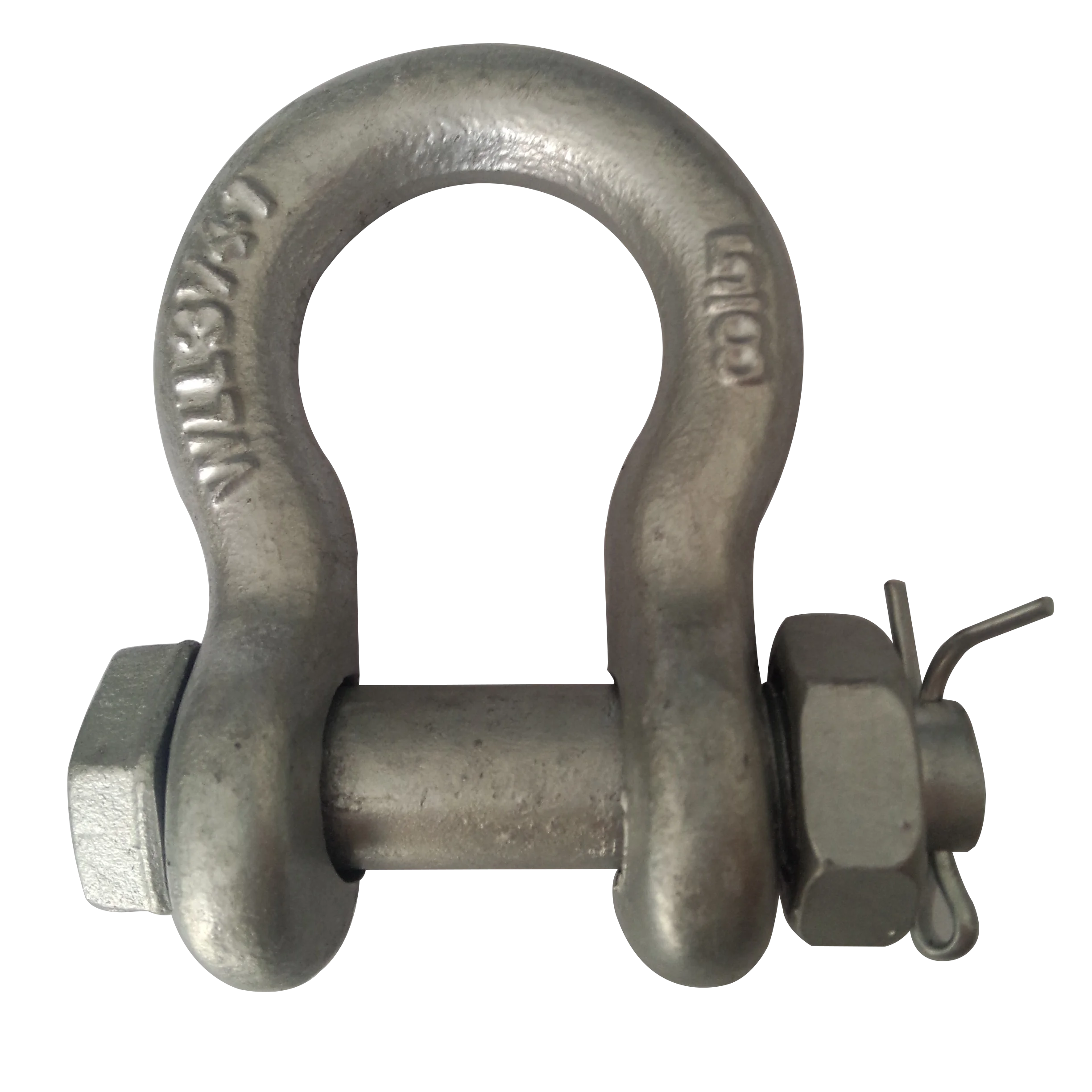

adjustable shackle

(1)rigging hardware u.s.round pin anchor adjustable shackle

1.Material:carbon steel

2.Size:1/4--2

3.Sample time:3 days



Product Code	Weight Each(kg)	Nominal Size(in.)	WLL  (t)	Dimensions(mm)
213	213			A	B	C	D	E	F	G	H	N
YJD03A01	0.06	1/4	1/2	11 9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	34.0
YJD03A02	0.08	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	40.4
YJD03A03	0.13	3/8	1	16.8	11.20	36.6	9.65	26.2	23.1	45.2	63.0	47.2
YJD03A04	0.17	1/2	2	19.1	12.70	42.9	11.20	29.5	26.9	51.5	74.0	54.0
YJD03A05	0.32	5/8	3-1/4	20.6	16.00	47.8	12.70	33.3	30.2	58.5	83.5	60.5
YJD03A06	0.68	1	8-1/2	26.9	19.10	60.5	16.00	42.9	38.1	74.5	106.0	74.0
YJD03A07	1.05	1-1/4	12	31.8	22.40	71.5	19.10	51.0	46.0	89.0	126.0	87.0
YJD03A08	1.58	1-1/2	17	36.6	25.40	84.0	22.40	58.0	53.0	102.0	148.0	96.5
YJD03A09	2.27	1-3/4	25	42.9	28.70	95.5	25.40	68.5	60.5	119.0	167.0	115.0
YJD03A10	3.16	2	35	46.0	31.80	108.0	29.50	74.0	68.5	131.0	190.0	130.0





(2)Company introduction

Qingdao YINGJUNDA Machinery Co., Ltd.
ODM&OEM SERVICES
Service	Drawings or samples processing/OEM/ODM service provided
Produce Process	Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery
Forging Material	Carbon Steel, Alloy steel, Stainless steel
Standard	ISO, GB, ASTM, DIN, JIS
Produce Equipment	Friction Screw Press Series, CNC Lathe, Machining Center  (Vertical Spindles), CNC Milling Machine, Bench Drilling  Machine, Heat Treatment Equipments and so on.
Surface treatment	Heat treatment, Polishing, shot blasting,  Painting, Electro-plating, Chemical Plating,
Inspection Equipments	Metallurgical analysis, tensile strength tester, Hardness  tester, Altimeter, Scale Micrometer, pressure tester, etc.
Delivery	Samples are sent by express Large quantity products delivered to customer by sea  or according to your request
Terms of payment	T/T or L/C





(3)Factory advantages

a. Much experiencing in forging part for 40 years history;

b. Disciplined staffs and scientific operation, and strict quality control team;

c. Enjoy the most competitive price and fast delivery time.

d.Best after sales service.



Qingdao YING JUNDA Machinery Co., Ltd. is a professional manufacturer of rigging hardware with well-equipped testing equipments and strong technical team. More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts.

Meanwhile, YING JUNDA accumulates extensive experience in rigging design and research and can provide OEM and ODM service. So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.

YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.

Relying on wide variety, good quality, novel designs, reasonable prices, fast delivery time and good service, bulk products have been purchased and extensively used in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia, South America, Africa and other regions, and have been highly praised by customers around the world.
