Foshan X&Y Terracotta Facaed panel

Product Overview

Description

TERRACOTTA PANEL ( external wall cladding , facade of panels , cladding facade tiles ,Terracotta facade panels,Terracotta facade system)









Product Description :



Raw material: Natural Clay



 Hollow   Structure --Dry-Hanging



Thickness 8mm,11mm,12mm,15mm,18mm,21mm,30mm,37mm,40mm



Size:300x600x18mm/30mm

300x900x18mm/30mm

300x1000x18mm/30mm

300x1200x18mm/30mm

400x900x18mm/30mm

400x1000x18m/30mm

400x950x18mm/30mm

450x950x18mm/30mm







Weight:33-35kgs/sqm



Packing:3440pcs/1x20'GP ,619SQM/1X20'GP

Wooden carton with pallet



HS Code: 6904900000 No European Anti-umping Duty







Application:

Commercial Building/ Hospital / Hotel / Airport / Subway/Residential Area/ School /Municipal Building/ Theaters / Renovation of Antique Building etc.











Surface Treatment:

Sand, Natural, Strip, Groove

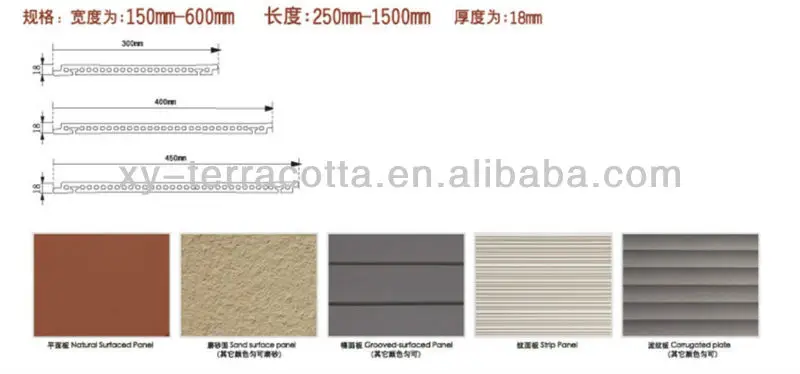

Normal Sizes:

*Thickness:8mm,10mm,11mm,12mm,15mm, 18mm,20mm,22mm,25mm,30mm,37mm,40mm

*Width: from 150mm to 600mm

*Length: from 250mm to 1500 mm

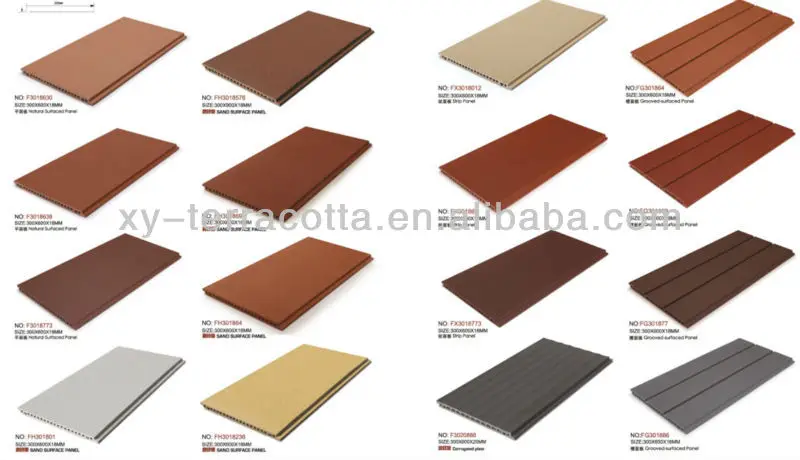

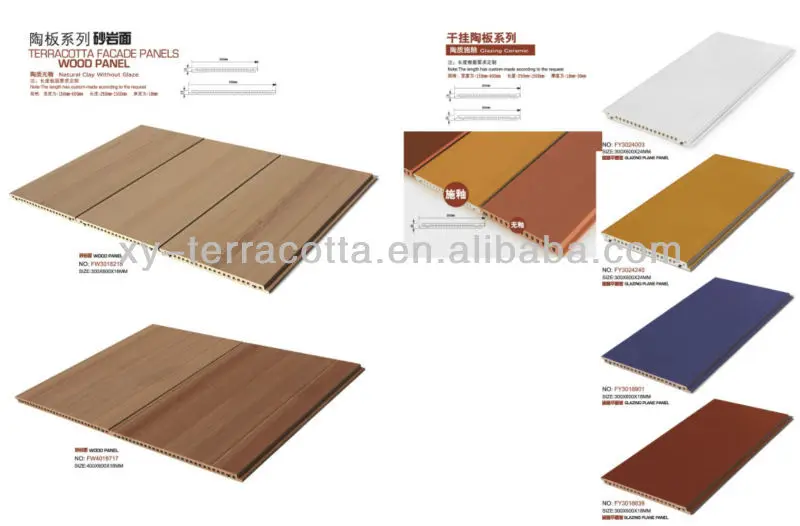

Various Colors:

*Red collection

*Gray collection

*Yellow  collection



Bright Red, Coral Red are natural colors, which are much ECONOMICAL!











Company Advantages







X & Y Terracotta Panel Manuacturing Co., Ltd

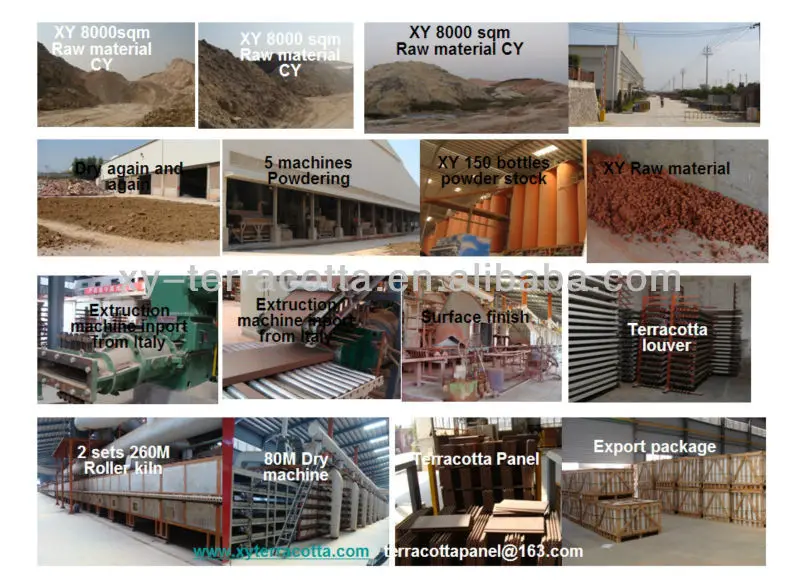

Our terracotta plant is located in Fujian Province covering an area of 200,000 SQM



Showroom has an area of 3000 m2 in Guangdong Foshan.











1) Domestic longest roller kilns in 260 meters keep products in good stability.







2) 80,000 m2 open stockyard and 150,000 tons capacity indoor storage can meet continuous large production needs for 6 months.







3) Automatic production lines with imported molding machines assure panel quality.





















Characteristics:



*Color non-fading

*Eco-Friendly

*Wind-Resistant

*Heat preservation and sound Insulation

*Fireproof & anti-freezing

*No-static and no-radiational product

*Non of the Light pollution

*Light weight

*Self-cleaning





 Products Combination in Projects

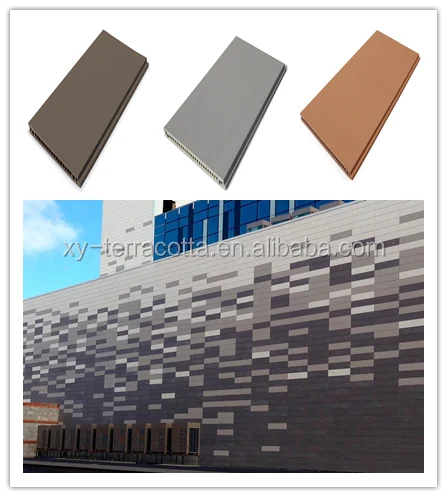

1) gradient colors combination        (eg. bright red  & coral red panels)

2) light  & dark colors combination (eg. ivory & great wall grey panels)

3) different types combination         (eg. natural surface & stripy surface panels)

4) different products                         (eg. panels & louvers, panels & glass curtain)

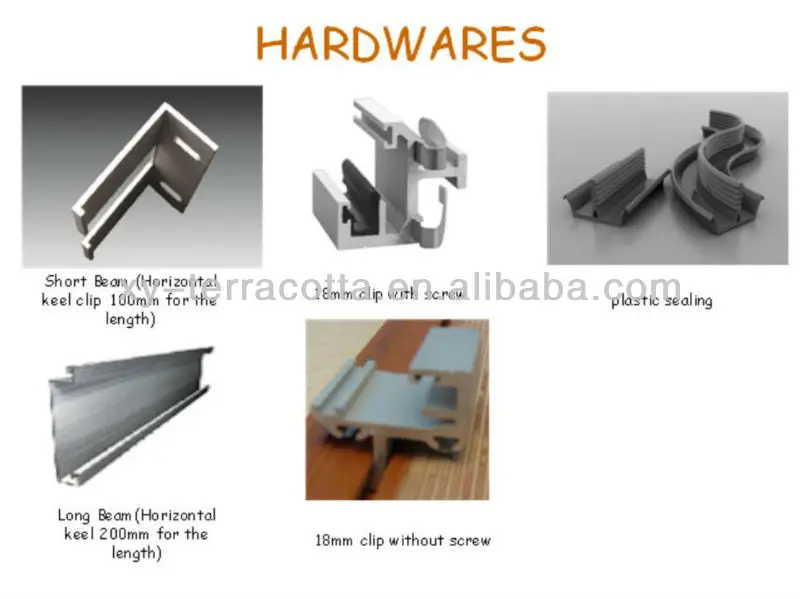

MAIN HARDWARES







CHOICE 1 : Alumium Short Beam / Alumium Clips / Plastic Sealing



CHOICE 2 :  Alumium Long Beam / Alumium Clips / Plastic Sealing











Easy Installation





Unique dry-hanging installation can lower the cost of the whole curtain wall system as well as increase firmness.



1. Measurement & line laying



Take a theodolite or level to mark the horizontal and vertical lines for supporting poles.



2. Columns  Installation



Secure columns on the main structure with brackets and stainless stell bolts, adjust the verticality of the supporting columns.



3.  Brackets/Supporting Rails Installation



Secure them on the columns with stainless steel bolts/screws, adjust the verticality and horizontality of the columns.



4. Terracotta Panels Installation



1) Apply the adhesive tapes on supporting rails or columns as the joint pieces.



2) Position terracotta panels and clips, adjust the verticality and horizontality of the terracotta panels by clips.



3) Fix panels from bottom up to finish the installation.



5.Sealant Application



There is no need to apply sealant for open system, while for closed system is necessary to do so in the vertical and horizontal joints of terracotta panels.



6. Curtain Wall Cleanup



Cleanse the installed terracotta panels with water.

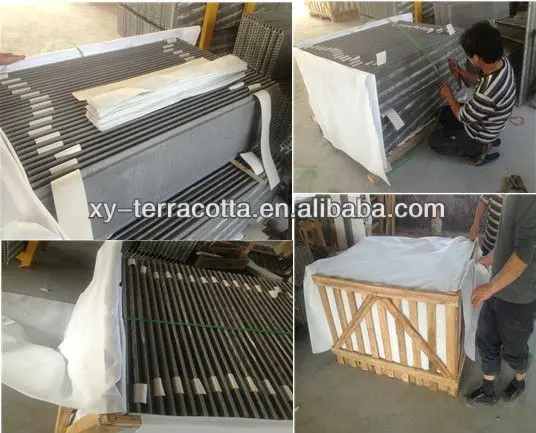

Packing



1) Net weight: 31kgs/sqm for 18 mm thickness

                         42kgs/sqm for 30 mm thickness



2)Loading: 600-700sqm/19-22tons/20’container for 18mm thickness













TERRACOTTA PANEL Technical Data Sheet
NO.	Contents	X18 (300X600X18MM) Terracotta Panel	China N. S. GB/T4100-2006	EN14411 standard
1	Water Absorption	8.06%	(II) 6-10%	(II) 6-10%
2	Net Weight	31kg/m2	no value	no value
3	Breaking Strength	3475N	≥ 900N	≥ 750N
4	Frost Resistance	no crack under -60 centigrade	tested value of the report	tested value of the report
5	Modulus of Rupture	avg. 13.1Mpa, min 11.8Mpa	Avg. ≥ 9Mpa, single value≥ 8Mpa	Avg. ≥ 9Mpa, single value≥ 8Mpa
6	Earthquake resistance	over 8 degree	no value	no
7	test under simulated wind load	No breakage under 10Kpa	no value	no
8	sound insulation	Noise reduction by over 8dB	7-10dB	no
9	Wind pressure	9kPa	tested value of the report	tested value of the report
10	heat conductivity	0.32 w/m. k	no value	no
11	Fire resistance	leval A1	no value	no
12	resistance to acid and alkali	Level UA	tested value of the report	no
13	radioactivity	Class-A decorative material	no value	no
14	Right angle	0.1%- -0.2%	within ±1%	no
15	Size error	300L: 0.1%- -0.4%         600L:   0.2%- -0.5%	with in ±2% , max is within ±2mm,	no
16	Thickness error	within ±4.5%	within ±10%	no
17	Diagonal line	-0.5 ~ +0.2             Max 1.0mm	within ±2%	no

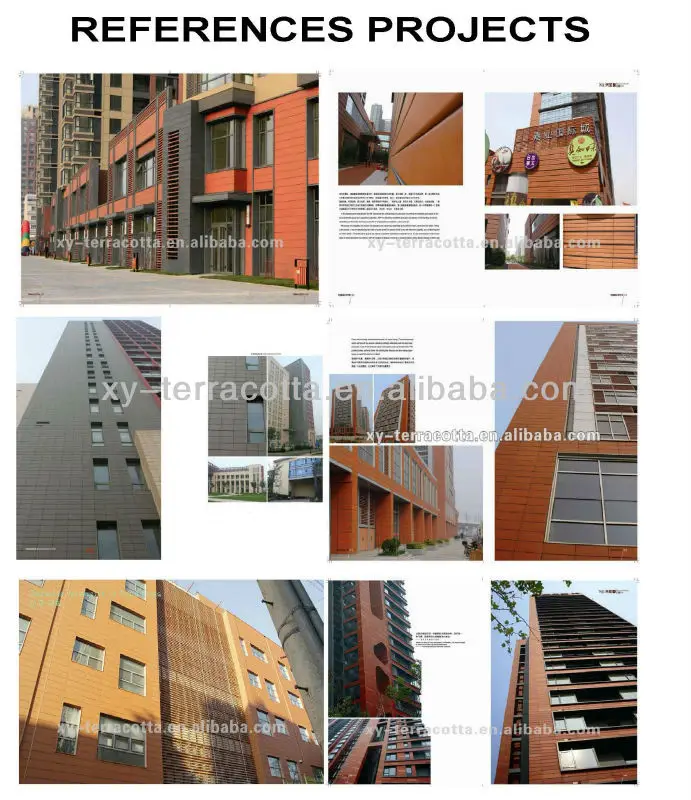

Some of OUR Projects Reference

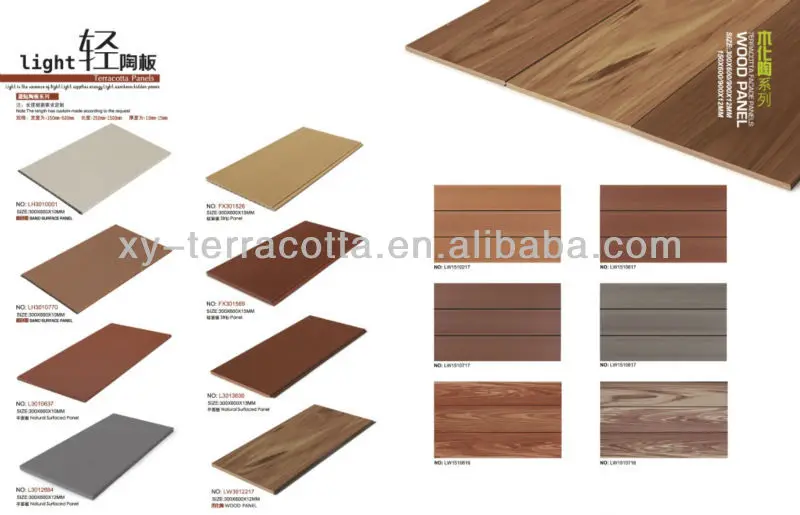

2013 NEW PRODUCTS---Natural Wood Pattern

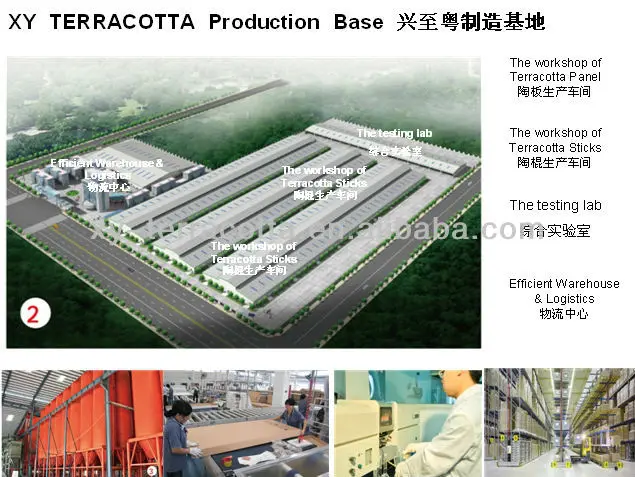

OUR PRODUCTION BASES

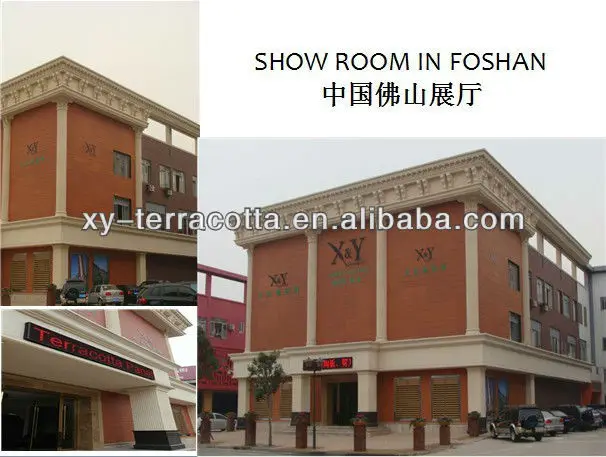

OUR SHOWROOM







CE ISO CERTIFICATE
