TBM or EPB Project 12T Tunnel Battery Locomotive and Rolling Stock

Product Overview

Description

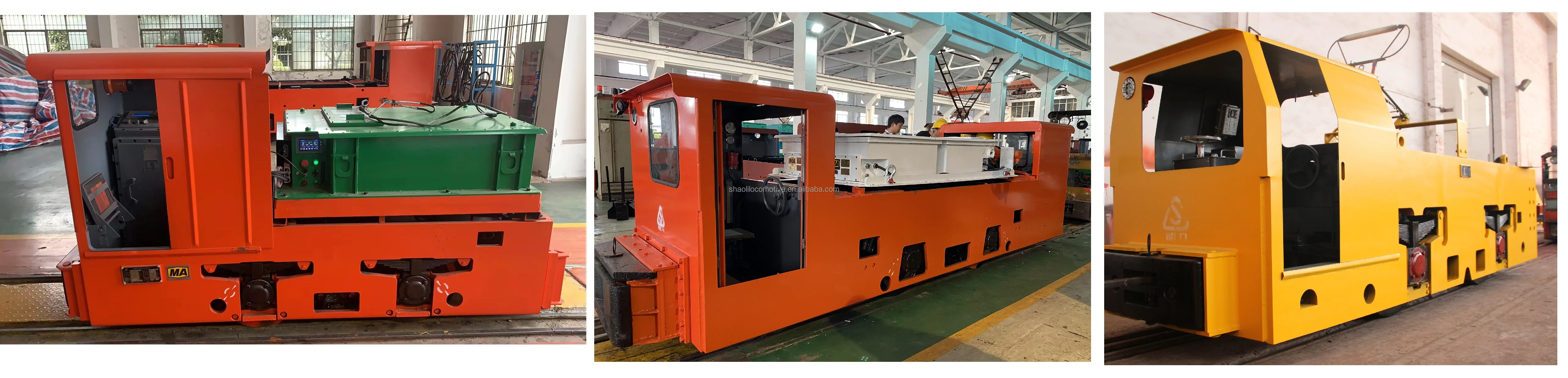

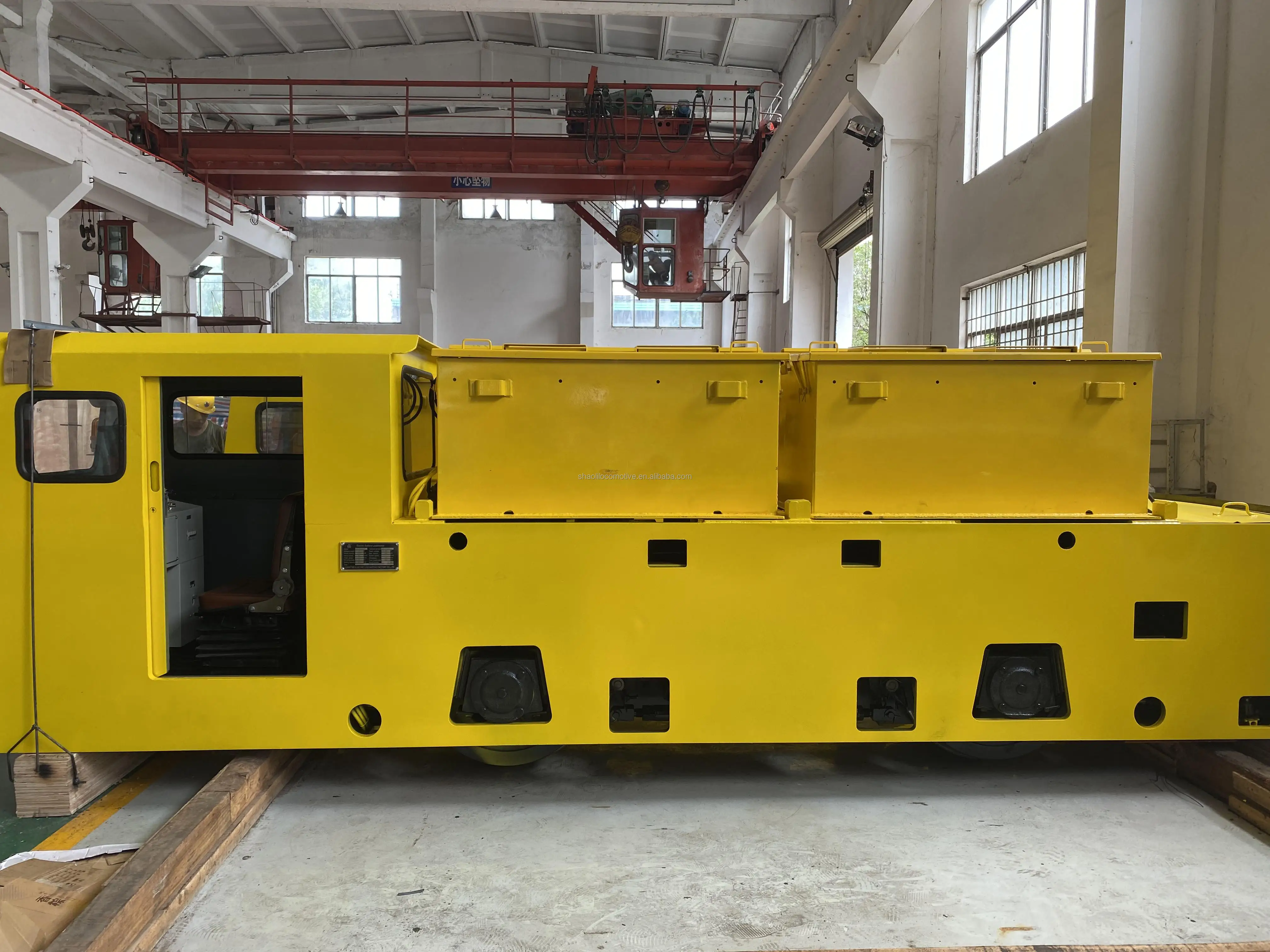

TBM or EPB Project 12T Tunnel Battery Locomotive and Rolling Stock



Model			CTY(L)12/6, 7, 9G
Adhesive Weight			12 tons
Track Gauge			600, 762 or 900mm
Traction			16.48kN
Max. Traction			29.43kN
Speed			8.7km/h
Power Supply Device		Voltage	192V
		Capacity	560Ah
Power			22kW*1
Size	Length		5100mm
	Width		1050, 1212 or 1350mm
	Height		1600mm
	Wheelbase		1220mm
	Wheel Diameter		Φ680mm
Min. Turning Radius			10m
Electromechanical Controller			Resistance, IGBT or AC Converter
Brake Mode			Mechanical and Pneumatic Brake

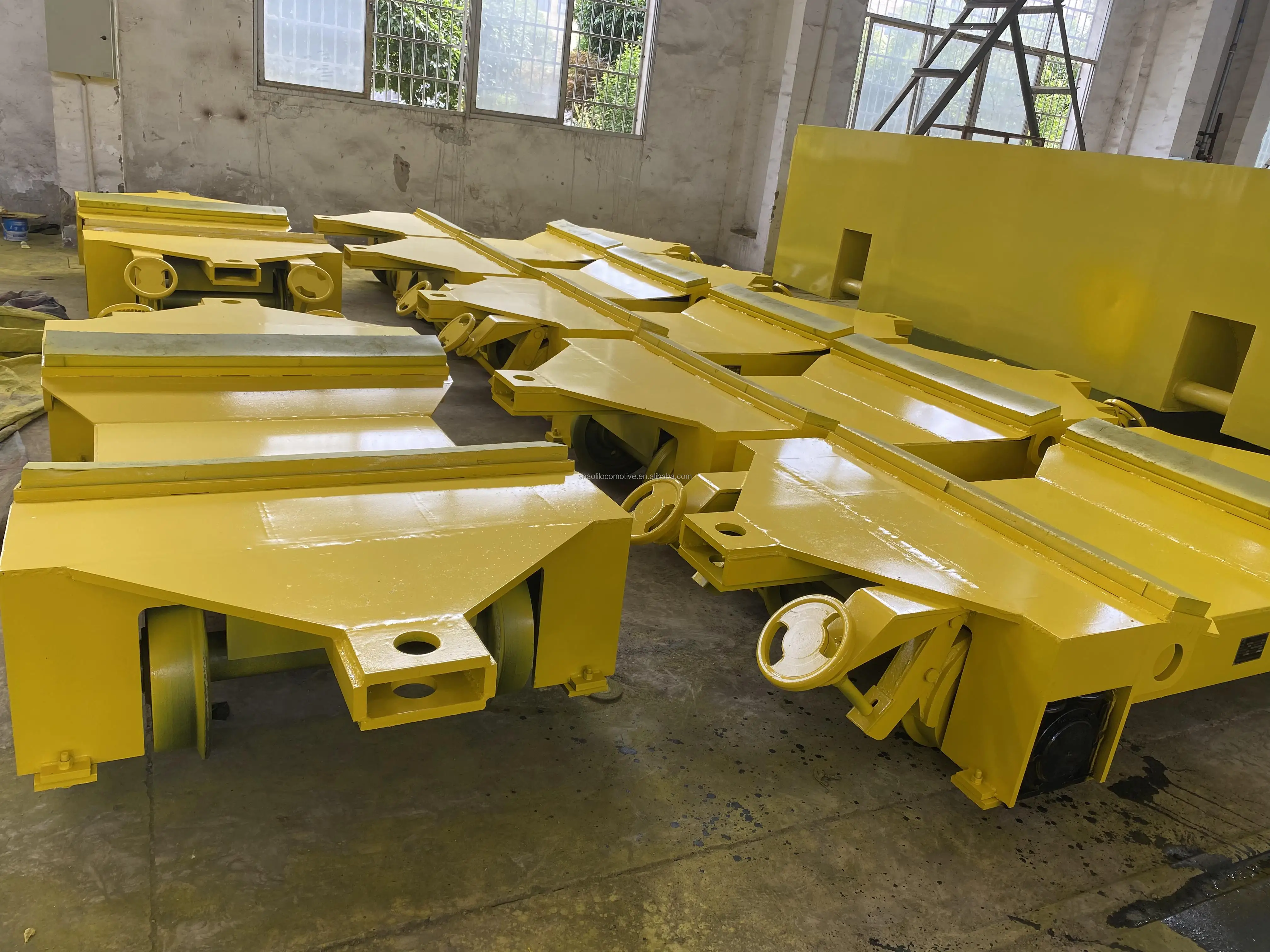

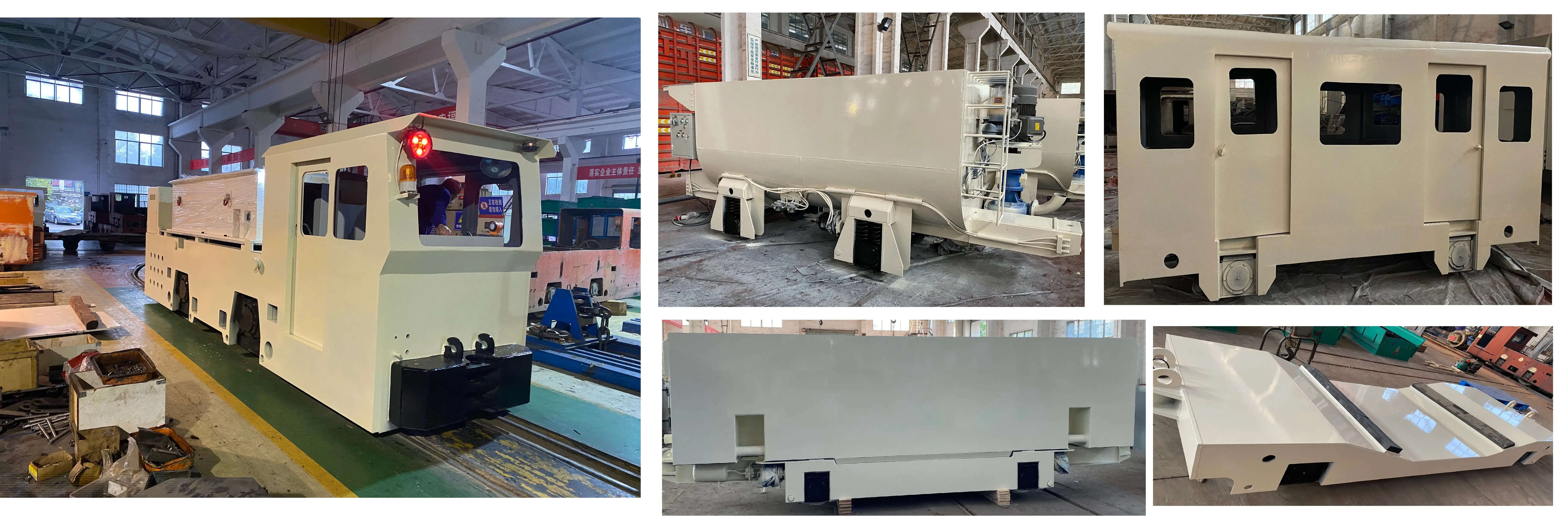

Frame
Constructed in welded steel and suspended by leaf spring or rubber studs on grease bearing seats with tapered roller bearings.
Speed control
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
The AC converters convert the DC from batteries into AC and the controller adjusts the speed of AC motors by the power frequency of the AC converter.
AC motor
Comparing with DC motors, the 3 phases AC motors have no carbon brushes and any other quick-wear parts.Double cabs type of12 tonner battery locomotives have double cabs type that have better field of vision for the operators.
Brakes
Pneumatic brake to the four wheels by brake shoes. Stop brake by manual mechanical brake.
Sanders
Pneumatic (or mechanical) sanding system to the rails.

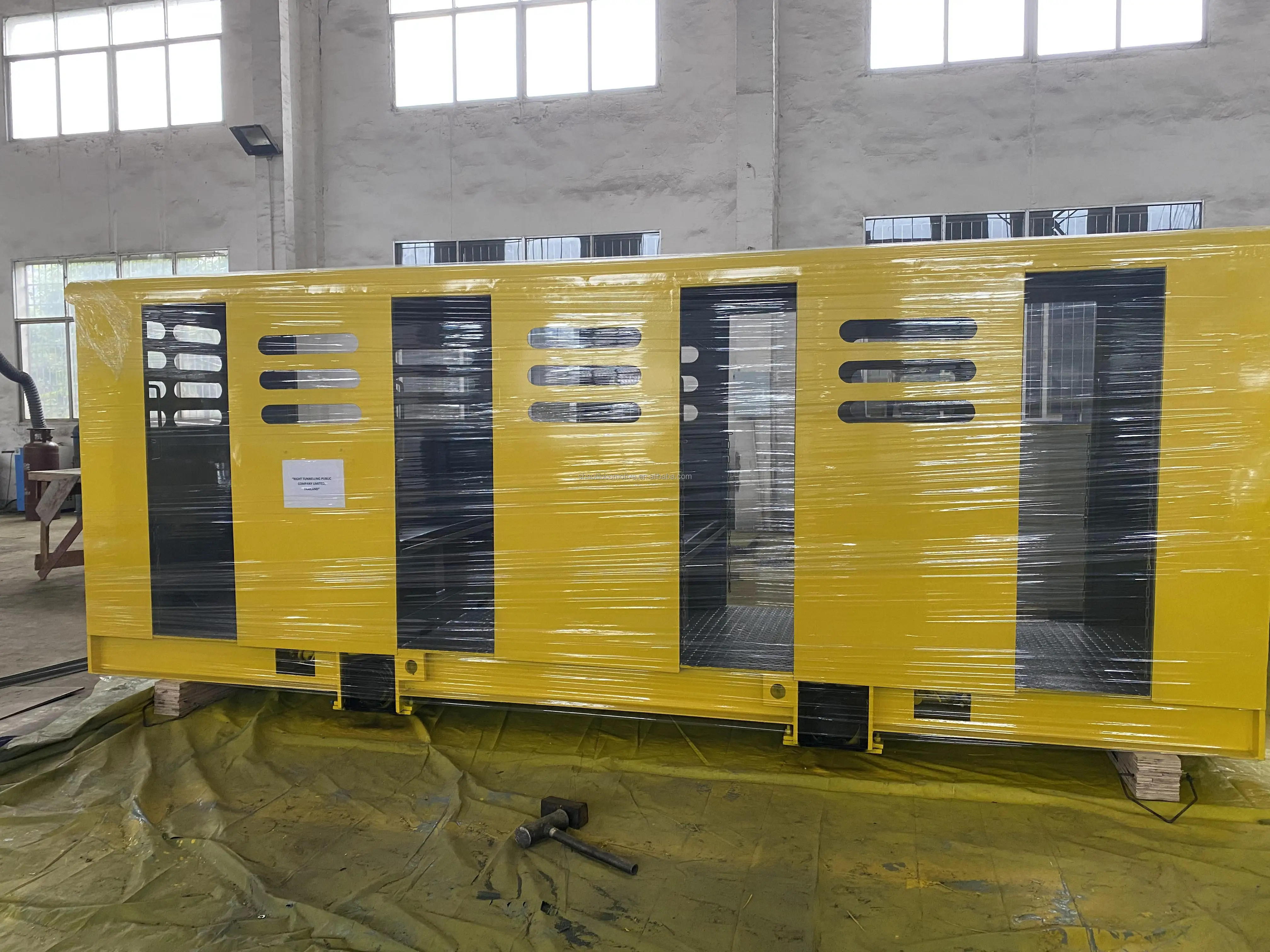

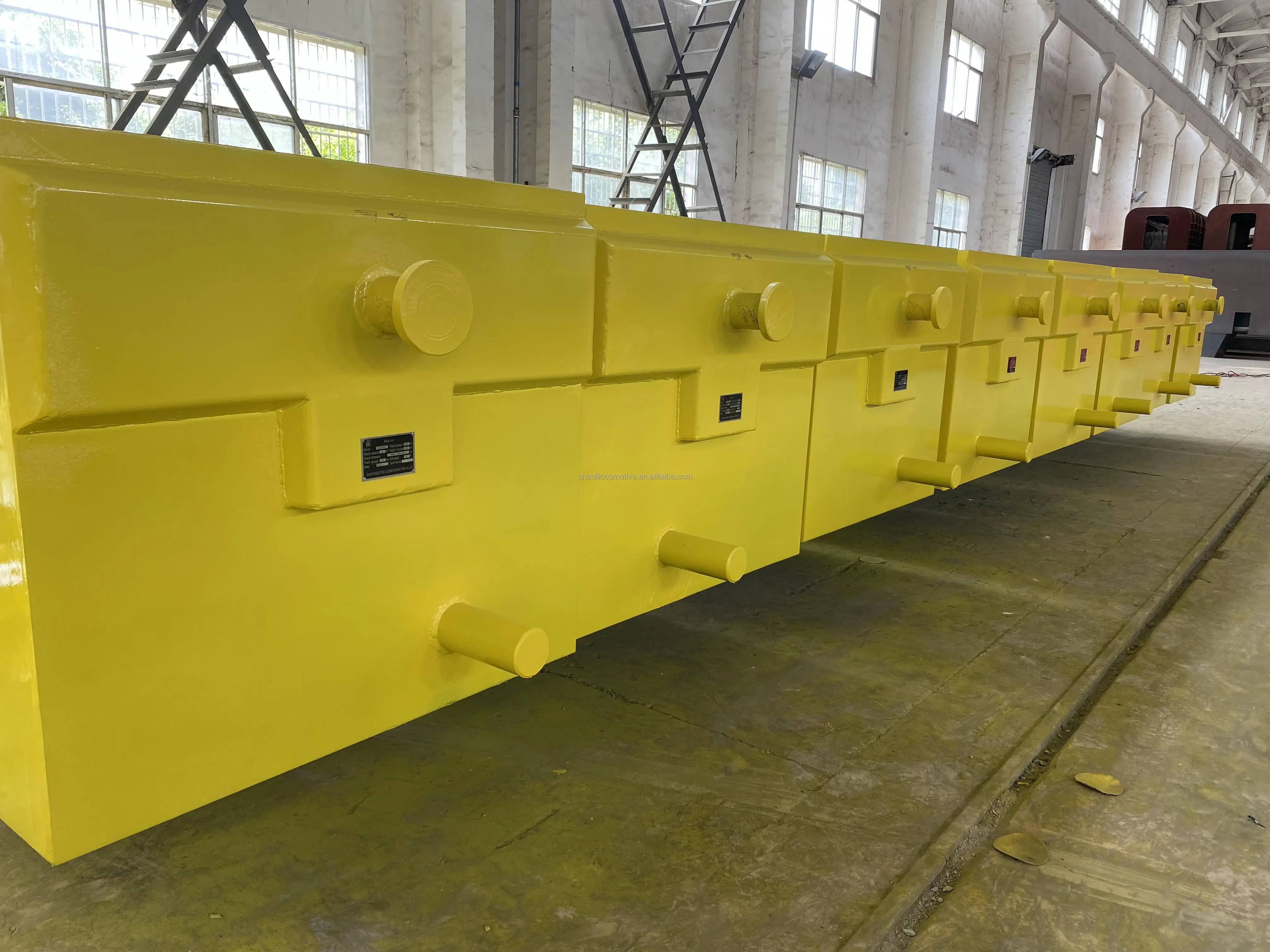

Battery
The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 96pcs-128pcs series storage lead-acid batteries.
Buffers and motor suspension
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a spring brace.
