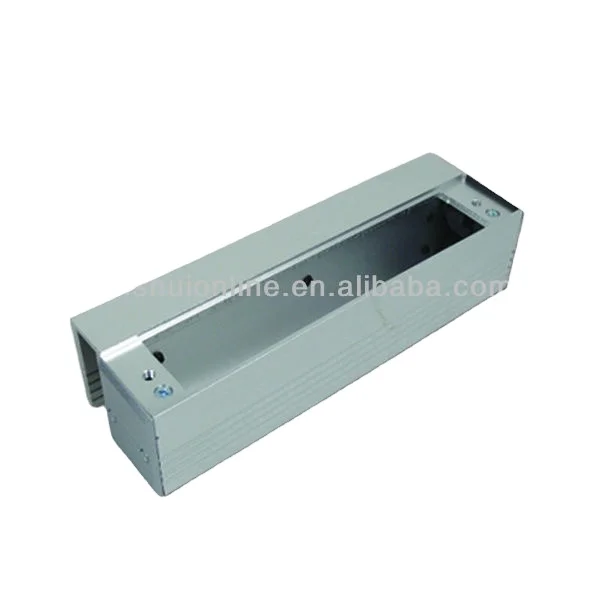

Access Control Electric Bolt Lock with Magnetic

Bracket

Type

Function Support

Dimensions

L×W×H(mm)

WT

kg

EBJ100

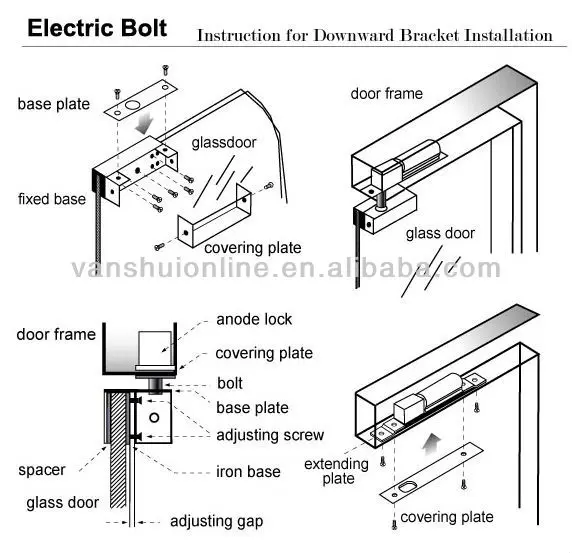

1. EBJ100 is used as downward bracket of glass door and matchable with upward EBJ235;

2. Suitable for installation of electric bolt EB200 series.

100×60×48

0.353

EBJ130

1. EBJ130 is used as downward bracket of glass door and matchable with upward EBJ235

2. Suitable for installation of electric bolt EB235.

130×60×48

0.426

EBJ200

1. EBJ200 is used as upward bracket of glass door and matchable with downward EBJ100;

2. Suitable for installation of electric bolt EB200 series.

200×60×48

0.565

EBJ235

1,  1. EBJ235 is used as upward bracket of glass door and matchable with downward EBJ130;

2,  2. Suitable for installation of electric bolt EB235.

235×60×48

0.666
