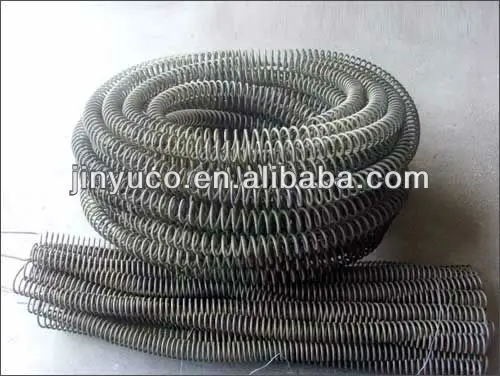

Iron chromium aluminum alloy spiral shape electric heating wire for resistance heaters

Product Overview

Description

Iron-chromium-aluminum spiral shape electric heating wire for resistance heaters are available as wire, strip, welded and seamless tubes; All these product forms are available from stock for fast deliveries. The high aluminum content, in combination with the high chromium content causes the scaling temperature to increase up to 1425 C (2600F ).



Electric heating wire FeCrAl alloys are widely used in industrial electrical furnace, electrical oven, home applicance, electrical heator, infrared settings, etc.

Max continuous working temperature: 1250 C.
Melting Temperature: 1500 C
Electric Resistivity: 1.42 ohm mm2/m
Diameter: 0.01mm-10mm



Resistance heating wire main technical performance

		1Cr1 3Al4	1Cr2 1Al4	0Cr2 1Al6	0Cr2 3Al5	0Cr2 5Al5	0Cr21 Al6Nb	0Cr27 Al7Mo2
Main Chemical Elements %	Cr	12.0 --15.0	17.0 --21.0	19.0 --22.0	20.5 --23.5	23.0 --26.0	21.0 --23.0	26.5 --27.8
	Al	4.0-- 6.0	2.0--4.0	5.0--7.0	4.2--5.3	4.5--6.5	5.0--7.0	6.0--7.0
	Fe	ALW	ALW	ALW	ALW	ALW	ALW	ALW
	Re	ALW	ALW	ALW	ALW	ALW	ALW	ALW
							Add-on Nb:0.5	Add-on Mo:1.8 --2.2
Highest Temperature °C		950	1100	1250	1250	1250	1350	1400
Melting Point °C		1450	1500	1500	1500	1500	1510	1520
Density g/cm3		7.40	7.35	7.16	7.25	7.10	7.10	7.10
Resistivity μΩ.m,20°C		1.25 ±0.08	1.23 ±0.06	1.42 ± 0.07	1.35 ±0.06	1.42 ±0.07	1.45 ±0.07	1.53 ±0.07
Tensile Strength Mpa		588-- 735	637--784	637--784	637--784	637--784	637--784	686--784
Expansion %		≥16	≥12	≥12	≥12	≥12	≥12	≥10
bend degree		≥5	≥5	≥5	≥5	≥5	≥5	≥5
celerity life h/°C		_	≥80/ 1250	≥80/ 1300	≥80/ 1300	≥80/ 1300	≥50/ 1350	≥50/ 1350
Specific Heat J/g.°C		0.490	0.490	0.520	0.460	0.494	0.494	0.494
Thermal Conductivity KJ/m.h.°C		52.7	46.9	63.2	60.2	46.1	46.1	45.2
Coefficient Of Linear Extensibility ( COLE) α×10 -6 /°C (20-1000°C)		15.4	13.5	14.7	15.0	16.0	16.0	16.0
rigidity HB		200--260	200--260	200--260	200--260	200--260	200--260	200--260
Emerg eorganise		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetism		Magn etism	Magn etism	Magn etism	Magn etism	Magn etism	Magn etism	Magn etism



Electric resistance heating wire main applications

     Over a long period of time, our products (Fe-Cr-Al/Ni-Cr) high resistance and heating alloy materials are salable and widely used in various industries, such as metallurgical, chemical, glass, ceramic, and electrics for instance, they can be used for industrial and civil heating-furnace, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on.

     Meanwhile our products are ideal materials for heating elements of electric stove, electric teapot, electric iron, electric blower, soldering-iron, electric water heater and indoor air-conditioner and etc.
