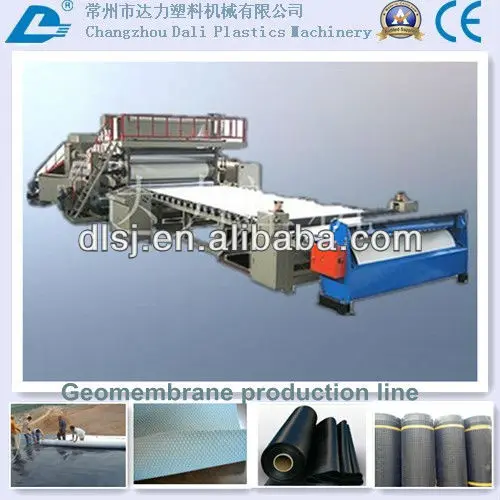

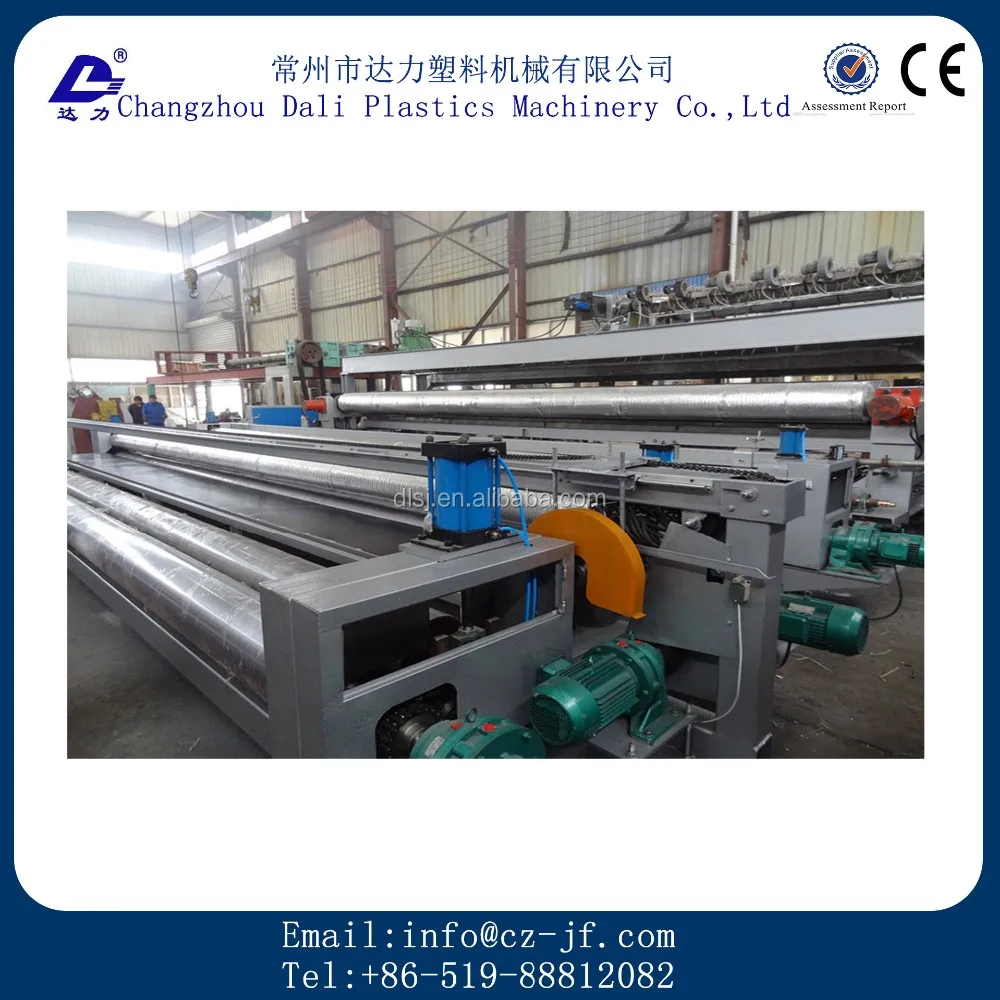

HDPE geomembrane sheet pond liner making machine for landfill

Product Overview

Description

HDPE geomembrane sheet pond liner making machine for landfill



       Adopting calendering compound process to heat, extrude, press, cool LDPE, LLDPE, EVA and other raw materialS. It is used for producing monolayer and multilayer geocomposite from various kind of geotexitlenon-woven fabrics and woven fabrics.



       It can be designed into computer automatic control, with vector frequency converter, PLC integrated control, human friendly interface and touch screen displayer.



Main technical parameters of HDPE liner geomembrane for landfill:

Suitable fabrics	Geotextile,Plastic woven fabrics,Non woven fabrics
Model and specifications	3300	4500	6300	8300
Laminate layers	one farbric one film,two fabrics one film,flashing
Thickness of compound film (mm)	0.2-2.5
Flashing thickness(mm)	0.5-2.5
Main machine power(kw)	75 - 150
Specifications of embossing roller (mm)	400×3300	500×4500	600×6300	800×8300
Max. compound width	3000	4200	6000	8000
Cooling method	Circulating water cooling

Remarks: The machine can be designed and manufactured according to the customer's requirement



• Sanitation Project(MSW landfill,sewage treatment,toxic and hazardous compounds disposal sites storage of dangerous goods);
• Water Conservancy(rivers,lakes water reservoir dam seepage control and stopping leaks and consolidation and the impermemeable drains);
• Construction Projects(subwayconstruction,building underground engineering and the roof garden impermeable,sewage pipe linging);
• Landscape Works(artificial lake,pool);
• Agricutural Engineering(reservoir,drinking water tanks,water storage pound the irrigation system impervious);
• Transportation(highway) and so on.
