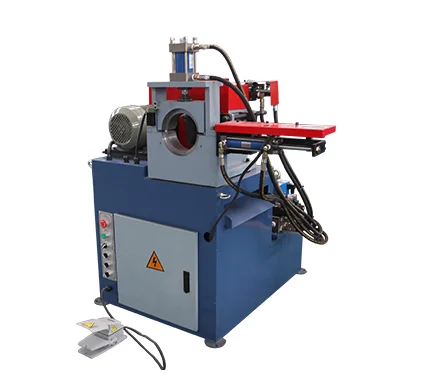

EF AC/150 Automatic steel bar pipe tube chamfering machine
- Category: Chamfering Machines >>>
- Supplier: Jiangsu Telhoo Machinery Manufacture Co. Ltd.
Share on (877950652):
Product Overview
Description

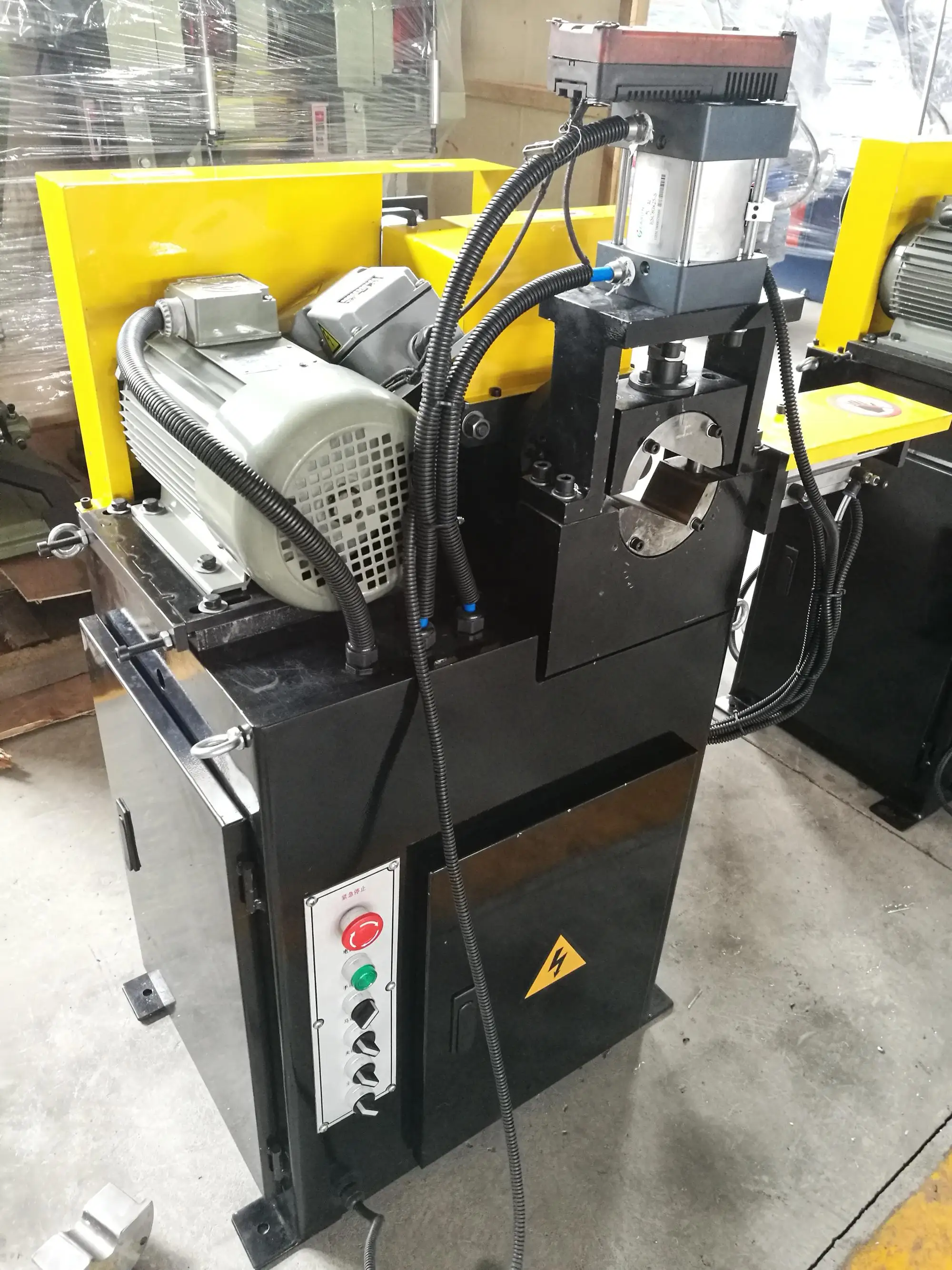

EF-AC/150 Automatic steel bar chamfering machine
About us
Product description
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Model | EF-AC/150 |
| motor | 3.7KW×6P |
| Compressed air | 0.6-0.9Mpa |
| 120ml/min | |
| Tool bit | 1 standard tool bit range Φ38-Φ115mm |
| Capability O.D | Tube diameterΦ38-Φ150mm |
| exterior angleΦ9-Φ80mm | |
| Standard fittings | 1. one standard tool bit 2. one group of clamping fixture |
| Special fitting | Different Size clamping fixture |
| weight | 550kg |
| size(mm) | 1200x850x1350 |

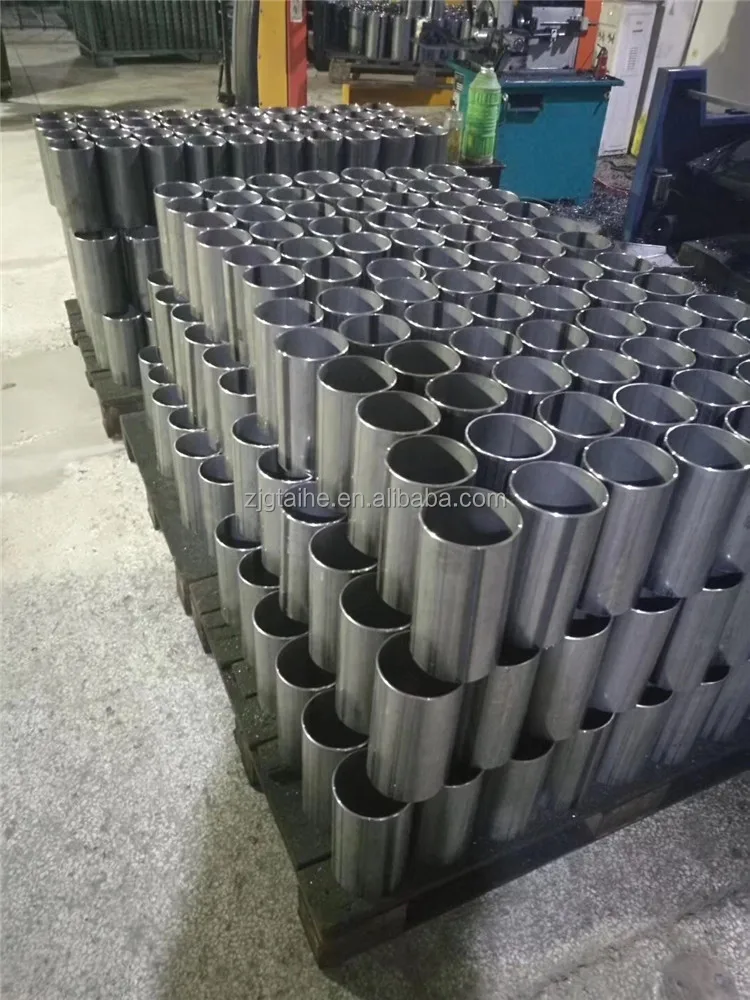

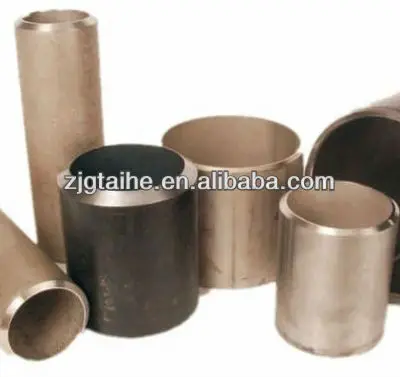

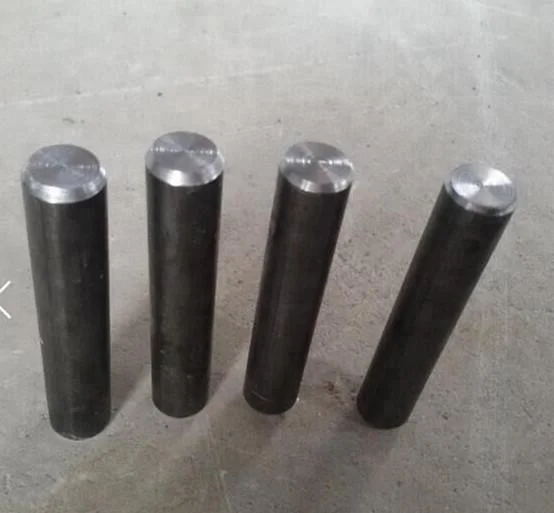

Scope of application
Our Services
1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
