RV16C диммер 1000 Вт 10Arotary потенциометр с переключателем вкл/выкл Альфа линейный потенциометр 500k 100k 10k 20k

Product Overview

Description

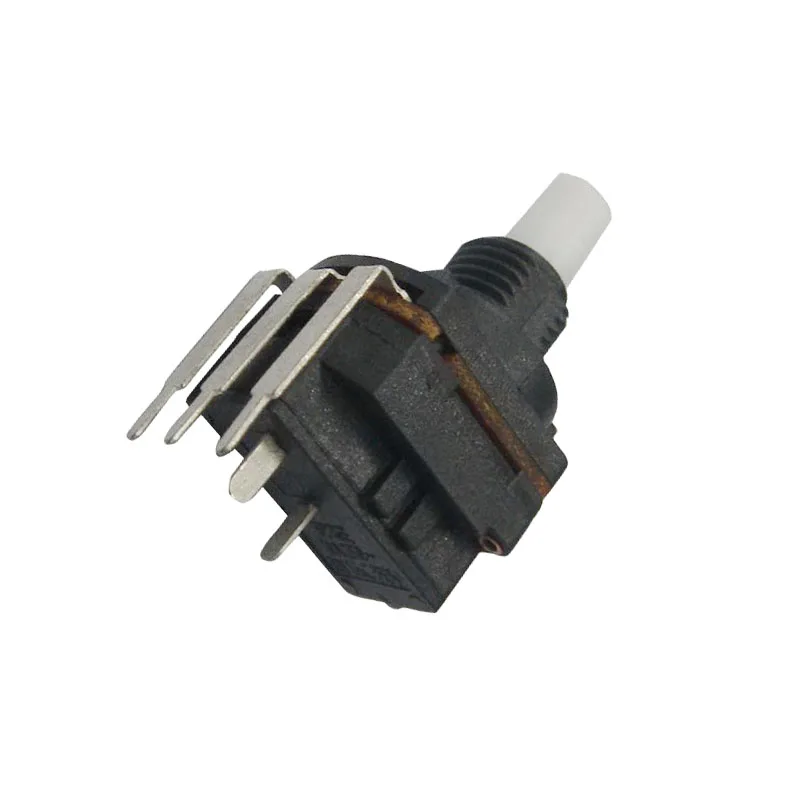

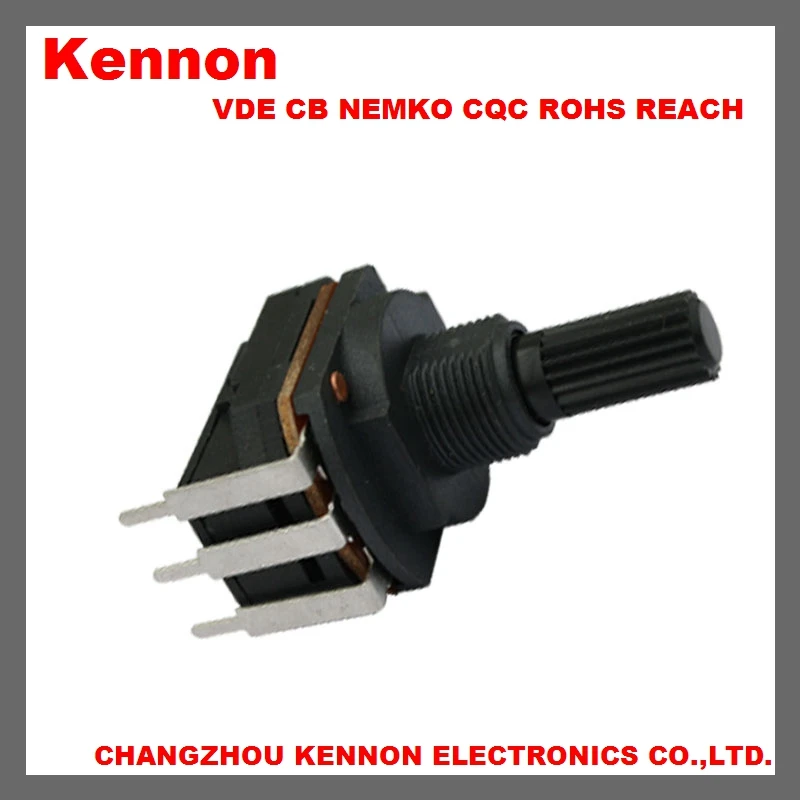

RV16C dimmer 1000w rotary potentiometer with on/off switch alpha linear potentiometer 500k 100k 10k 20k

C dimmer rotary potentiometer with switch  alpha linear potentiometer

RV16C-40-1/2/4 Series

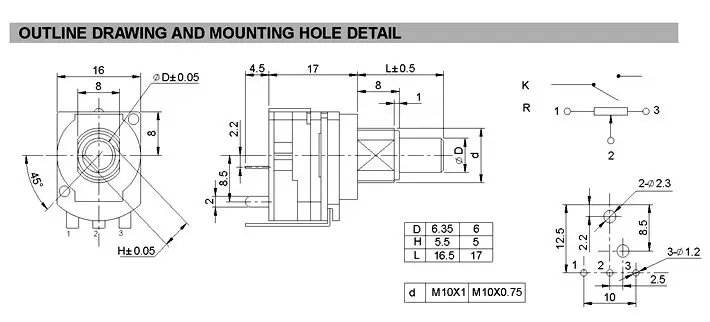

Mechanical characteristics:

Total rotation angle:270°±5°

Rotation torque: 2~20mN.m

Shaft stop strength: 6Kgf.cm

Switch working angle/stroke: 40°Max

Switch working force/torque: 50-300gf.cm

Click position: 0 detent

Electrical characteristics::

 Operating temperature: (-20)to (+105)

Switch rating : AC 250V 10A

Switch contact resistance: Less than 50mΩ

Rated wattage: 0.2W

Rated voltage:250V

Insulation resistance: More than 100Ω at DC500V

Dielectric:AC1500V,1minute(between carbon plate and contact)AC750V,1 minute(between open contacts)

Resistance tolerance: ±20% (more than 1M Ω±30%)

Rotational noise:≤47mV

Residual resistance: R≥250KΩ 0.1% max. of total resistance

                     250R10KΩ  20Ω max

                     10KΩ≥R

Durability:

Mechanical life: 50000 cycles

Electrical life: 30000 cycles

Standard : UL, VDE,NEMKO, CB,CQC ISO9001 ,ISO14001 ,ROHS
