PTO wood chipper for WC 8 with OEM factory

Product Overview

Description

 PTO wood chipper for WC-8 with OEM factory:







About us:





We are a medium-sized private enterprise built in 1989.we focus on R&D



woodworking machines-pto wood chippers,self-powered wood cippers log splitters and haying machines-mini round balers,square balers,self-propelled balers,two discs mowers,hay rakes and tedders,



bale wrappers,and other implements attached to tractors.











About product:

 Runshine PTO wood chipper for WC-8









Features:



1.Runshine PTO wood chipper.
2.CE approved,electric start .
3.factory price,good quality.
4.mechanical or hydraulic feeding ,high efficiency.
5.good technology support ,14 months warranty.





 Useage:



Runxin wc-8 wood chippers are used for cutting wood, branch and pieces into smaller wood chips,pieces,for covering crops  or mulching,

specially for using granulated fuels.



Working principle:







The WC-8 wood chipper  employs steel disc with

 rectangular blades mounted upon it and fans upon the

 other side. While the disc rotates, powered by PTO shaft , the blades cut the wood ,branch or leaves into pieces and the fans blow the chips out from discharge chute.





Technical Parameters:







Model	WC-8 mechanical feeding system	WC-8 hydraulic feeding system
Diamentions(L*W*H)	1600*1020*1400mm	1600*1020*1400mm
Structure Weight	370kgs	370kgs
Blade turning Radius	302mm	302mm
Chipper Max. Diameter	200mm	200mm
Chipper Efficiency	8~ 9m 3 /h	8-9m3 /h
PTO rpm	540rpm	540rpm
Power Required	25hp~50hp	25-50 hp

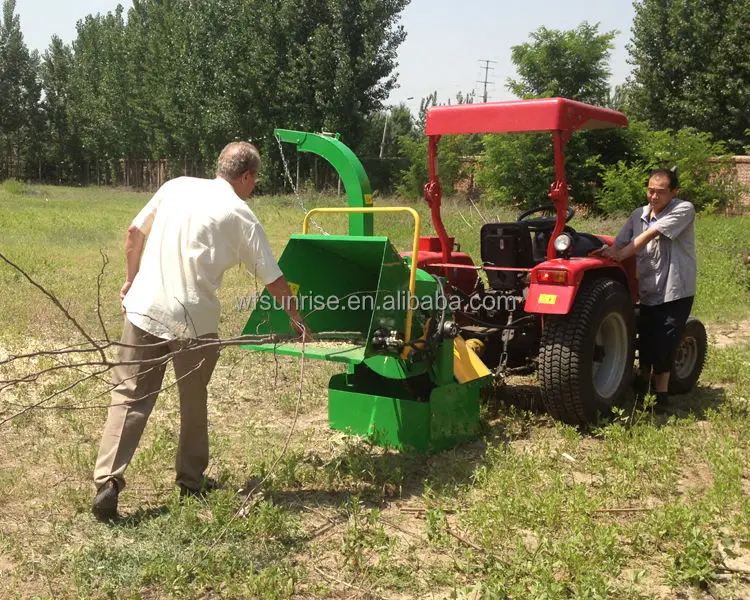

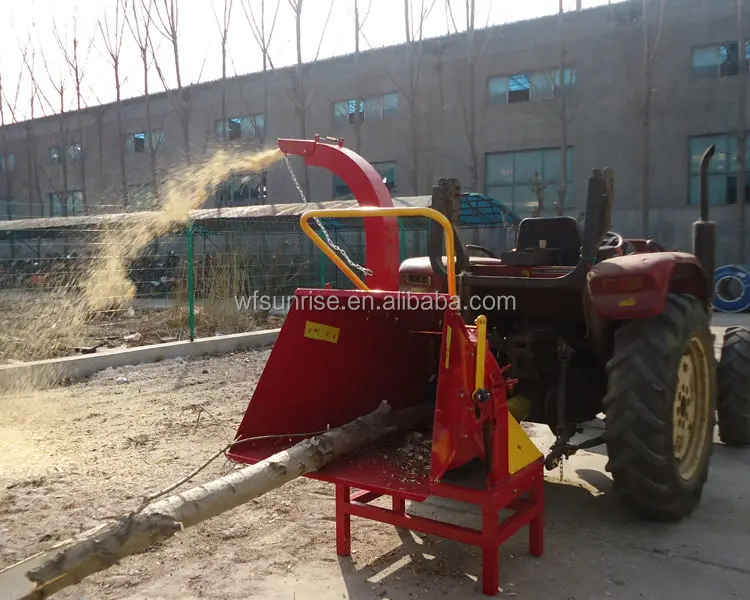

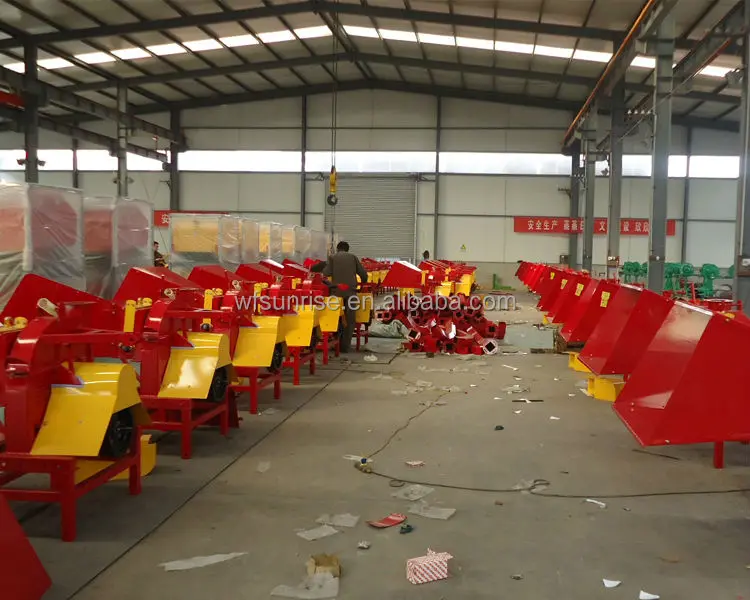

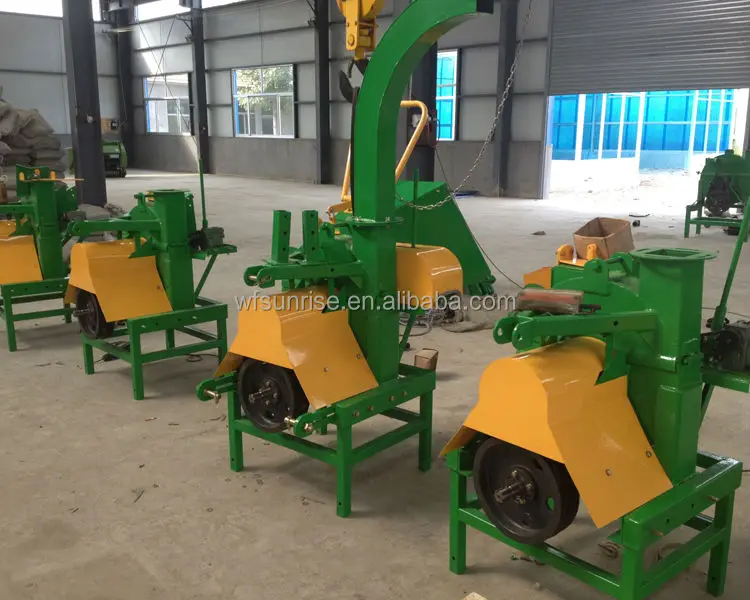

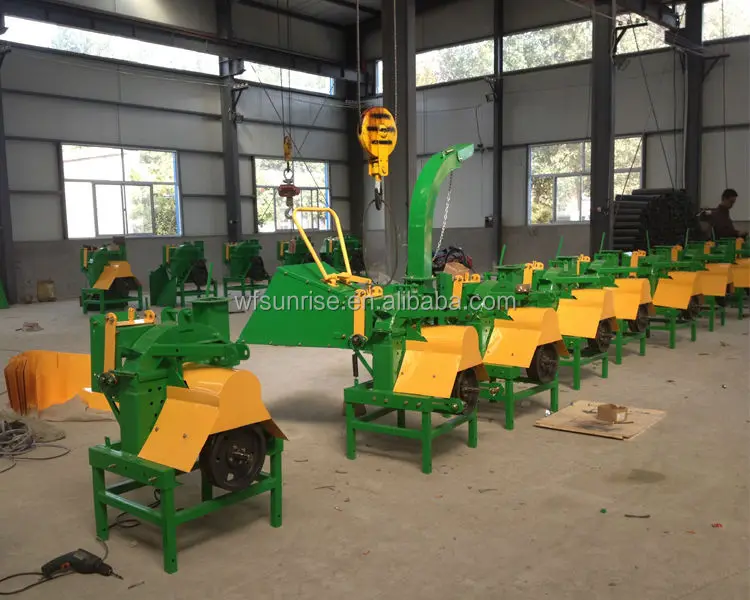

Photos:



Options:

1. round flywheel house or square flywheel house.

2.single feeding roller or double feeding rollers.

3.hydraulic or mechanical feeding system.



Any question,please feel free to contact me.
