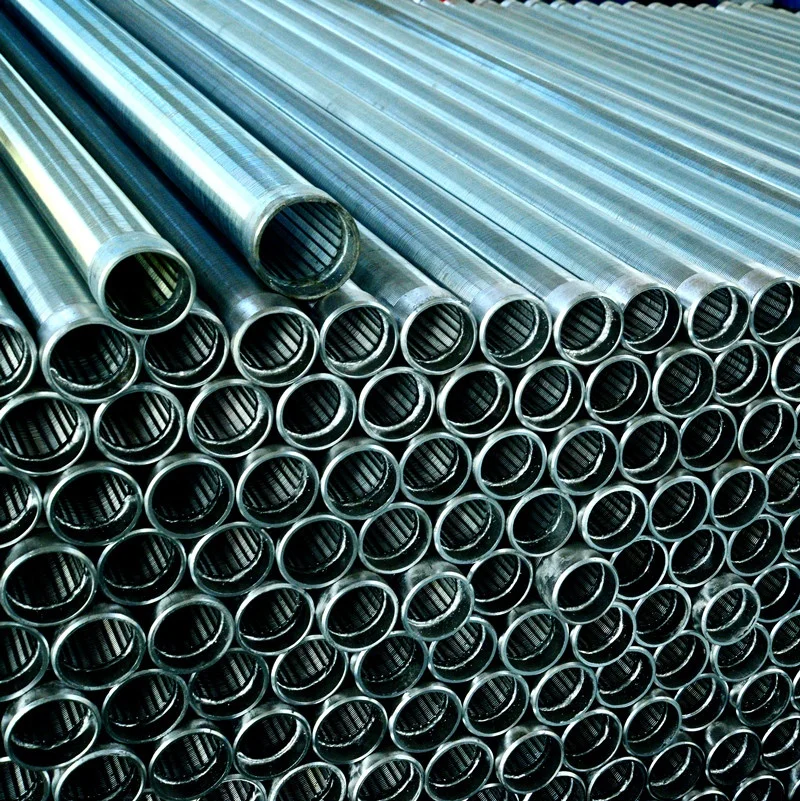

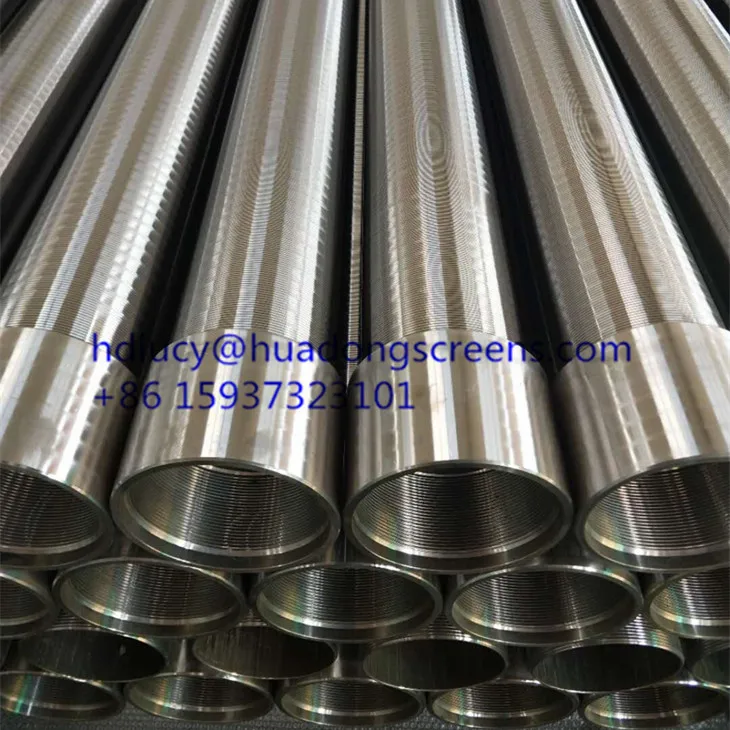

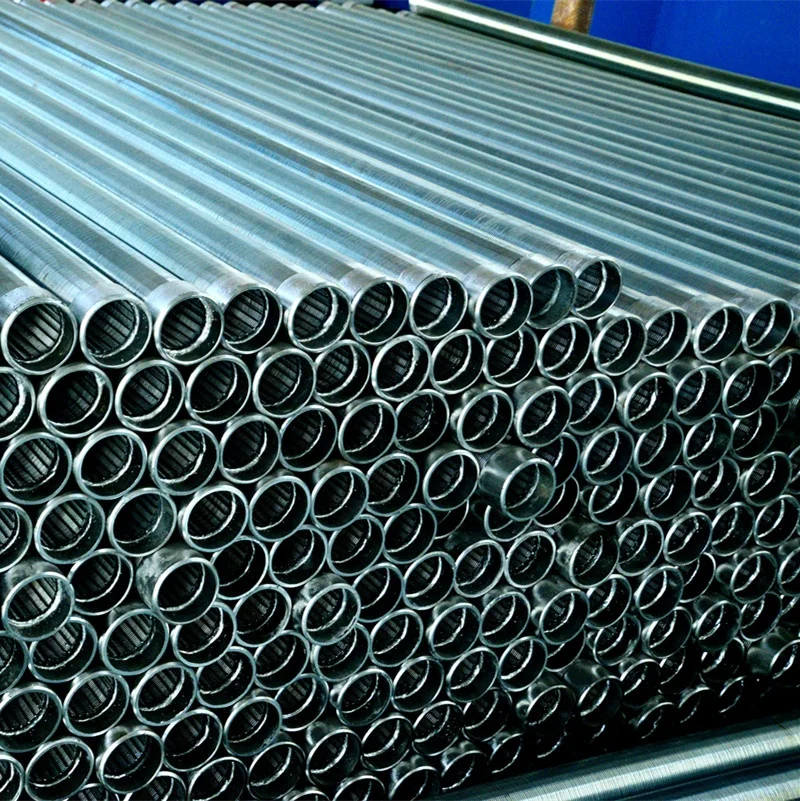

4'1/2 Stainless Steel 316 wire wrapped continuous slot well screen (Manufacturer)

Product Overview

Description

Johnson water well screen

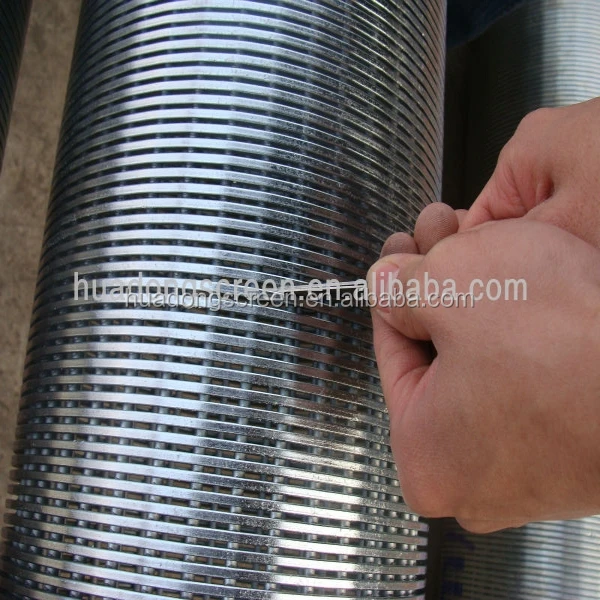

1.The continuous slot wire-wrap screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

2.This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.

3.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

4.The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.

5.Water well screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.



Advantages

1. It has high mechanical strength, can bear large pressure drop.

2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3. The wedge type slot can improve backflushing and regeneration performance.

4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.



Technical patameter

SIZE (inch)	O.D (mm)	SLOT (inch)	LENGTH (m)	Collapse Strength (psi)	Tensile Weight (ton)	Wire size (mm)	RODS (mm)
4	114.3	0.040	3	395	6	2.2*3.0	3.8mm/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8mm/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8mm/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8mm/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8mm/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8mm/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8mm/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8mm/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8mm/50

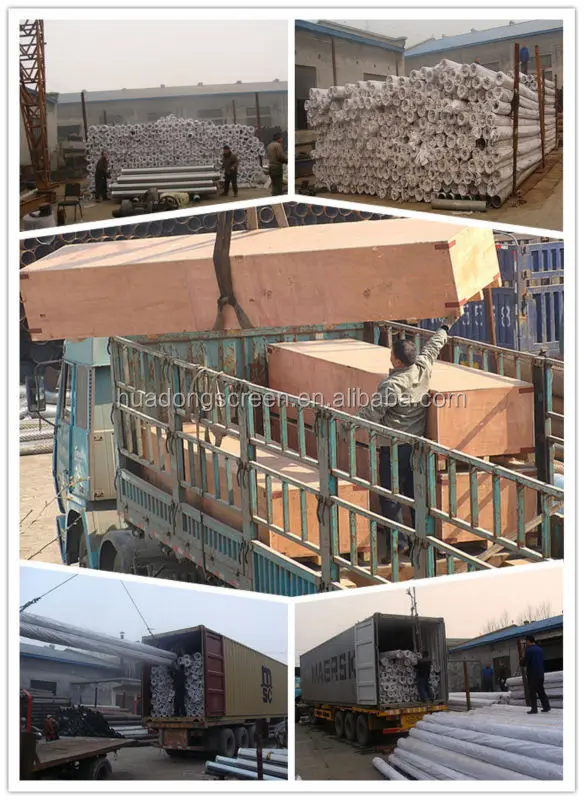

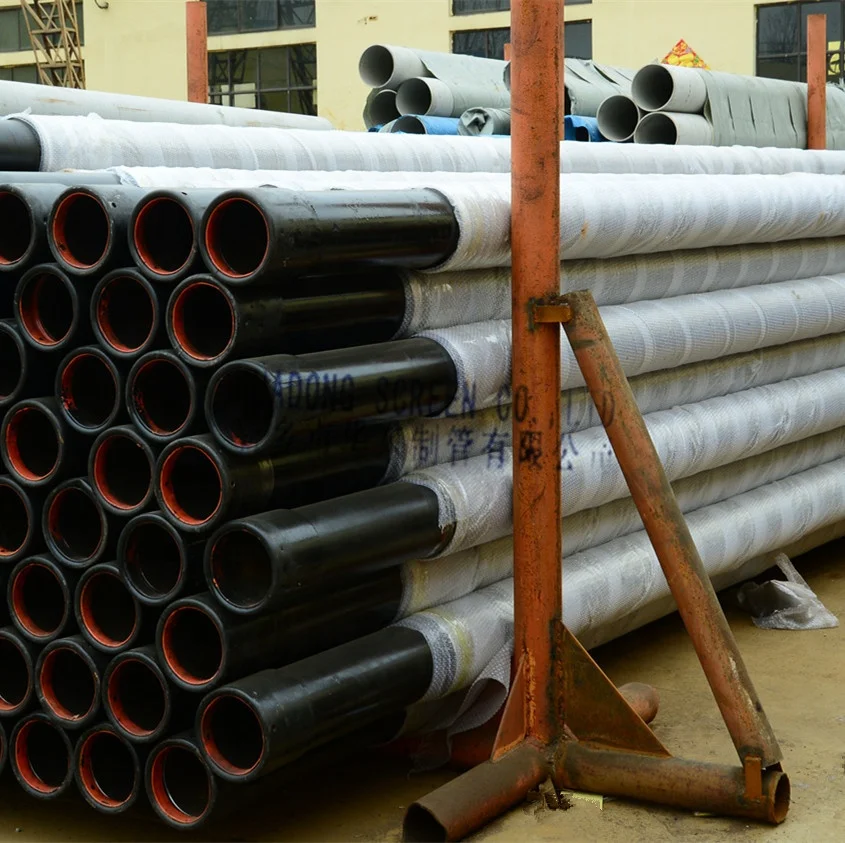

Packing details:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly

marked with:

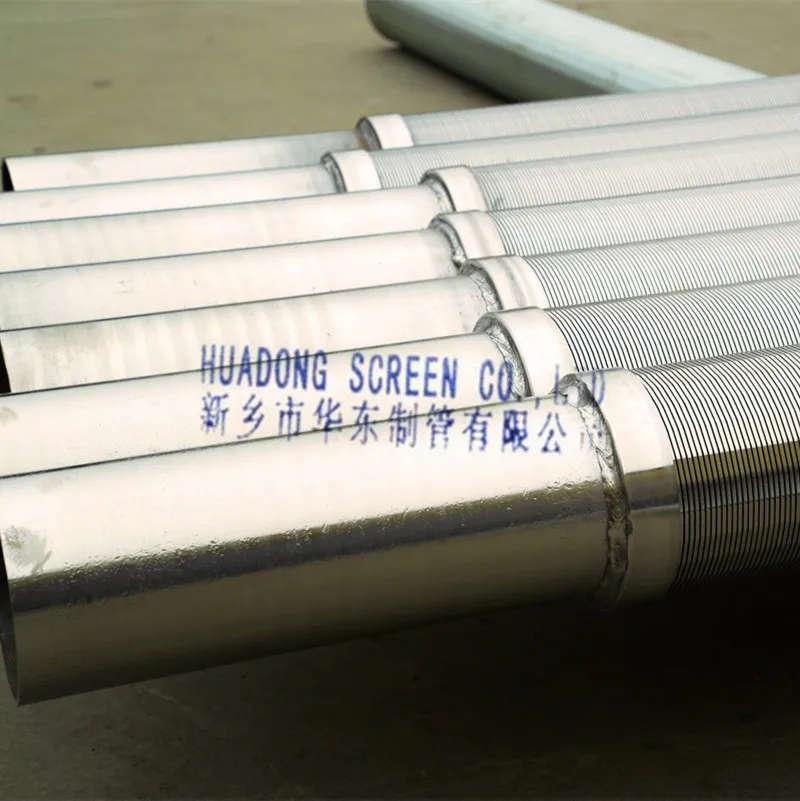

Name & identification mark of manufacturer-HuaDong Brand

Batch number

Date of manufacture

Material

Collapse strength  & Tensile pressure

Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profite without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us.

We provide with 24-hour service and await your calls respectfully! My What's App is+8615937323101, My skype is dalianmao0517.
