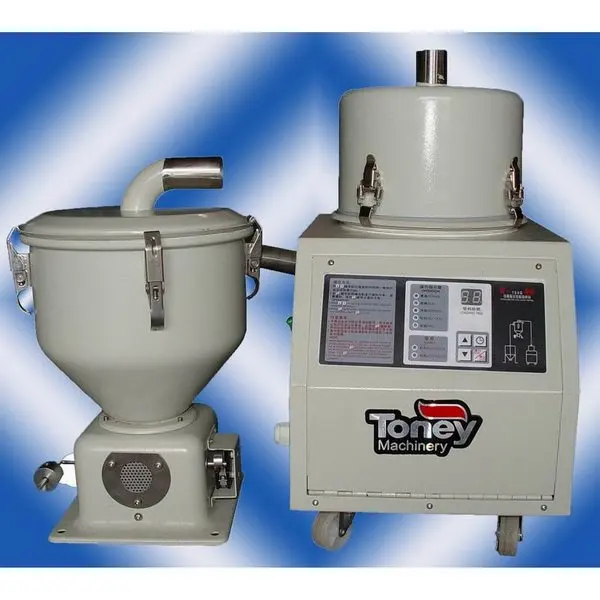

plastic auto loader SAL 800G
- Category: >>>
- Supplier: Guangdong Toney Robotic Intelligence Co. Ltd. [Guangdong China]Guangdong Ltd.
Share on (878725982):
Product Overview
Description
automatic loader&vacuum loader:
Features:
Fully automatic with microprocessor control.
Double vacuum control device,save cost&small footprint.
Central control easy to instal and operate.

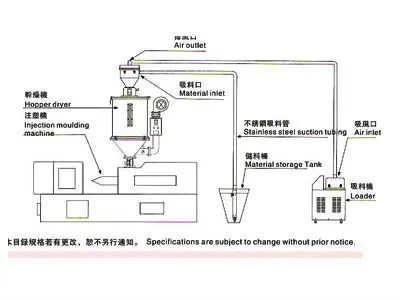

Suitable for drying process,central material supply system,simple system and structure,increasing productivity.
Easy to maintain.
| SPECIFICATIONS |
Model | SAL-300G | SAL-400G | SAL-700G | SAL-800G | SAL-800G2 | SAL-900G | SAL-900G3 | SAL-5HP | SAL-7.5HP | |
Motor | Type |
|
|
|
|
|
|
|
|
|
| 1KW/1.3HP | 0.75KW/1.1HP | 1KW/1.3HP | 1.1KW/1.5HP | 2.2KW/3HP | 1.5KW/2HP | 1.5KW/2HP | 3.8KW/5HP | 5.5KW/7.5HP | |
| 290 | 550 | 260 | 590 | 630 | 400+400 | 200+200+200 | 820 | 1000 | |
| 3.5 | 4 | 4 | 4 | 5 | 4+4 | 5+5+5 | 6 | 8 | |
| 1300 | 1400 | 1550 | 1800 | 2400 | 2400 | 2400 | 3000 | 4000 | |
| 7.5 | 10 | 7.5 | 10 | 10 | 7.5+7.5 | 7.5+7.5+7.5 | 25 | 40 | |
| 38 | 38 | 38 | 38 | 38 | 38 | 38 | 51 | 63 | |
| 38mm×3.5m | 38mm×4m |
| 38mm×4m | 38mm×5m | 38mm×4m | 38mm×5m | 51mm×12m | 63mm×16m | |
| Mainfra | 34×34×59 | 45×37×66 | 37×30×56 | 42×38×64 | 50×40×72 | 60×37×71 | 60×37×71 | 55×40×76
| 105×60×135 |
| / | / | 28×34×43 | 45×32×45 | 45×32×45 | 28×34×43 | 28×34×43 | 40×30×58 | 40×30×102 | |
|
| 12 | 27 | 14 | 47 | 66 | 55 | 58 | 90 | 135 |
| / | / | 6 | 7 | 7 | 6(2pcs) | 6(3pcs) | 10 | 12 | |
| The parameters of the conveying capacity and suction lift are educed from tests on ABS.The actual parameters may be different due to the differences of the specific gravity and the shape of the material,the conveying distance and height,the specialty of pipeline and the setting of parameters. | ecifications are subject to change without prior notice |
