Clear Color Prismatic Pattern Polycarbonate Solid Sheets For Lamp Cover

Product Overview

Description

rism pattern light diffusion polycarbonate sheets is Gensin patented products. The special optical prism design make the sheet receive the effect of light scatter even without use of astigmatisc technology. At the same time, light transmission is almost close to nomal transparent sheet, energy-saving obvious.



Product Feature:

• Astigmatism effect, can not see the blacklight
• Combining with LED light can get the effect of color change
• Good weather resistance and UV protection
• Very high impact strength
• Good light transmission
• Lightweight,Simply installed
• Meet different fire protection standardard

Specifications:

1. Thickness: 1.5mm to 6mm
2. Maximum width: 2,100mm
3. Length: any dimension
4. Specific gravity: 1.2kg/m³

Techniacal Data:

Impact strength	850J/m  impact strength of solid PC sheets is 250 times of glass, 20-30 times of PMMA sheet
Light transmission	80%-90% for different thickness of clear color
UV resistance	50μm UV layer, can filter 99% ultraviolet radiation in sunlight
Coefficient of thermal expansion	0.065 mm/m°c
Service temperature	-40°c to 120°c
Heat conductivity	2.3-3.9 W/m2 °c
Tensile strength	>60N/mm2
Flexural strength	100N/mm2
Tensile street at break	>65mPa
Heat deflection temperature	140oC
Soundproof index	4mm thickness--27dB,5mm--28dB,6mm--29dB



Applications:

1. Advertising light boxes, signs
2. Outdoor billboards
3. LED lighting
4. Guides system
5. Light cover

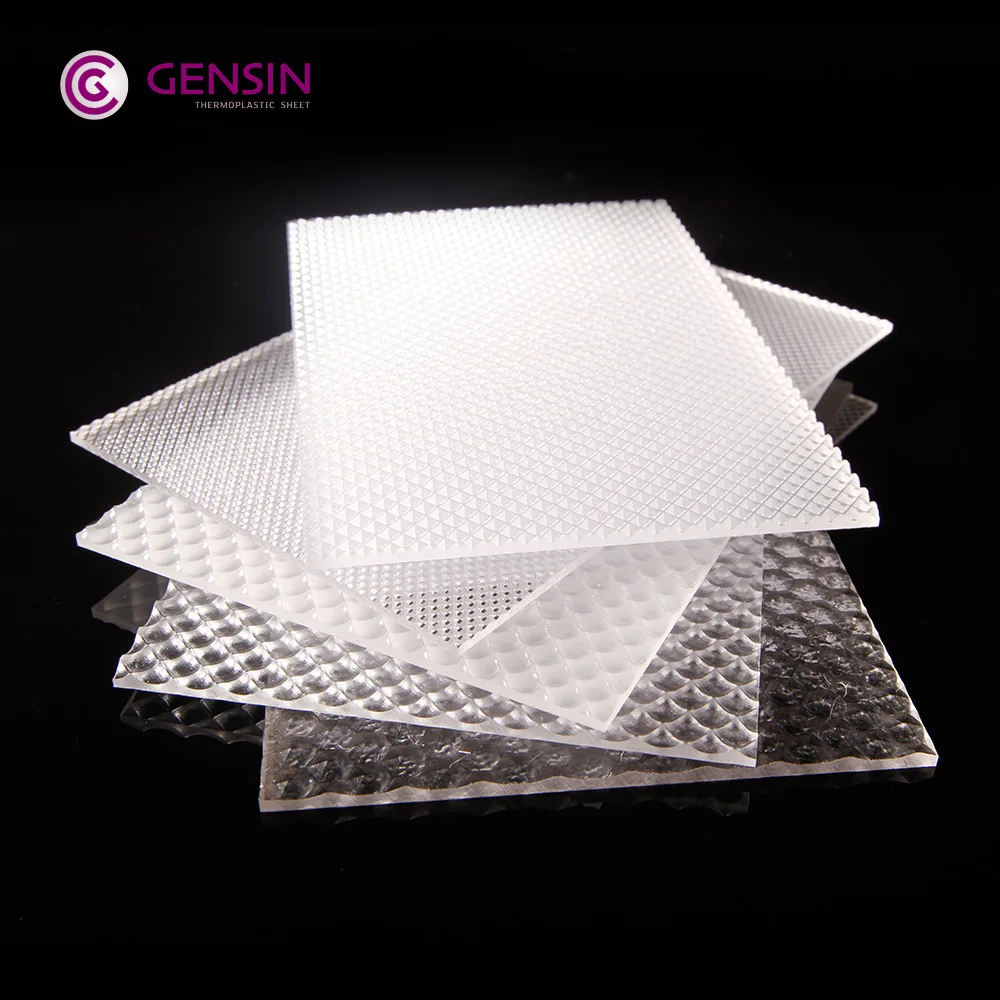

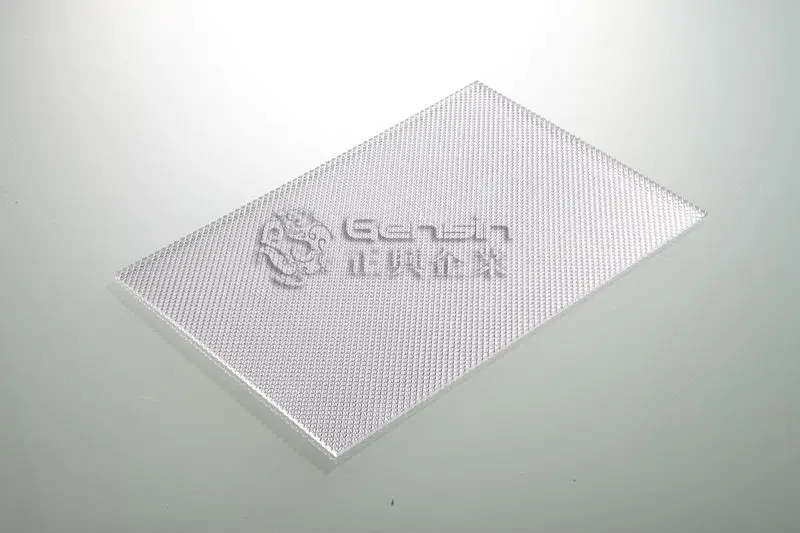

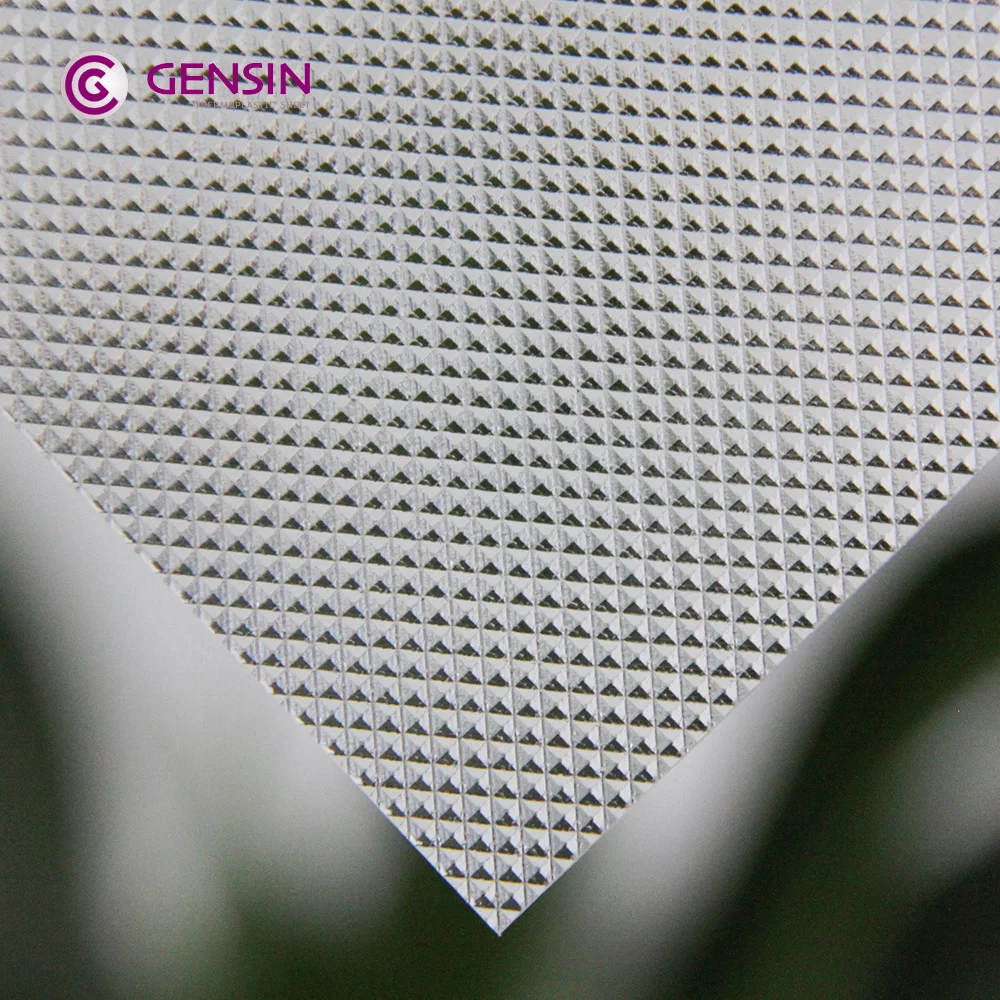

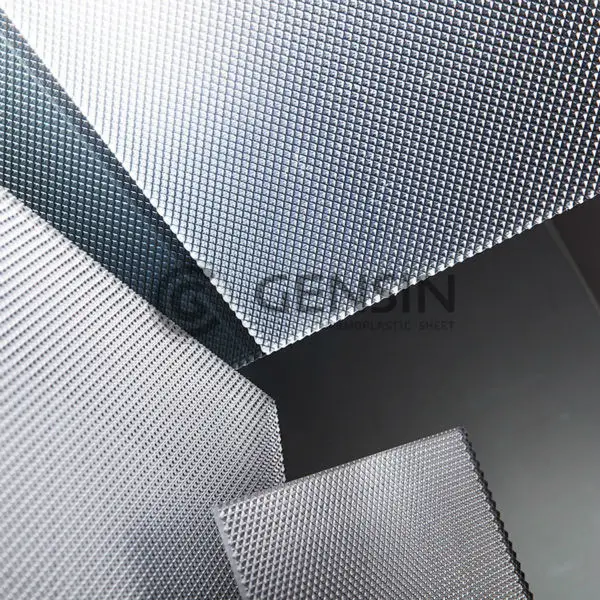

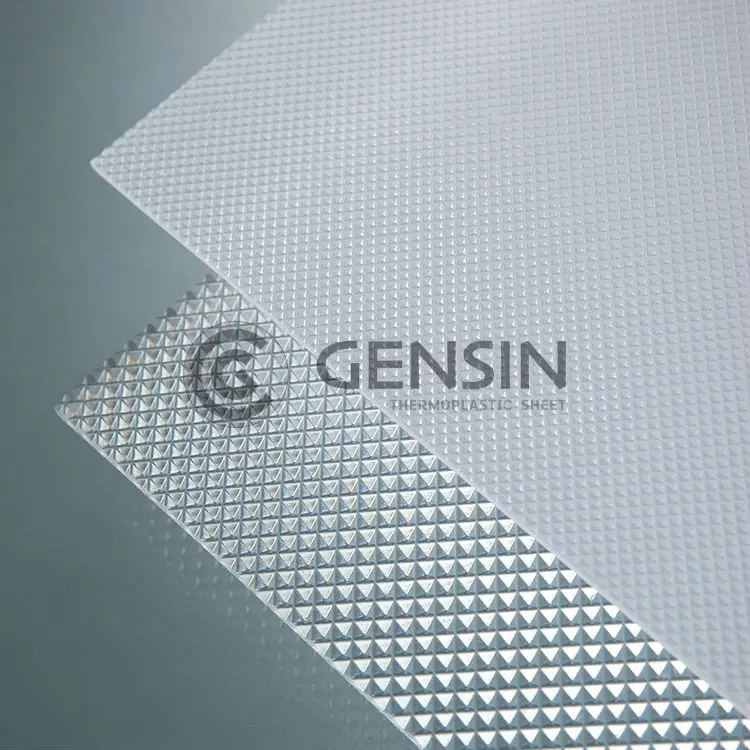

Pictures view:
