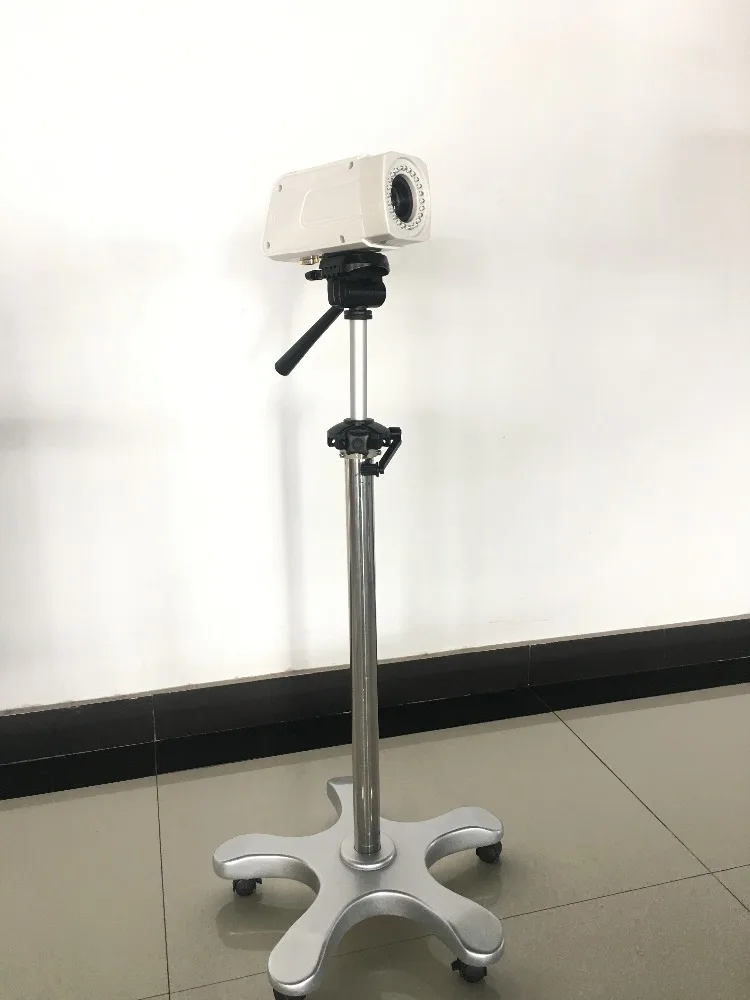

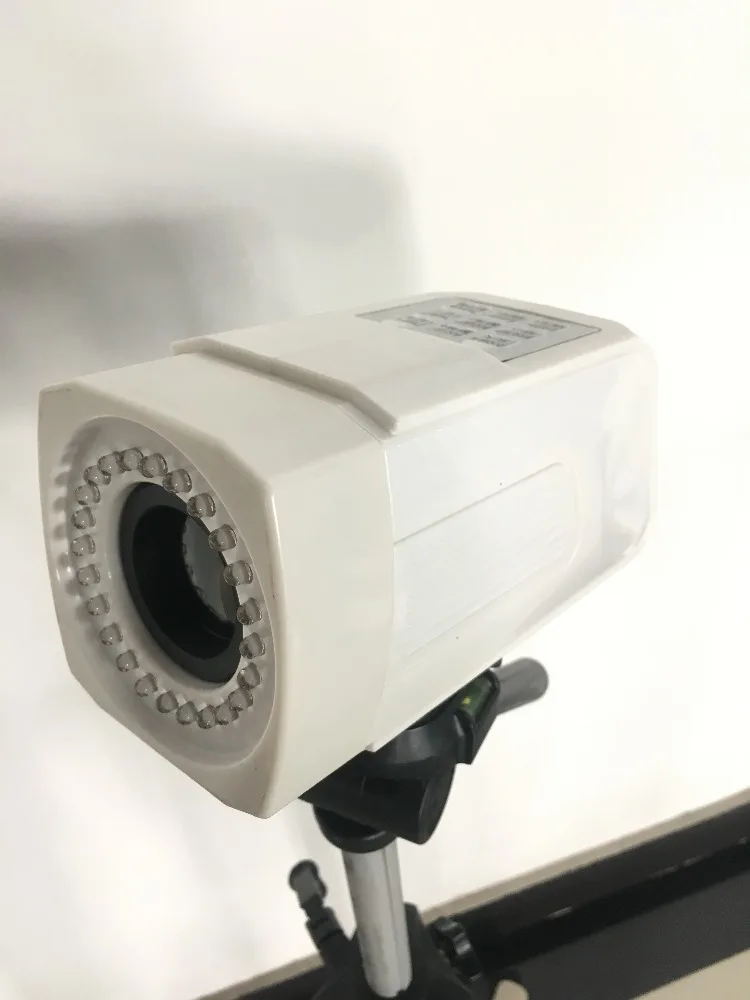

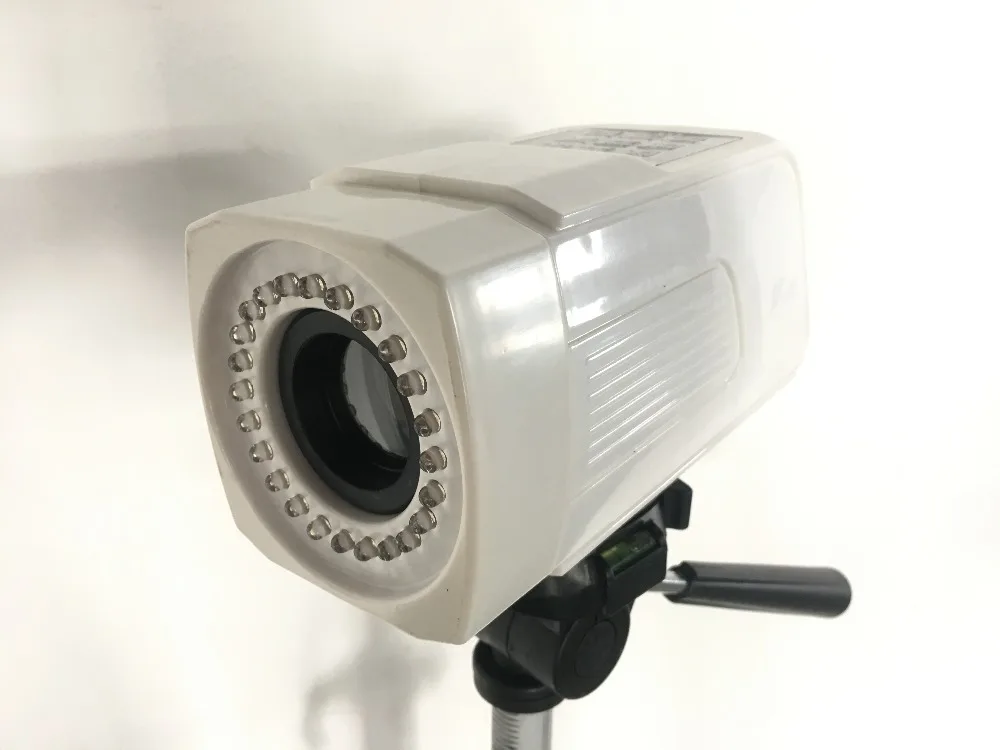

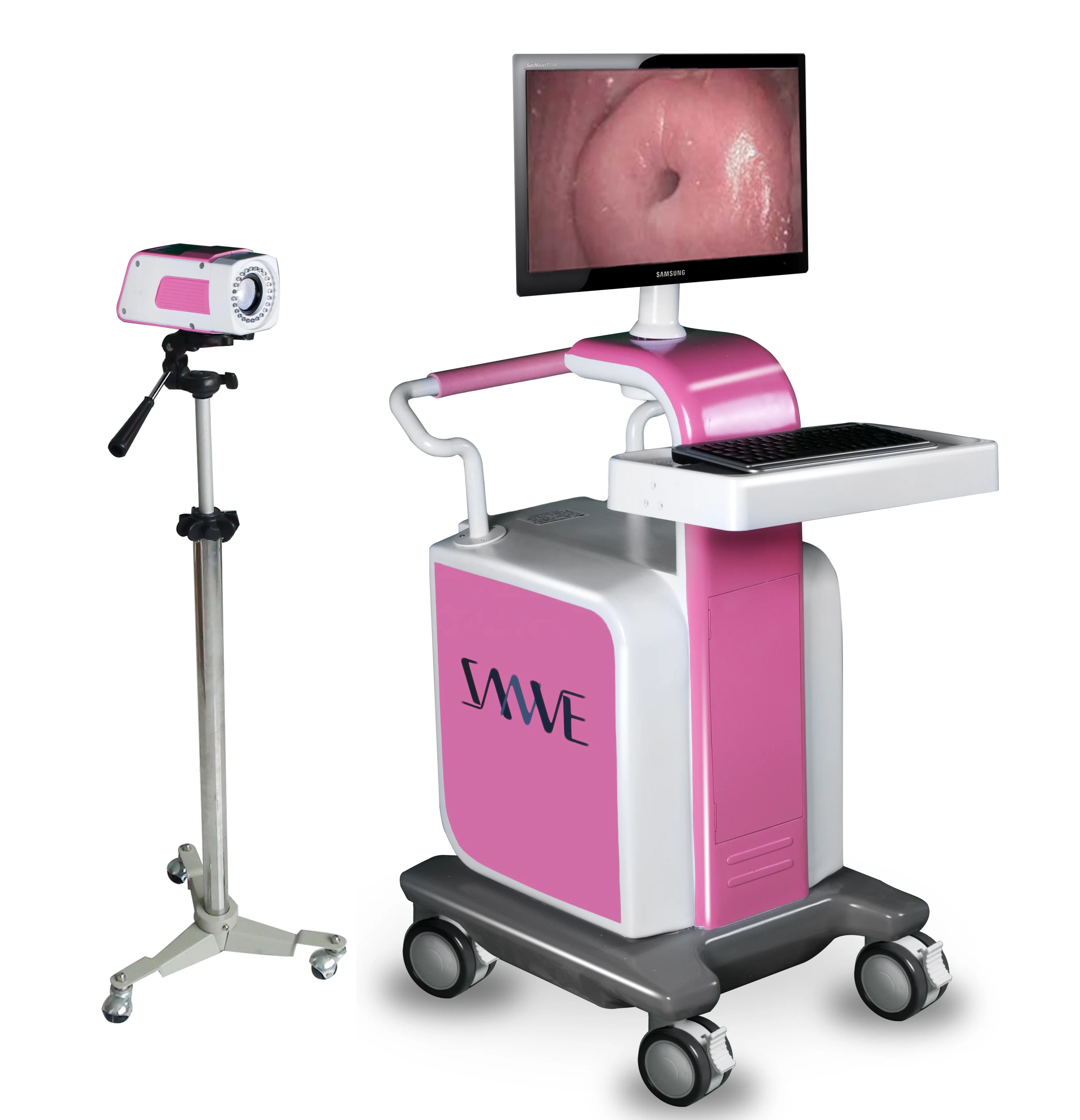

SW 3303 Digital Colposcope image forming system
- Category: >>>
- Supplier: Jiangsu Sanwe Medical Science And Technology Co. Ltd.
Share on (880010423):
Product Overview
Description
Apparatus Introduction
It is an electrical and optical high-tech diagnosis system merging computer technology, optics, imaging study, ergonomics principles and colposcopy, so that it can have more accurate evaluation on the border sector where we are not able to see by our naked eyes and bring more comprehensive solution to diagnosis and treatment of diseases.
Applicable Range | ||
1 | Vaginal exfoliative cytology smear examination is more than three Pap levels | |
2 | Cytological examination is negative, but the naked eye observation has the suspicion of cancer | |
3 | Long-term treatment in accordance with cervicitis, but the effects are not good | |
4 | The minor structural form of the lesions is difficult to determine by the observation with the naked eye | |
5 | The disease site and its spread part that can only be determined under the electric colposcopy before cervical cancer surgery | |
Software Features | ||
1 | Possessing functions of real-time, freezing, collecting, processing, pseudo-color, measuring, comparing, saving, editing images and others | |

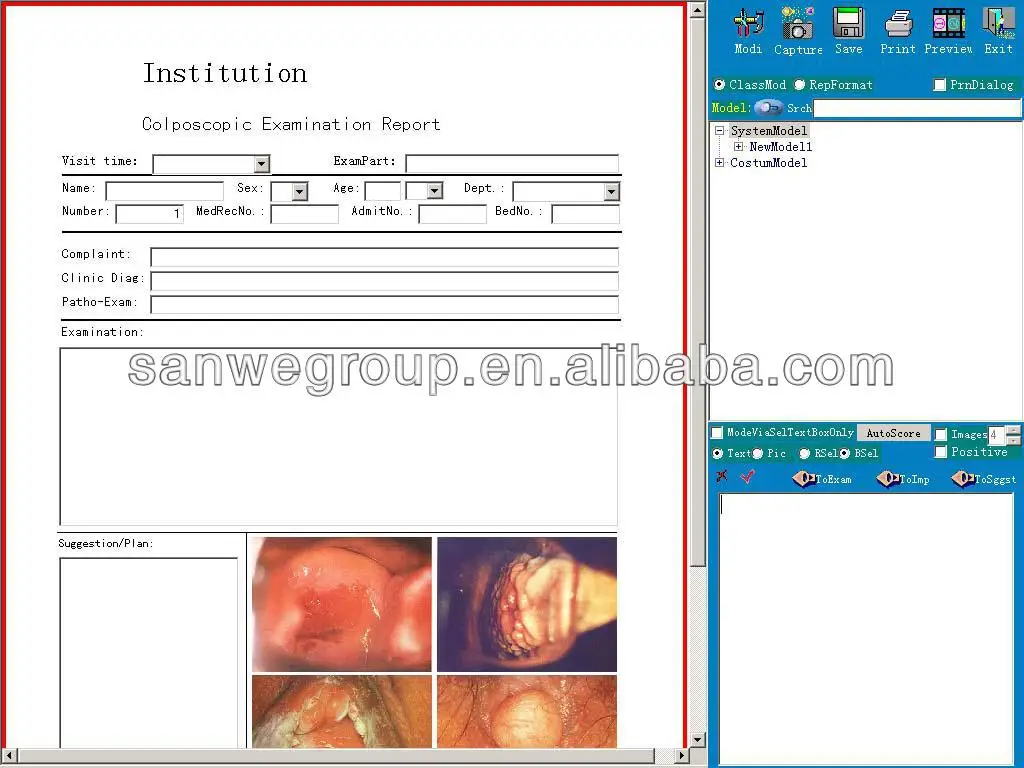

2 | Editing report quickly and easily, and lots of practical expert diagnosis thesaurus, templates, making it easy to tune out and edit | |
3 | Dynamic video without time limits and storage systems | |
4 | More than 300,000 cases storage capacity | |
5 | Large C / S structure database server | |
6 | Compatible with the PACS system, with a sound network system function | |
7 | With rich standard body parts map and typical case images and diagnostic results to help doctors quickly and accurately diagnose the illness | |
Apparatus Features
Specialized design, simple operation, and more humanity
1、SONY Exview HAD high-speed auto-focus CCD technology，make the instrument can track, capture and observe the details change of images fast.
2、Wide view with depth design makes observation or acquisition image more three-dimensional.

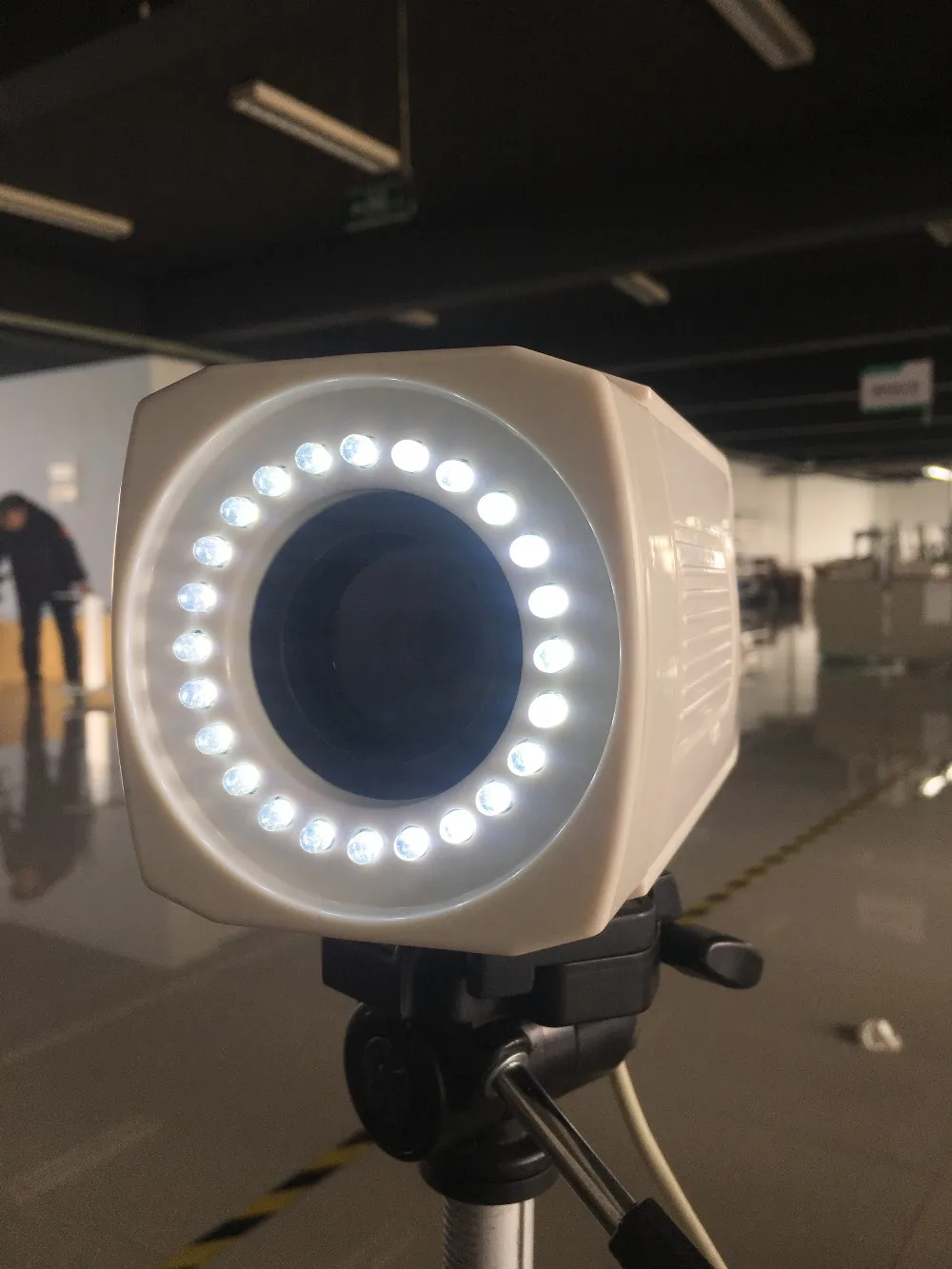

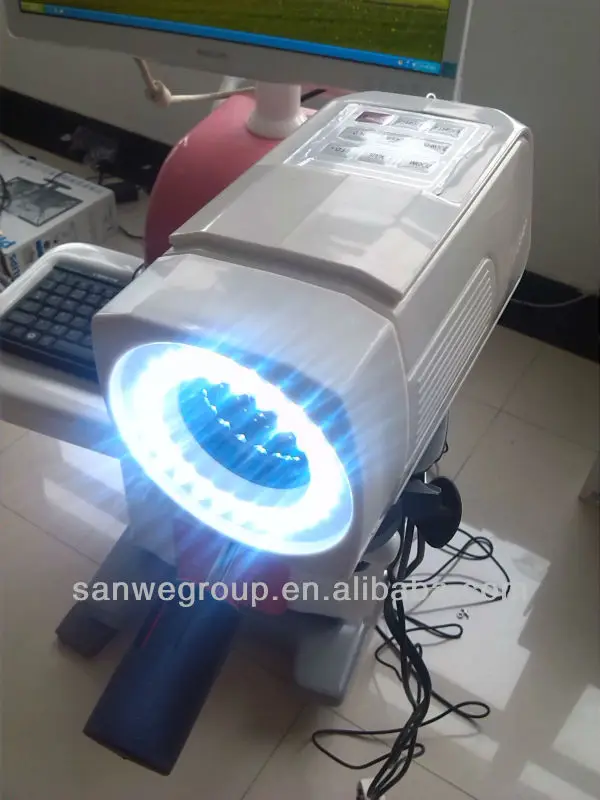

3、Ultra-high white LED ring light source group structure, achieving the effect of shadowless lamp, makes the image more realistic clear, and enables illuminance and color temperature control to be more realistically represent the morphological changes of observed tissues.

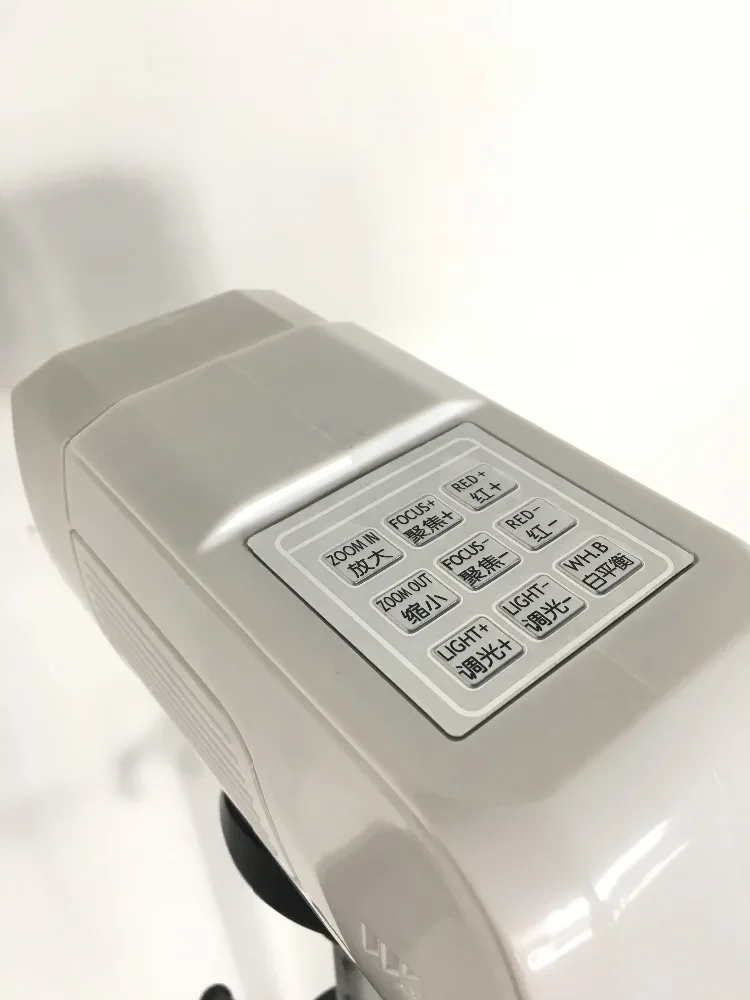

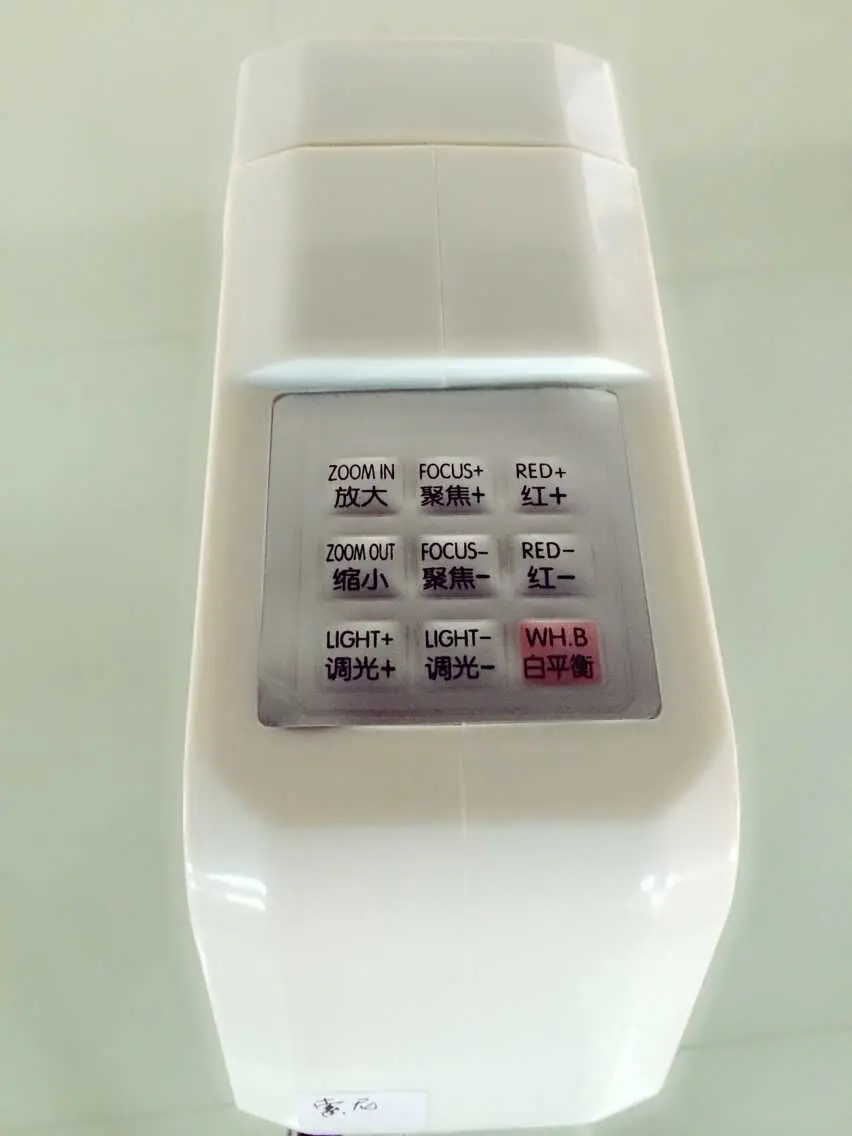

4、The system control includes the functions of continuous optical zoom adjustment, magnification display, the reaction time of acetic acid, the electronic green light source, image freeze, etc.
1、SONY Exview HAD high-speed auto-focus CCD technology，make the instrument can track, capture and observe the details change of images fast.
2、Wide view with depth design makes observation or acquisition image more three-dimensional.
3、Ultra-high white LED ring light source group structure, achieving the effect of shadowless lamp, makes the image more realistic clear, and enables illuminance and color temperature control to be more realistically represent the morphological changes of observed tissues.
4、The system control includes the functions of continuous optical zoom adjustment, magnification display, the reaction time of acetic acid, the electronic green light source, image freeze, etc.
Performance Indicators | ||||
1 | Camera | Sony Exview HAD Camera, supporting RS232 illumination | ||
2 | Lens resolution | 1 / 4 "Super HAD color CCD,1300,000 pixels | ||
3 | Lens horizon resolution | 480 lines or more | ||
4 | Camera Video Output Interface | S-Video, Video, PAL format | ||
5 | The camera signal to noise ratio | 52 db | ||
6 | The lens focusing distance | standard 200 ~ 500mm, support 150 ~ 550mm | ||
7 | 18 times optical zoom lens | digital zoom 12 times | ||
8 | Magnification | 216 times | ||
9 | Field of view | Φ = 2.5 ~ 320mm | ||
10 | Camera self-balancing | internal AWB metering mode | ||
11 | Light source types of lens | multi-point circular LED group | ||
12 | Lens focus mode | fast automatic or manual focusing | ||
Similar Products
Company Profile
Jiangsu Sanwe Medical Science and Technology Co., Ltd. was established in 1987, which is one integrated manufacturer and supplier specialize in urinary andrology. Sanwe Medical strive for the enterprise mission of “Achieve Human Healthy Sexual Life”, take the corporate vision of “Be the First Brand of Urinary Andrology Equipment of China”, has a wide range of influence in this industry after more than thirty years of development, its products and services have been applied to more than 100 countries and regions around the world.
Certification
Shipment & Payment

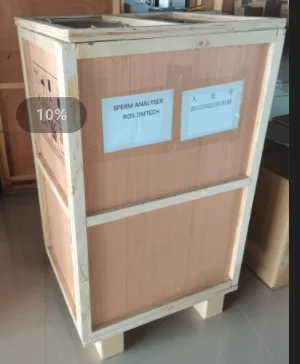

Package Box | Cartoon , Wooden | |
Package Size | 77*65*110cm | |
Package Weight | 65kg | |
Shipping Method | Air ,Sea , Land , or your choice | |
Delivery Time | 3 to 5 days after payment confirmed | |
Payment | Alibaba Trade Assurance, T/T , Western Union,L/C or your choice | |
Warm Notice : package is replaced sometimes , please contact us to get the latest package info so that you can know the accurate shipping price . | ||
After-Sales Service
Products sold by Sanwe company is guaranteed for 18 months. Our company will send specialized staff for maintenance in 18 months once. If necessary, our company can provide circuit diagrams and component list. In the warranty period, failures caused by product quality, maintenance is free of charge. Beyond the guarantee, repair is for all of the life.
The following causes of failure are not in the scope of guarantee:
a) Unauthorized disassembly and modification.
b) Inadvertently tempering, or falling.
c) Lack of reasonable maintenance or environmental requirements.
d) The operation not in accordance with the requirements of this manual.
e) Without the permission of the company to repair.
f) Force majeure.
No guarantee for consumption and fragile goods.
No guarantee if unable to offer quality books of the company.
Pls directly contact the agents if purchasing equipment from the agents of the company.
The following causes of failure are not in the scope of guarantee:
a) Unauthorized disassembly and modification.
b) Inadvertently tempering, or falling.
c) Lack of reasonable maintenance or environmental requirements.
d) The operation not in accordance with the requirements of this manual.
e) Without the permission of the company to repair.
f) Force majeure.
No guarantee for consumption and fragile goods.
No guarantee if unable to offer quality books of the company.
Pls directly contact the agents if purchasing equipment from the agents of the company.
