Product Overview
Description

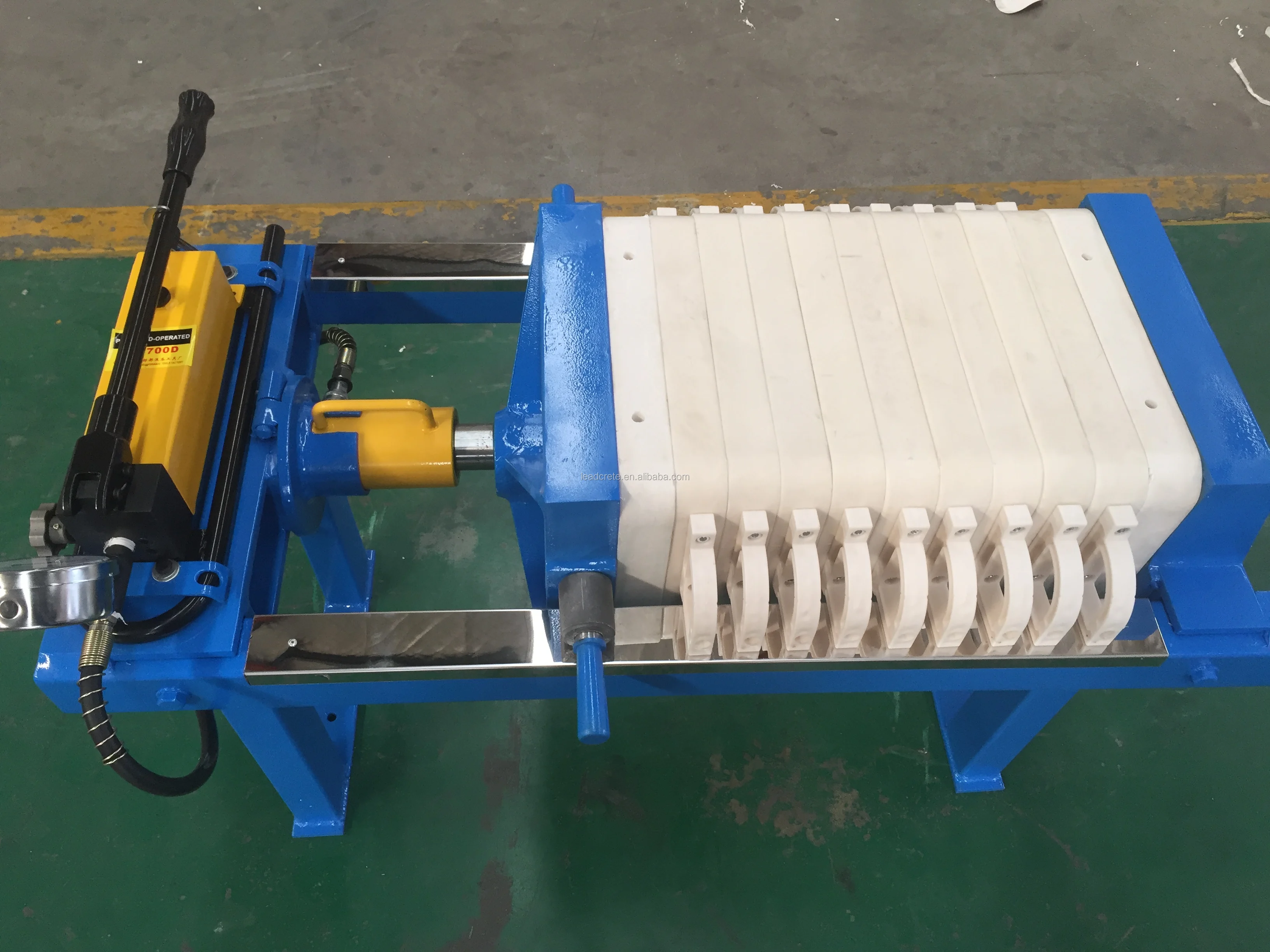

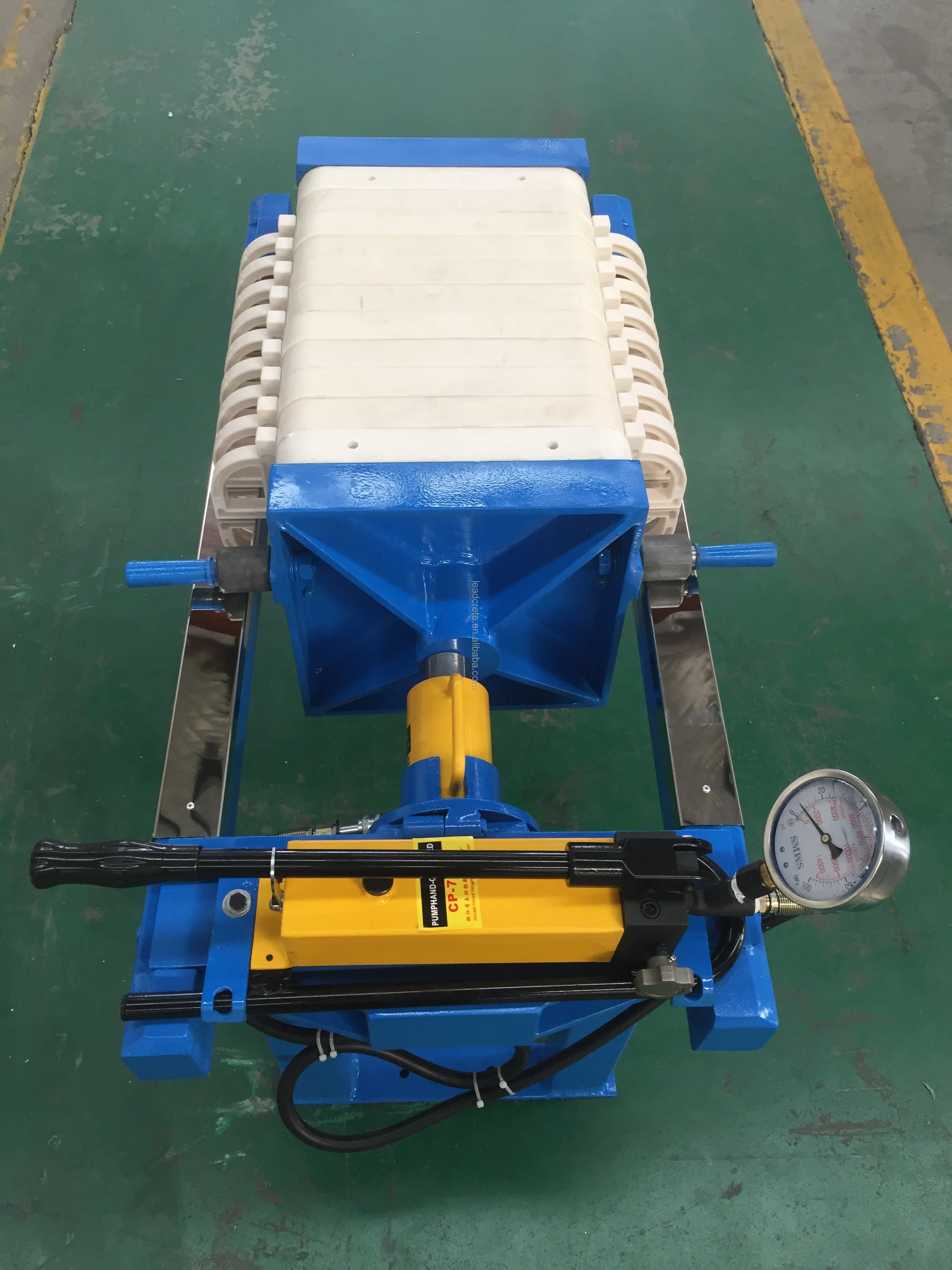

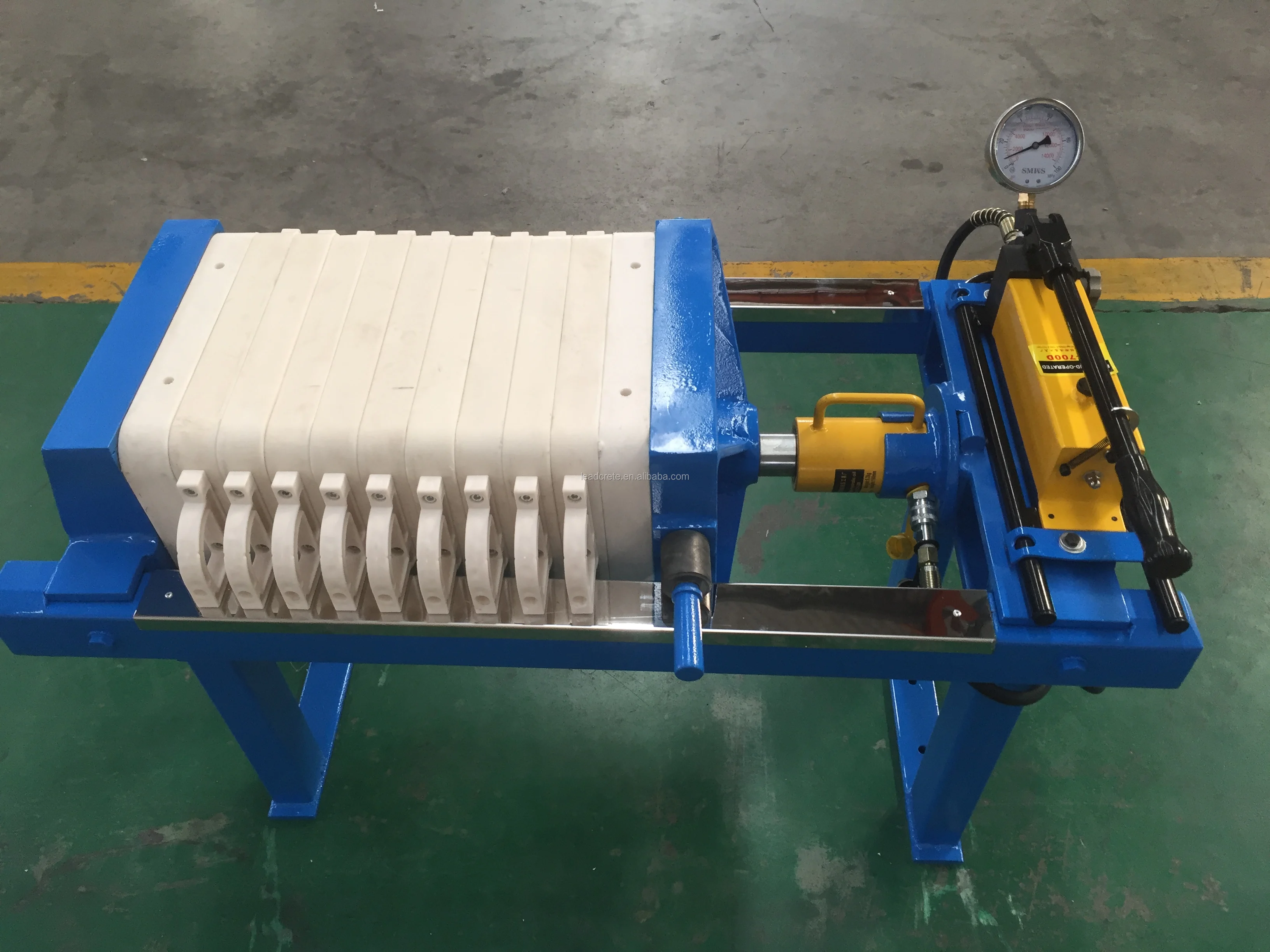

320mm small manual jack filter press equipment for edible oil
Description
The small manusl jack edible oil filter press uses the jack as the pressing device with the feature of simple structure, easy operation, no need power supply and cheap price. It is suitable for the filtration area at 1- 40m2. The filter plate is made of food grade PP, it's safe to use int the food & beverage industries.
Technical parameters:
320mm small manual jack filter press for edible oil | |
Item | description |
Model | XMQ1/320 |
Filter area | 1m2 |
Plate size | 320mm |
Cake thickness | 30mm |
Plate number | 4pcs |
Chamber vol. | 15L |
Filter pressure | 0.6mpa |
Dimension | 1070*570*660mm |
Weight | 150kg |
Details
Features:
1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .

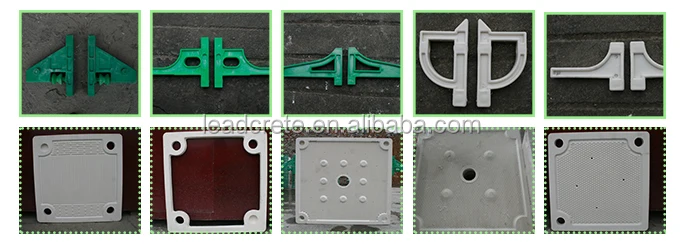

3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.

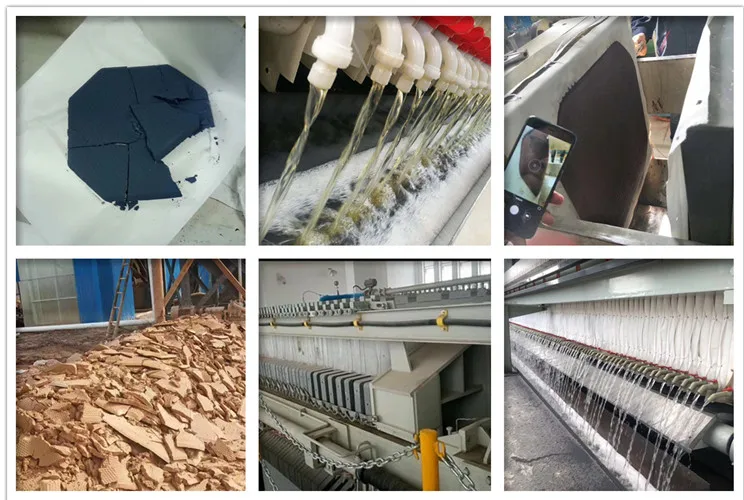

Details:
Application
The manual jack edible oil filter press is suitable for the industry of laboratory, edible oil, coal washing, inorganic salts, alcohol, chemical, metallurgy, pharmacy, coal carbon, food, textile, environmental protection, energy etc.
Related Products

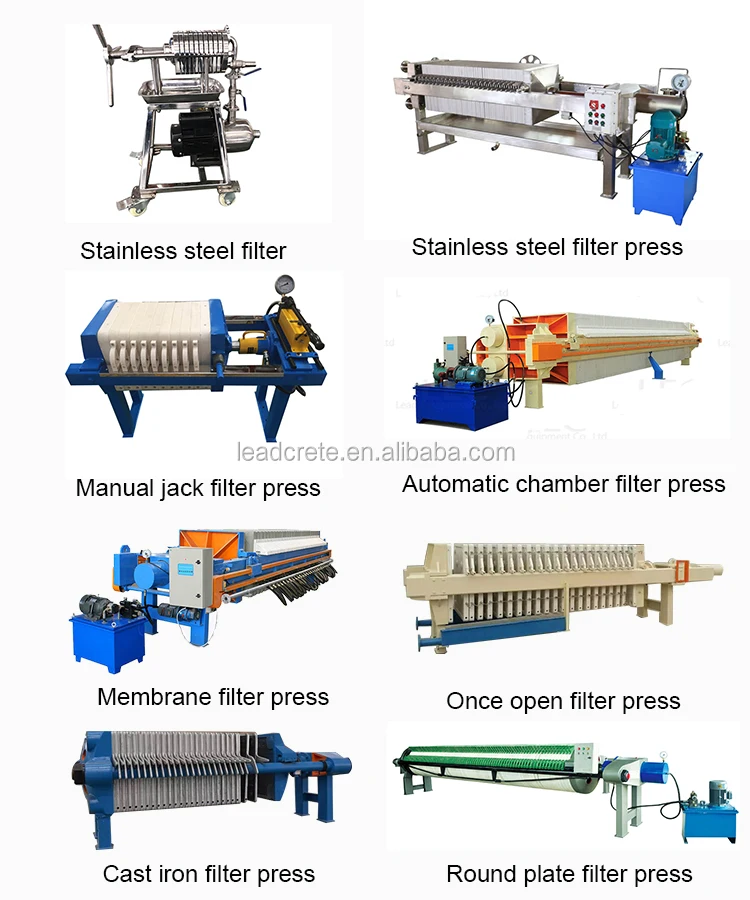

We have many kind of filter press, such membrane filter press, chamber filter press, stainless steel filter press, jack filter press and so on.
If you are interested in our filter press, do not hesitate to contact us. Just click below.
Packaging

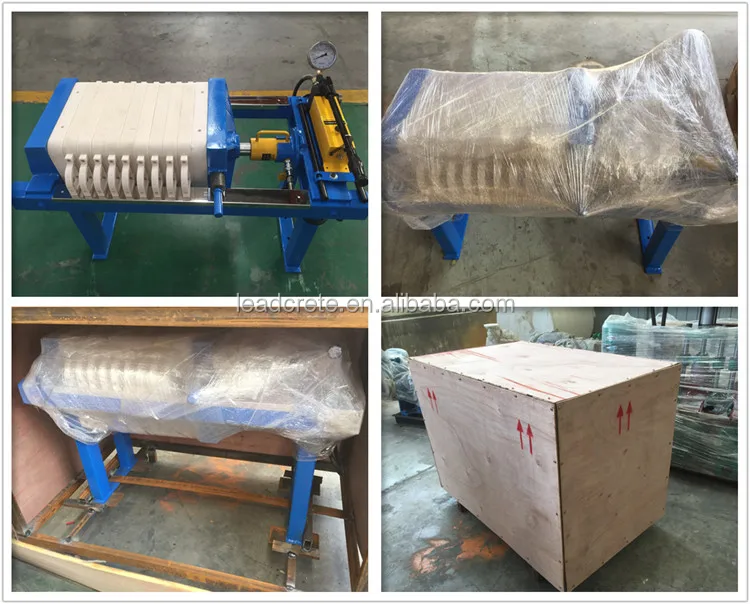

In order to protect our manual jack filter press and avoid damage during transportation, our manual jack edible oil filter press is first wrapped with bubble film, then wrapped with plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes.

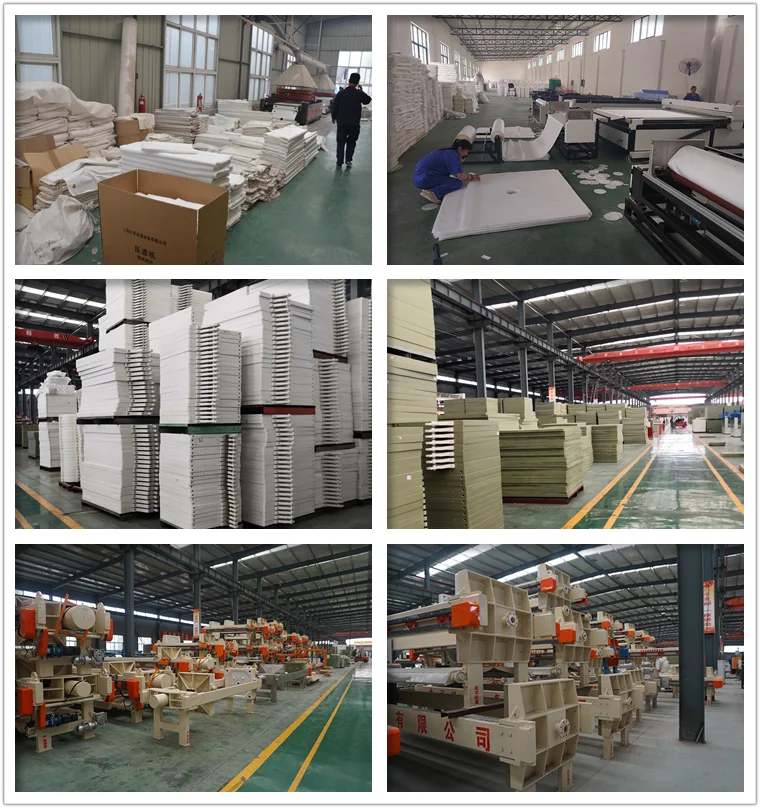

Factory
We are factory, have focused on manufacturing and selling filter press for more than 13 years. Our technical term can provide customized service for you. If you are interested in our filter press machine, please send us an inquiry.
