continuous casting copper mould tube for rectangular billet

Product Overview

Description

Description

continuous casting copper mould tube for rectangular billet

At peresnt,Deoxidized phosphorus copper(TP2),Silver-bearing copper(CuAg0.1)

and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes

Application

widely used for molten steel  cooling and CCM.

To offer billet, round and bloom sized continuous casting machine and related spare parts.

 Arc radius can be from 3.5m to 14m.

 The strand can be 1-6.

 Kinds of billet type continuous casting machine: 60mmX60mm to 700mmX700mm, of round one from Φ80mm to Φ900mm, of slab one from 120mmX850mm to 3600mmX1000mm



The characteristics:

 ·Ladle turret: Straight arm type, and can be with automatic weighing device, emergency driven unit and driven by electric motor.
·Oscillator : Guided by spring steel plate, it is outside the secondary cooling chamber , far away from the high temperature zone, easy for maintance.



·Copper mold tube assembly: Our copper mold tube is supported by German KME technology. The products are used by well-known steel mill both at home and abroad.
·Withdrawal and straightening unit: The straightener adopts the gradually straightening technic. The rollers are driven by three-ring reducers and hydro-cylinder.
·Flame cutter: High-speed narrow slit cutter, along with the unpowered cutting car. Guidance mechanism decides the torch swing.
·Dummy bar: Rigid dummy bar or flexible dummy bar.
·Electric control system: This system uses Simens PLC control scheme, carrying on the surveillance by a computer.

NO	Supply details
I	Spare parts of CCM
1	Ladle turret
2	Tundish and its cover device
3	Tundish dryer
4	Tundish car
5	Steel liquid overflow tank
6	Crystallizer assembly
7	Vibration device
8	Guiding section
9	Second cooling device
10	Straightening and withdrawal device
11	Roller table before cutting
12	Flame cutter
13	Dummy bar
14	Dummy bar storage device
15	Cut-to-length device
16	Transmission roller table
17	Knock-out roller table
18	Cooling bed and pusher
19	Billet pusher
II	Process operation system
1	Hydraulic system
2	Water cooling system
3	Electric and instrument control system
4	Pheumatic system
5	Steam exhausted system



Quality

As the old saying goes, one must sharpen his tool before going to make a perfect work, our company spends heavi ly on the manufacturing equipment of copper mould tubes and plates. Now we have 9 sets of large, medium and smal l hydraul ic press, 8 nos. of CNC machine centers, 2 sets special NC processing machines, which can produce Dia.1200mm round tubes and 3800x1000x70mm copper plates.

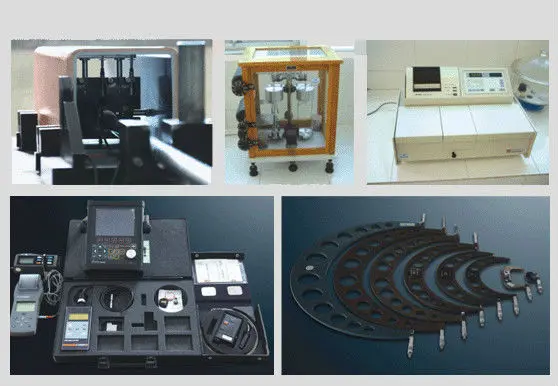

The target of our work is to improve our technological capacities to be in the interest of the customers .For this purpose ,we have been dedicated to new products development .we established R & D department for new alloys ,optimized copper taper and better anti-wearing coating .Our physical and chemical laboratories are equipped with advanced analysis and inspection systems which provides strong guarantee for the quality of our products.



Table of continuous casting copper mould tube for rectangular billet

Name	Ltem	Camber radius	Thickness	Length	Remarks
	Size(mm)
Square & Rectangular copper tuble	Square 50*50-500*500  Rectangiar (100-500)*650	4000-17000 Also straight	6-50	700-1000	With slot  Single taper ,double taper,triple taper,quadruplicate taper,parabolic taper and various kinds of continuous taper high efficiency copper mould tubes
Round copper tuble	Φ110-Φ1200	5000-17000 Also straight	10-50	700-1000	With slot double taper,quadruplicate taper,parabolic taper and varius kinds of continuous taper high efficiency copper mould tubes
Non-standard copper mould tubes  Beam Blank copper mould tubes		6000-17000	12-50	780-1016	With slot Single taper,double taper,triple taper,quadruplicate taper,

( ALLOW OEM/ODM)



Copper Plate Size	Spccifieations			Matcrial	Coating
	length	width	thickness
Beam Blank	700-1016	280-480	80-140	CuCrZr,CuAg	Ni_Co,Ni_Fe
Rectangulur Blank	700-1000	300-3800	30-65	CuCrZr,CuAg	Ni_Co,Ni_Fe



Materials  of continuous casting copper mould tube for rectangular billet

Assembly  of Copper mould tube for CCM
