Dry film photoresist laminator
- Category: >>>
- Supplier: Everest Pcb Equipment Co. Ltd.
Share on (880953823):
Product Overview
Description
Related Products
Product Description

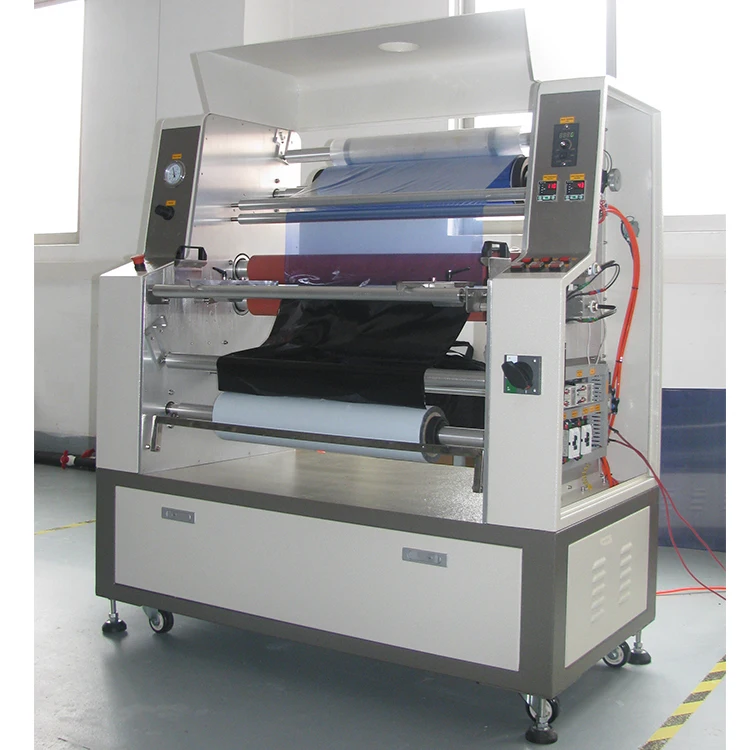

Hot dry film Laminator | ||
| ||
Power: | AC220V/ 50/60HZ/15A |
|
Substrate: | Thickness:0.05~3.2mm |
|
| Width:250~ 820mm |
|
Dry Film Size: | Width:250~820mm |
|
Electricity Heater: | 2KW/AC220V 2PCS |
|
Heat-press roller: | 80mm * 2PCS |
|
Press film temperature: | 50℃-150℃±2℃Adjustable |
|
Air Pressure system: | 3-5kg/ cm² |
|
Exhaust system: | 16m²/min, 4″×1 |
|
Dimension: | L1000mm×W1125mm×H1520mm |
|
Weight: | 260kg |
|
Introduction: | ||
1.Sealed using the latest design and integration machine body design, to ensure the roller equitability ; | ||
2.Lamination roller is heat-resistant silicone, moderate hardness, especially for laminate soft and hard board; | ||
3.Big diameter lamination roller heat more quickly, evenly and working life longer, accurately control of laminated roller surface temperature. | ||
Model | YM600 |
Power | AC220V/50Hz/3.5kw |
Width | 640mm or customized |
Coating thickness | 0-0.1mm |
Laminating thickness: | 0.02to 8mm |
Temperature | 130°C |
Laminating speed | 0 to 8m/min |
Outsize dimension: | 860*980*1220mm |
Weight | 220kg |
Control system:
Auto temperature control system
Speed adjust system
Features:
The heating roller adopted good performance silica gel materials, it's fit for laminating both soft and hard plate.
The laminating speed can be adjusted
Controlled surface temperature to laminated roller accurately
The width has wide range and could customized by your need
Used for single side and double sides used
Good viscosity strength and no bubble
High strength and heat evenly
Timely service, one year warranty, life-long maintenance
Provide free training for customers in any places.
Applications:
Dry Photoresist laminator for dry film resist laminate use. Mainly used in hardware, circuit board and metal etching products photosensitive plastic coating processes.
Package:
Wooden case with waterproofing felt in side for ocean transportation,If you have special requirements ,pleased inform us in advance.
After-sales Services:
One year warranty for product quality.
Timely service,life-long maintenance.
Free training for installation and operation of products.
Provide main component for replacement when you send back the problematical ones.
