0.4 mm thermal insulation fiberglass cloth woven fabric laminated aluminium foil

Product Overview

Description

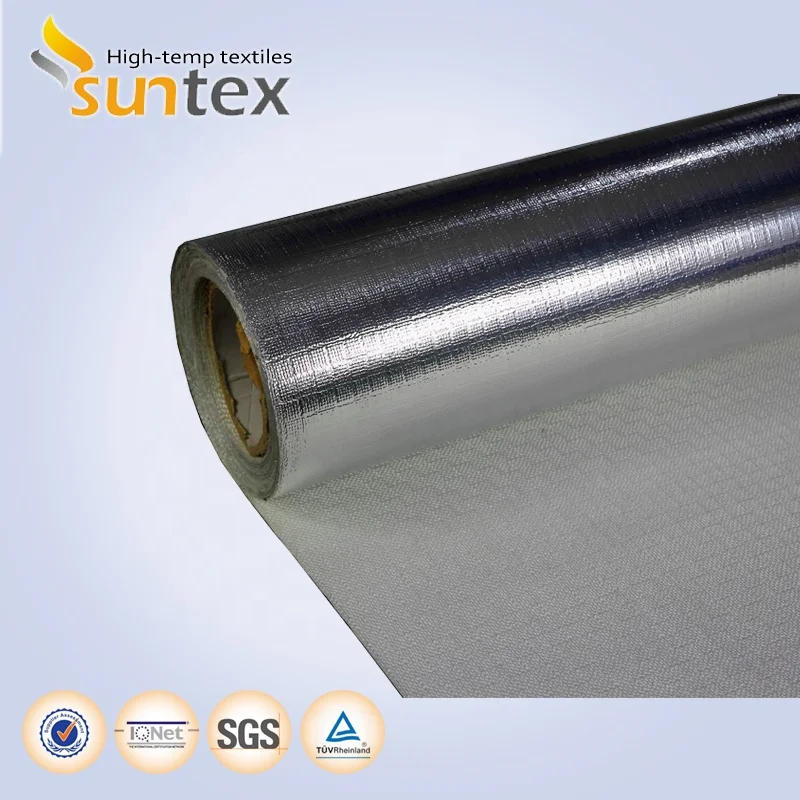

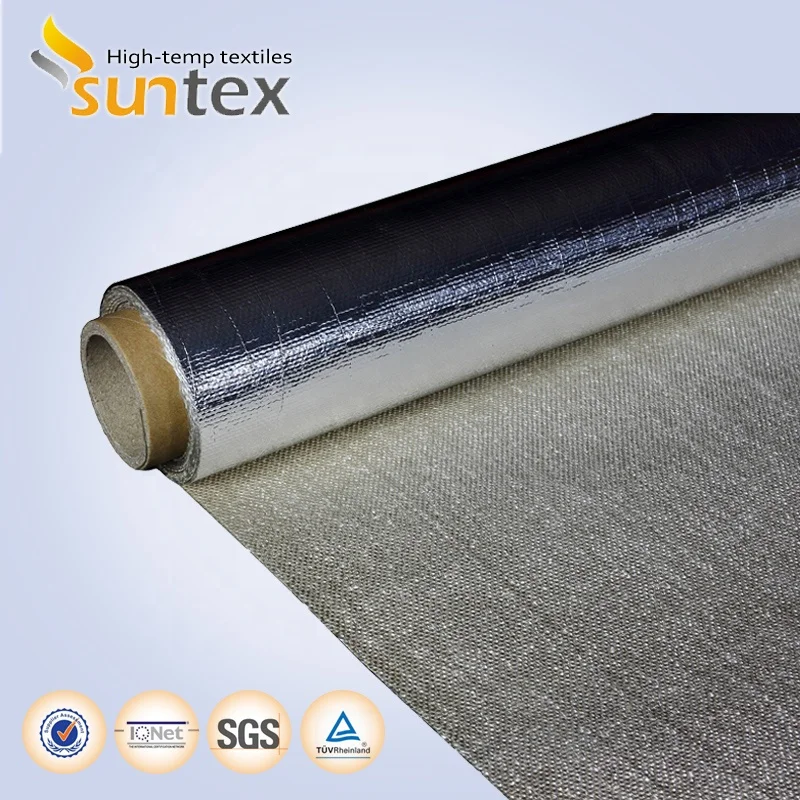

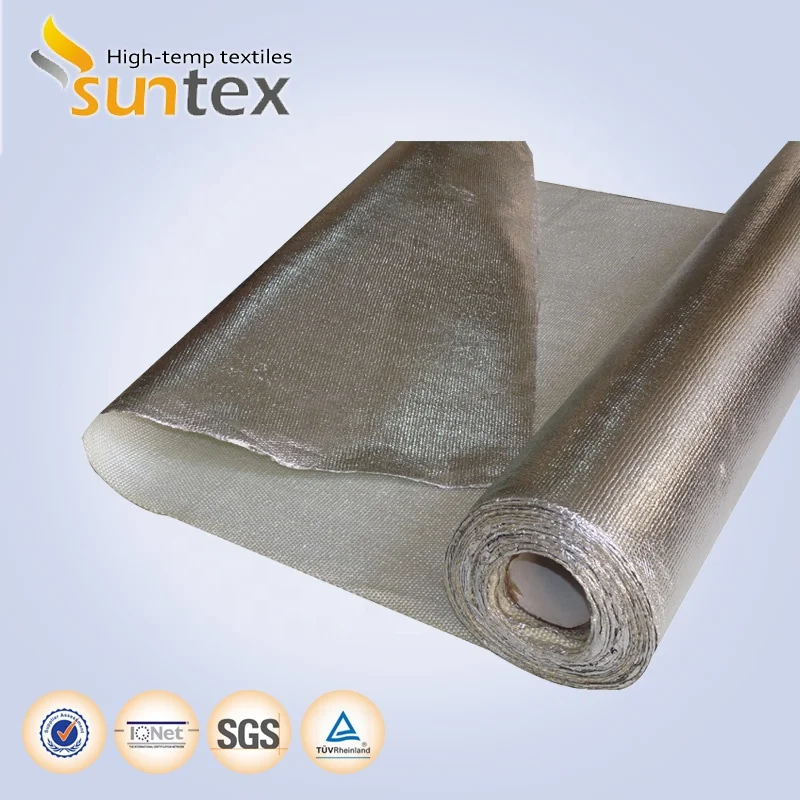

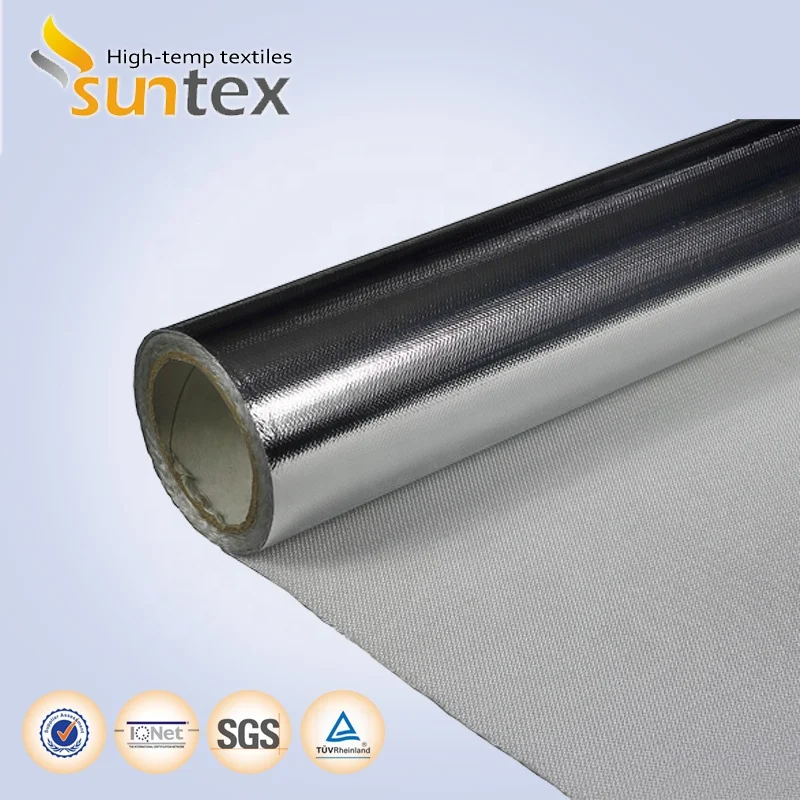

0.4 mm thermal insulation fiberglass cloth woven fabric laminated aluminium foil

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipments by reflecting radiant heat. Suntex uses the high temperature adhesive to ensure the maximum working temperature up to 150 0C.



-One side or both sides aluminum foil/film laminated available.

-Thickness of aluminum foils available from 0.0007mm to 0.005 mm

-Width of fabrics available from 1000mm to 1520mm.



Main applications:

-Heat-retardant curtains or screens

-Thermal insulation covers, mattress and pads

-Welding/fire protection

-Safety cloth and apron

-Other fire and smoke control systems







BASE FABRIC	Base fabric style No. GF430
	(Metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 33 1*4	ECG 150 1/4
Weft	EC9 33 1*4	ECG 150 1/4
Construction
Warp	18 ends /cm	48 ± 3 ends/inch
Weft	12.6 picks /cm	32 ± 3 picks/inch
Weight	430 ± 20 g/m2	12.6 ± 0.58 oz/yd2	ASTM D3776-96
Thickness	0.37 ± 0.02 mm	0.0145 ± 0.0008 inch	ASTM D1777-96
COATED FABRIC	Coating style No. AF110-6008
Coating	Aluminised polymer film ,one side
Weight	450 ± 20 g/m2	13.2 ± 0.59 oz/yd2	ASTM D3776-96
Thickness	0.39 ± 0.03 mm	0.04 ± 0.0012 inch	ASTM D1777-96
Color	Silver
Temp resistance	Glass fabric up to 5500C (10000F) Aluminum foil up to 1500C (3000F)
