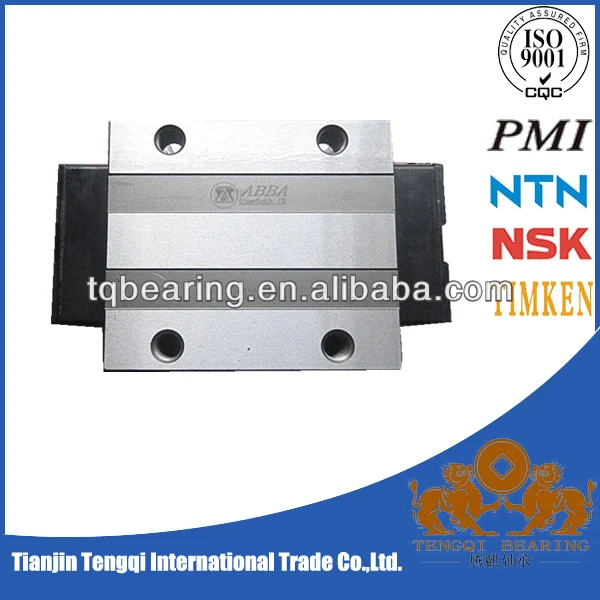

ABBA Linear Bearing BRH25A,BRH25C,BRH25B

Product Overview

Description



ABBA linear bearing data



Model number:



Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRH15A	24	47	16	4.6	66	38×30	M5×8	40	Ø3	4.3	5	15	14	60	4.5×7.5×5.3
BRH20A	30	63	21.5	5	77.8	53×40	M6×9	48.8	M6×1	5	6.5	20	18	60	6×9.5×8.5
BRH20AL					92.4			63.4
BRH25A	36	70	23.5	7	88	57×45	M8×12	57	M6×1	5	6.5	23	22	60	7×11×9
BRH25AL					110.1			79.1
BRH30A	42	90	31	9	109	72×52	M10×12	72	M6×1	7	6.5	28	26	80	9×14×12
BRH30AL					131.3			94.3
BRH35A	48	100	33	9.5	109	82×62	M10×13	80	M6×1	8	6.5	34	29	80	9×14×12
BRH35AL					134.8			105.8
BRH45A	60	120	37.5	14	138.2	100×80	M12×15	105	M8×1	10	13	45	38	105	14×20×17
BRH45AL					163			129.8
BRH55A	70	140	43.5	15	170	116×95	M14×20	121	M8×1	11	13	53	44	120	16×20×20
BRH55AL					205.1			156.1

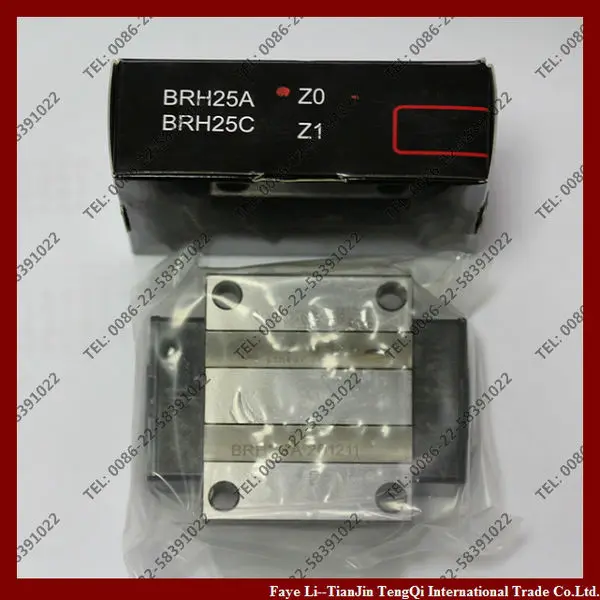

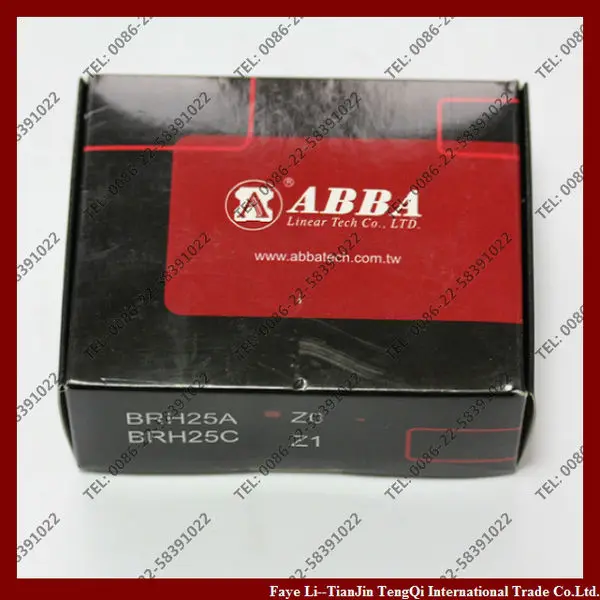

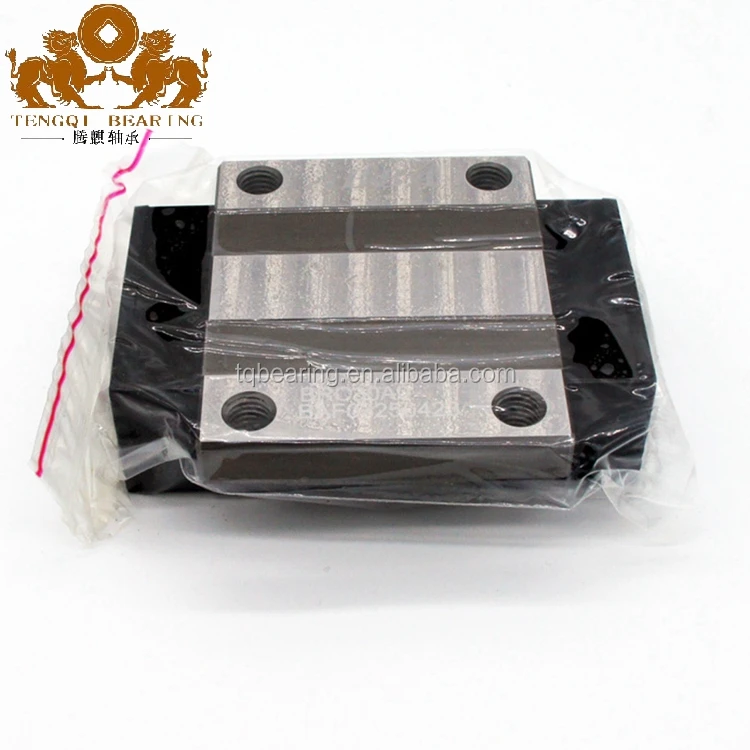

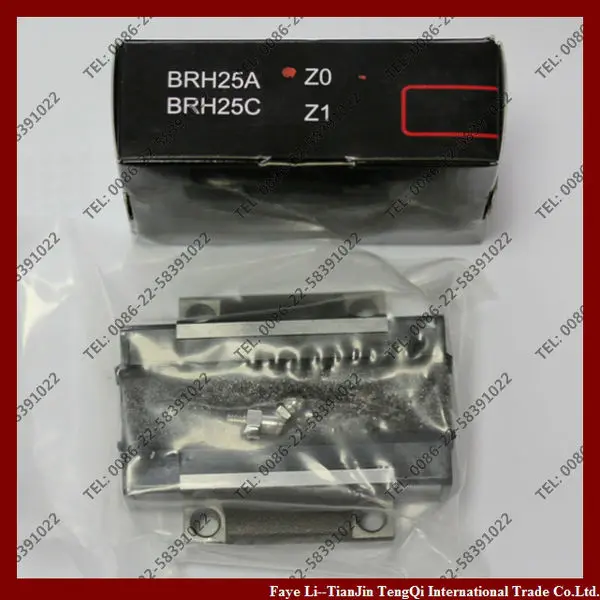

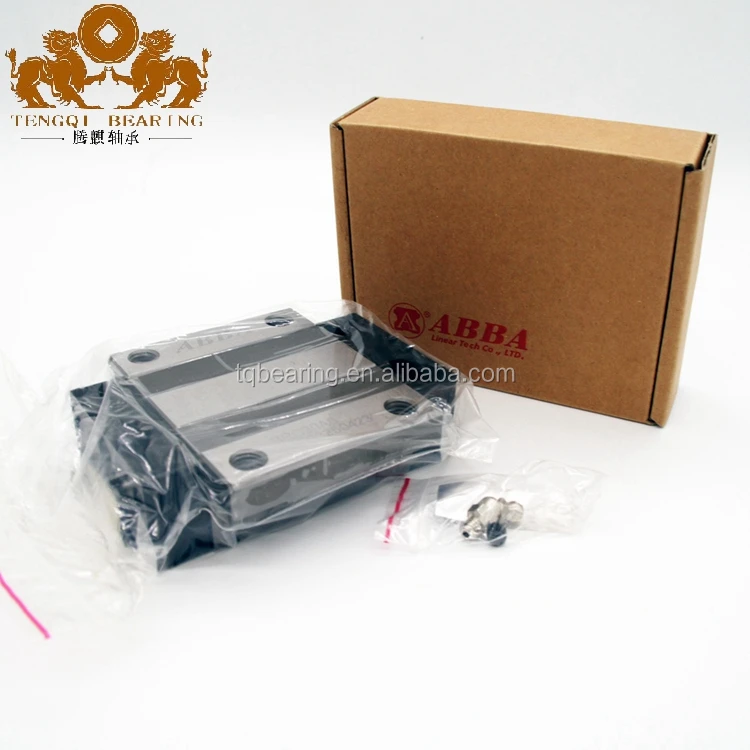

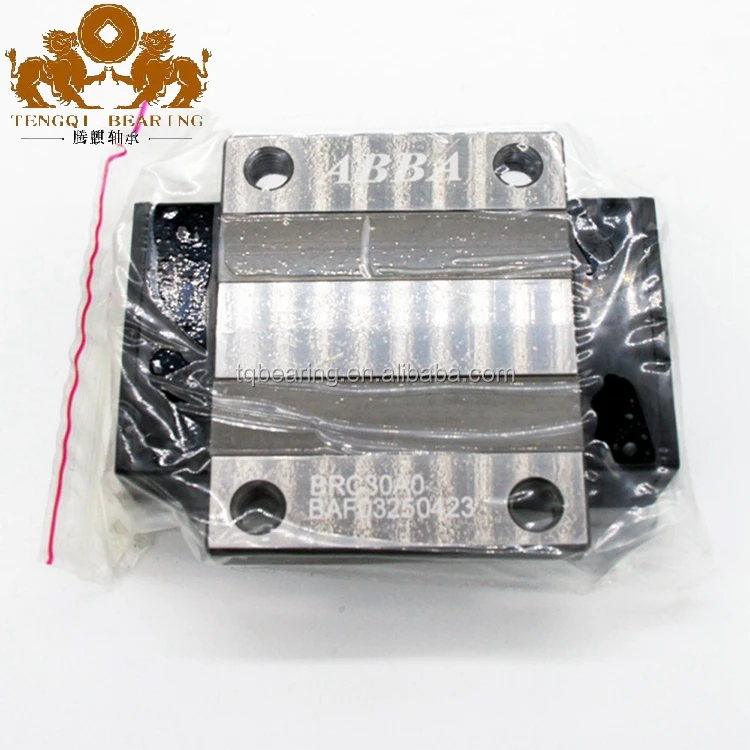

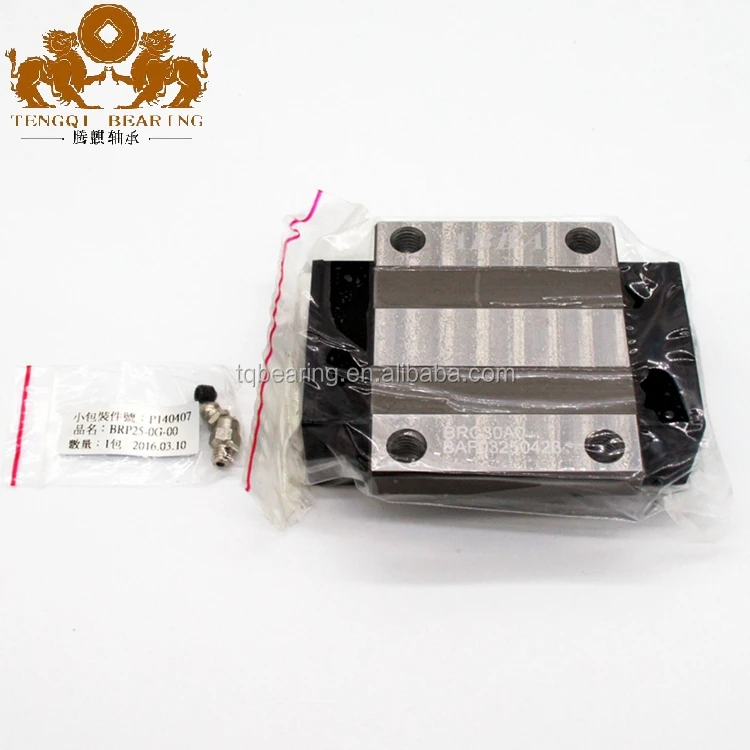

ABBA linear bearing pictures





Our payment terms



1.100% Western Union or Paypal in advance ,specially for small amount

2.100% T/T or western union in advance for small quantity order

3.30%-50% T/T in advance, balance before shipment for large order or long delivery time orders

4.100% irrevocable L/C at sight

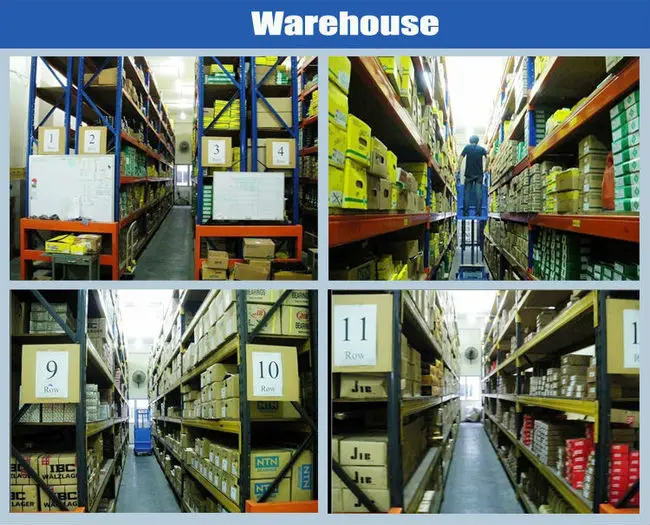

Our package and warehouse



1.individual poly bag +box packing

2.poly bag + individual box +carton+ woven bag

3.poly bag + box +wooden case

4.plastic package +wooden case

5.as your requirement





Our shipping terms



1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.large quantity, can delivery by air, by sea, this is port to port.
