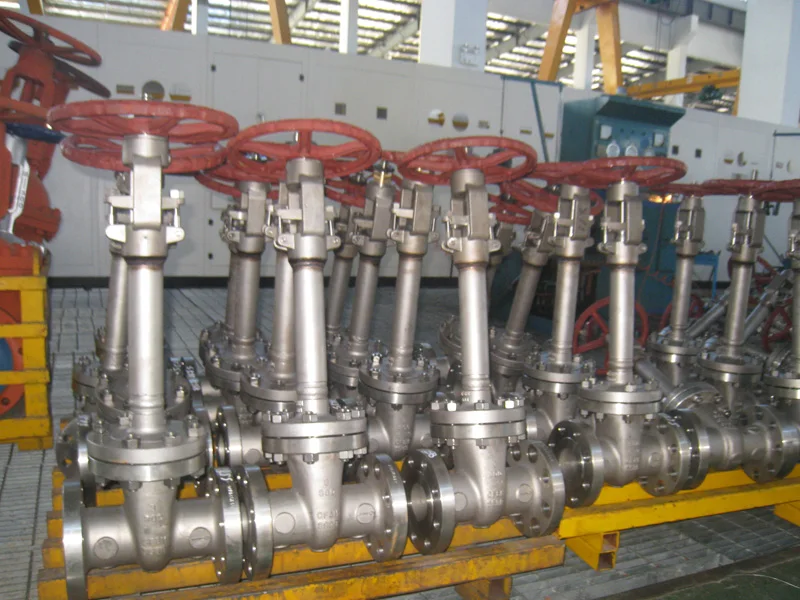

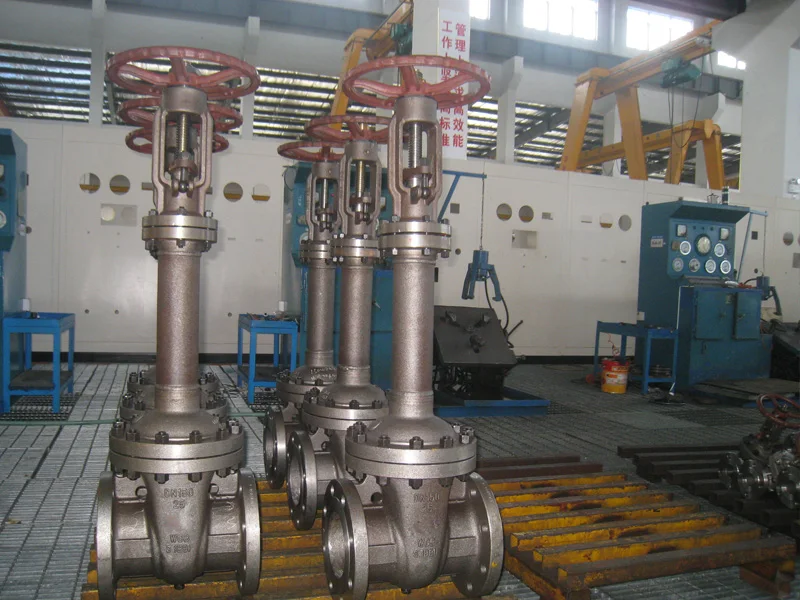

WZLD Stainless steel Cryogenic Gate Valve
- Category: Gate Valves >>>
- Supplier: Wenzhou Leader Valve Co. Ltd.
Share on (882378728):
Product Overview
Description
Product Description
Feature:With bonnet extension (stem extension), Flexible wedge or Solid wedge, with pressure balance hole, with flow direction, rising stem & yoke, bolted bonnet or pressure sealed bonnet, welded seat or integral seat etc.
| Size | 2"~ 24" | Body material | Low temp.Carbon steel,Stainless steel, Alloy steel,Bronze, Duplex steel Ni-cu alloy etc | |
| Rating | 150lb-900lb | Trim | Per API600 or customized per client's requirements | |
| Temperature | Low | Operation | Handwheel, Gear, Electric, Manual, Pneumatic, Hydraulic | |
| Media | Water/Oil/gas,etc. | Remark | Accept Customize, OEM | |
| Design Standard | ||||
| Basic standard | API 6D, API602,BS1414,ASME B16.34,BS6364 | |||
| Flange connection dimesion | ASME B16.5, ASME B16.47,MSS SP-44 etc. | |||
| Butt welding connection dimension | ASME B16.25 | |||
| Face-to-face dimension | ASME B16.10 | |||
| Pressure-Temperature Rating | ASME B16.34 | |||
| Test | API 598, BS6364, ASME B16.34 | |||
Application: Oil&Gas precessing, Refinery, Chemical, Petrochemical, Power plant, etc.

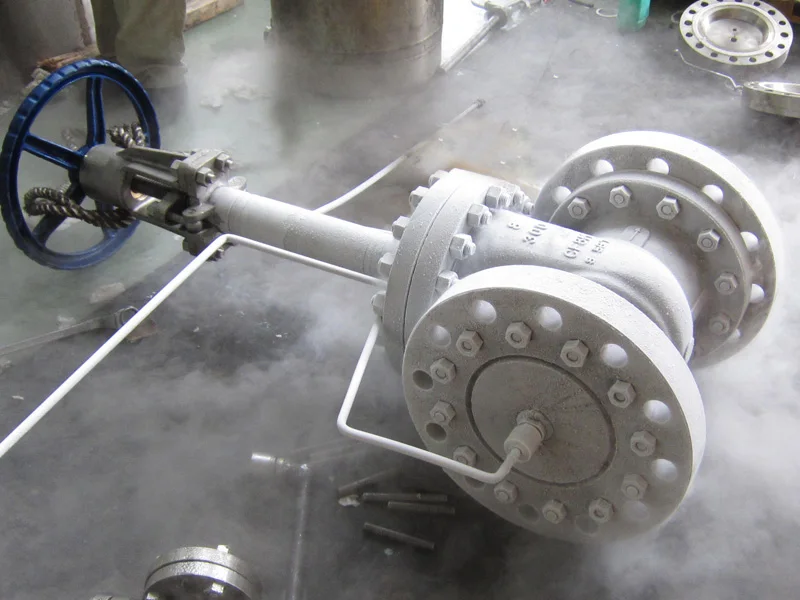

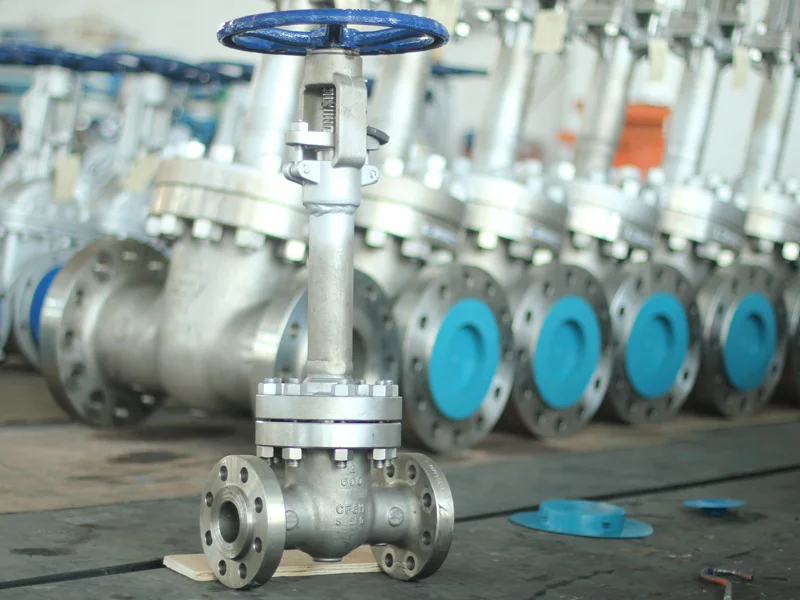

Product picture
Company Information
Packaging & Shipping
To make a suit solution for the project , we need follow information.
- Design standard.
- Connection standard .
- Size.
- QTY
- Body material .
- Trim (Material for inside parts).
- Connection type.
- Medium.
- Temperature.
- Ambient temperature range . Corrosion considerations.
- Application Descripetion.
- Painting color etc.
