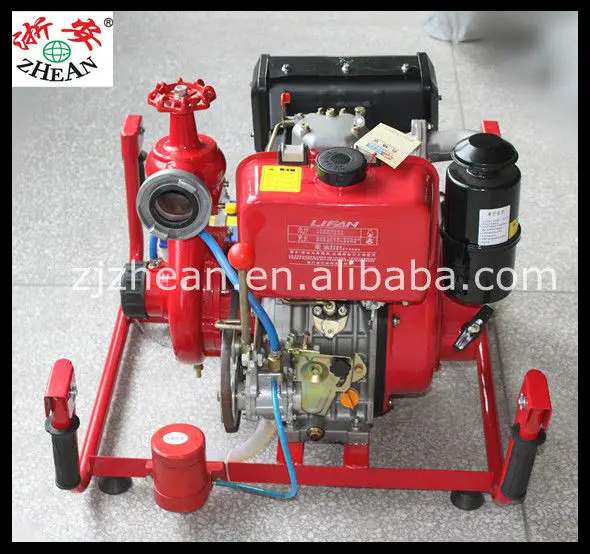

Diesel Fire Fighting Water Pump/Portable Fire Pump Set/Horizontal Fire Pump

Product Overview

Description



Diesel Fire Fighting Water Pump/Portable Fire Pump Set/Horizontal Fire Pump



Suitable for urban, industrial and mining enterprises, warehouse goods, rural, etc. Put out the fire





Main technical parameters:



 1)Engine Type:force air cloved 4 stroke,OHV



 2)Bore*Stroke:78*72mm.



3)Max.Output KW(r/min):16.3/3600



4)Max.Torque N.M(r/min):43.5N/2500RPM



5)Ignition Syatem:T.C.L



6)Starting system:Recoil starter,electrical starter.







Fire pump:



1)Flow:13.5l/s



2)Max.Head:60m



3)Max.Self-priming depth:7m.



4)Primming Time:7m<30s.



5)Suction Diameter:65mm.



6)Discharge Diameter:80mm.



7)Size:700*700*680cm.













 Price just subject to final confirmation,if you have any questions,pls feel free

 to contact us.we will try our best to service for you !





Customer Visit our Factory:

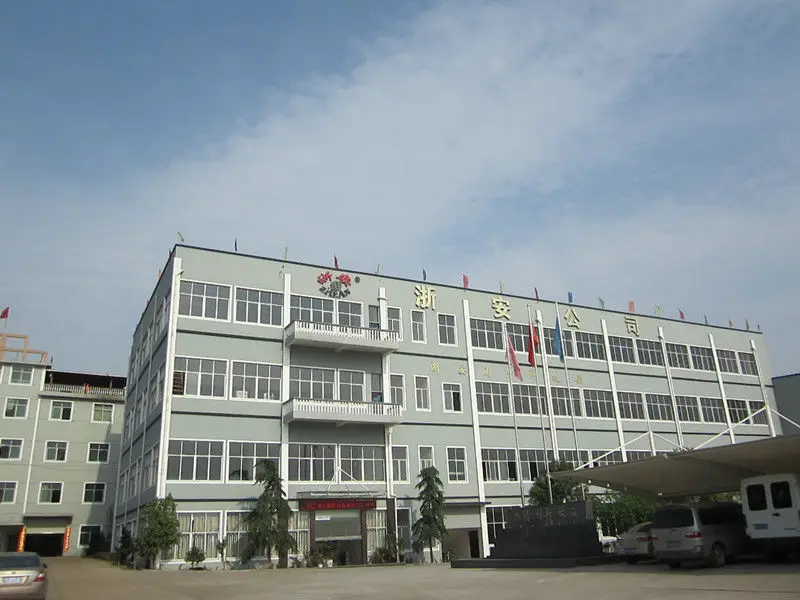

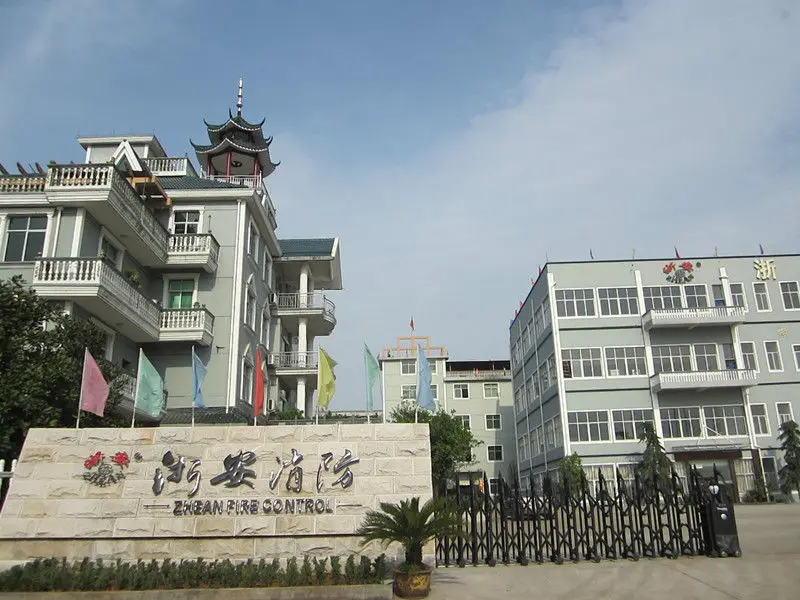

Factory View:

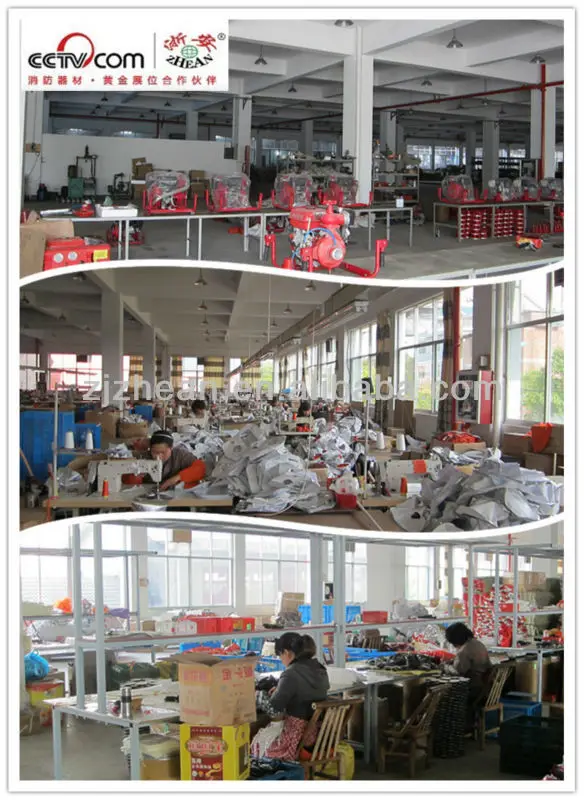

Manfacturing Shop:
