ABBA Linear Bearing BRH30B,BRH30A,BRH30C

Product Overview

Description



ABBA linear guide rail block data

Model No.	Assembly(mm)				BR block (mm)							BR rail (mm)
	H	W	W2	E	L	B×J		L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRH15B	28	34	9.5	4.6	66	26×26	M4×6	40	Ø3	8.3	5	15	14	60	4.5×7.5×5.3
BRH20B	30	44	12	5	77.8	32×36	M5×8	48.8	M6×1	7	6.5	20	18	60	6×9.5×8.5
BRH20BL					92.4	32×50		63.4
BRH25B	40	48	12.5	7	88	35×35	M6×10	57	M6×1	11.8	6.5	23	22	60	7×11×9
BRH25BL					110.1	35×50		79.1
BRH30B	45	60	16	9	109	40×40	M8×13	72	M6×1	10	6.5	28	26	80	9×14×12
BRH30BL					131.3	40×60		94.3
BRH35B	55	70	18	9.5	109	50×50	M8×13	80	M6×1	15	6.5	34	29	80	9×14×12
BRH35BL					134.8	50×72		105.8
BRH45B	70	86	20.5	14	138.2	60×60	M10×16.5	105	M8×1	18	13	45	38	105	14×20×17
BRH45BL					163	60×80		129.8
BRH55B	80	100	23.5	15	170	75×75	M12×19	121	M8×1	20	13	53	44	120	16×23×20
BRH55BL					205.1	75×95		156.1

ABBA linear guide rail block features



1.High speed, low noise



2.High accuracy Low friction Low maintenance



3.Built-in long life lubrication.



4.International standard dimension.

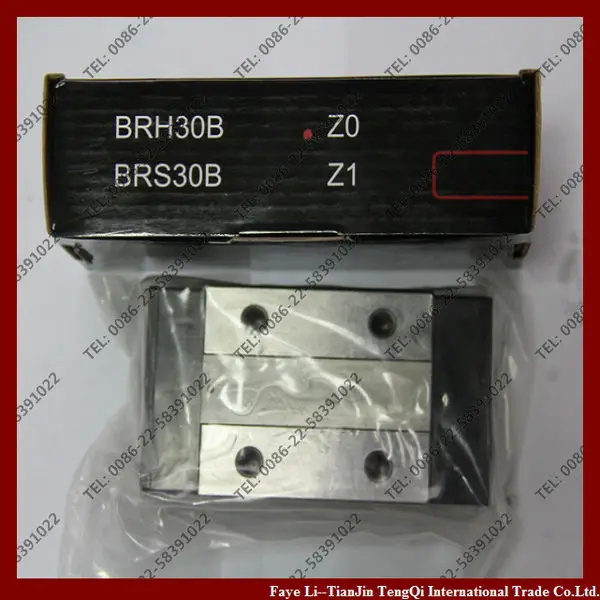

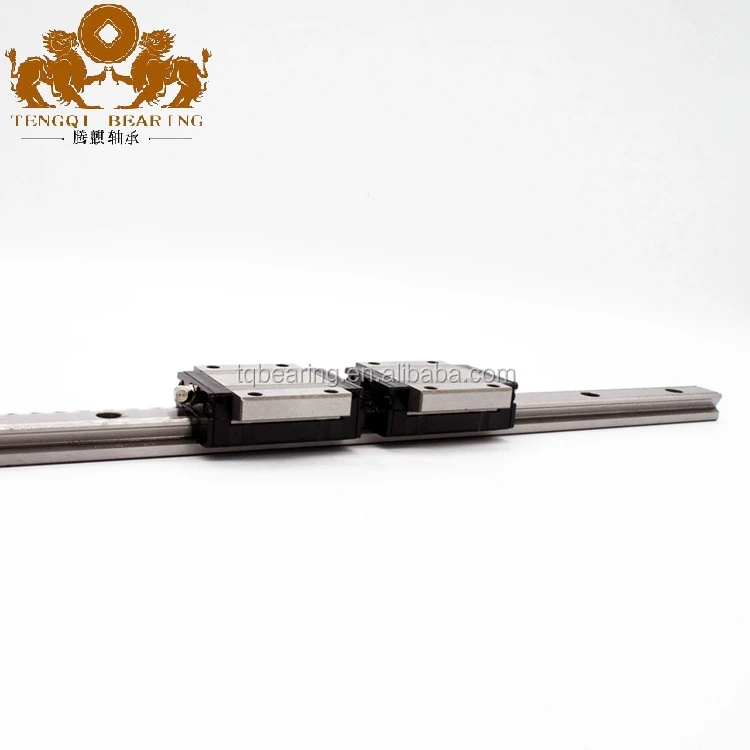

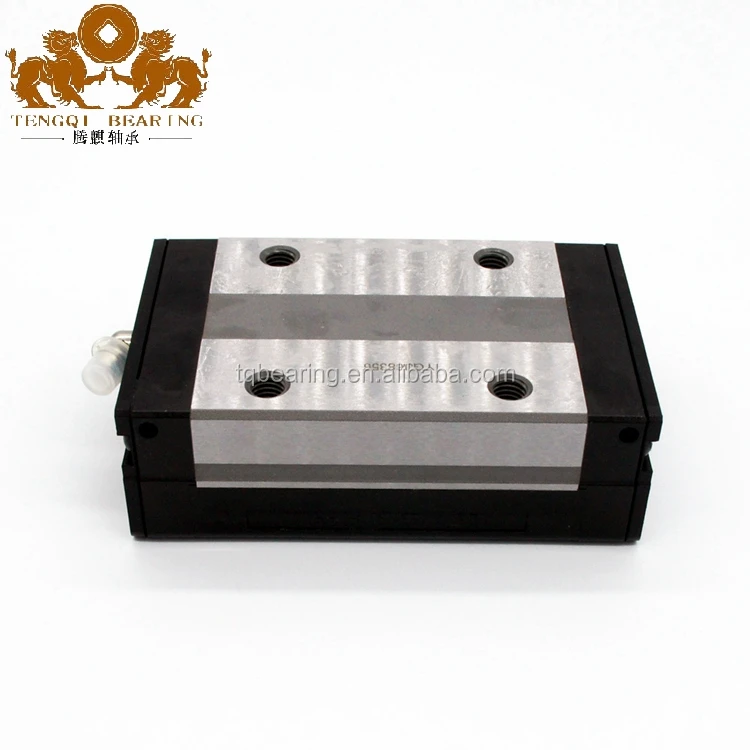

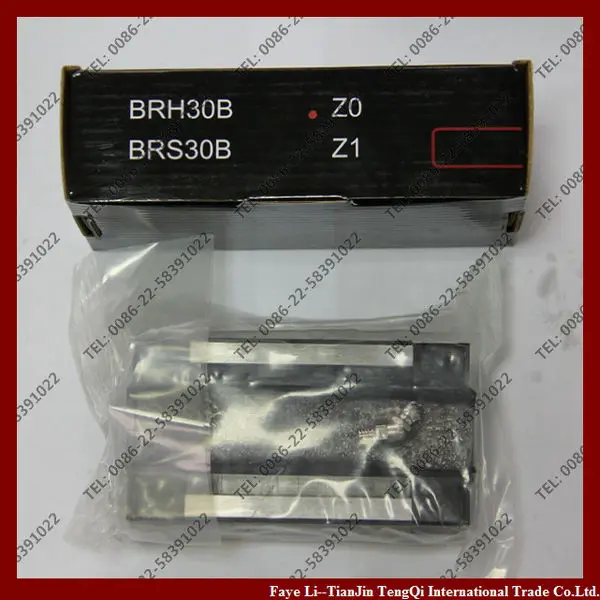

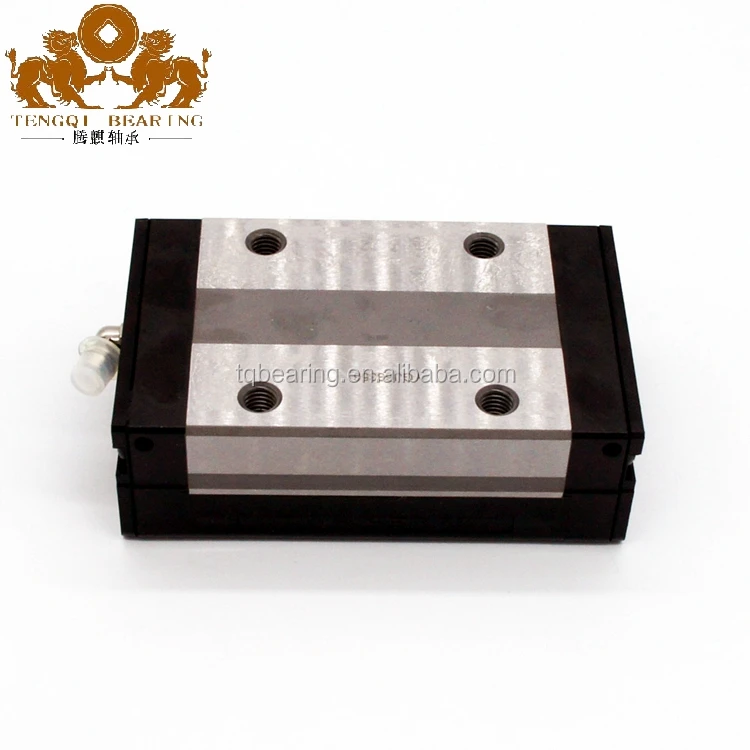

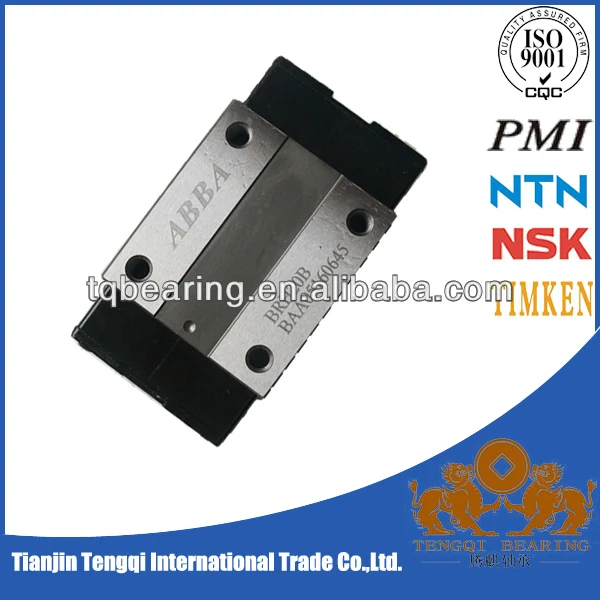

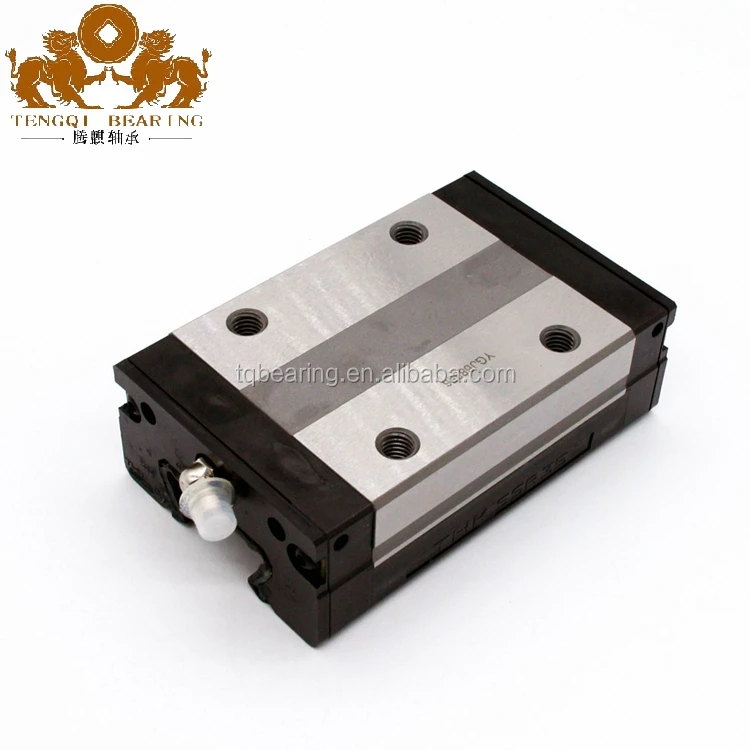

ABBA linear guide rail block pictures





Our payment terms



1.100% Western Union or Paypal in advance ,specially for small amount

2.100% T/T or western union in advance for small quantity order

3.30%-50% T/T in advance, balance before shipment for large order or long delivery time orders

4.100% irrevocable L/C at sight



Our package and warehouse



1.individual poly bag +box packing

2.poly bag + individual box +carton+ woven bag

3.poly bag + box +wooden case

4.plastic package +wooden case

5.as your requirement





Our shipping terms

1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.large quantity, can delivery by air, by sea, this is port to port.
