8 inch speaker good sound warm and clear sound pro audio

Product Overview

Description



Guangzhou Hiwell Audio Equipment Factory

 --Professional audio woofers, drivers and custom designs.



Model: 08HW29

8 inch speaker series



Feature:

8 ohm 49.5mm/2 inch Voice coil High Tempreture resistance

94 dB SPL ,120 Watts RMS

Copper voice coil outside type



140 mm Ferrit magnet

Specifications
Nominal Diameter	225*208/9*8	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	6.2	Ohm
Power handling
(50-500Hz)
Nominall	120	Watts
Continuous Program	240	Watts
Sensitivity (1W/1m)3	94	dB
Frequency Range	55.5-4500	Hz
Voice Coil Diameter	49.5/2	mm/inch
Winding Material	Copper	outside
Former Marerial	KSV
Winding Depth	13/0.5	mm/inch
Magnetic Gap Depth	8/0.3	mm/inch
Flux density	1.2	T
Thiele-Small parameters4
Fs	55.5	Hz
Re	5.2	Ohm
Qes	0.29
Qms	4.16
Qts	0.27
Vas	30	liters
η0	1.74	%
X max	2.5	mm
X var	3.5	mm
Mms	21.6	gr
BL	11.7	N/A
Le	0.7	mH

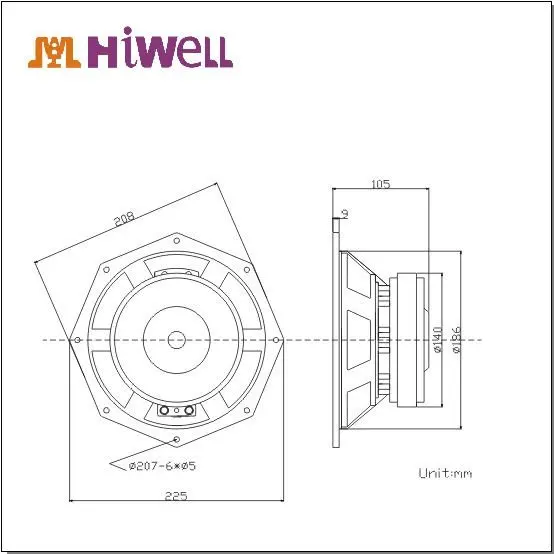

Mounting and Shipping Information
Blot Circle Diameter	207/8	mm/inch
Overall Diameter	225*208/9*8	mm/inch
Baffie Cutout Diameter	186/7.3	mm/inch
Depth	105/4	mm/inch
Flang and Gasket Tickness	9/0.4	mm/inch
Net Weight	3.5	Kg
Shipping Weight	3.6	Kg
Shipping BOX	470×470×260(8pcs)	mm
Magnet Size	140*60*20	mm
