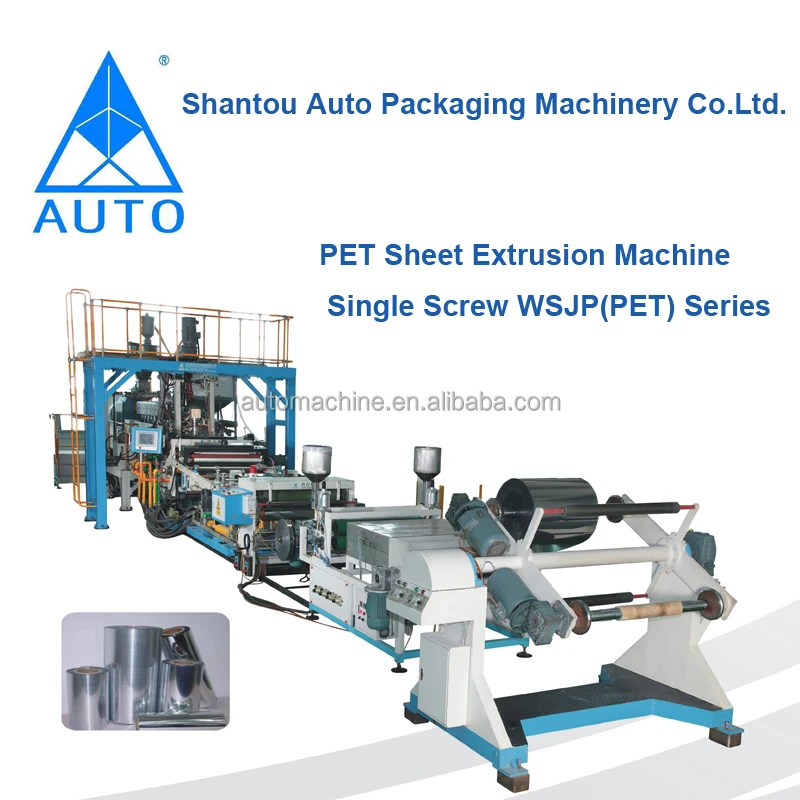

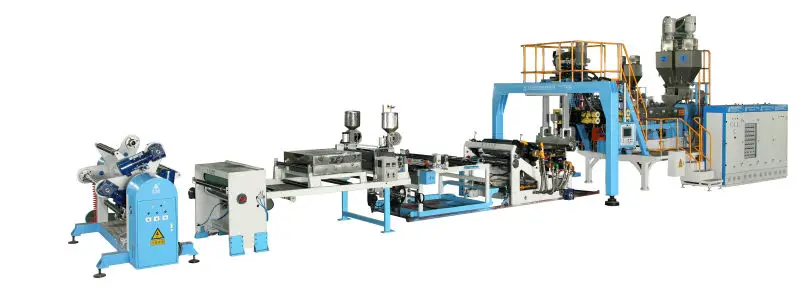

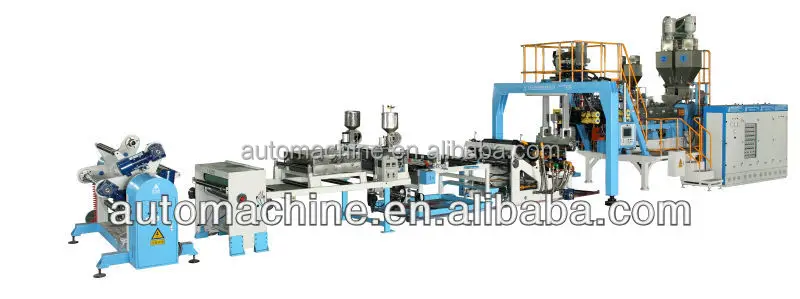

SJP PET 75 1000 plastic sheet extrusion line

Product Overview

Description

SJP(PET)75-1000 Twin screw plastic extrusion sheet(PET) unit





Unit parameter

Model	Suitable materials	Screw specification	Roller specification(mm)
SJP(PET)75-1000	APET	φ71.2	φ330*1000 φ490*1000 φ490*1000
Model	Sheet thickness(mm)	Sheet width(mm)	Max output(kg/h)	Total Capacity(kw)
SJP(PET)75-1000	0.18~1.5	≤850	300~400	280



Features of Machine Unit:

1. Host for a single twin-screw extruder, used in PET sheet production, pre-crystallization dryer energy consumption reduction and adaptation to production of secondary materials, with high output, low power consumption, excellent characteristics of plastics.
2. For meshing conjugated double thread screw component, modular structure, diversity combinaton computer-ptimized design and precision machining, has excellent self-cleaning and interchangeability.
3. Combination of screw elements arranged according to the user’s materials and processing technology, combined with years of accumulated experience in screw geometry design and technology to optimize the configuration of the software, as required to achieve transport plastic plastic, mixed mixing, Shear dispersing, homogenizing, exhaust devolatilization, built pressure extrusion capabilities. A wide range of applications, not only applies to the production of PET , but also suitable for starch based biodegradable materials.
4. Set double barrel vacum exhaust, ensure full discharge of moisture and other volatile gases.
5. Extruders equipped with a melt pump quantitative constant vltage utput and set the pressure and speed closed loop control.
6. The whole machine adopts PLC control, realization ofparameter settings, data and feedback to Automation control alarm function.
