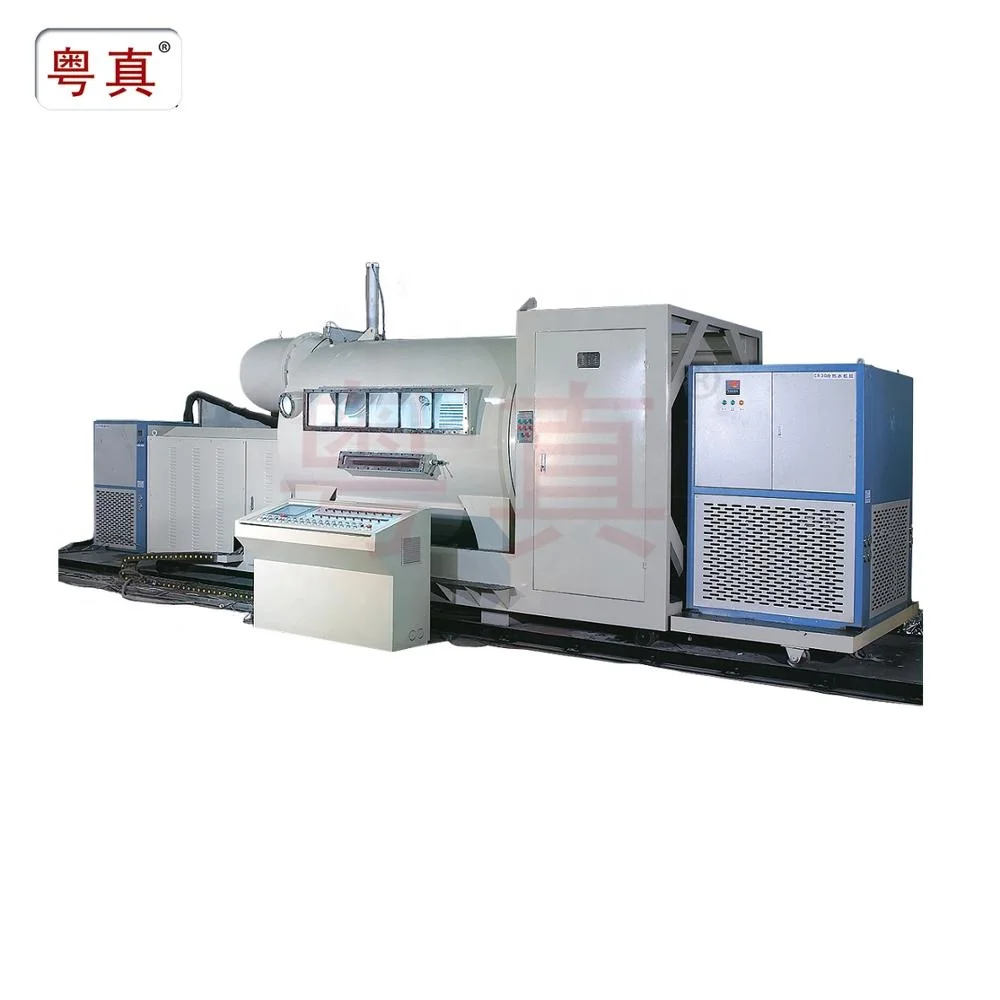

vacuum metallizing machine plastic film metallizer machine metallizer LDPE films flexible bag of Yuedong Metallizer Co.,Ltd.for
- Category: >>>
- Supplier: Shantou Yuedong Vacuum Equipment Manufacture Co. Ltd.
Share on (884401646):
Product Overview
Description
Product Description
Product Introduction
1 Siemens PLC with color HMI size 12"
2.German arc rollers
3. Japanese Yaskawa drives
4. Four Sweden ABB special motors
5. German Leybold maintain pumps
SPECIFICATIONS FOR H2200-24 | ||||||
Dia.of chamber(mm) | 2200 | |||||
Max.web dia.(mm) | 1000 | |||||
Boats(piece) | 24 | |||||
Web width(mm) | 2500 | |||||
Wire-feeding speed(m/min) | 0-5 | |||||
Work power(kw) | 320 | |||||
Winding speed(m/min) | 100-600 | |||||
Occupied area(m) | 16x14x4.8 | |||||
Main Features
1) With a high quality siemens PLC microprocessor and a siemens color touch screen, as well all digital operation parameters, machine control program based on humanity.
2) Powerful pumping section has the features of high pumping speed and with Siemens PLC control systems.
3) With 3 or 4 ABB brand high quality special frequency-conversion motors and Japanese precise vector drivers or servo drivers to achieve stable running and high winding speed.
4) With an excellent digital tension control system, so it has the features of loseproof in roll and anti-stall, also it has all kinds of function on automatic correction. It has an automatic adjustment on rewind taper tension and rapid response.
5) With a large power heating source to make a high metallization efficiency and good uniformity coating.
6) Both adjustment of centralization and separation on wire-feeding speed are available.
7) Evaporation mechanism is moveable from the rear of chamber and more easier to clean also maintenance.It's better to decrease leakage and improve vacuum condition so that increase more production.
Detailed Images
Machine Parts

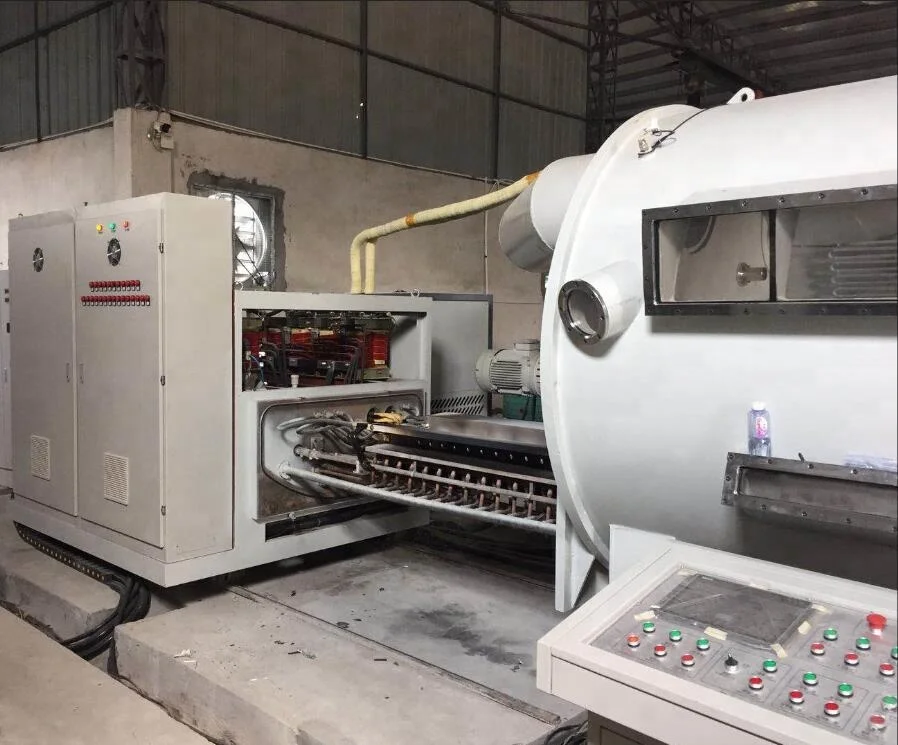

Name: Aluminum wire-feeding system
Brand:YUEZHEN
Original: China
The new design of movable Aluminum wire-feeding system.It can get an excellent vacuum condition and get more production quantity.
Main Features
Name: powerful pumping system
Brand: YUEZHEN
Original: China
powerful pumping system can get an excellent vacuum condition and get a high quality of metallized materials with beautiful metallic gloss.
Machine final products

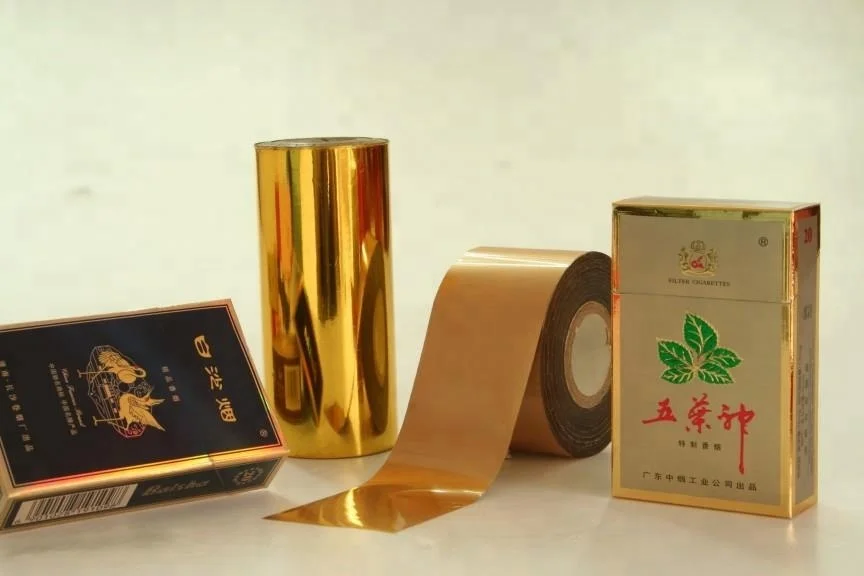

Name: cigarette box
Brand: Famous in China
Original: China
high quality packaging materials especially cigarette box.
Main Features
Name: beautiful metallic gloss
Brand: Famous in China
Original: China
METALLIZED FILMS HAVE A
BEAUTIFUL METALLIC GLOSS ON THE SURFACE,
EXCELLENT GAS AND LIGHT BARRIER
PROPERTIES,AND GOOD MOISTURE
RESISTANCE,HEAT RESISTANCE,

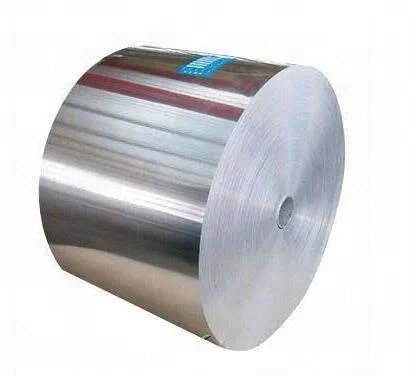

PUNCTURE RESISTANCE.AND IT'S THE BEST REPLACEMENT OF ALUMINUM FOIL.
Packing & Delivery
PLYWOOD CASES
POLYFOAM FILMS
LOADING
Company Information
Our reputation:
1. Worldwild customers: We sold more than 22 machines to India, Turkey, Turkmenistan, Vietnam, Bangladesh, Uzbekistan and North Korea.
2. Variety Exhibitions: We are in 5th pavilion of Chinaplas2021 and booth number R81.
3. Permanent service: We are a family company but not a partner company, so we can supply after-sales service for long term.
Our services:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install and use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
* 12 months warranty and improve machine performance forever.
* One set of spare parts along with machine without cost.
* One set of spare parts along with machine without cost.
Certifications:
Contact us：
Company Name: YUEDONG METALLIZER
Website: //www.ydzk.com
EMAIL: ydzk@ydzk.com
Overseas Sales Manager: Mrs. Sophia Chen
WeChat ID: 008613902736527 or sophia0086
QQ: 751100923 and email ID is same.
Overseas Sales Manager: Mrs. Sophia Chen
WeChat ID: 008613902736527 or sophia0086
QQ: 751100923 and email ID is same.
