SW 520 Loose leaf wire binding machine

Product Overview

Description

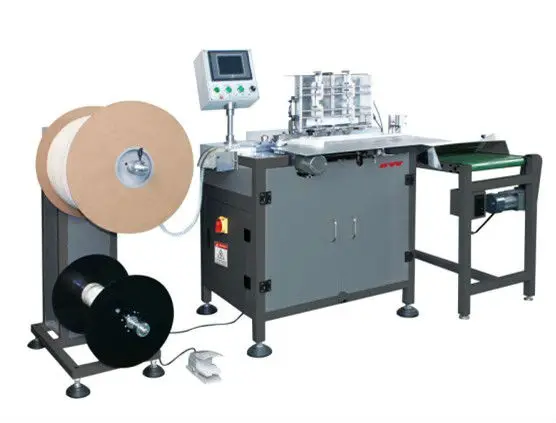

  SW-520  Loose leaf wire binding machine



Double wire binding machine is widely used for binding notebooks,workbooks,calendars,etc.











Machine Name	Loose leaf wire binding machine
Model	SW-520
Wire size	Diameter 1/4"to3/4" Pitch 3:1 2:1
Max paper width	520mm
Max binding width	507mm
Min paper length	75mm
Working speed	0-1200 book per hour
Size of working table	600*300mm
Speed	130L/min
Power	220V/1P/50HZ
Air Compressor	1.5KW
Machine Dimension	1030*770*1200 mm
Weight	220KG









Double wire binding machine is widely used for bindingnotebooks,workbooks,calendars,etc.

Except for the loops inserting through the operation by hand, all other processes could be finished by machine

automatically loops counting, feeding, positioning, closing and binding, bound book delivery on conveyor belt. The machine is free of closing bars, the sizes can be automatically adjusted

It's especially suitable for the books wihich covers xize is bigger than its inner sheets.Controlled by PLC. Easy to

set and adjust.Can bind up to 20 books per min

Setting are easily done with the intuitive touch screen Up to five step skip binding

Can bind double wire of diameter 1/4 "up to 3/4"

Electrical and pneumatic parts are of prestigious SIEMENS PLC optional hanger attachment





1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.
