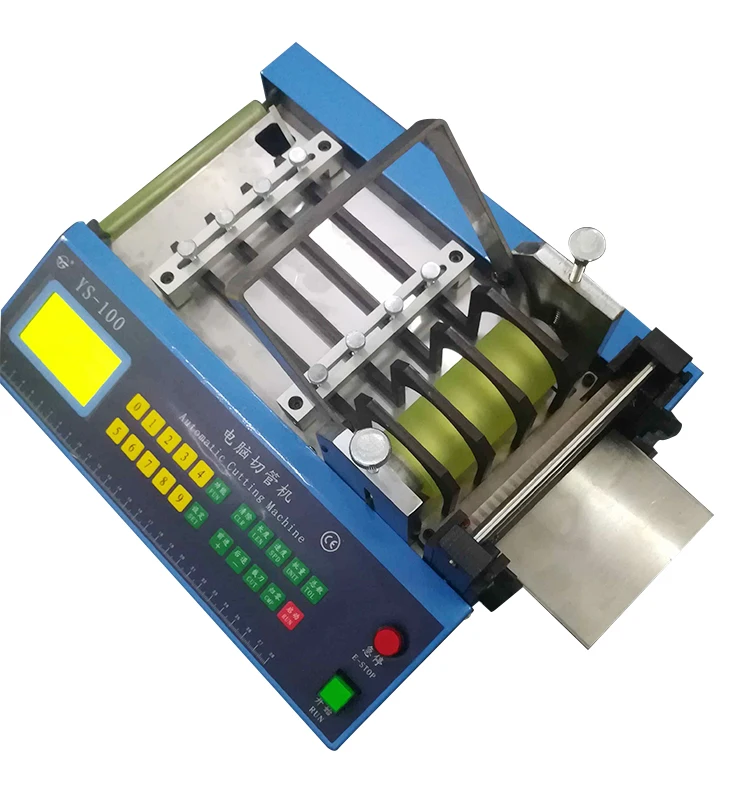

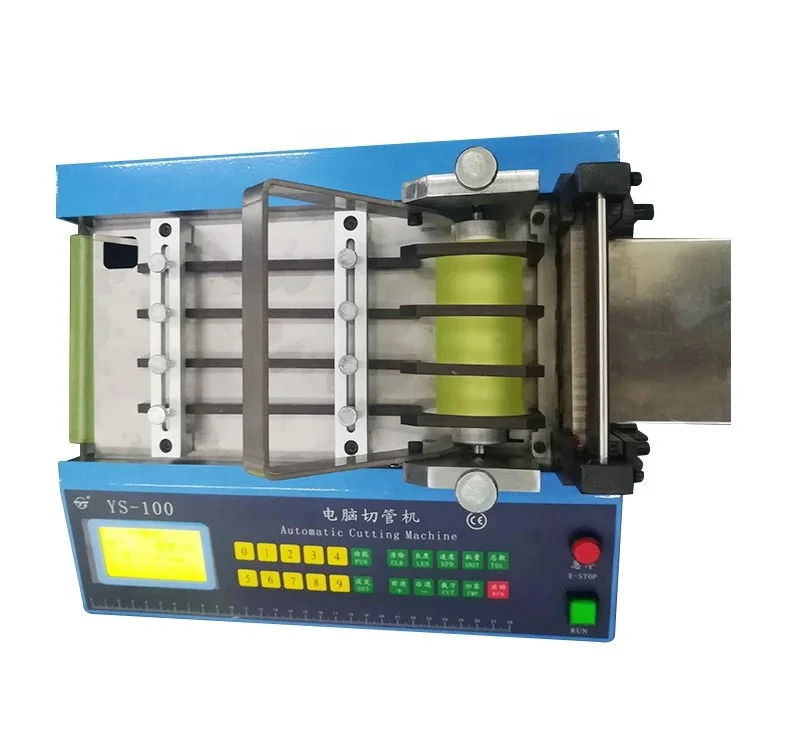

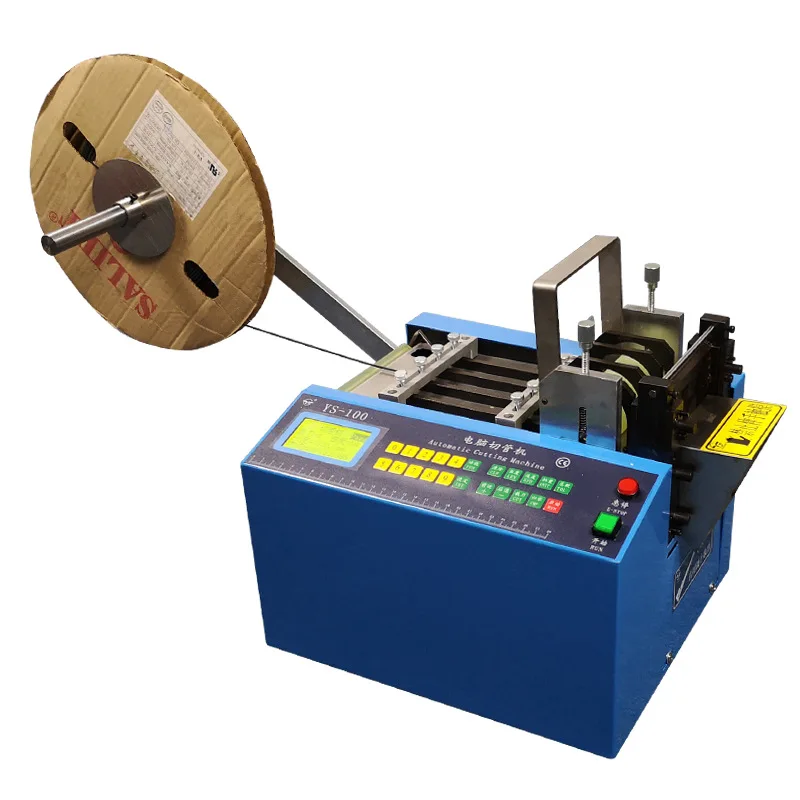

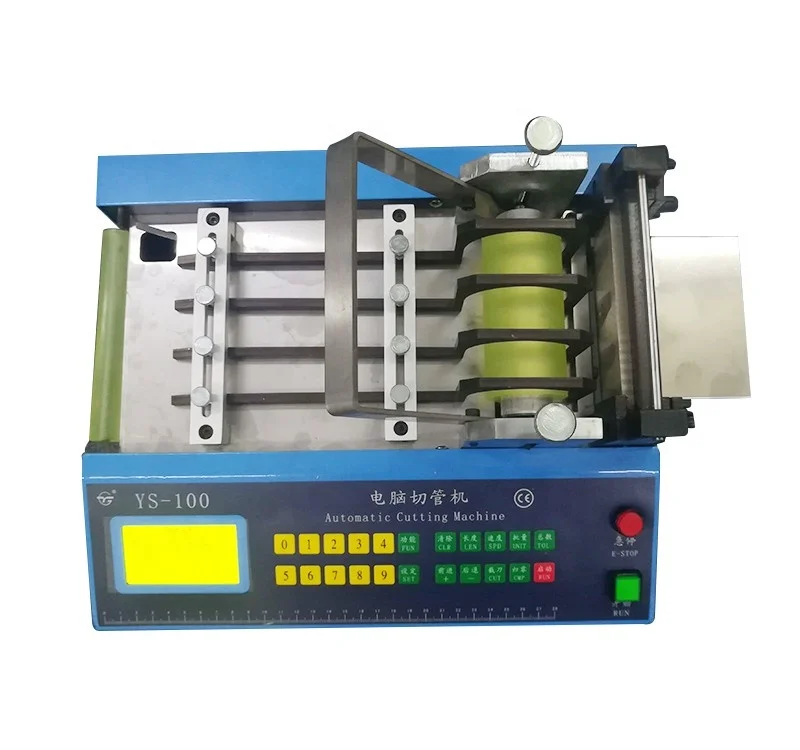

High Efficiency Industrial Automatic Pipe Cutting Machine YS 100

Product Overview

Description

WILLDONE YS-100 Industrial  High Efficiency Automatic Pipe Cutting Machine



YS-100

Parameter

Electrical Source	220/110V  50/60HZ
Power	250W
Cut Length	from 0.1 MM to 9999.9MM
Cut Width	from 0.1 MM to 100MM
Cut Speed	It depen on the cut length,from 50 PCS to 120PCS per minute
Net Weight	30KG
Outer size	L360*W300*H350 mm
Packaging detail	Carton or wooden case within foam plastics





Guarrantee:

Three years for the pc board

One year for the machine

Knife can be shaped for free in a year



(The other pattern:YS-100,YS-100W,YS-120,YS-120W,YS-160,YS-160W, YS-200W,YS-250W,YS-300W,the W means high-power)



Characteristic:

1.*English manual and display which is easy to understand

2.*Best service:mother board and system are developped by our own engineer.Best technology support and after sale service will be provided

3.*High speed: It can cut 100~120 cut per minute. (50mm long)
4.*Accuracy: Small cutting length such as 30mm,the error is below 1mm
5.*Cutting type: Cold cutter which is durable or hot knife cutting .
6.*Automatic operation:Easy operating and safety machine. It works automatically only by setting length and quantity
7.*Automatic stop: It stops automatically if materials run out during operation
.8.*There is a pole on the machine which can hold the material roller below 10kg.

9.*Materials Can Cut: pipe,tube,belt, webbing, fabric, cloth, foam,ribbon,plastic,film,label,wire,shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hose pipe,rubberhose,teflon tube,chequered tube,velcro,insulated sleeve,insulation paper,copper foil and so on.



How to choose models:

YS-100 is suitable to cut material width below 100mm

YS-120 is suitable to cut material width below 120mm

YS-160 is suitable to cut material width below 160mm

YS-200W is suitable to cut material width below 200mm

YS-250W is suitable to cut material width below 250mm

YS-300W is suitable to cut material width below 300mm



Some materials with big thickness,will be suitable for our big power machine model:YS-120W,YS-120WH,YS-160W,YS-200W,YS-250W,YS-300W





Application

The cuting machine can cut band,belt,tube, pipe,webbing,wire,tape,cable, sheet,film.



 Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Tefln tube, corrugated tube, etc.

Cable: Flat cable,ribbon cable wire,etc

Tape: nickel strap, velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

 Sheet: battory separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet,etc

 Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc
